Basic Information
Model NO.Night Arrow
ApplicationEntertainment
StyleHandheld Monocular
KindThermal Imaging Night Vision
Detector384X288, 12um
Operation Time12 Hours
Shock Resistance7000j
DisplayOLED (1024X768)
MaterialMetal / Aviation-grade Lithium Alloy
OriginChina
Product Description

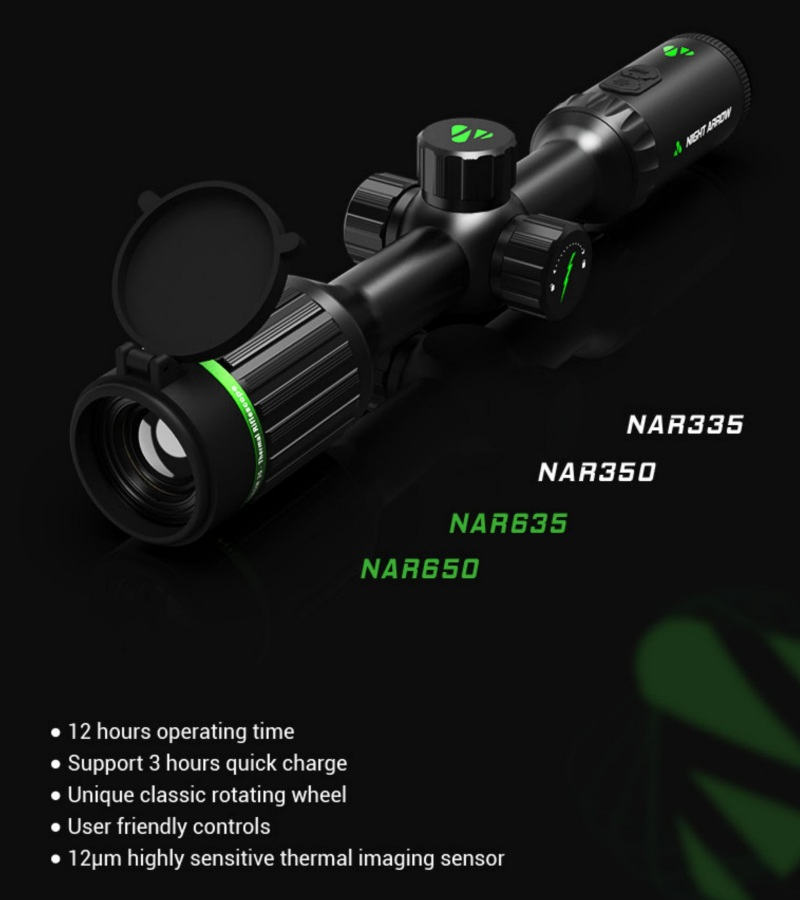

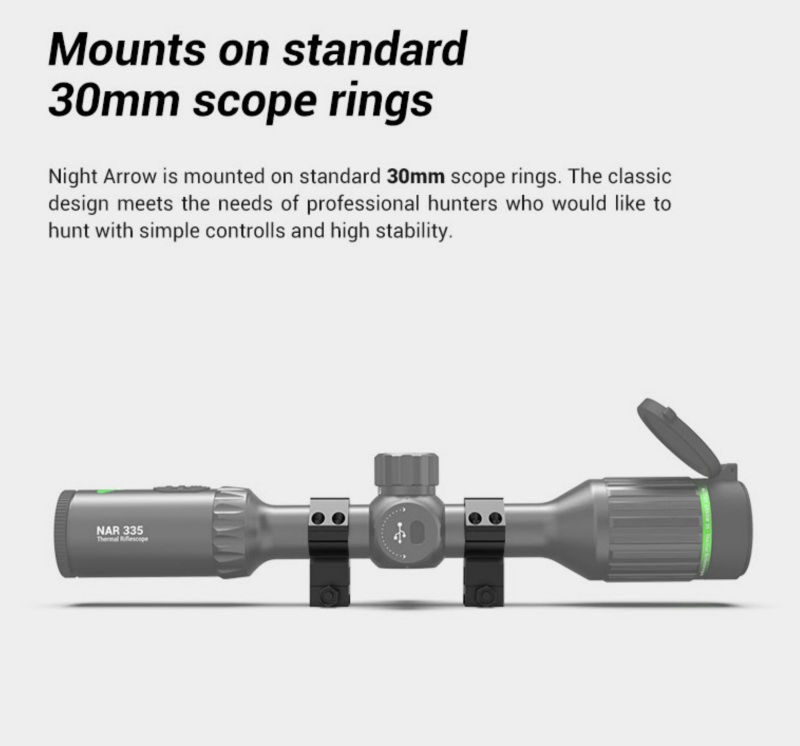

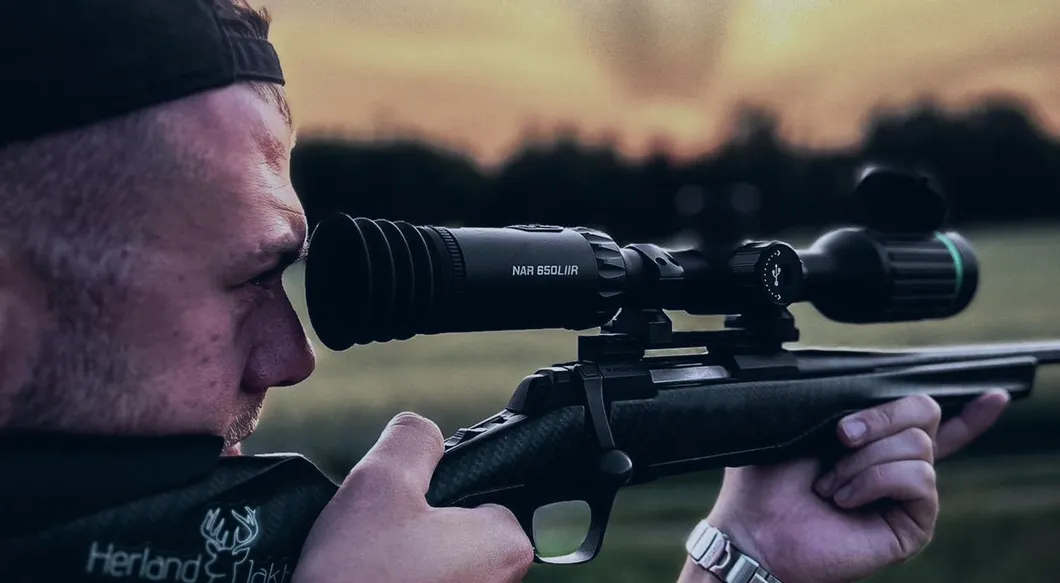

Thermal scope combines classic design - NIGHT ARROW

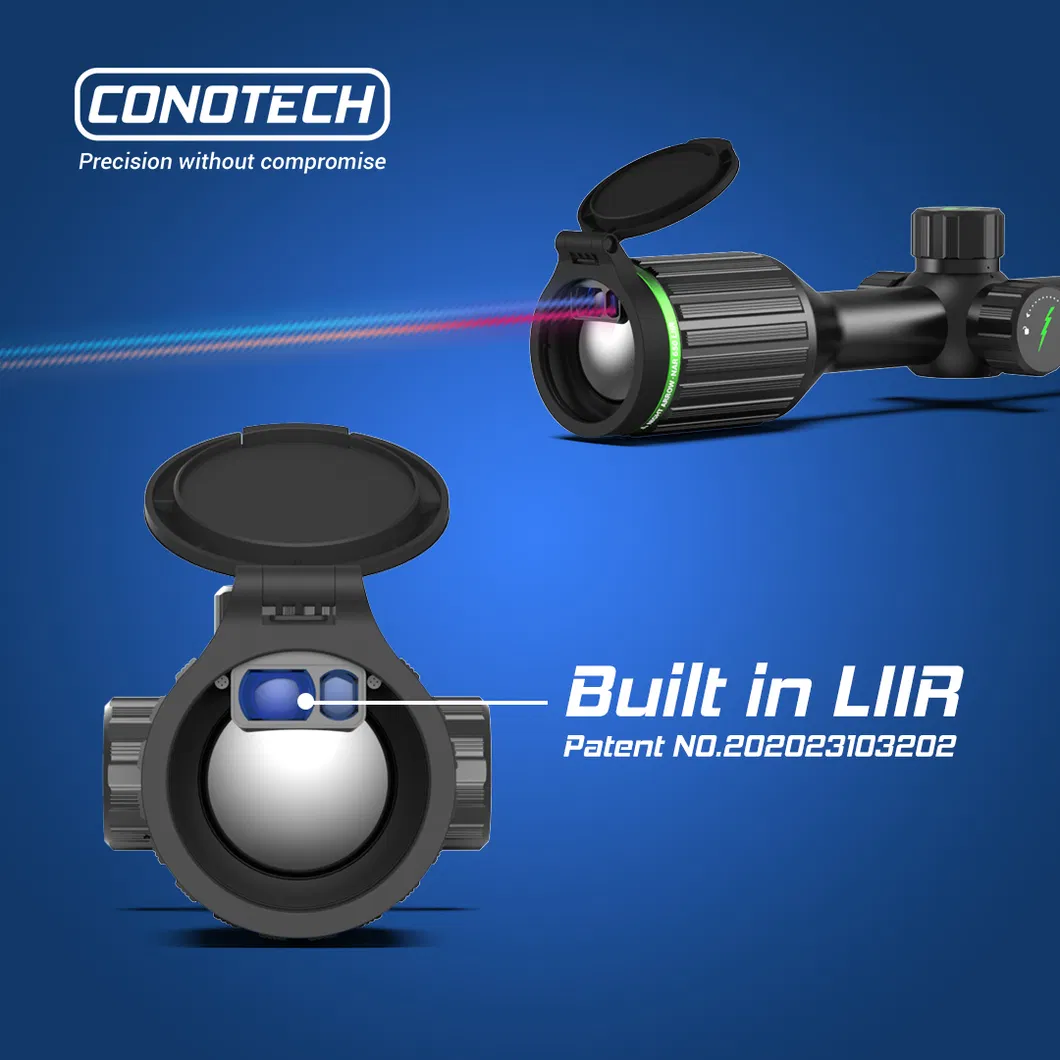

LIIR - The World's First Rangefinder in a Lens
LIIR is an exclusive patented design (Patent NO. 202023103202) that ensures perfect alignment of the laser and infrared axes, offering superior precision and reliability in operation.

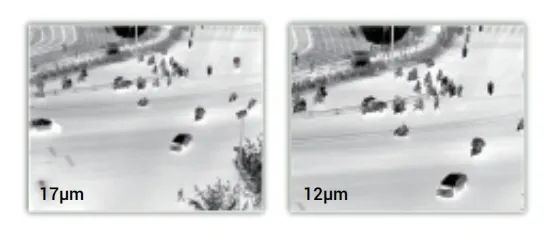

Highly Sensitive Thermal Imaging Sensor
The 12μm thermal imaging sensor with <15mK NETD offers sharp, richly contrasted images. Compared with 17μm sensor, it has a smaller FOV, looks sharper and more detailed enabling better object identification capabilities.

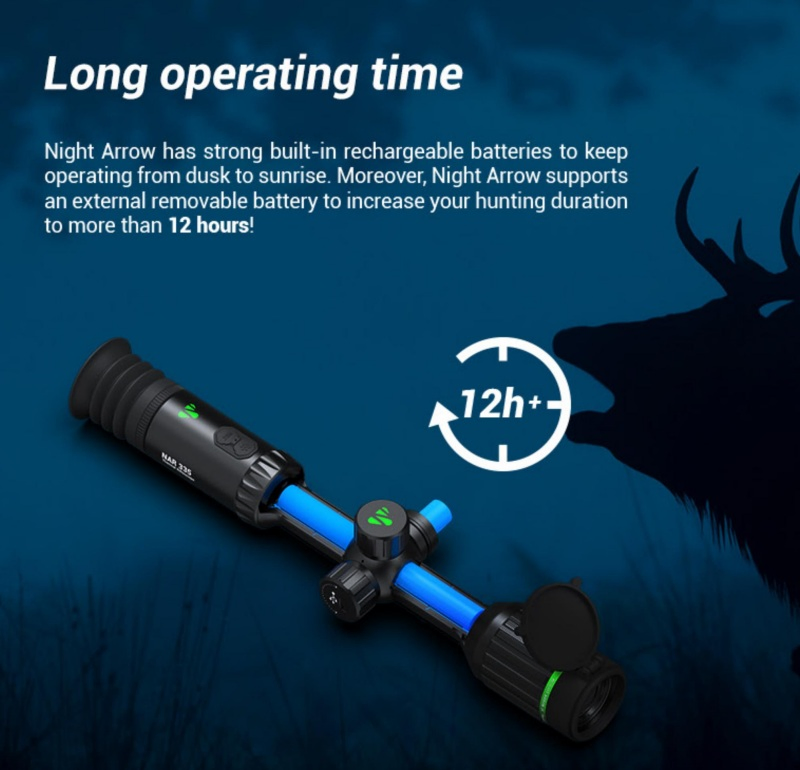

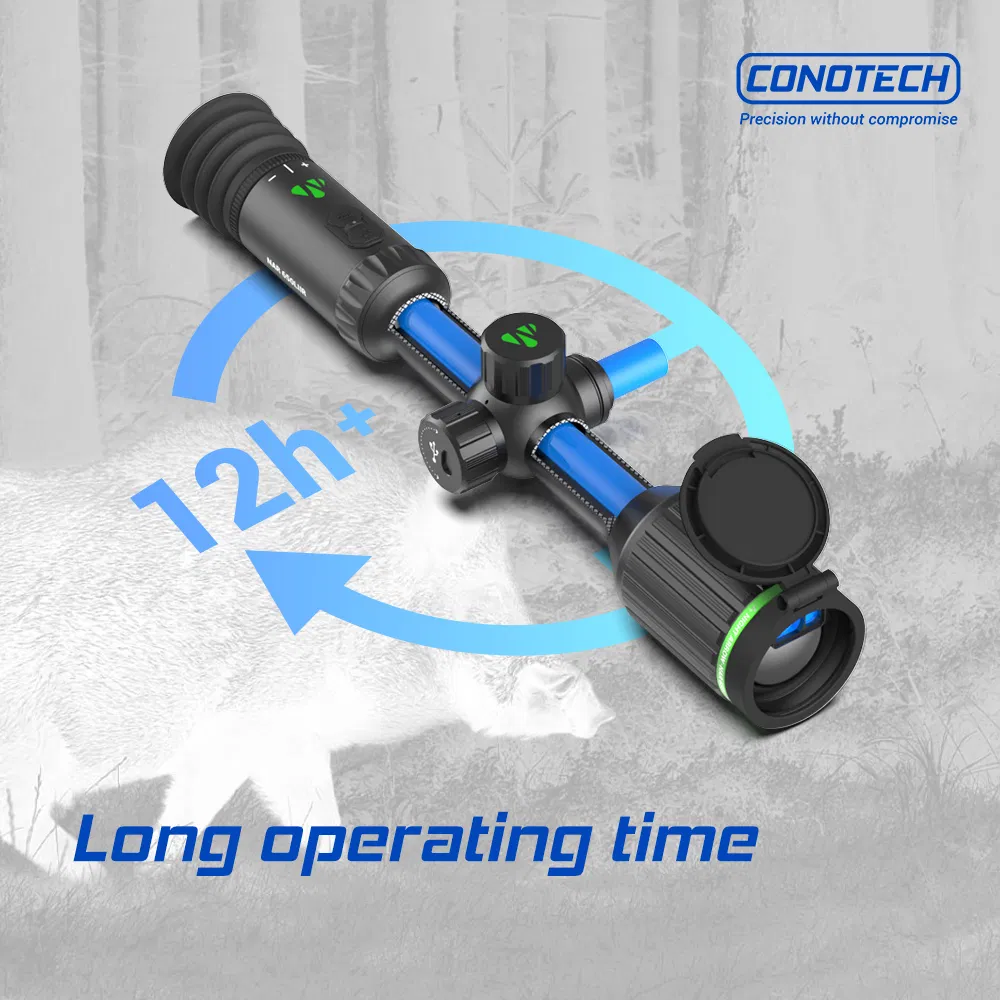

Extended Battery & User Controls

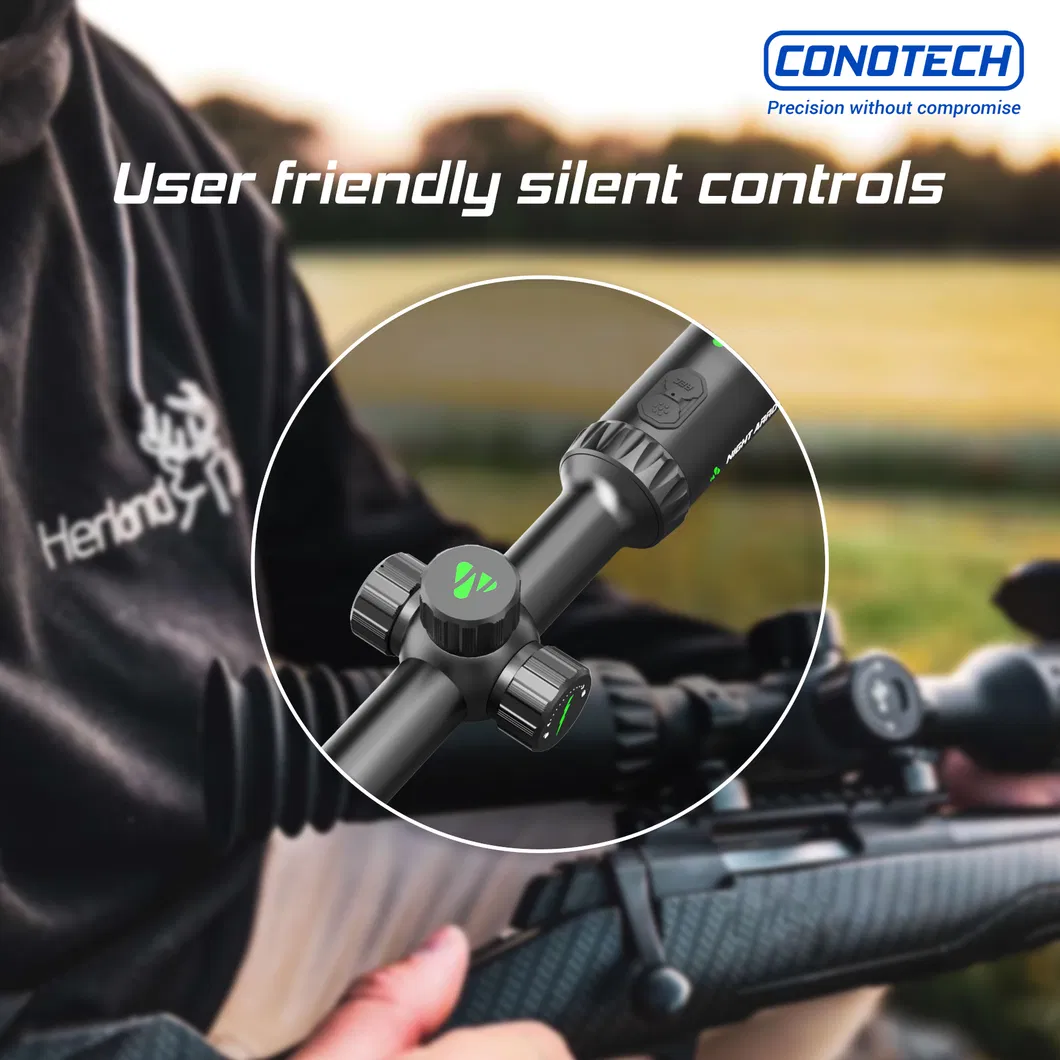

Supports an external removable battery to increase your hunting duration to more than 12 hours. Features silent controls with a unique wheel design for precise zooming and menu navigation.
Core Features
1. High-resolution OLED Display: 1024x768 display offers a crisp, richly contrasted, vividly colored image.
2. Picture-in-Picture Function: Displays a X2 image of view for precise zooming on an object of interest.
3. Multiple Modes: Extreme mode for bad weather (rain/fog); Pure mode for a clean undisturbed recording view.
4. Selectable Reticle: 5 reticle patterns and 4 colors for quick target acquisition.
5. 35/50mm Optional Lens: Choose 35mm for short-medium range or 50mm for medium-long range missions.

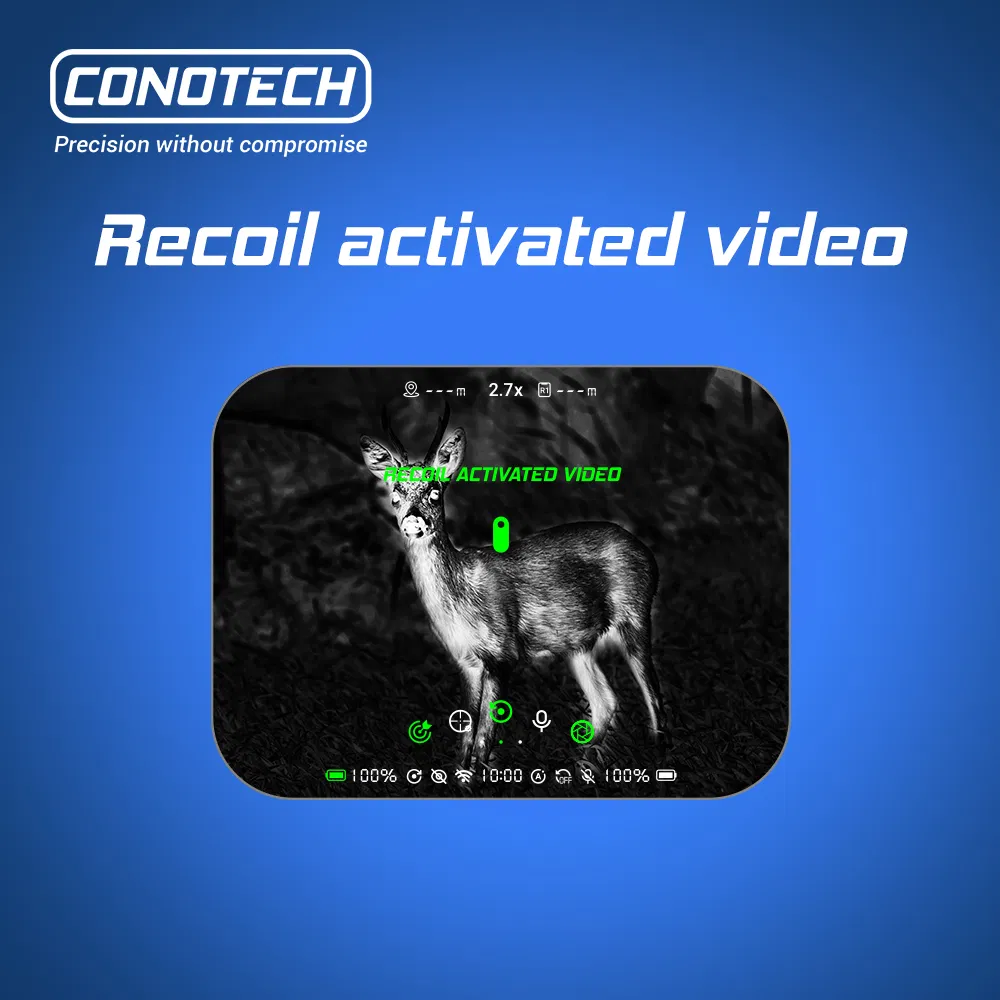

6. Recoil Activated Video: Captures the 10s span before and after your shot upon recoil detection.
Technical Specifications
| Model |
NAR 335PRO |
NAR 350PRO |
NAR 350LIIR |
NAR 635PRO |
NAR 650PRO |
NAR 650LIIR |
| Main Characteristics |
| Detector | Uncooled Vox |
| Resolution | 384×288 | 640×512 |
| Frame rate | 50Hz |
| Pixel | 12μm |
| NETD | < 20mk |
| Optical Characteristics |
| Objective lens | 35mm | 50mm | 50mm | 35mm | 50mm | 50mm |
| Magnification | 3.3x | 4.8x | 4.8x | 1.9x | 2.7x | 2.7x |
| Detection (1.7m) | 2480m | 3540m | 3540m | 2480m | 3540m | 3540m |
| Display & Power |
| Display Type | OLED 1024×768 |
| Memory | 32GB Built-in |
| Operating Time | 12 Hours |
| Laser Rangefinder (NAR 650LIIR Only) |
| Measuring Range | / | 5-1200m | / | 5-1200m |

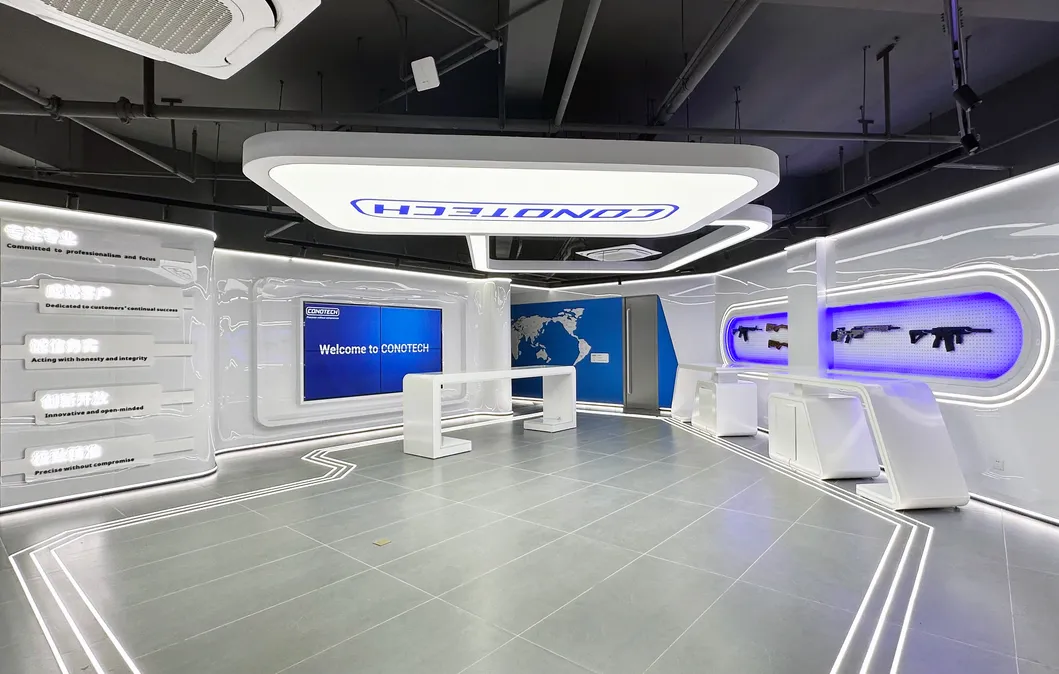

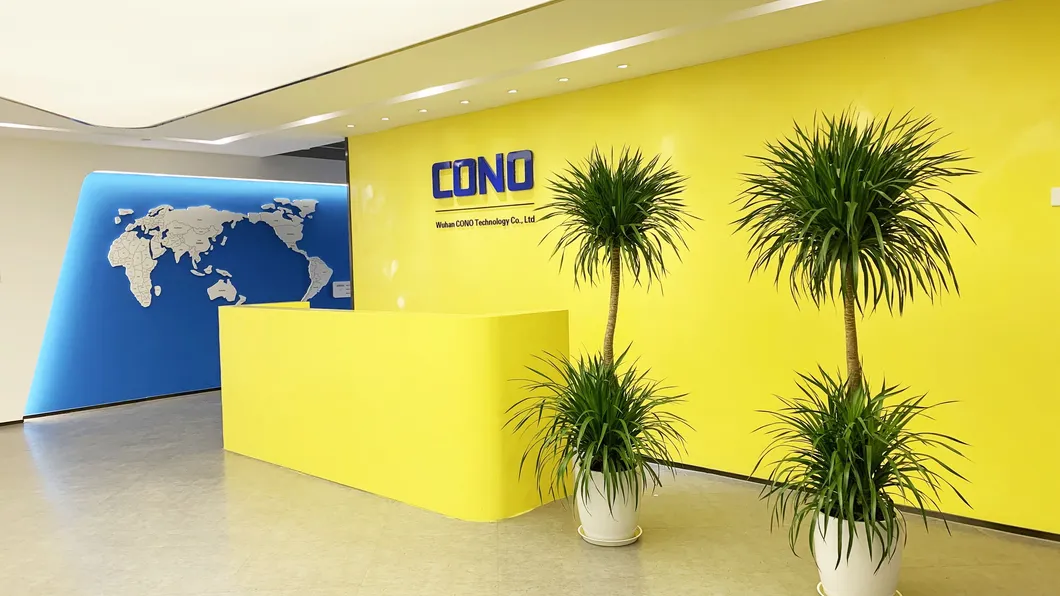

Quality Assurance & Facility
Built-In Precision Laser Rangefinder
Integrated, precision laser rangefinder provides accurate rangefinding in two modes - Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance.
Frequently Asked Questions
Q: Are you a manufacturer or a trade company?
A: We are an ISO-approved manufacturer specializing in thermal imaging devices, offering both OEM and ODM services.
Q: What certifications do your products have?
A: Our products have passed CE, ROHS, ISO9001, and SGS certifications. We also hold multiple design patents.
Q: Can I order a sample to test the quality?
A: Yes, we recommend checking a sample before placing a bulk order. Please contact us for detailed pricing.
Q: What is the typical delivery time?
A: The delivery date is approximately 3-15 working days after the receipt of payment, depending on order size.
Q: What is the warranty period for the Night Arrow?
A: We provide a comprehensive 3-year warranty for our thermal imaging products.
Q: How are the products packaged for shipping?
A: We usually use standard export carton boxes. Custom packaging solutions are also available upon request.
