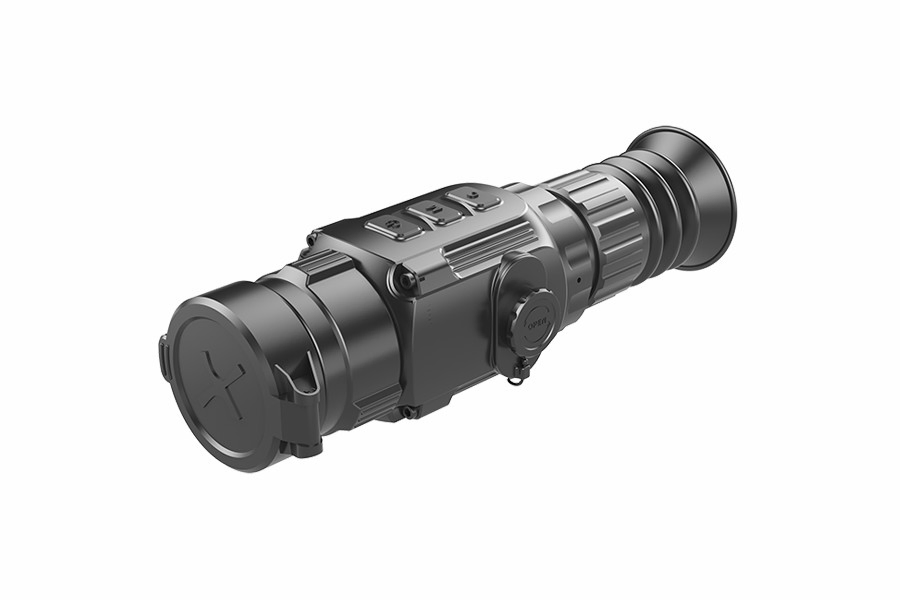

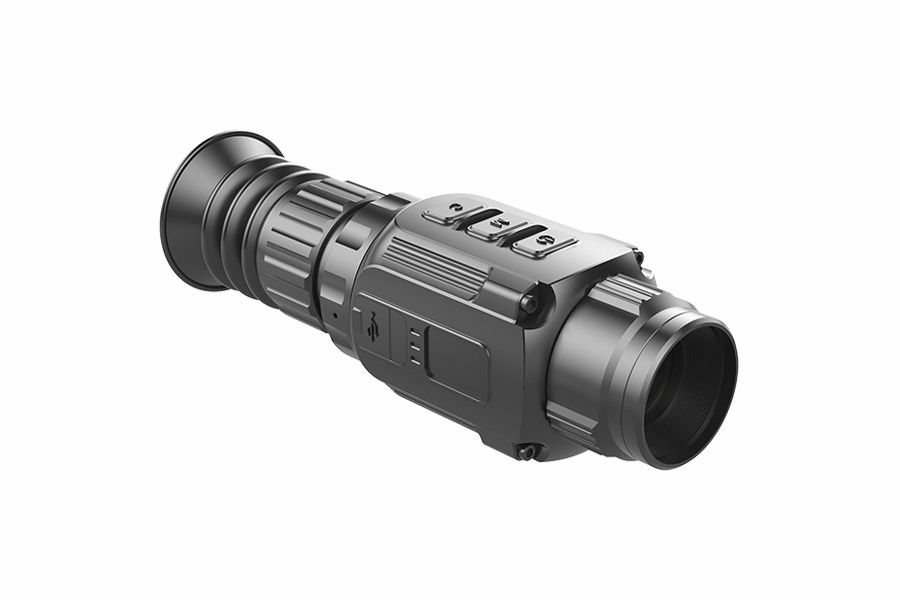

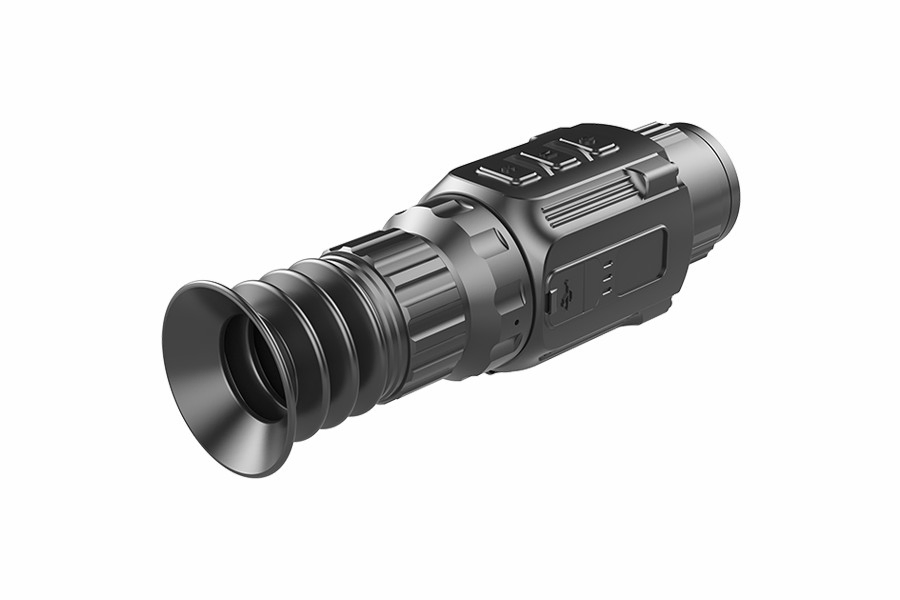

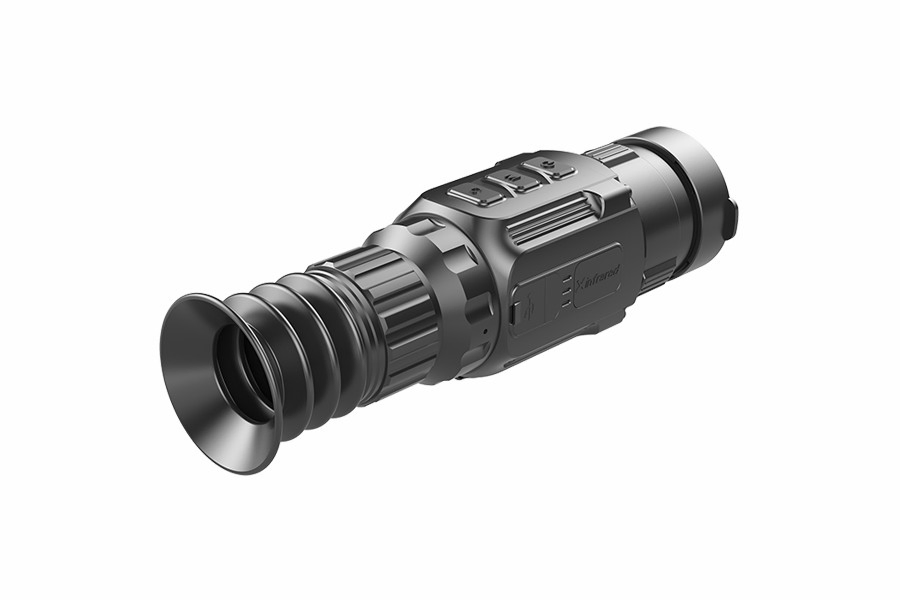

Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting
Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting
Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting
Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting
Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting
1 / 5
Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting
Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting
Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting
Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting
Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting

Infiray Thermal Imaging Riflescope SCP19 Scope for Patrol for Hunting

Customization: Available
After-sales Service: 2 Years Warranty
Warranty: 2 Years Warranty
Send Inquiry

Product Description

i

Basic Specifications

Model NO.SCP19
ApplicationCivil
StyleHandheld
StructureMonocular
KindThermal Imaging Night Vision
Operation PrincipleInfrared Night Vision
Shell MaterialMetal
Resolution256X192
Pixel Size12um
NETD≤40mk
Frame Rate25Hz
Objective Lens19mm
Detection Range986m
Field of View9.2°×6.9°
Magnification2.3-4.6
Display Resolution1280×960 Lcos
OriginChina
P

Product Features

The Saim series thermal imaging scope is designed with portability and easy operation. Ergonomic design and excellent imaging quality make the Saim series an excellent companion for night observation, even in condition of rainy or foggy.

High Image Quality

Built-in detector matched with Matrix powerful algorithm designed to increase imaging clarity and overall image detail. Matrix results in a sharper, more detailed field of view and enhanced object identification capabilities. The Saim series provides high image quality, improving the image contrast automatically, strengthening the image hierarchy, so to find target faster.

User-Friendly Interface

Simple and easy to operate is the initial design intention. Full icon design, easy to understand, and translucent background design of menu can effectively avoid occlusion vision. Internal menu items and options are also displayed on a contrasting gradient substrate so you can keep an eye on settings without losing sight of your objective.

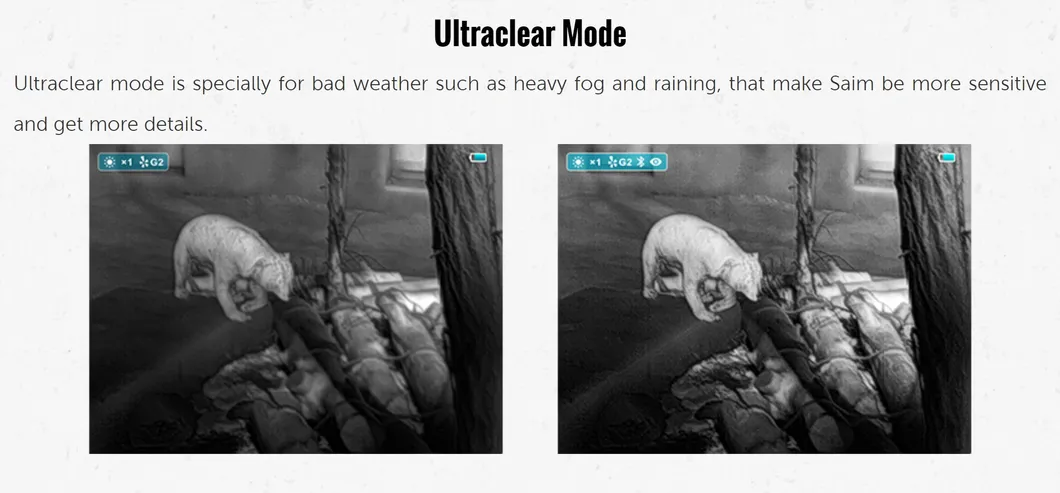

Ultraclear Mode

Ultraclear mode is specially for bad weather such as heavy fog and raining, that make Saim be more sensitive and get more details.

High Shock Resistance

The Saim series features exceptionally high shock resistance up to 1000G.

Picture-in-Picture Function

Picture-in-Picture improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps to magnify the target while retaining the rest of the field of view visible.
T

Technical Parameters

Resolution256x192
Pixel Size,um12
NETD,mk≤40
Frame Rate,Hz25
Objective Lens,mm19
Field of View9.2°×6.9°
Magnification,×2.3-4.6
Diopter Adjustment-5D~+5D
Display Resolution1280×960 LCOS
Battery TypeCR123×2
Max. Battery Life,h8
Weight(without batteries),g<380
Dimension,mm186×61×61
Detection Range,m986 (Target size:1.7m×0.5m)
Thermal Imaging Riflescope SCP19 View 1
Thermal Imaging Riflescope SCP19 View 2

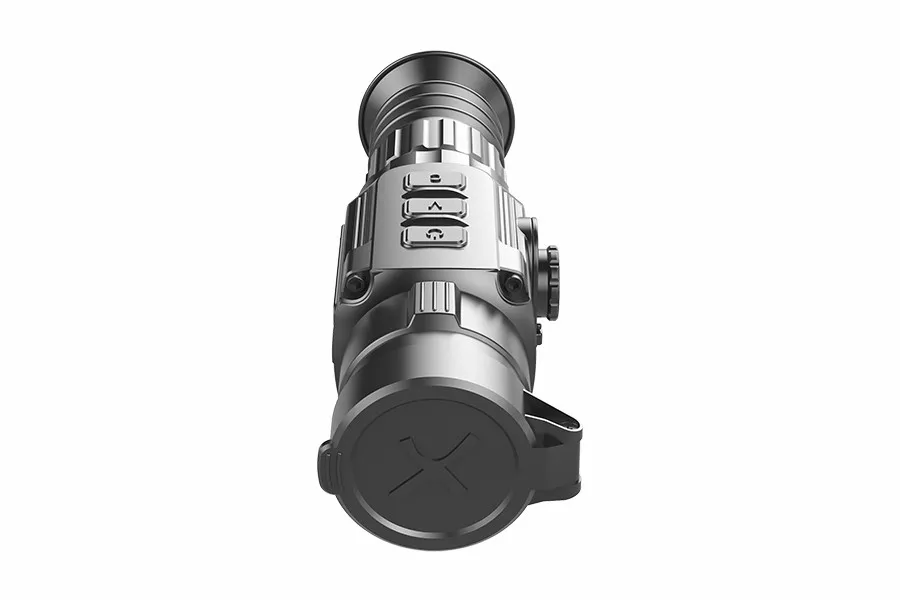

Thermal Imaging Riflescope SCP19 View 3
Thermal Imaging Riflescope SCP19 View 4
Thermal Imaging Riflescope SCP19 View 5
Frequently Asked Questions
Q1: What is the maximum detection range of the SCP19? A: The SCP19 can detect a standard target (1.7m × 0.5m) at a distance of up to 986 meters.
Q2: How does the Ultraclear mode improve imaging? A: Ultraclear mode is specifically designed for adverse weather conditions like heavy fog or rain, increasing sensor sensitivity to capture more target details.
Q3: What is the shock resistance rating of this thermal scope? A: The Saim series features exceptionally high shock resistance, rated up to 1000G, making it durable for various environments.
Q4: Can I use an external power supply with the SCP19? A: Yes, the working time can be significantly prolonged by connecting to high-capacity external power sources via a Type-C cable.
Q5: What are the main benefits of the Picture-in-Picture (PiP) function? A: PiP provides a 2x magnified image of the reticle area at the top of the display, allowing for precise aiming while maintaining the overall field of view.
Q6: Is the interface easy to use for beginners? A: Yes, it features a simple, full-icon design with a translucent menu background to prevent vision occlusion, making it highly user-friendly.
