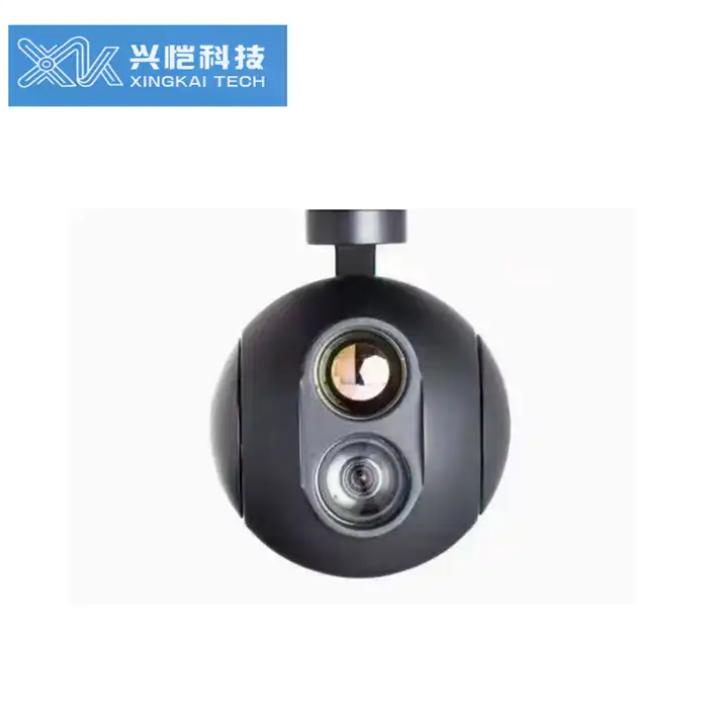

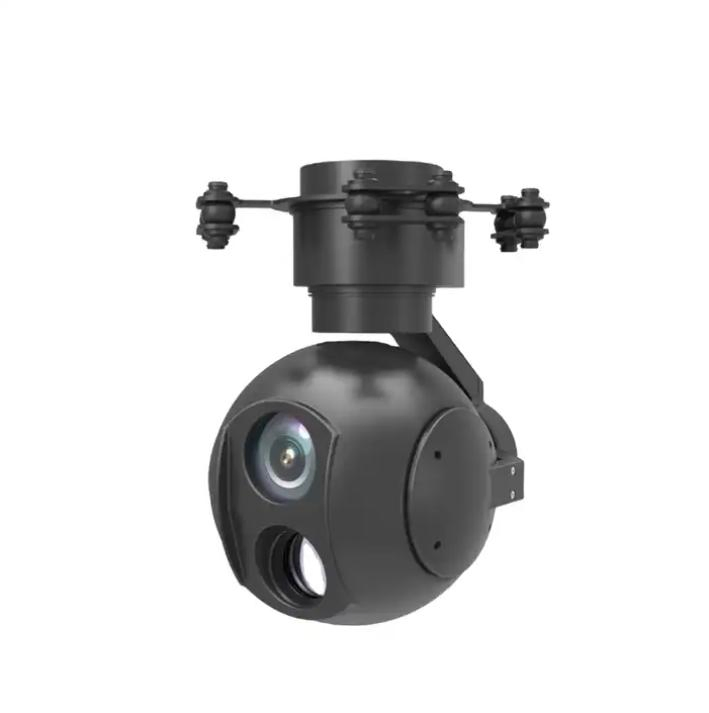

30X Optical Zoom Dual Gimbal Camera for VTOL UAV
XK-FG400 is a powerful 3-axis dual-sensor gimbal camera which integrates a 30X optical zoom 1080P HD camera, a 640x512 thermal camera and a 3-axis platform with high stability and accuracy, working in day and night perfectly. It plays a professional and reliable role along with industrial UAV in activities of patrol and inspection, security, search and rescue, etc.
Electrical power-line inspection, security patrol, search and rescue, fire emergency response.
| Model Spec | |
| Model | XK-FG400 |
| Thermal Imager Spec | |
| Detector Type | Uncooled focal plane |
| Detector Pixel | 640×512 |
| Lens Focal Length | 25mm (35mm optional) |
| FOV | 17.5°×14° (±5%) |
| Digital Zoom | ×2, ×4 |
| Measurement Range | -20ºC~150ºC |
| Camera Spec | |
| Resolution | 1920×1080 |
| Lens Focal Length | 4.3mm~129mm |
| Optical Zoom | 30X auto-focus |
| Gimbal Spec | |
| Yaw/Pan | 360°×n |
| Pitch/Tilt | -120°~+90° |
| System & Environment | |
| Object Tracking | Automatic |
| Working Voltage | DC +20V~+36V |
| Weight | ≤1Kg |
| Dimension | ≤131mm×155mm×208mm |
| Working Temp | -20ºC~+55ºC |
| Protection Level | Work in light rain |
