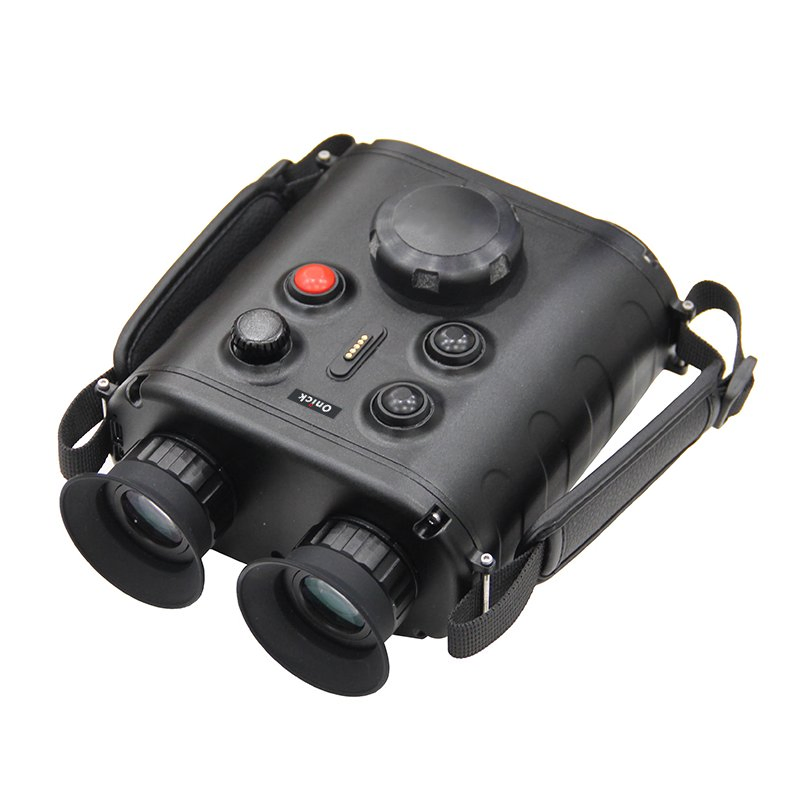

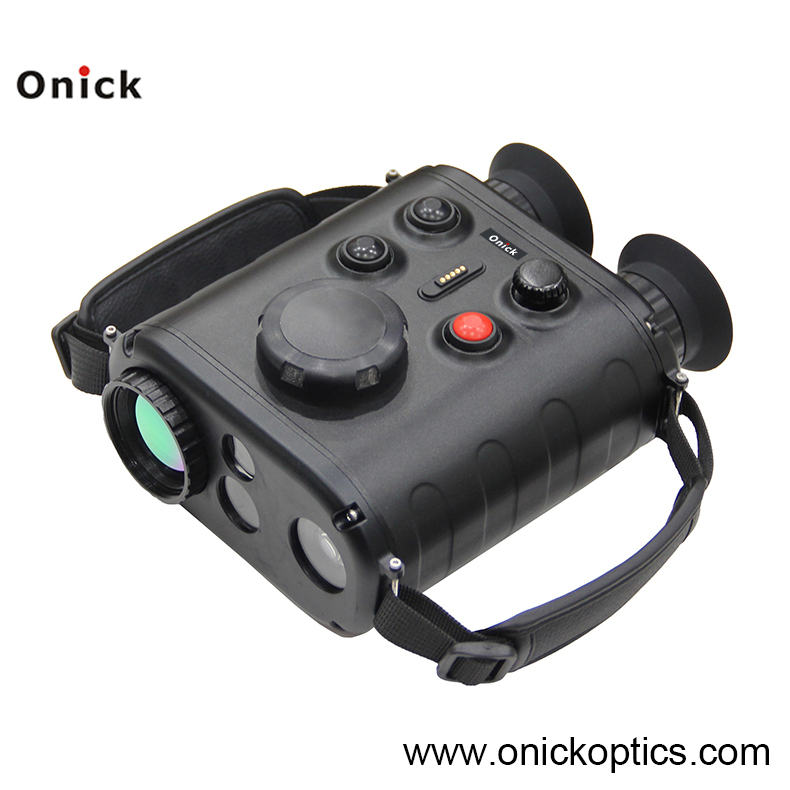

Re650 Handheld Three-Light Infrared Thermal Imager for Uav and Industrial Inspection Durable Thermal Camera

Customization: Available
Function Type: Infrared Range and Communication System, Thermal Imaging System
Detection Type: Heat Detectors

Product Description

🔍 Product Overview

The RE650 is a professional handheld three-light thermal imaging observation and reconnaissance instrument. It integrates a high-definition TV camera, an uncooled infrared thermal imager, a precision laser rangefinder, GPS, and an electronic compass. Designed for all-weather operation, it excels in target positioning and day/night reconnaissance. Its compact, lightweight structure ensures low power consumption and simple control with a stable grip for field applications.

Model:RE650
IP Rating:IP67
Material:Organic Materials
Display:0.39-Inch OLED
Thermal Lens:35mm, F1
Laser Range:10~3500m
🚀 Key Functions & Features
📸 Advanced Imaging: Dual infrared and white light imaging with binocular observation and high-capacity video/image storage.
⚖️ Precision Positioning: Features Beidou positioning, compass orientation, target trajectory calculation, and high-accuracy laser ranging.
🔍 Stepless Zoom: Electronic zoom ranging from 1.0× to 8.0× with fine 0.1× increments for detailed target identification.
🤖 AI Intelligence: Smart AI recognition for human and vehicle targets, including the ability to lock and identify drones.
🌫️ Environmental Adaptation: Built-in fog penetration, air pressure sensors, and attitude sensing (roll, pitch, altitude).
🔌 Interface Expansion: Reserved interfaces for humidity sensors, anemometers, and external data outputs.
🌐 Application Fields

Ideal for low-altitude economy monitoring, emergency rescue operations, anti-terrorism reconnaissance, border defense, drug control, border patrol, prison monitoring, water search and rescue, and general security patrols.

📊 Technical Specifications
Category Specification Details
Infrared Sensor640×512, 12um Vanadium Oxide Uncooled FPA
White Light Sensor3840×2160, 1.5μm Color CMOS
Laser Wavelength905nm
Distance Accuracy±0.2m
OLED Resolution≥1024×768
Optical Magnification15x
Diopter Adjustment-4D to 4D
StorageBuilt-in 32GB (≥20,000 pictures, ≥4 hours video)
InterfacesHDMI Output, USB Data Export
Weight & Size≤1.2kg | 187.5 * 135 * 78.9mm
Temperature Range-20ºC to 50ºC
🖼️ Product Gallery

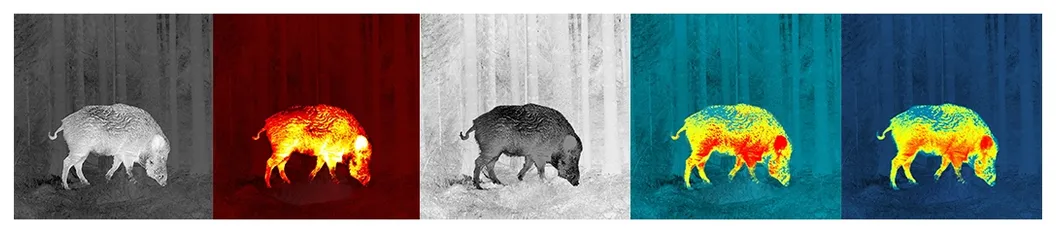

RE650 Banner

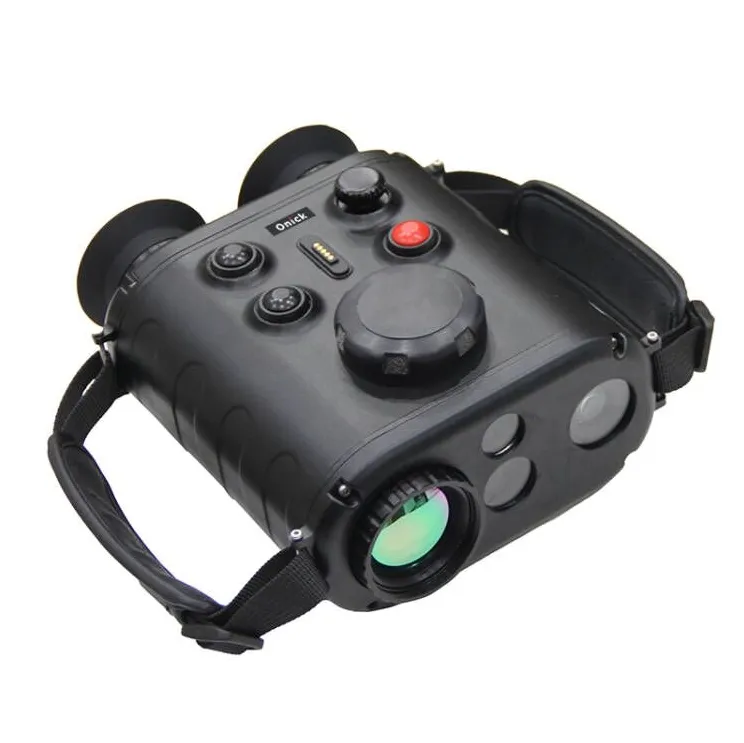

Detailed Photo 1
Detailed Photo 2

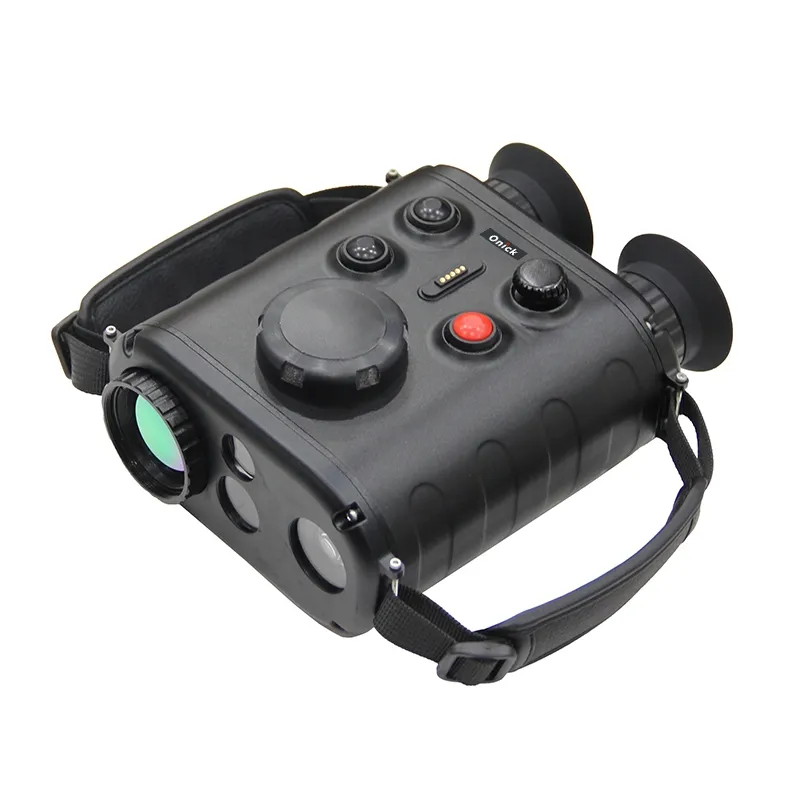

Detailed Photo 3

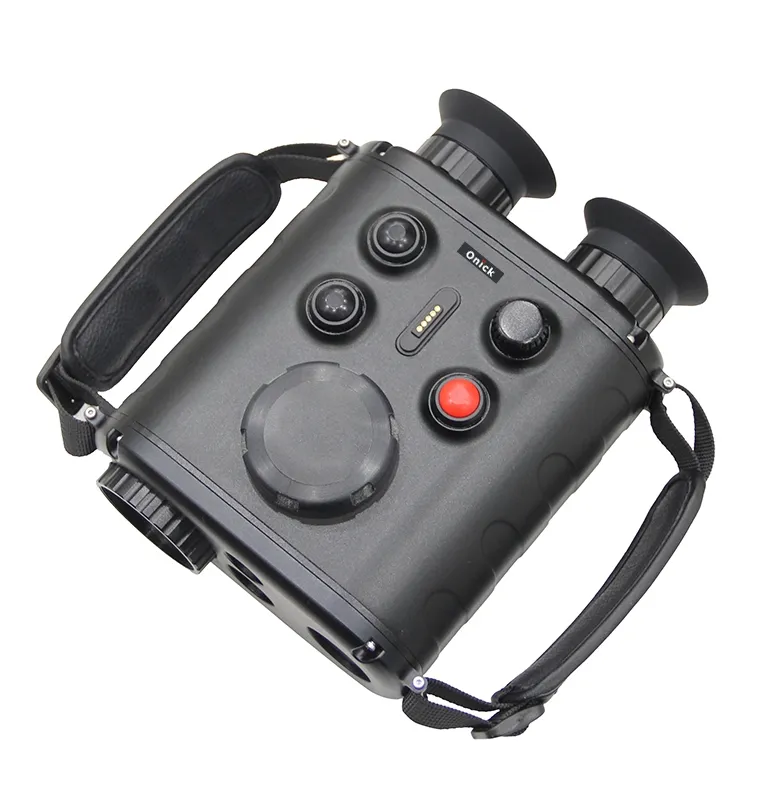

Detailed Photo 4

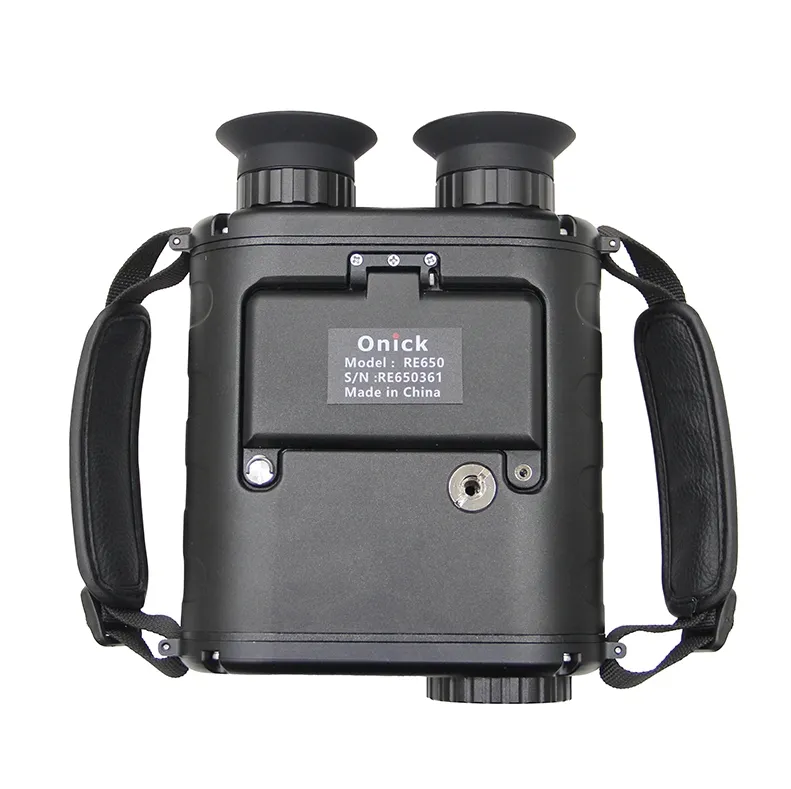

Detailed Photo 5
🏢 Production & Exhibition
Facility 1

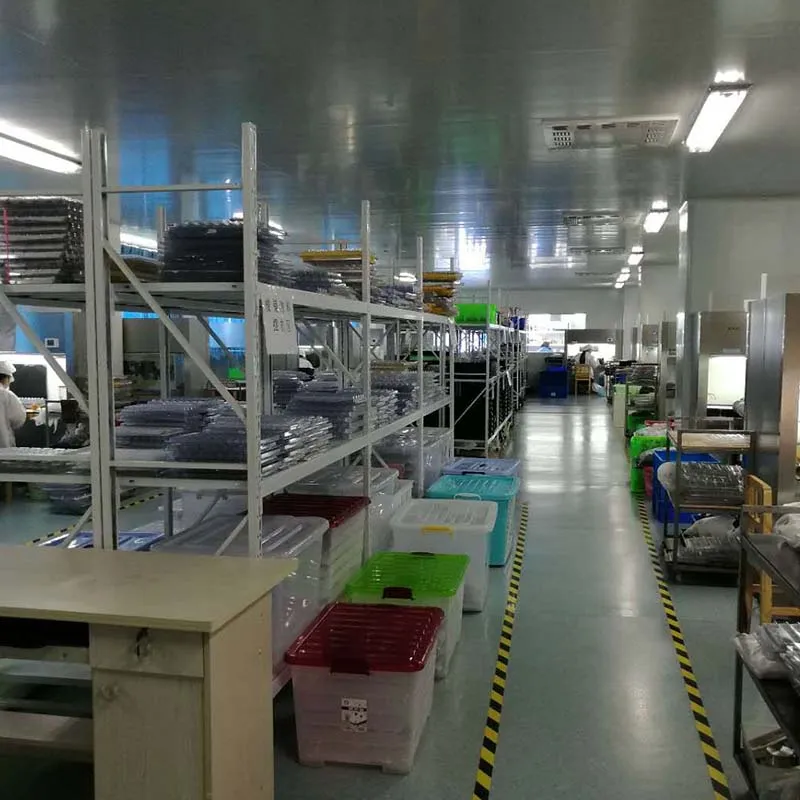

Facility 2

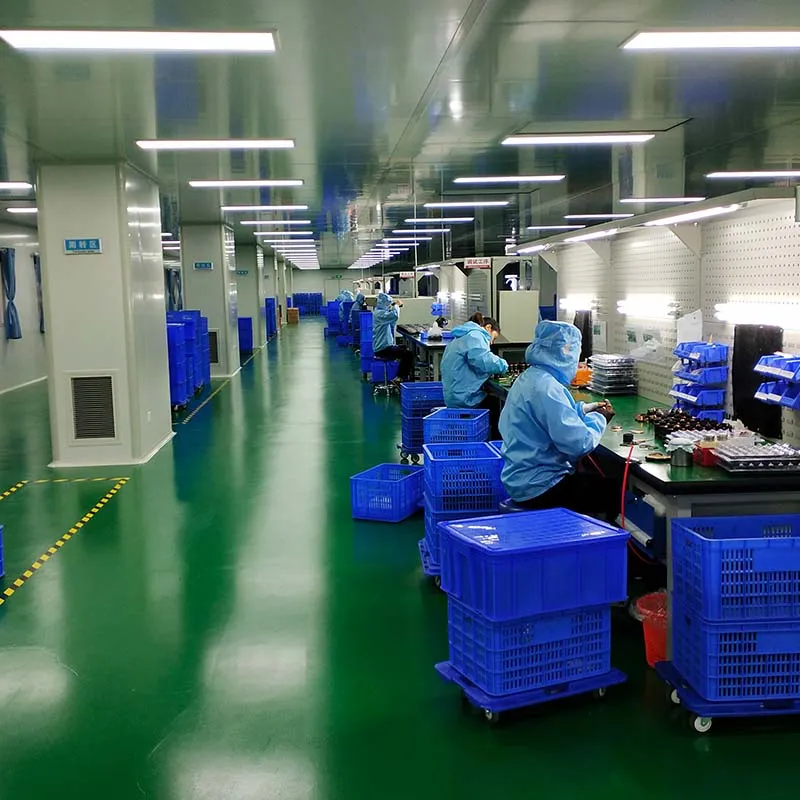

Facility 3

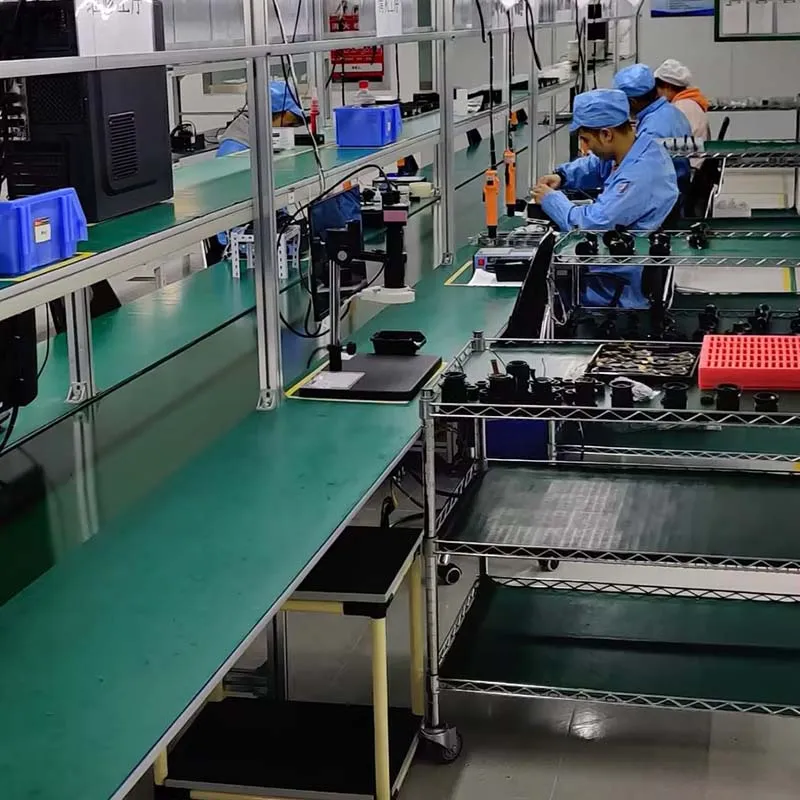

Facility 4
Exhibition
❓ Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a professional enterprise specializing in R&D and sales of rangefinders, night vision, and thermal imagers, with an annual production capacity exceeding 300,000 units.
What quality certifications do your products have?
We are ISO 9001 certified. All products have passed CE, RoHS, and FCC verifications, and we hold several design patents.
What is the typical lead time for orders?
Small quantities are usually shipped within 7 days. For large bulk orders, please contact our team for a specific schedule.
How long is the product warranty?
Most of our professional optical and thermal products come with an 18-month warranty policy.
Do you support OEM/ODM customization?
Yes, we accept both OEM and ODM orders depending on the specific requirements and order quantity.
What are the primary shipping methods?
We typically ship via international express services such as DHL, FedEx, and UPS to ensure fast and safe delivery.
