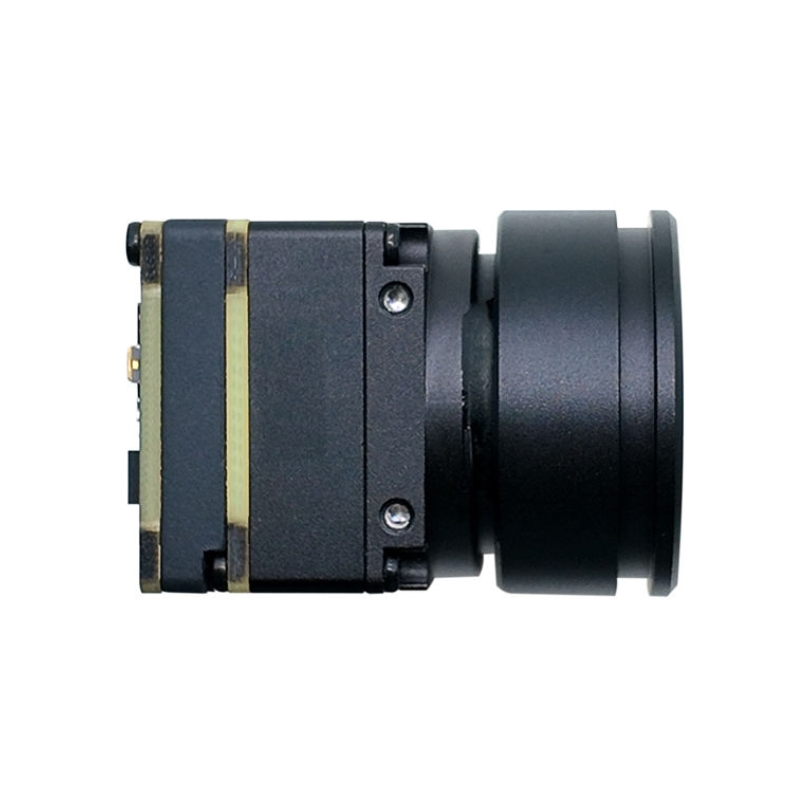

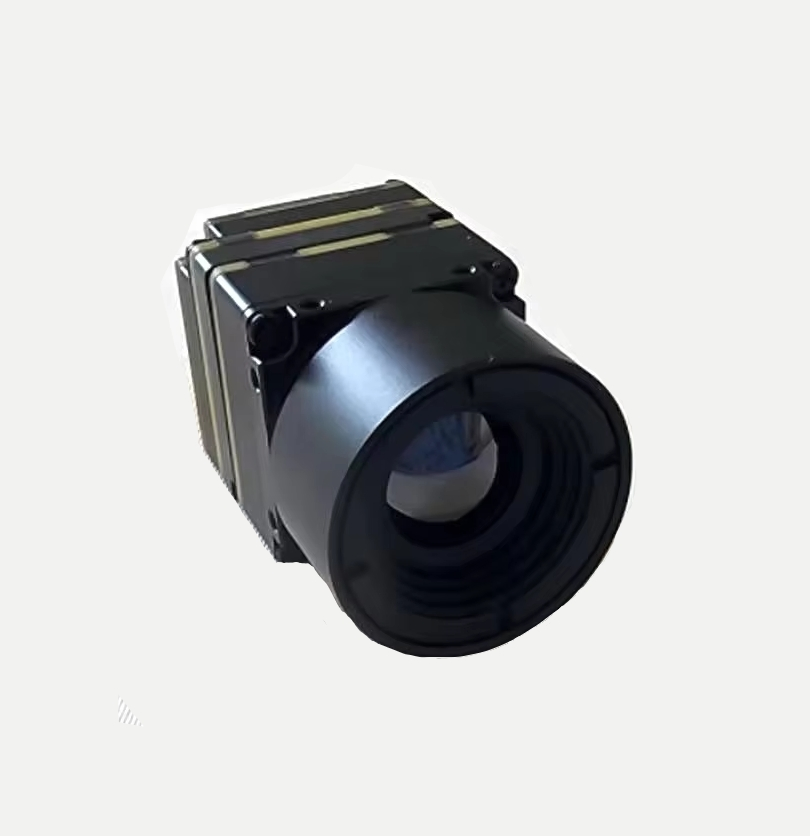

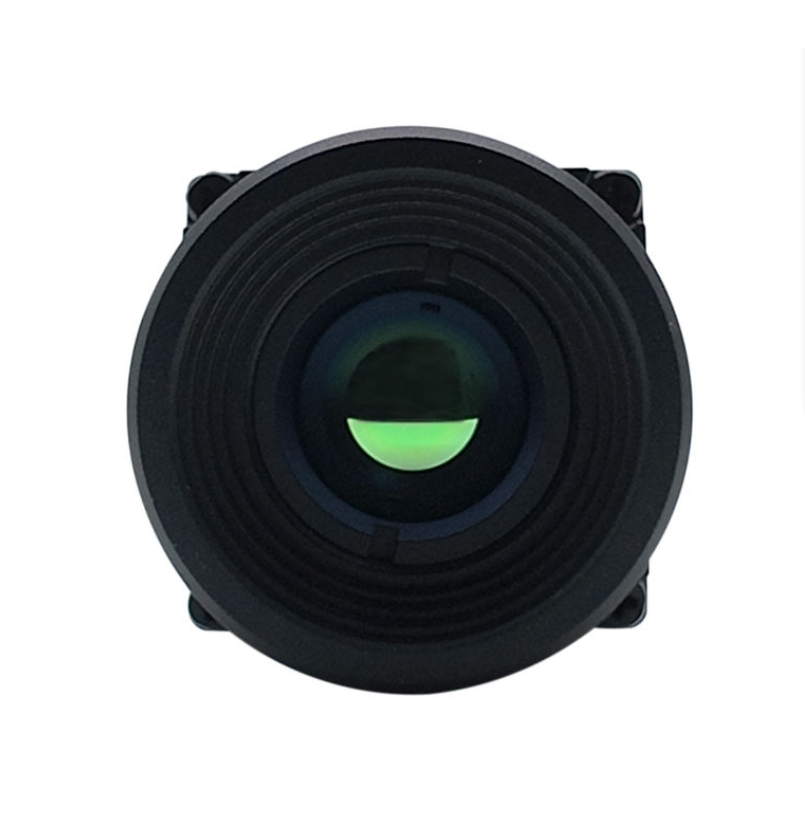

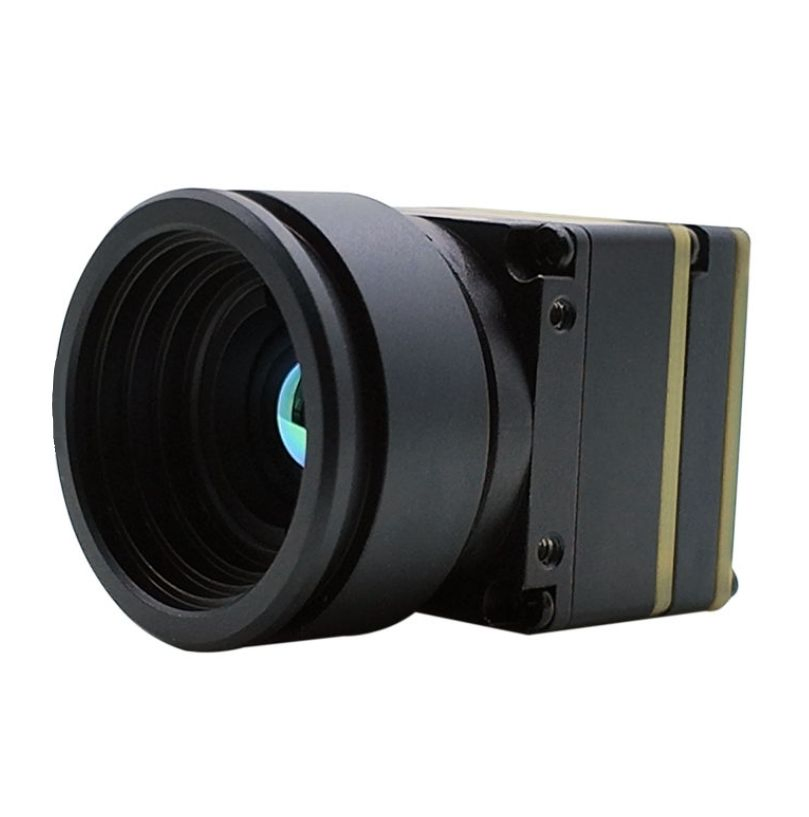

Azure 256*192 Infrared Camera Module for Industrial Inspection

1 / 5

Azure 256*192 Infrared Camera Module for Industrial Inspection

Customization:	Available
After-sales Service:	24 Hours
Warranty:	6-12 Months

Send Inquiry

Product Description

Basic Information

Model NO.:256*192

Type:8-14 μm

Operate Method:Manual

Transport Package:Box

Specification:21*21*40mm

Trademark:Azure

Origin:China

HS Code:901510000

Production Capacity:5000

Product Description

Thermal Imaging Cameras for Drones

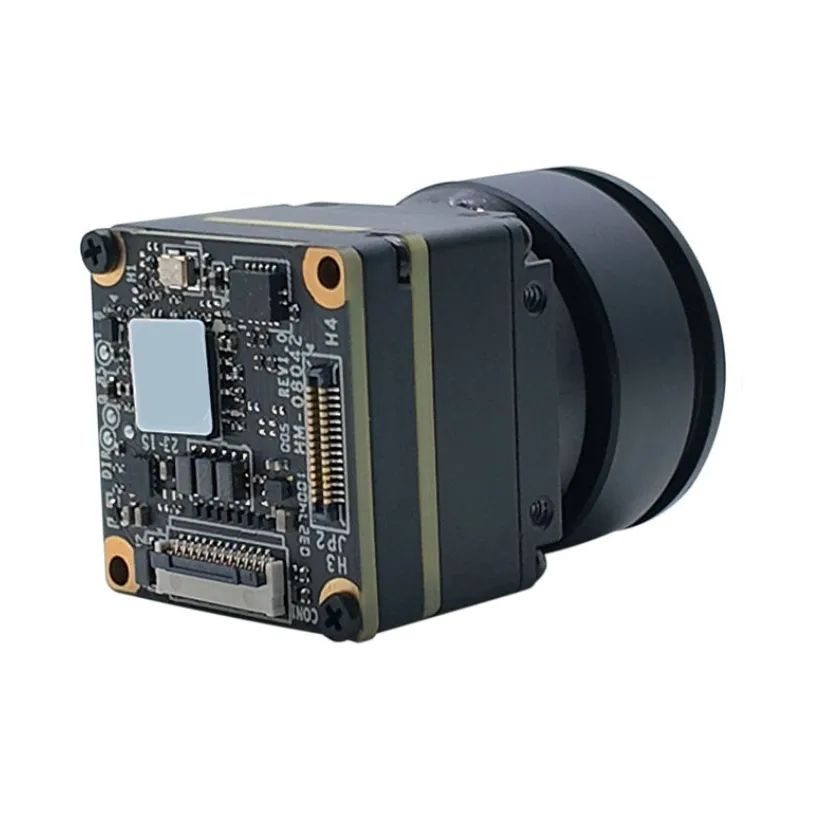

This high-performance uncooled vanadium oxide (VOx) thermal imaging module provides fast, accurate, and reliable thermal detection for a wide range of applications. With flexible resolutions (256×192 / 384×288 / 640×512 @ 12μm) and a customizable 4–55mm lens, it delivers clear, high-quality thermal images in real-time. Operating in the 8–14μm wavelength range, this module is ideal for UAVs, robotics, industrial monitoring, and security systems. Compact, lightweight, and OEM-ready, it's perfect for integration into your customized solutions.

Technical Specifications

Parameter	Details	Parameter	Details

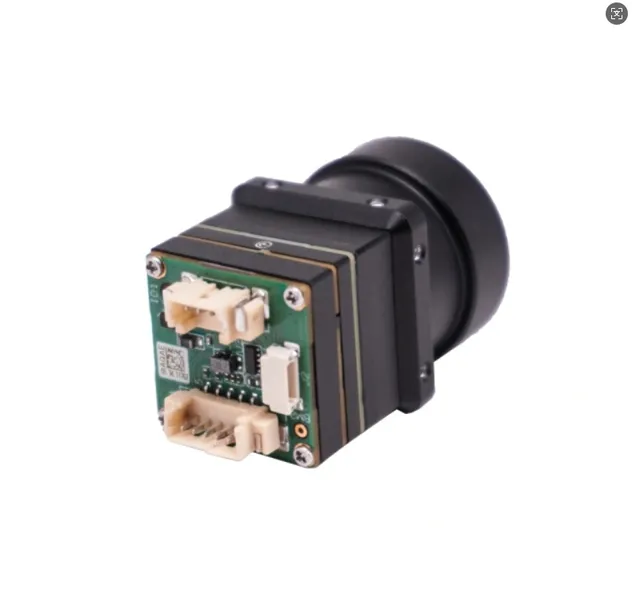

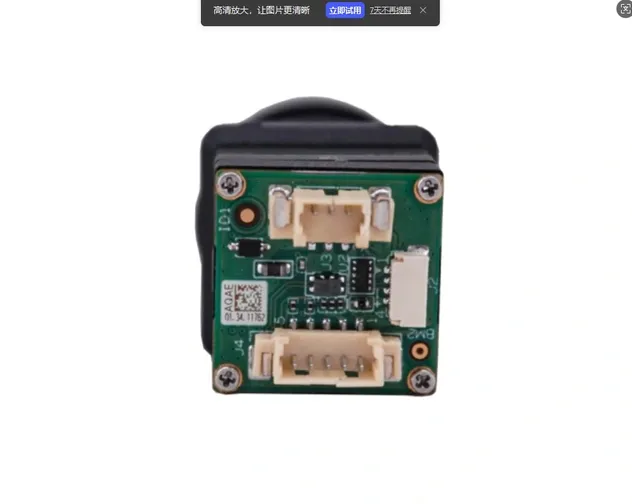

Detector type	Uncooled vanadium oxide	Output Interface	UART2, PWM2, GPIO*2
Resolution	256×192 / 384×288 / 640×512 @12μm	Operating Temperature	-40℃ - 80℃

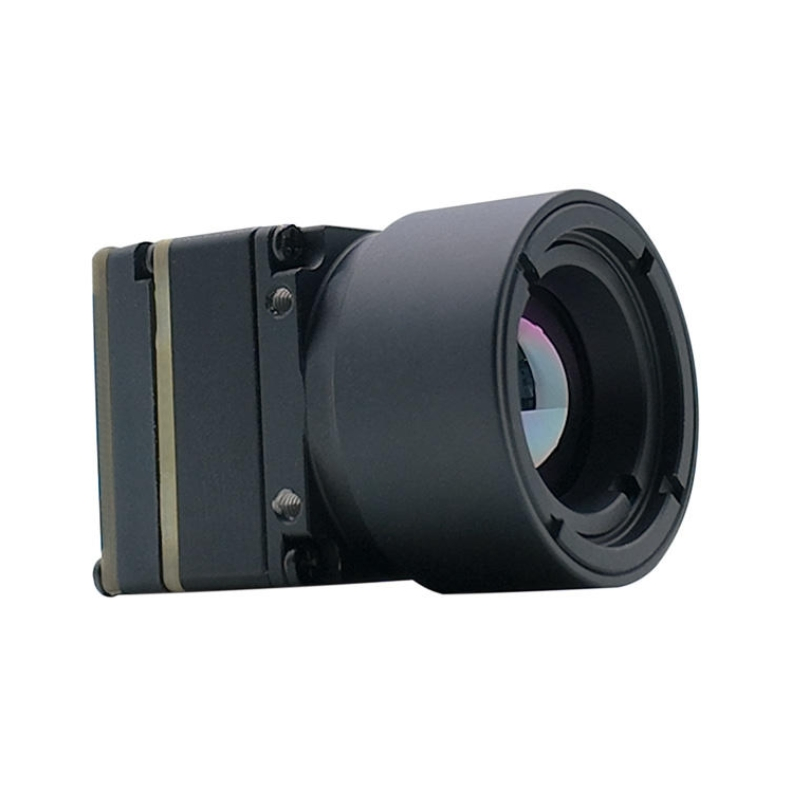

Lens	4-55mm (customizable)	Humidity	5%-95%, non-condensing
Wavelength Range	8-14μm	Vibration	6.06g, random vibration
NETD	≤50 mK @ F1.0 25℃	Shock	80g @ 4ms
Frame Rate	25 / 50 Hz	Dimensions	21 × 21 × 40 mm
Temperature Range	-20℃ - +550℃	Weight	20 g
Power Consumption	<1.3 W	Supply Voltage	12V

Key Selling Points

Uncooled VOx Detector: Stable, reliable thermal imaging without cooling.
Multiple Resolutions: 256×192, 384×288, 640×512 options.
Customizable Lens: 4–55mm range for diverse field needs.
High Sensitivity: Precise temperature detection and clear visuals.
Compact & Lightweight: Only 20g, ideal for UAVs and robotics.
OEM / ODM Ready: Fully customizable software and hardware interfaces.

Applications

UAV reconnaissance & search and rescue
Industrial endoscopes & robotics
Automotive & marine vision enhancement
Firefighting handheld cameras
Portable & wearable thermal platforms
Security monitoring & infrared detection

Our Expertise

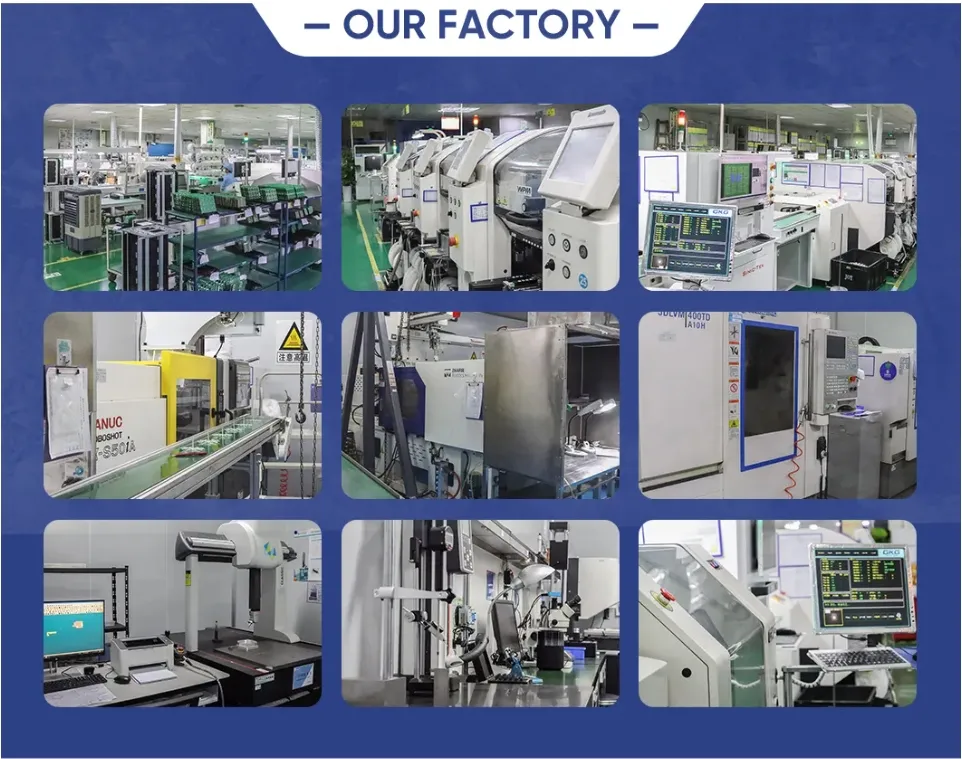

Supported by large-scale factories combining R&D and production, we provide overseas customers with high-quality, competitively priced, and reliable photonic measurement products. Our main offerings include infrared thermal imagers, low-light modules, and laser measurement systems widely used in industrial and security projects. We offer complete customization for functions, parameters, and appearance, including OEM/ODM services to meet global market demands.

Frequently Asked Questions

Q1. What are your main product categories? A: Our focus includes infrared thermal imaging cameras, thermal imaging modules, UAV thermal positioning systems, and laser rangefinders.

Q2. What applications are your thermal modules suitable for? A: They are widely used for industrial inspection, power line monitoring, security surveillance, and search and rescue missions.

Q3. Do you support OEM or ODM customization? A: Yes. We provide extensive OEM and ODM services, including customization of logos, appearance, specific functions, and technical parameters.

Q4. Can I request samples for testing before a bulk order? A: Yes, 1–2 samples are available for testing. Please note that sample and shipping costs are covered by the customer.

Q5. What is the standard warranty period? A: All products come with a 12-month factory warranty effective from the date of shipment.

Q6. Is the packaging safe for international shipping? A: Absolutely. We use protective film and reinforced foam packaging designed to withstand long-distance international transportation.
