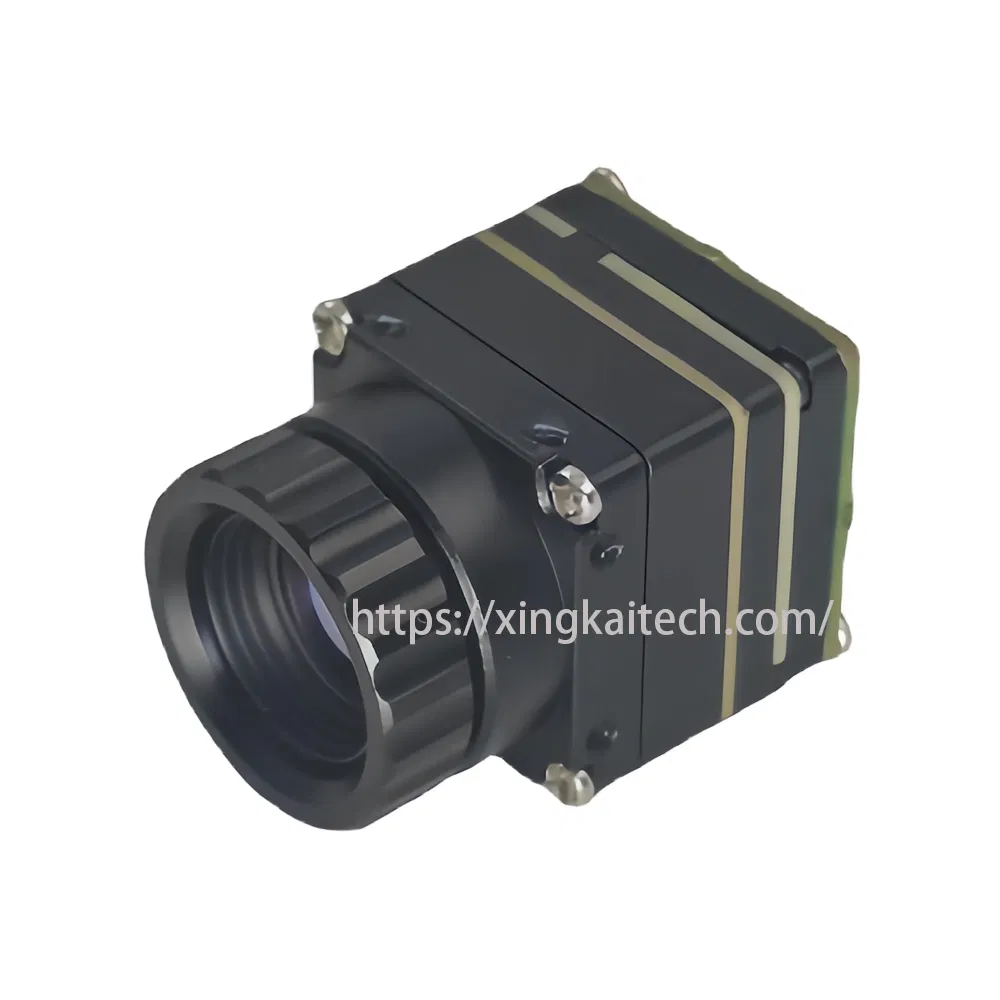

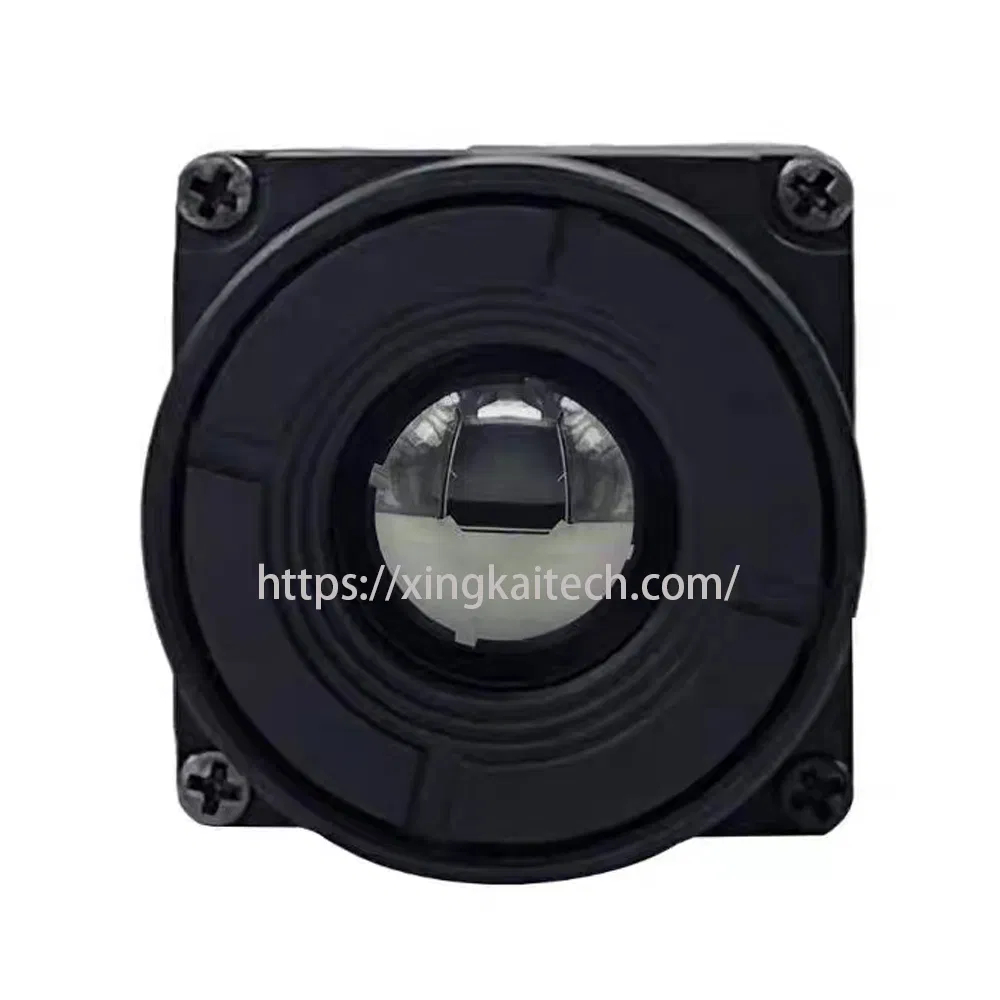

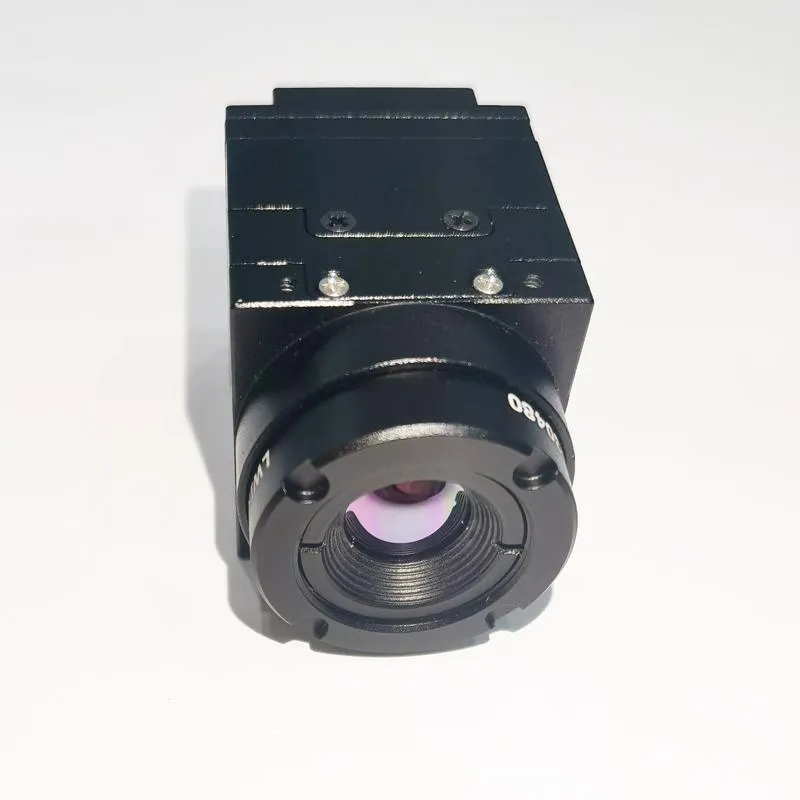

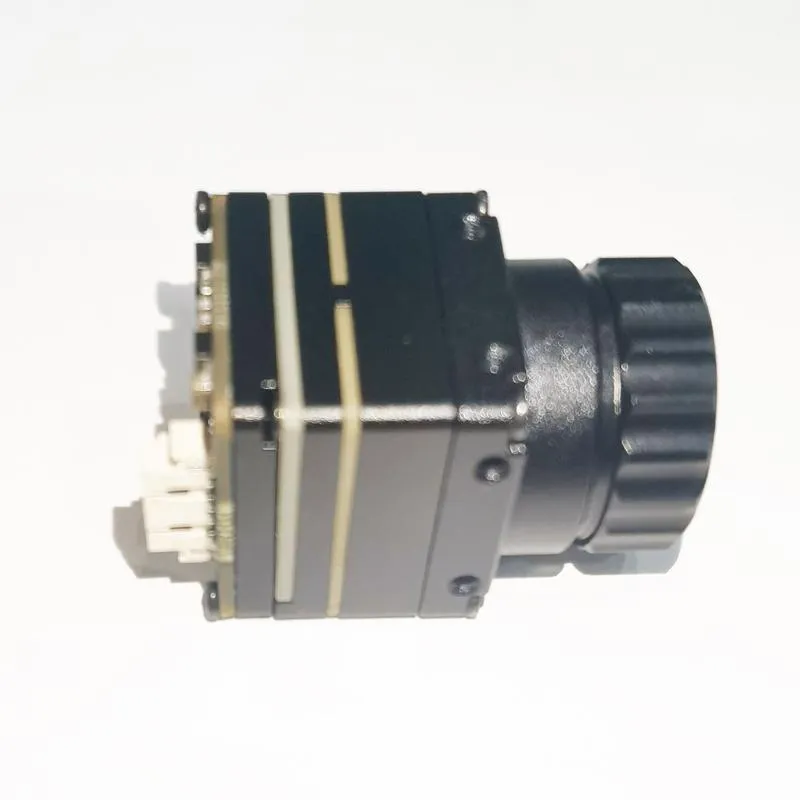

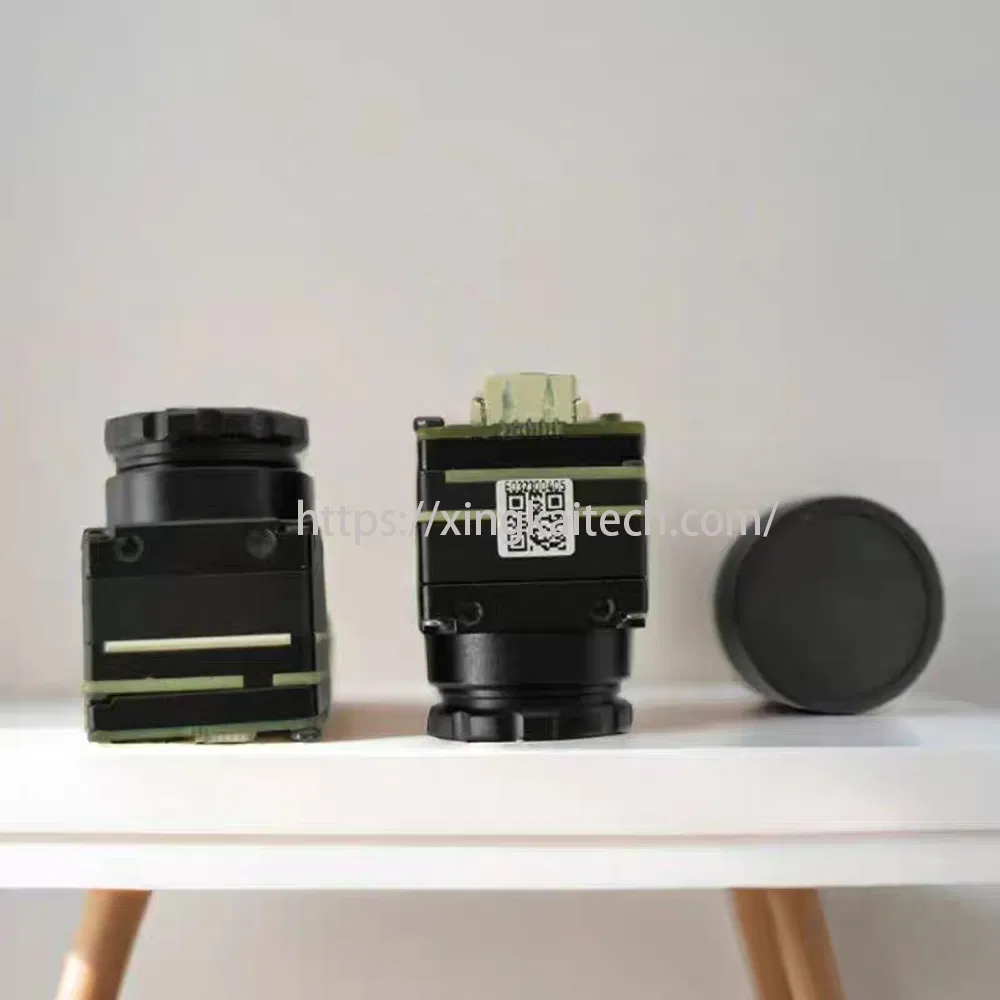

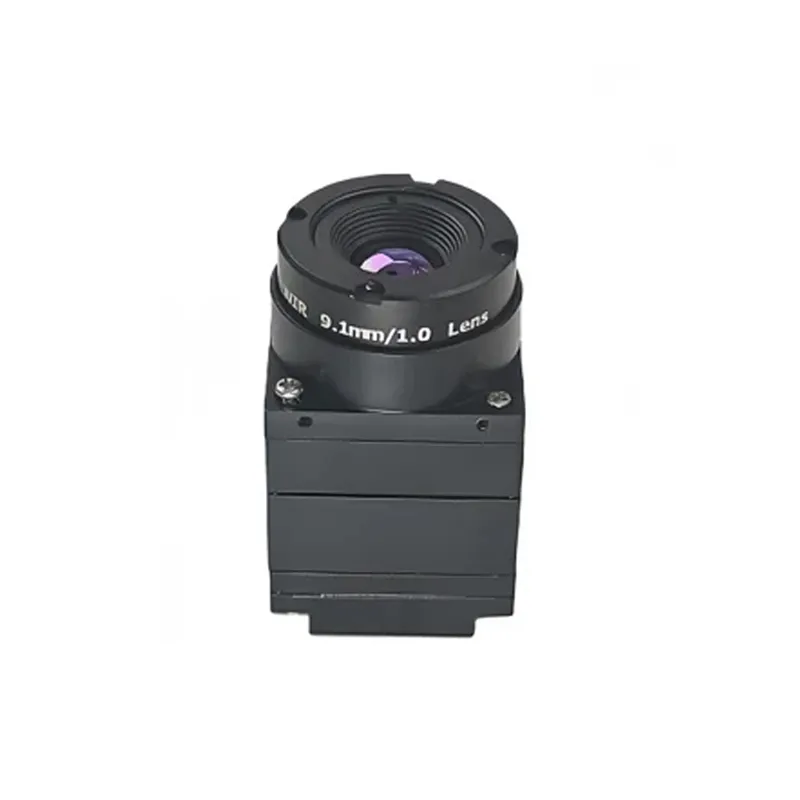

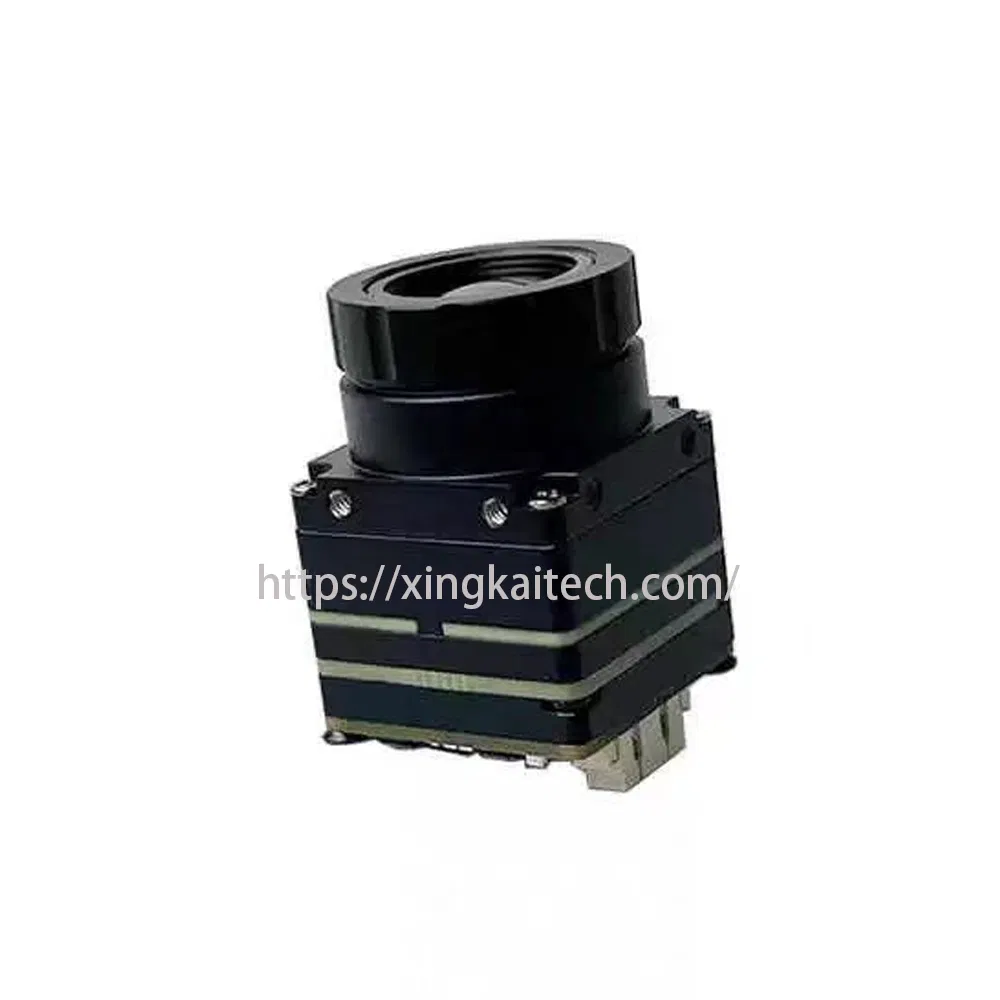

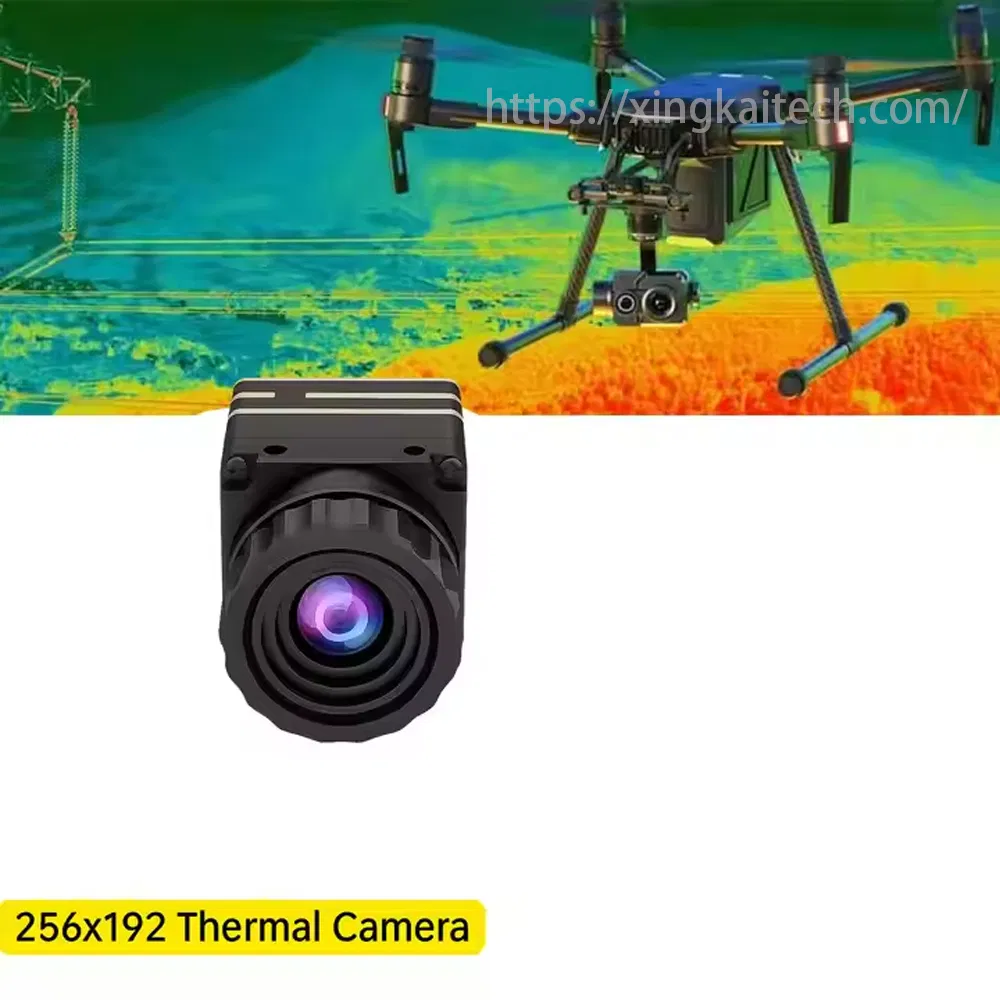

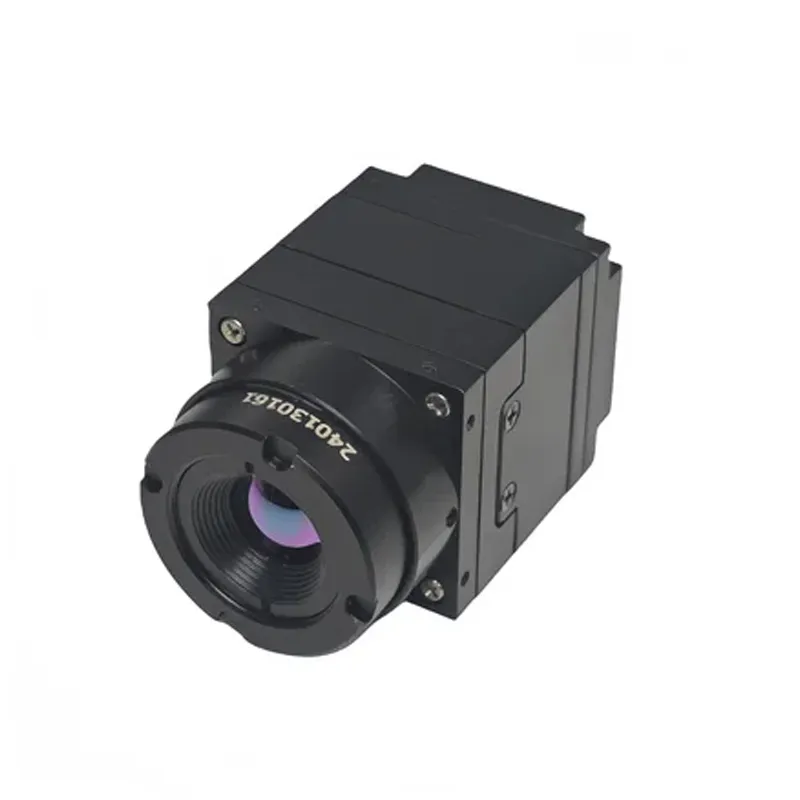

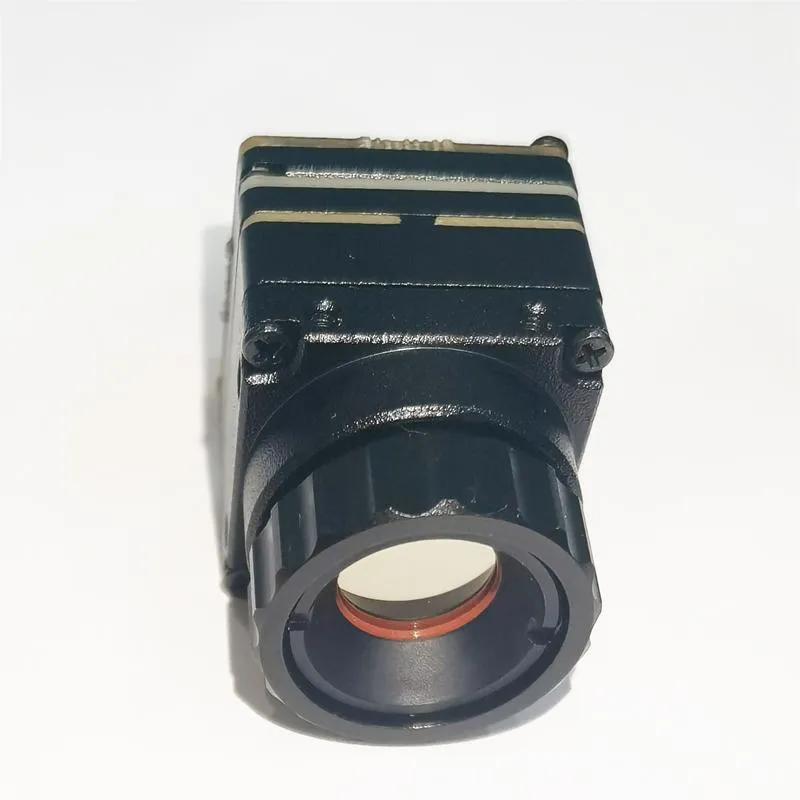

The XK-C130 is a miniature FPV thermal camera that combines HD and drone camcorder features. It is specifically designed for RC FPV cars, aircraft, racing cars, and drones.
The camera is compact and easy to install, featuring a specialized lens housing design that simplifies mounting on various aircraft types. Beyond standard drone camera features, it utilizes thermal imaging to provide clear visuals in low-light environments or total darkness.
This camera boasts high resolution (256×192), ensuring exceptional image quality. The adjustable focus and open-stop shutter allow users to fine-tune the output to meet diverse shooting requirements. The high output resolution ensures every moment is captured with clarity.
| Model | XK-C130 | |
| Movement Parameters | Detector Type | Vanadium oxide uncooled infrared focal plane detector |
| Resolution | 256×192 | |
| Pixel Pitch | 12um | |
| Spectral Band | 8-14um | |
| Frame Rate | 50Hz | |
| Lens Parameters | Focusing | Adjustable focus |
| Aperture | 1.0 | |
| FOV (H*V) | 17.6°×13.2° | |
| Detection Range | People | 1000m |
| Vehicle | 2389m | |

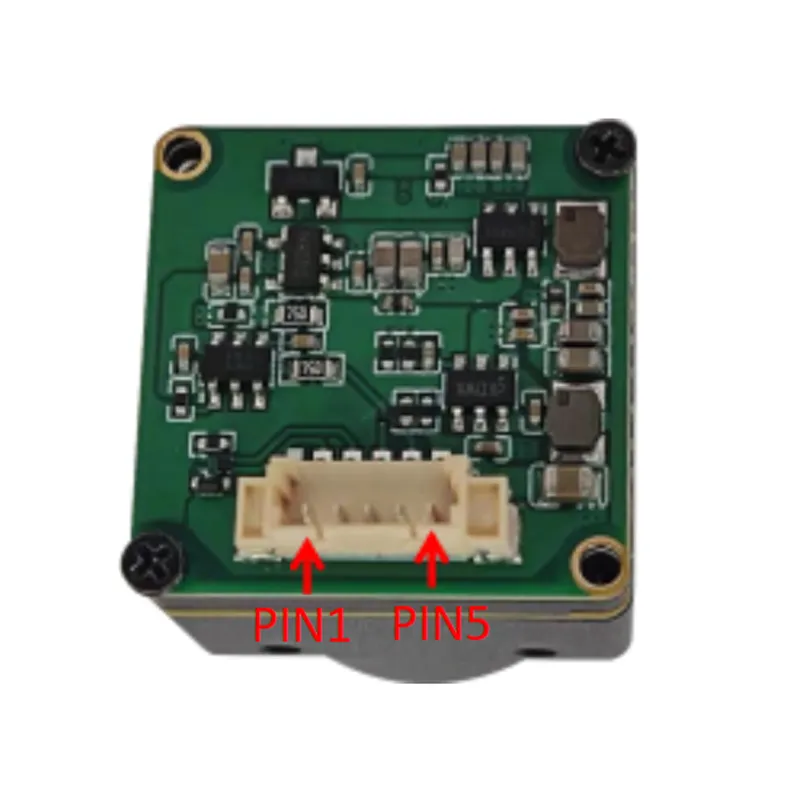

| Physical & Power | Output Type | CVBS / USB |
| Power Supply | 4.5-18V (600mw) | |

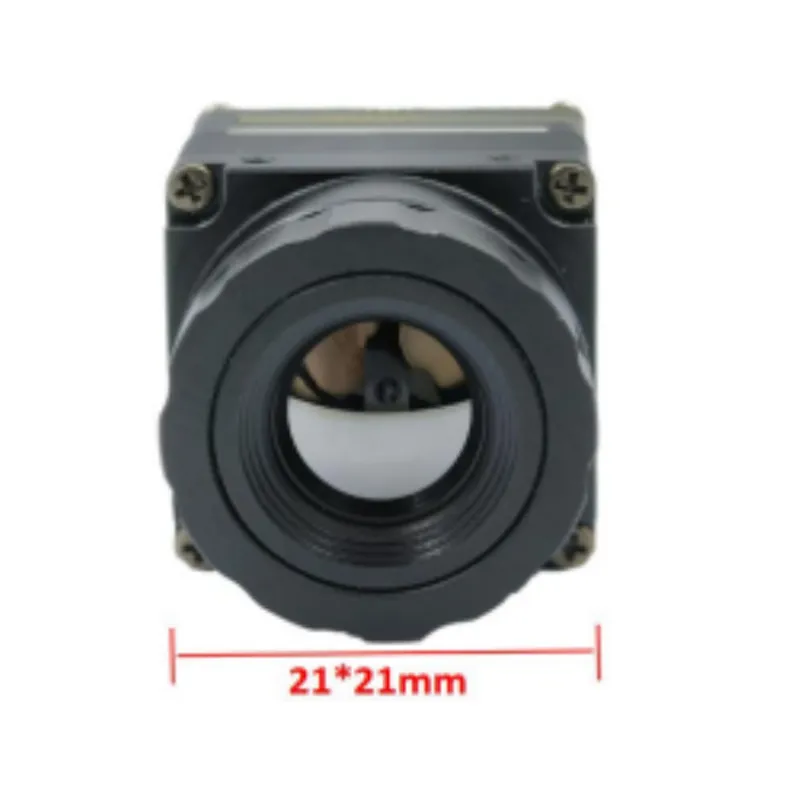

| Size / Weight | 21*21MM / 22g | |
| Working Temp | -40ºC ~ +80ºC | |

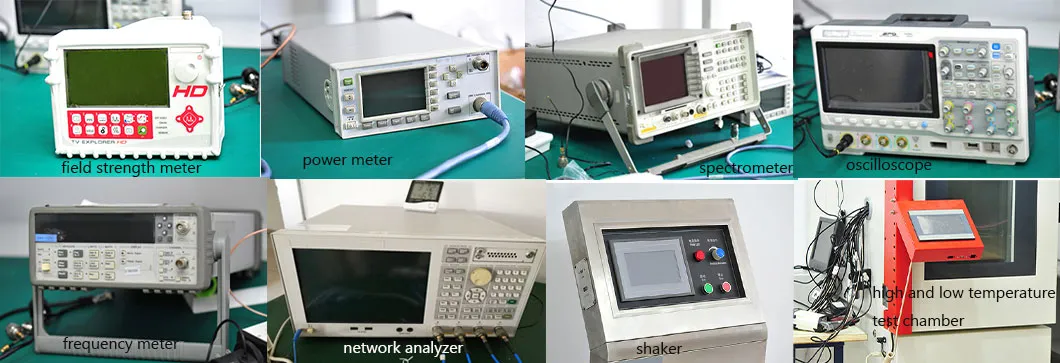

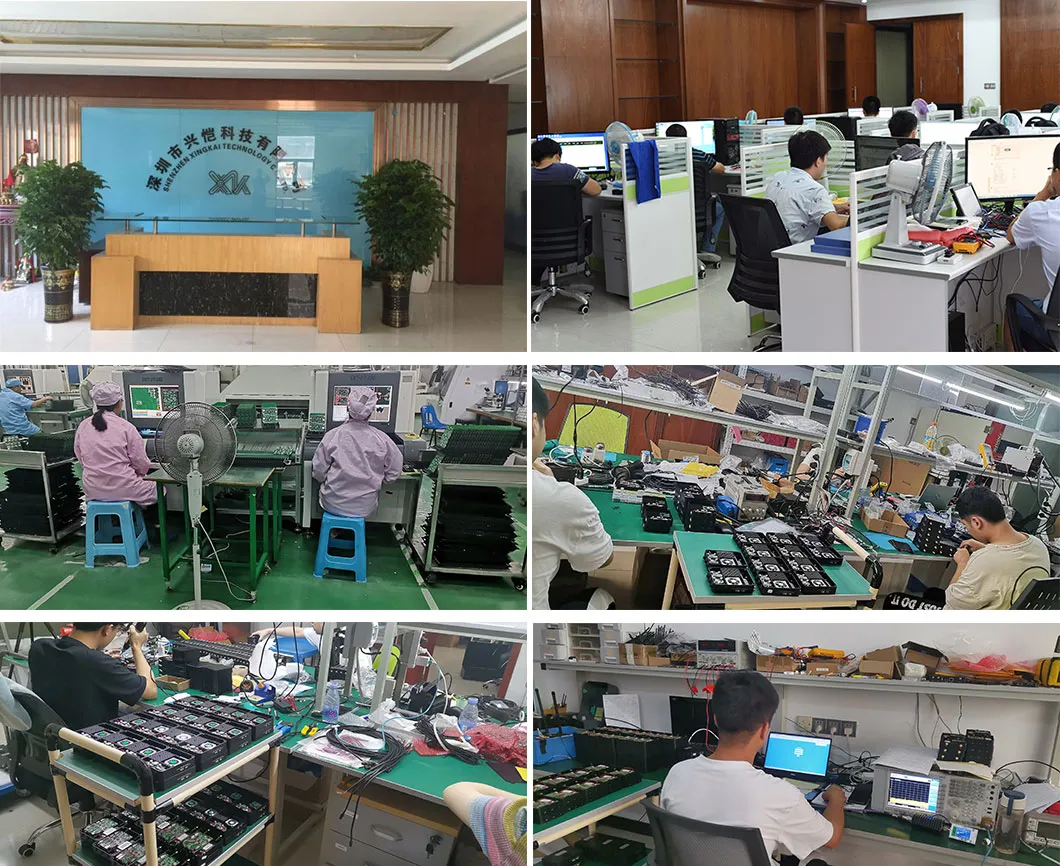

Our team brings over 20 years of technical expertise in designing and building advanced communication and imaging systems. We specialize in RF communication, baseband units, and advanced image processing.
