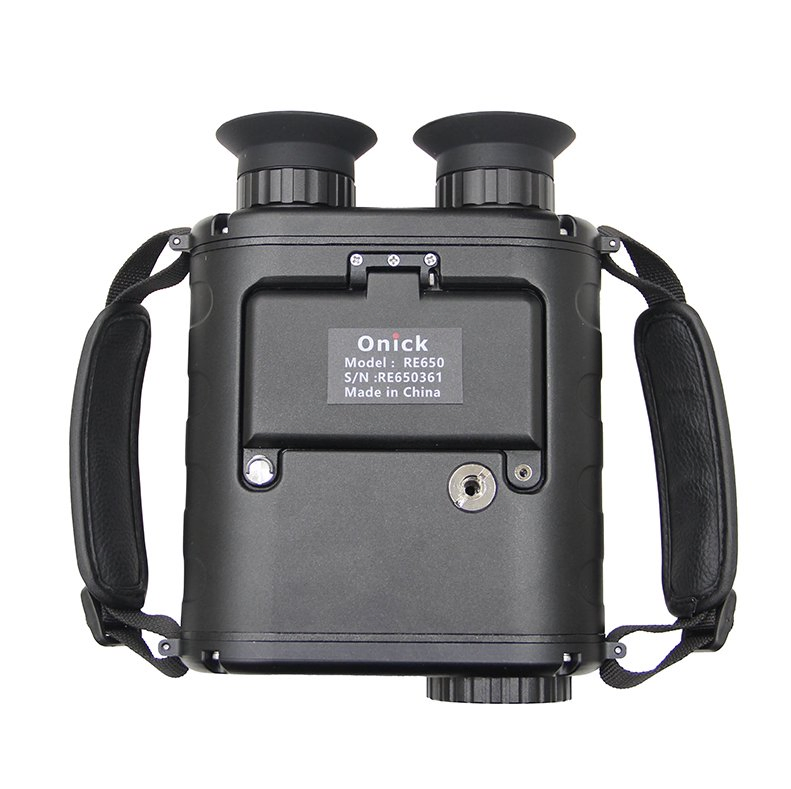

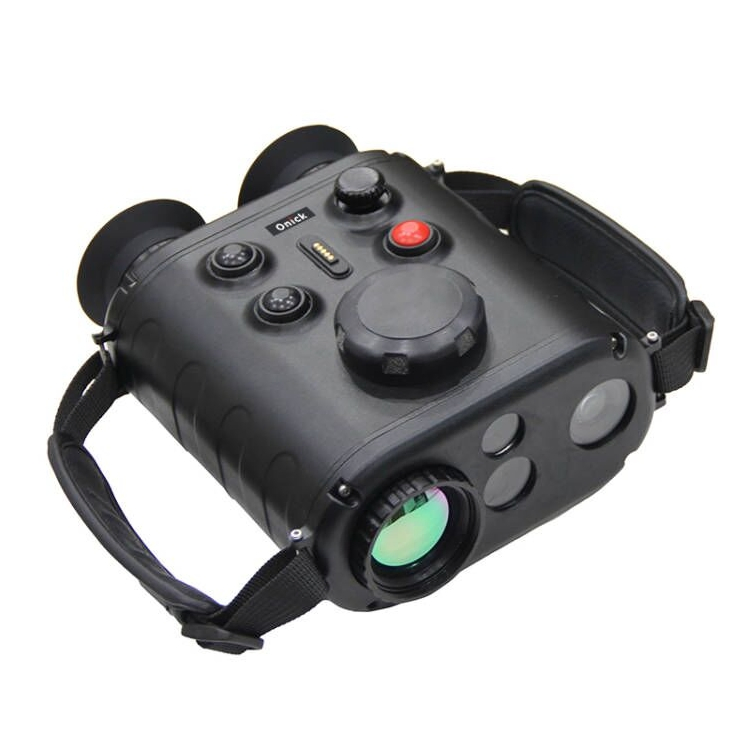

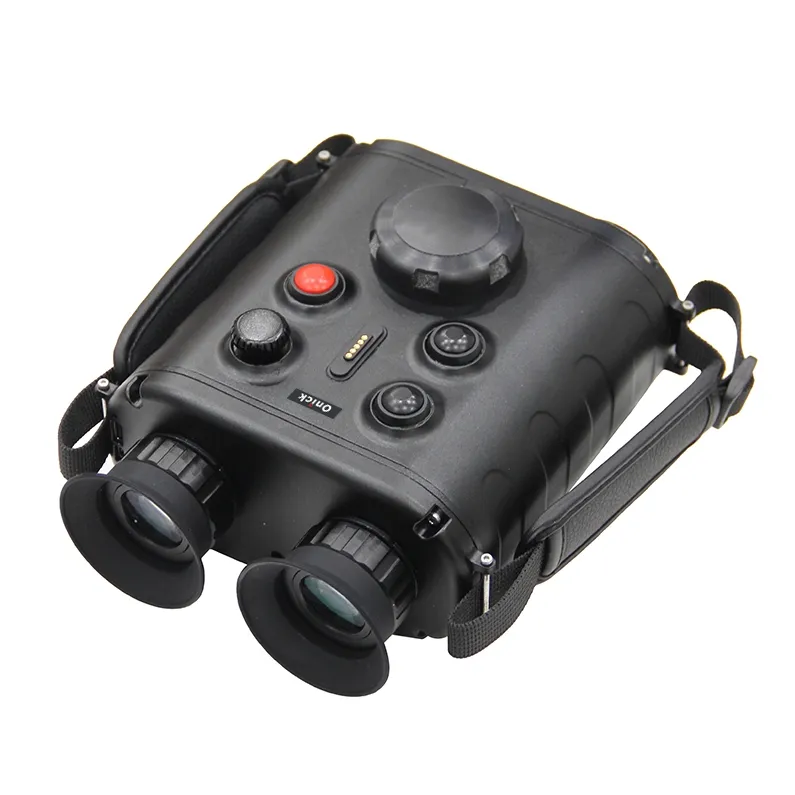

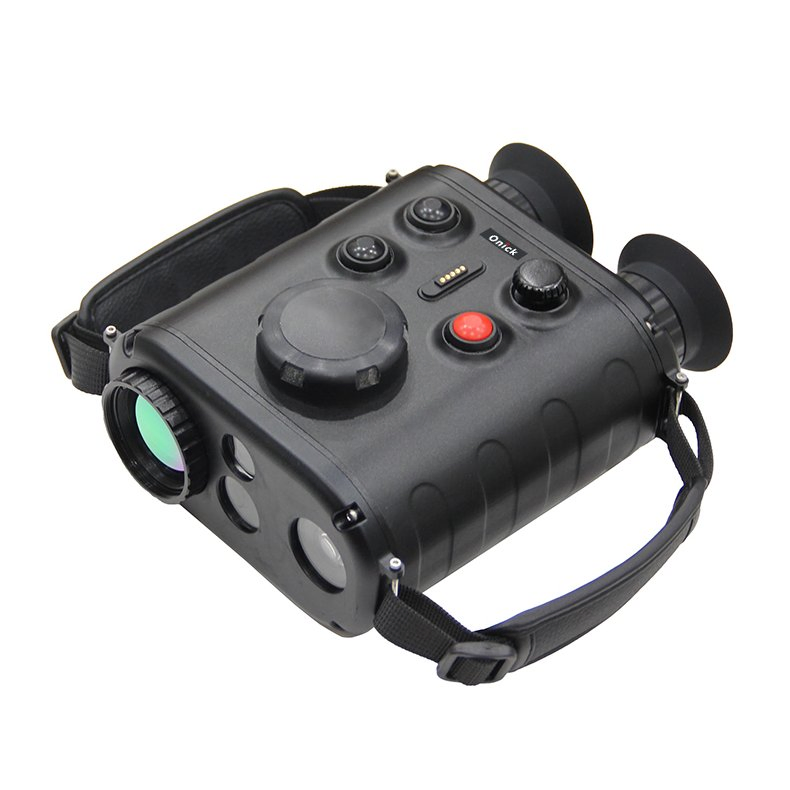

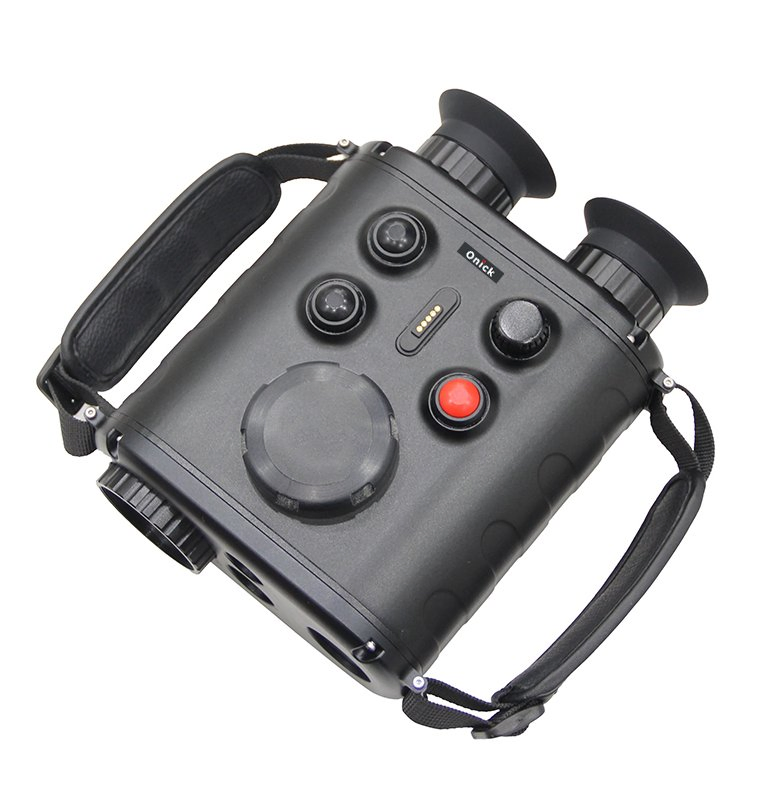

The RE650 is a high-performance handheld three-light thermal imaging observation instrument. It integrates a TV camera, uncooled infrared thermal imager, laser rangefinder, GPS, and electronic compass. Designed for all-weather reconnaissance and target positioning, this compact device offers ultra-low power consumption, high-resolution sensing, and a robust structure for professional field use.
| Model | RE650 | Output Signal | Digital Type |
| Material | Organic Materials | IP Rating | IP67 |
| Display | 0.39-Inch OLED | Lens | 35mm, F1 |
| Detector | 3840×2160 Color CMOS | Wavelength | 905nm |
| Range | 10~3500m | Accuracy | ±0.2m |
| Origin | China | Capacity | 9000 Pieces/Month |
| Infrared Thermal Imager | |
| Detector | 640×512, 12um Vanadium Oxide Uncooled Focal Plane Array |
| Lens | 35mm, F1 |
| White Light Camera | |
| Detector | 3840×2160, 1.5μm Color CMOS |
| Lens | 35mm, F1.8 |
| Laser Rangefinder | |
| Distance Mode | Single and Continuous distance measurement |
| Range Accuracy | ±0.2m |
| System & Interface | |
| Storage | Built-in 32G memory (≥20,000 pictures, ≥4 hours video) |
| Battery Life | ≥4 hours (Normal temperature) |
| Weight/Size | ≤1.2kg / 187.5*135*78.9mm |
