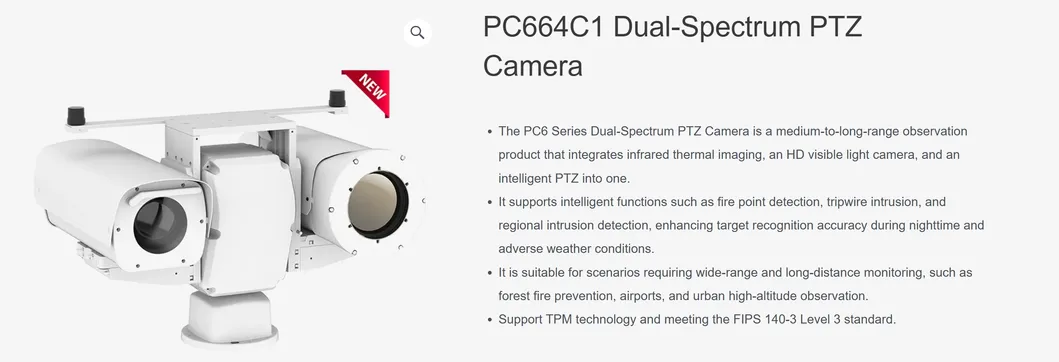

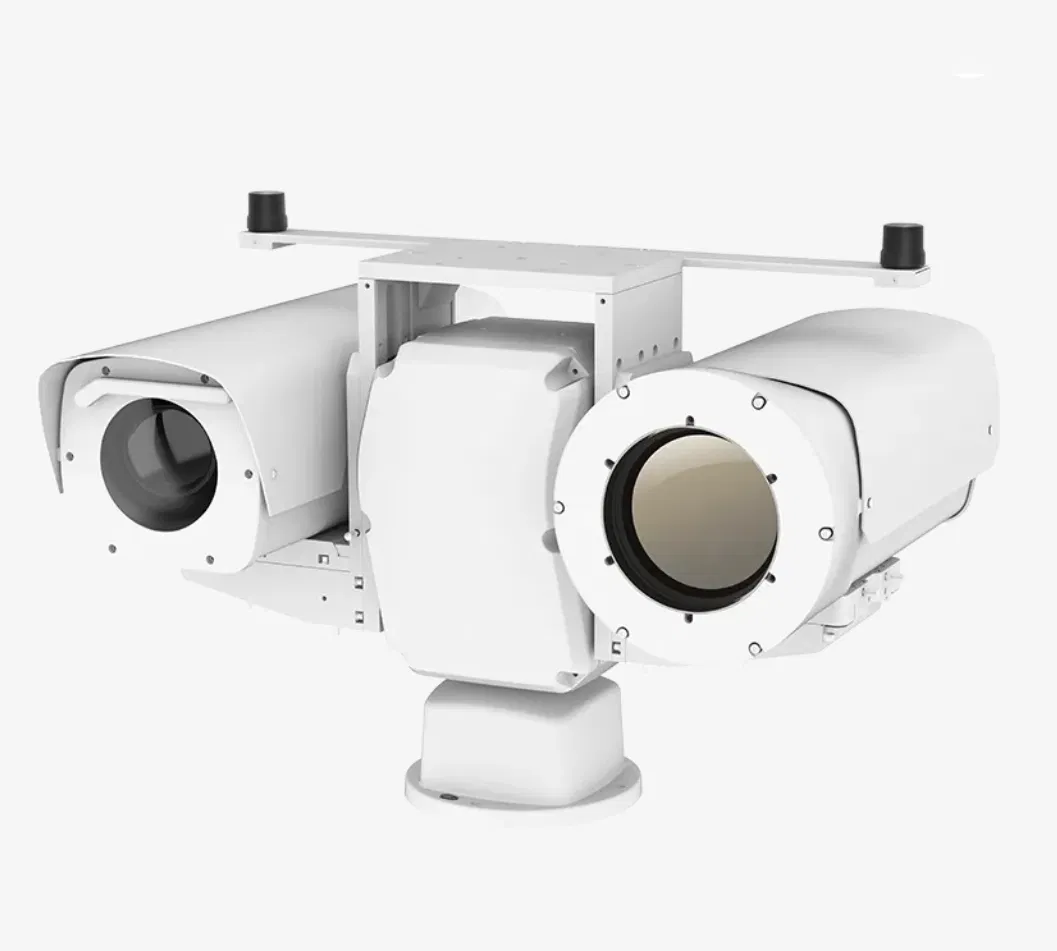

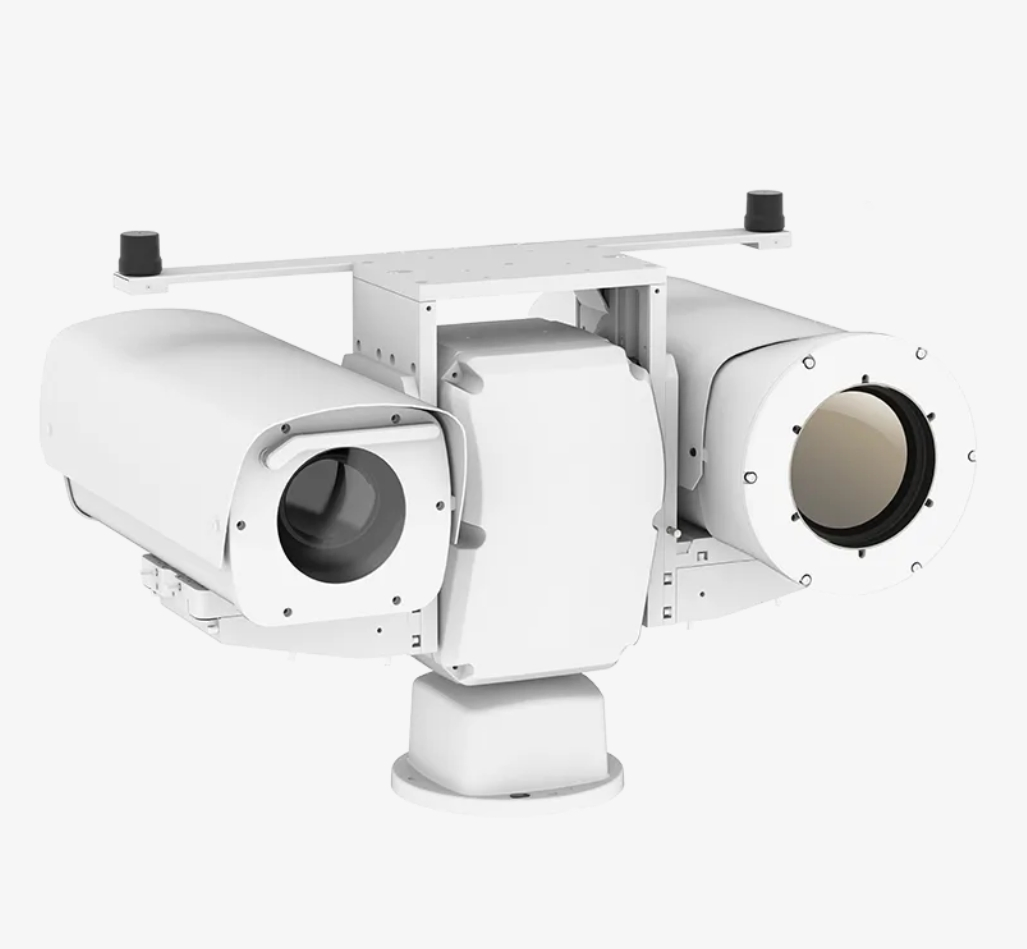

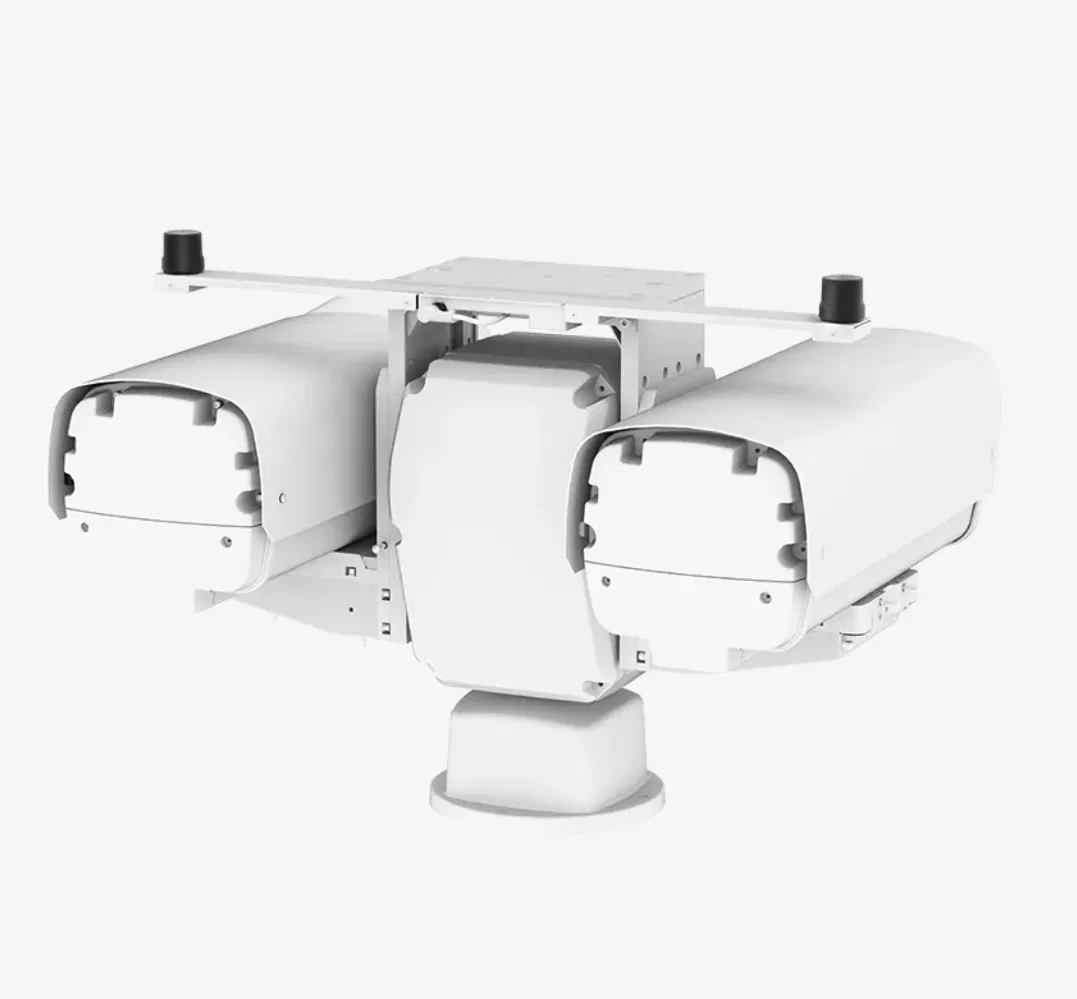

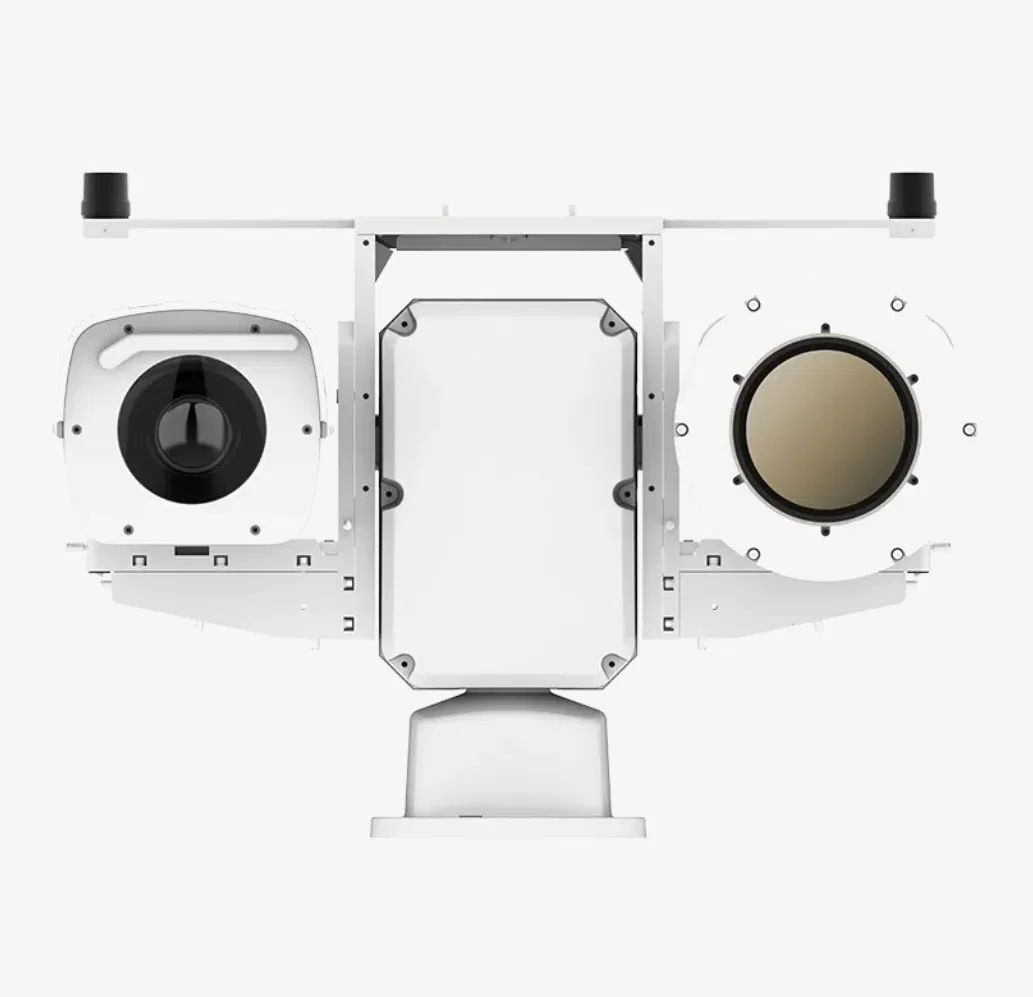

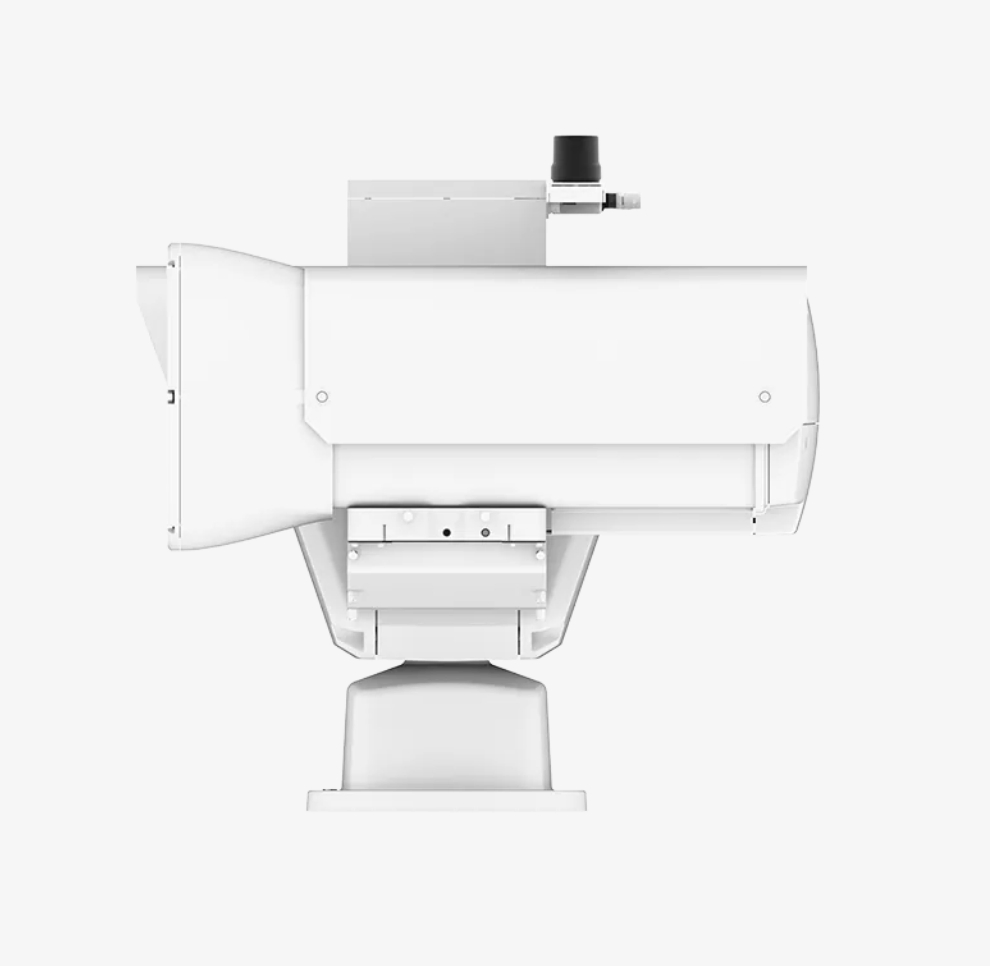

The PC6 Series Dual-Spectrum PTZ Camera is a medium-to-long-range observation product that integrates infrared thermal imaging, an HD visible light camera, and an intelligent PTZ into one.

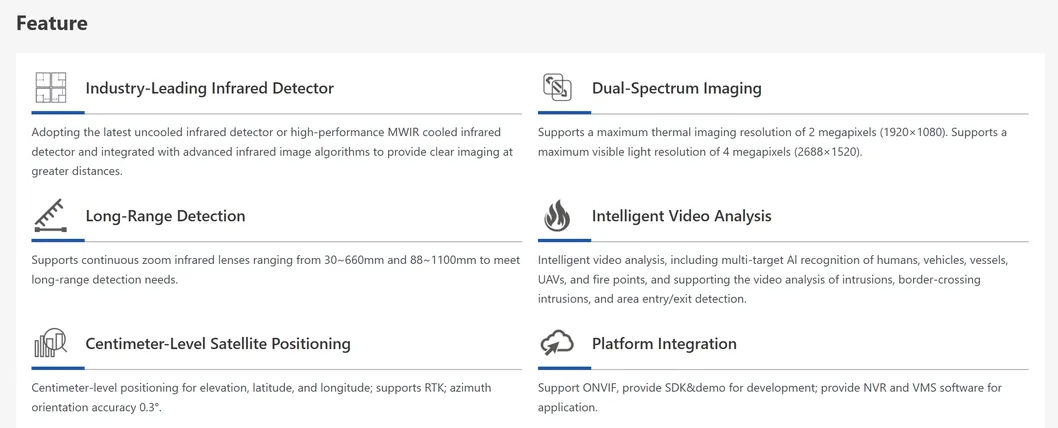

Adopting the latest uncooled or high-performance MWIR cooled infrared detector with advanced algorithms for clear imaging at greater distances.
Thermal resolution up to 2 megapixels and visible light resolution up to 4 megapixels (2688×1520) for comprehensive monitoring.
High-precision positioning for elevation, latitude, and longitude; supports RTK with azimuth orientation accuracy of 0.3°.
AI recognition of humans, vehicles, vessels, UAVs, and fire points. Supports border-crossing and area entry/exit detection.

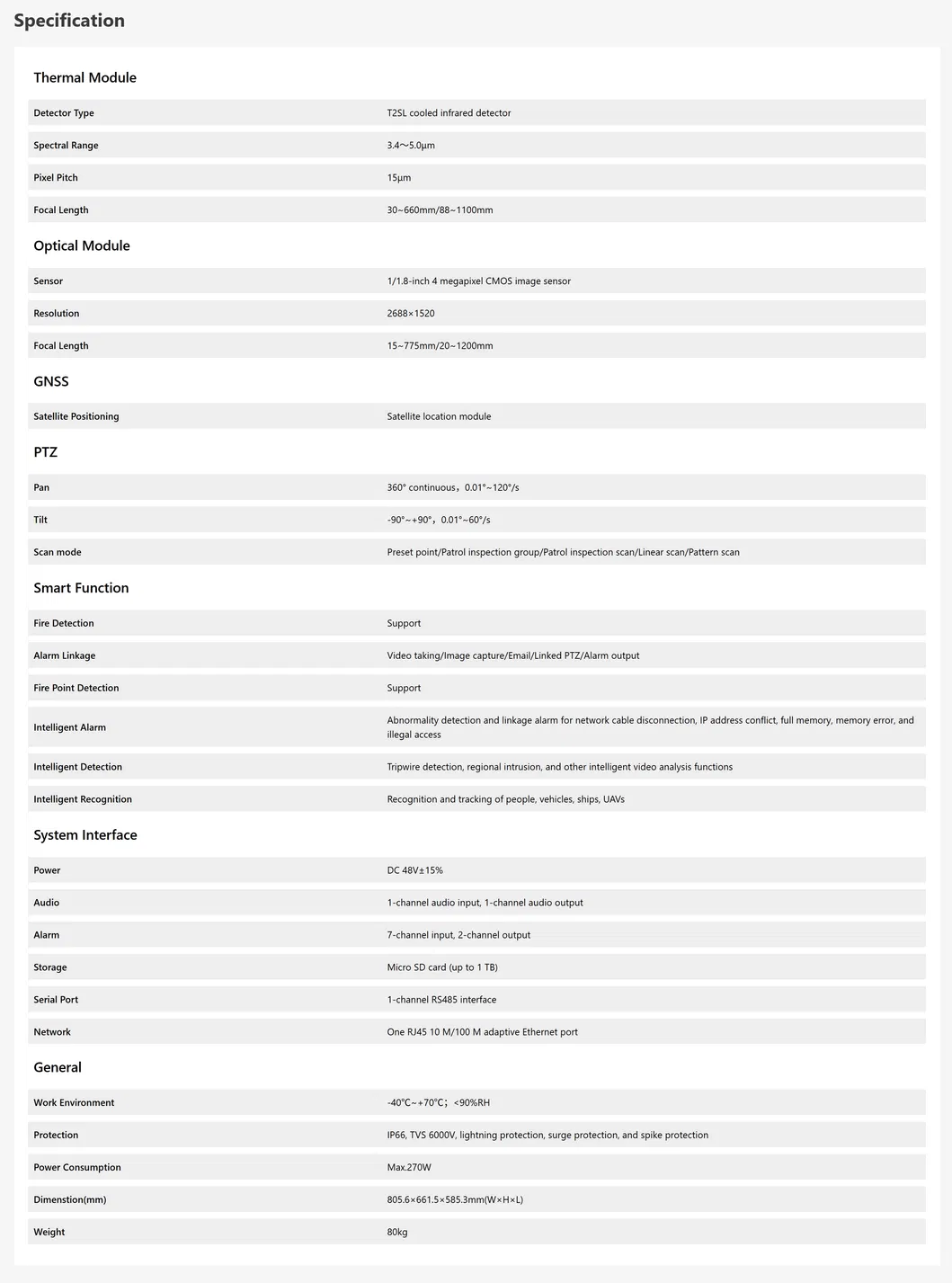

| Thermal Module | |
|---|---|
| Detector Type | T2SL cooled infrared detector |
| Spectral Range | 3.4~5.0μm |
| Resolution / Pixel Pitch | 640×512 / 15μm |
| Focal Length | 30~660mm / 88~1100mm |
| Optical Module | |
| Sensor | 1/1.8-inch 4 megapixel CMOS image sensor |
| Resolution | 2688×1520 |
| Focal Length | 15~775mm / 20~1200mm |
| PTZ & General | |
| Pan / Tilt Range | 360° Continuous / -90°~+90° |
| Protection Level | IP66, TVS 6000V, Lightning & Surge Protection |
| Work Environment | -40ºC~+70ºC; <90%RH |
| Dimensions / Weight | 805.6×661.5×585.3mm / 80kg |
