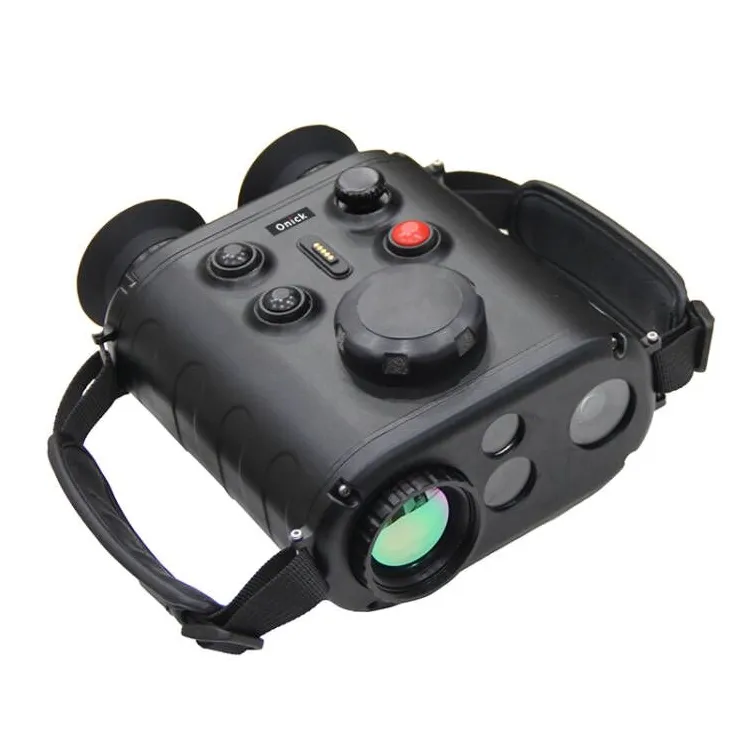

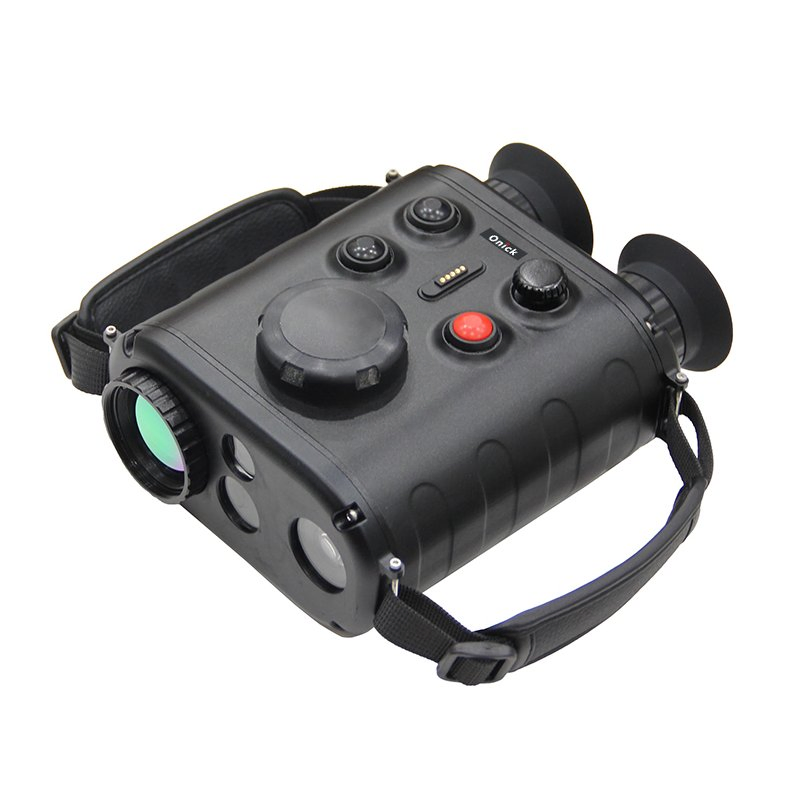

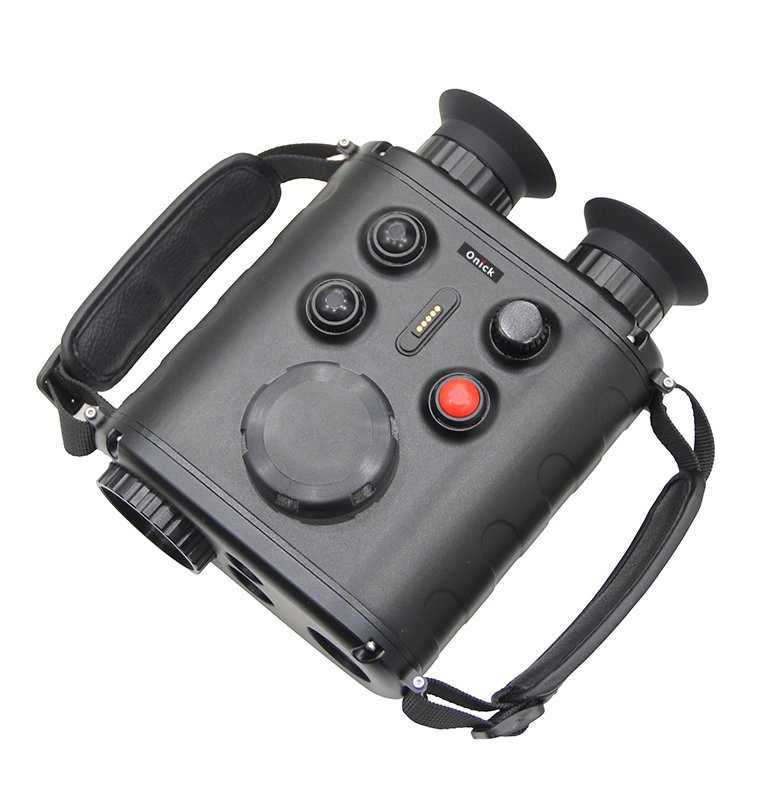

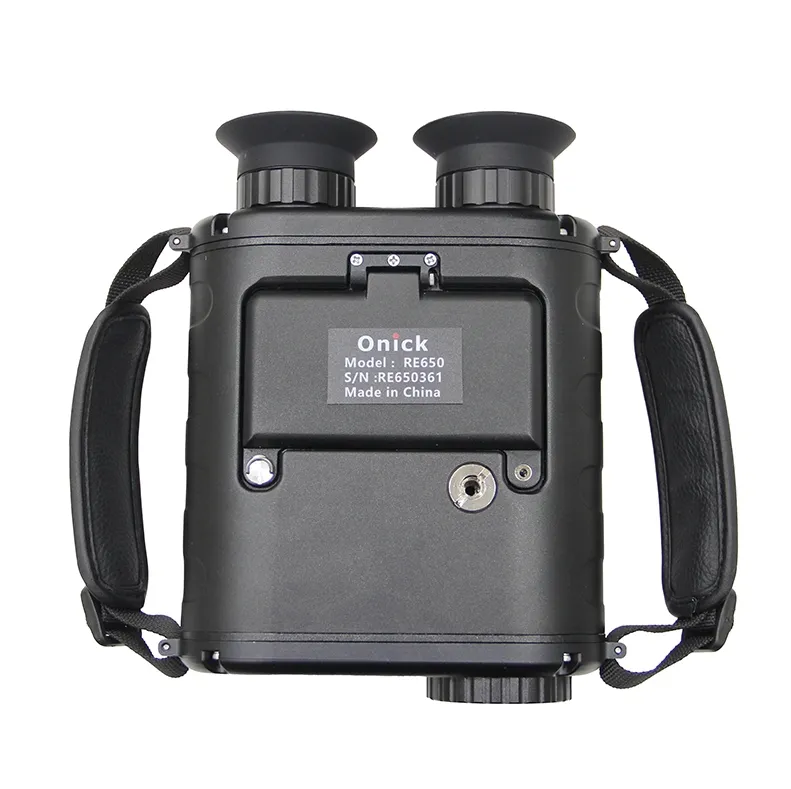

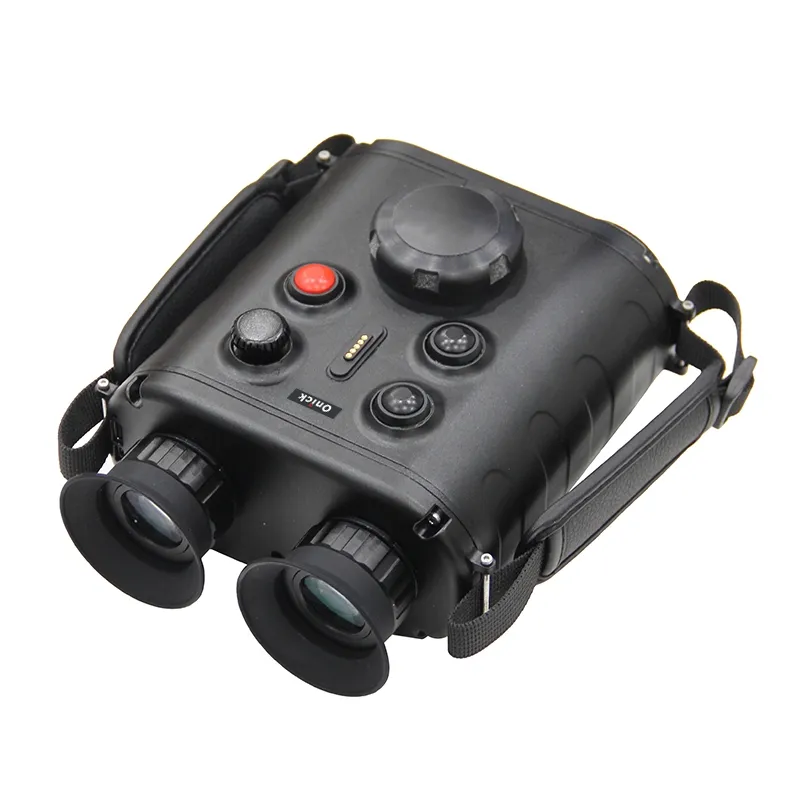

RE650 is a handheld three-light thermal imaging observation and reconnaissance instrument equipped with a TV camera, uncooled infrared thermal imager, laser rangefinder, GPS, electronic compass and other functions. It can be used for all-weather day and night reconnaissance and target positioning. The product features exceptional infrared imaging, low power consumption, and a compact, stable structure with a portable design for a comfortable grip.
- Infrared and white light imaging with binocular observation and media storage.
- Electronic zoom from 1.0× to 8.0× (0.1× steps).
- Laser ranging, Beidou positioning, compass orientation, and trajectory calculation.
- Expansion interface for humidity sensors, anemometers, and more.
- Advanced features: fog penetration, altitude/air pressure sensors, and fault diagnosis.
- AI-driven recognition for human, vehicle, and drone targets.
| Model |
RE650 Three-Light System |
| Infrared Detector |
640×512, 12um Vanadium Oxide Uncooled FPA |
| Infrared Lens |
35mm, F1 |
| White Light Detector |
3840×2160, 1.5μm Color CMOS |
| Laser Range |
10m ~ 3500m (905nm Wavelength) |
| Distance Accuracy |
±0.2m |
| Display |
0.39-inch OLED (≥1024×768) |
| Magnification |
15x Optical; 1.0x~8.0x Electronic Zoom |
| Storage |
Built-in 32GB (≥20,000 images / ≥4h video) |
| Positioning |
Beidou/GPS (Longitude, Latitude, Altitude) |
| AI Functions |
Human/Vehicle recognition; Drone lock-on |
| Battery Life |
≥4 hours (Normal temperature) |
| IP Rating |
IP67 |
| Dimensions/Weight |
187.5*135*78.9mm / ≤1.2kg |
Ideal for low-altitude economy operations, emergency rescue, reconnaissance, border defense, water search and rescue, and industrial inspection.
1. Are you the manufacturer?

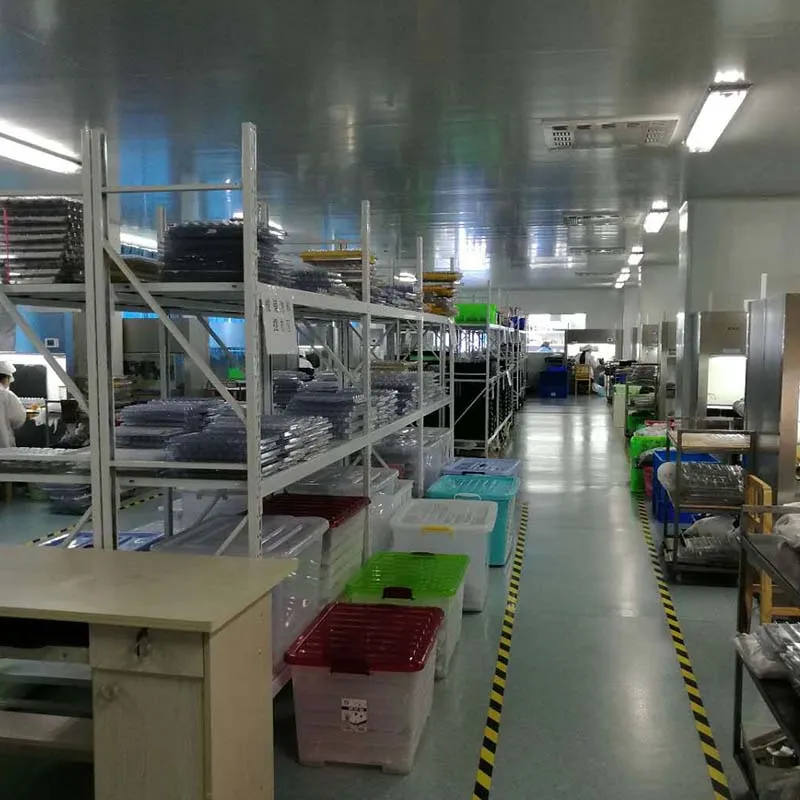

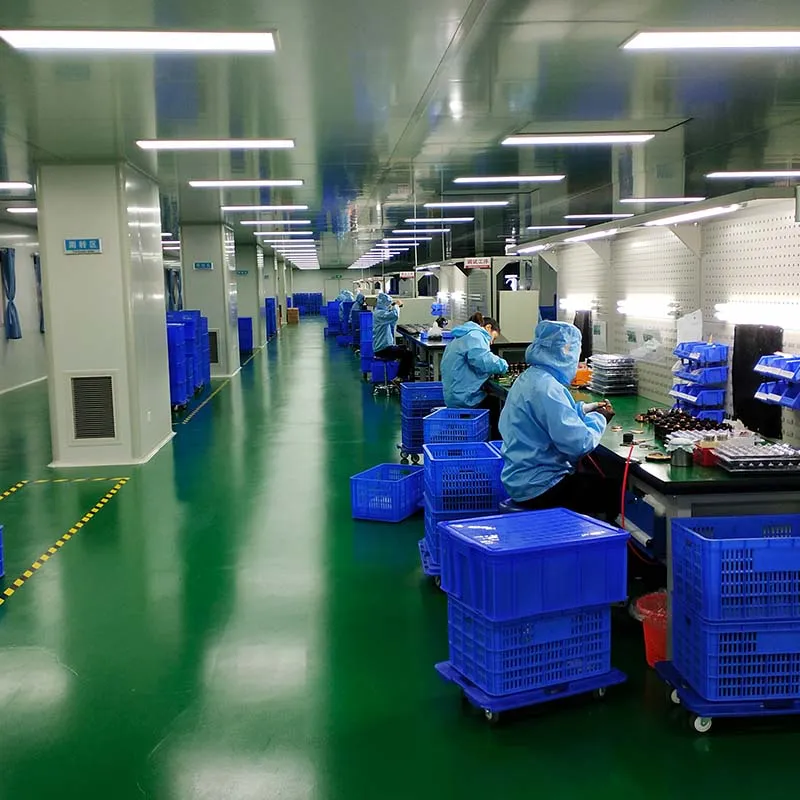

We are a professional enterprise engaged in the R&D and sales of rangefinders, night vision, and thermal imagers, with an annual production capacity exceeding 300,000 units.
2. What quality certifications do the products hold?
All products have passed CE, RoHS, and FCC verification. The manufacturing facility operates under the ISO 9001 quality system.
3. What is the typical lead time?
For small quantities, we can usually ship within 7 days. For large-scale orders, please contact our team for a specific schedule.
4. What shipping methods are available?
Orders are typically shipped via international express services such as DHL, FedEx, or UPS to ensure fast and safe delivery.
5. How long is the product warranty?
We provide an 18-month warranty policy for the majority of our high-precision optical and thermal products.
6. Do you support OEM or ODM customization?
Yes, customized solutions (OEM/ODM) are available depending on the order volume and specific technical requirements.
