🔍 Product Description

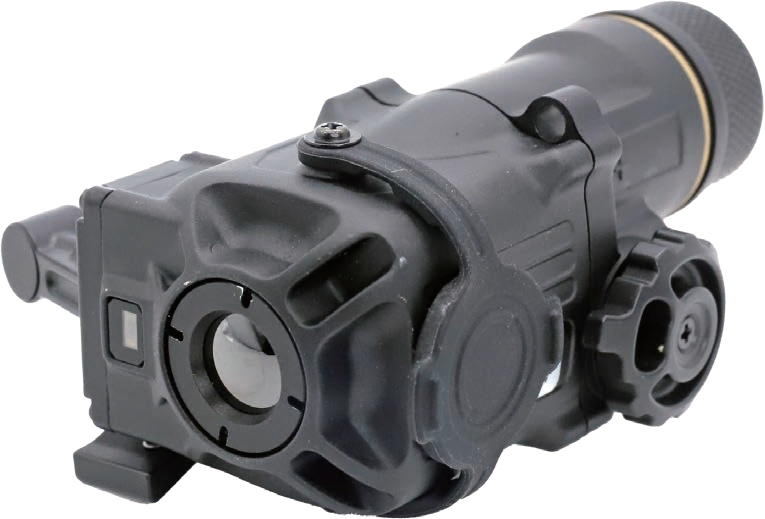

The ELF-C is a clip-on thermal imaging enhancement attachment designed for night vision and minimum illumination in extreme environmental conditions. It facilitates the rapid enhancement of the existing device, enabling clip-on fusion and multi-mode display. This greatly enhances users' nighttime battlefield perception, ensuring the prioritized recognition of potential adversaries and delivering a decisive tactical advantage.
| Parameter |
Details |
| Magnification | 1x |
| Resolution, Pixels | 640×512 |
| Pixel Pitch, μm | 12 |
| NETD, mK | 25 |
| Frame Rate, Hz | 50 |
| Lens System | 11.5 F1.0 / 27mm |
| FOV, ° | 30 |
| Controls | Brightness, Contrast, Polarity |
| Modes | Outline, High Lights |
| Display Resolution | 800×600 (OLED) |
| Protection Level | IP67 |
| Dimensions, mm | 85×65×49 |
| Weight | 95g (without Battery) |
❓ Frequently Asked Questions
What is the primary function of the ELF-C?
The ELF-C is a thermal imaging enhancement attachment designed to be clipped onto existing night vision devices to provide fusion imaging and better recognition in extreme low-light or total darkness conditions.
What thermal resolution does this device offer?
It features a high-performance 640×512 pixel resolution with a 12μm pixel pitch, providing sharp and detailed thermal imagery.
Is the device waterproof for field use?
Yes, the device is rated IP67, meaning it is protected against dust ingress and can withstand immersion in water up to 1 meter for 30 minutes.
What are the "Outline" and "High Light" modes?

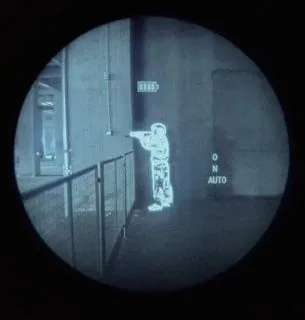

These are specialized display modes. Outline mode highlights the edges of objects for better target definition, while High Light mode emphasizes heat signatures to quickly spot potential adversaries.
How long does the battery last?
When using a standard 18650 battery, the ELF-C provides up to 6 hours of continuous operation. It also supports CR123A batteries.
Does the ELF-C add significant weight to my gear?
No, the device is extremely lightweight, weighing only 95 grams (without battery), ensuring it doesn't disrupt the balance of your existing night vision setup.
