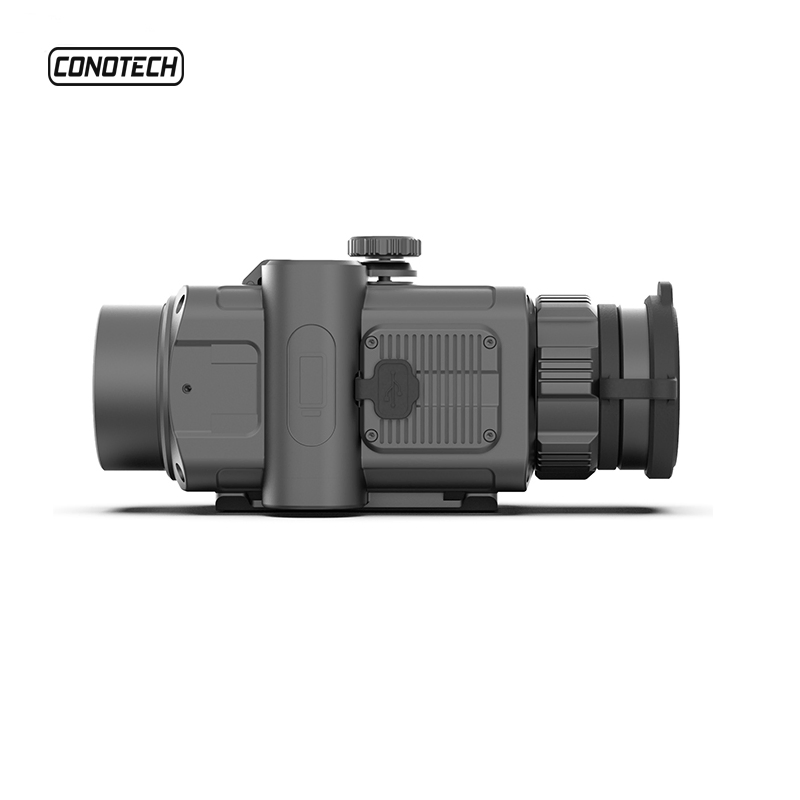

Ultra Light Mini Thermal Imaging Attachment Scope

1 / 5

Ultra Light Mini Thermal Imaging Attachment Scope

Customization:	Available
Warranty:	3 Years
Style:	Clip on

Send Inquiry

Product Description

● Overview

Kind

Thermal Imaging Night Vision

Operation Principle

Infrared Night Vision

Mode No

Artemis 25/35

Detector

384X288, 12um

WiFi

Yes

Battery

2X18500

Battery Life

6.5 hours

HS Code

903149

Origin

China

Production Capacity

5000PCS/Year

● Product Description

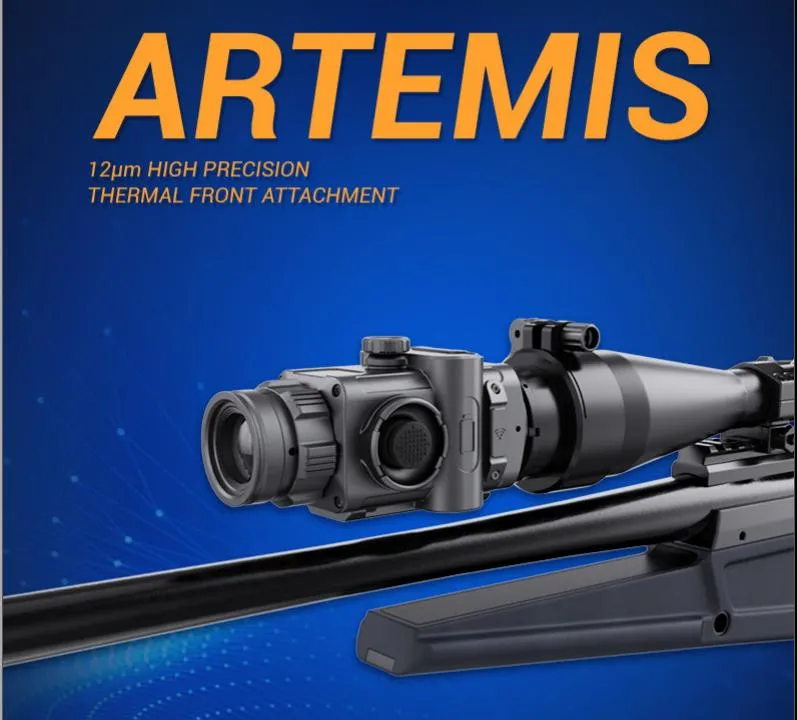

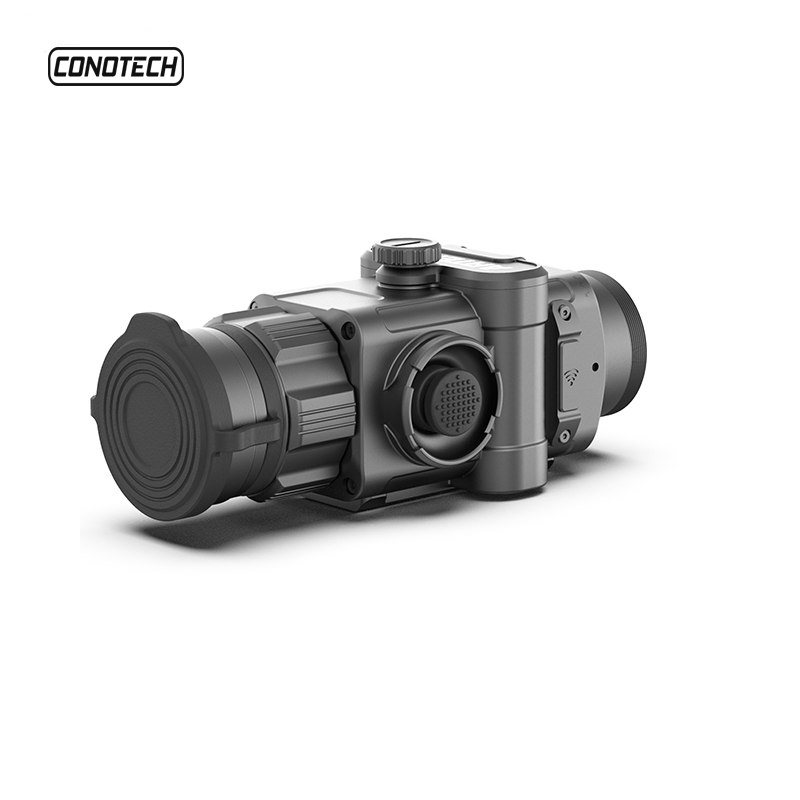

Observation scope clip on thermal imager for day and night outdoor

ARTEMIS is a high precision thermal clip-on, features with compact and ultra-light design, works seamlessly with your daytime scopes. Based on an advanced 12um thermal imaging sensor with 384x288 pixel resolution offers relatively smaller FOV, unique sharp and high-contrast images for enhanced identification of the smallest details.

● Key Features

🎯

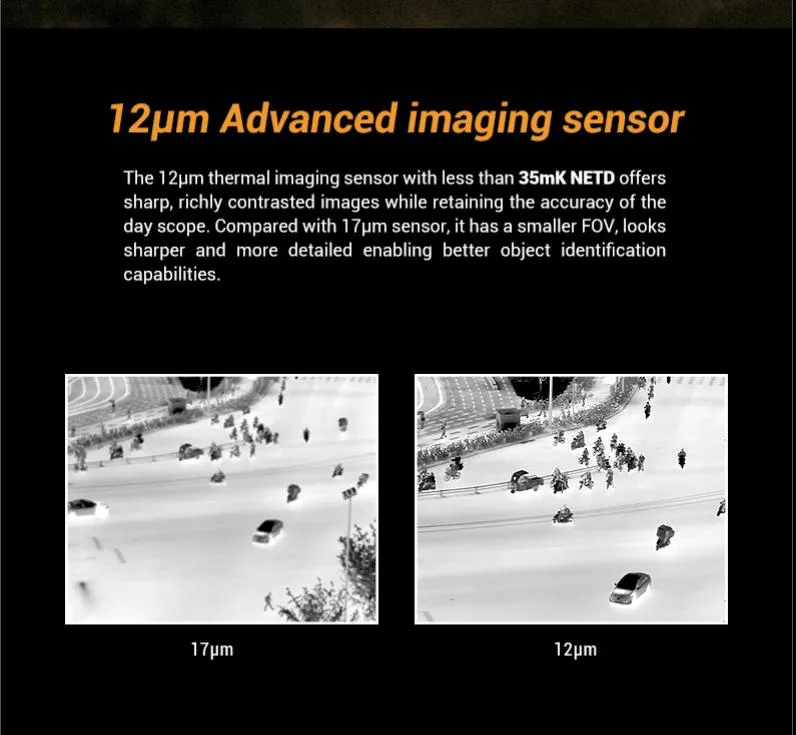

12um Advanced Thermal SensorWith less than 30mK NETD, it offers sharp, richly contrasted images while retaining day scope accuracy.

⚖️

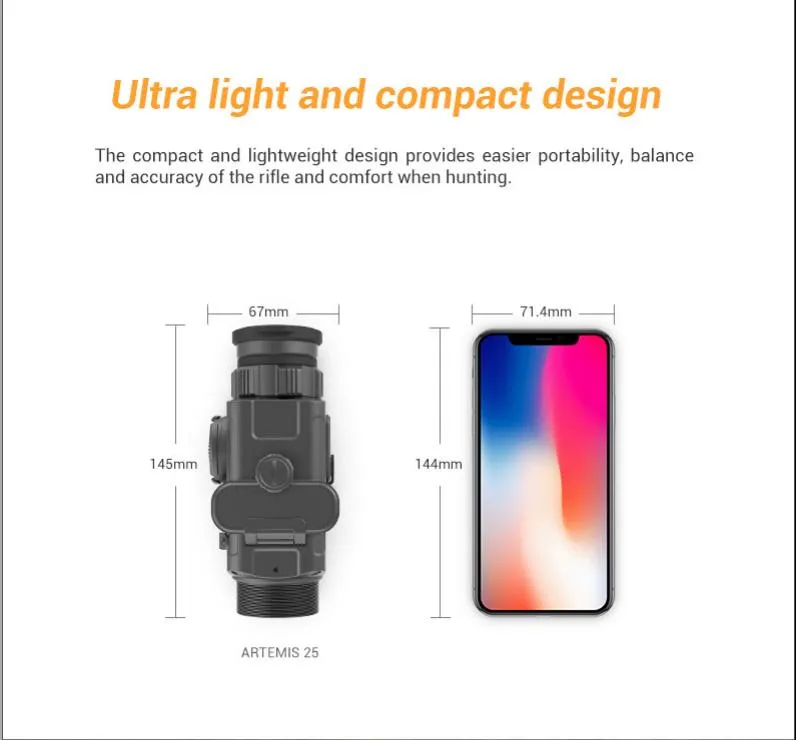

Ultra Light & CompactDesigned for easier portability and balance without sacrificing accuracy during hunting.

🔭

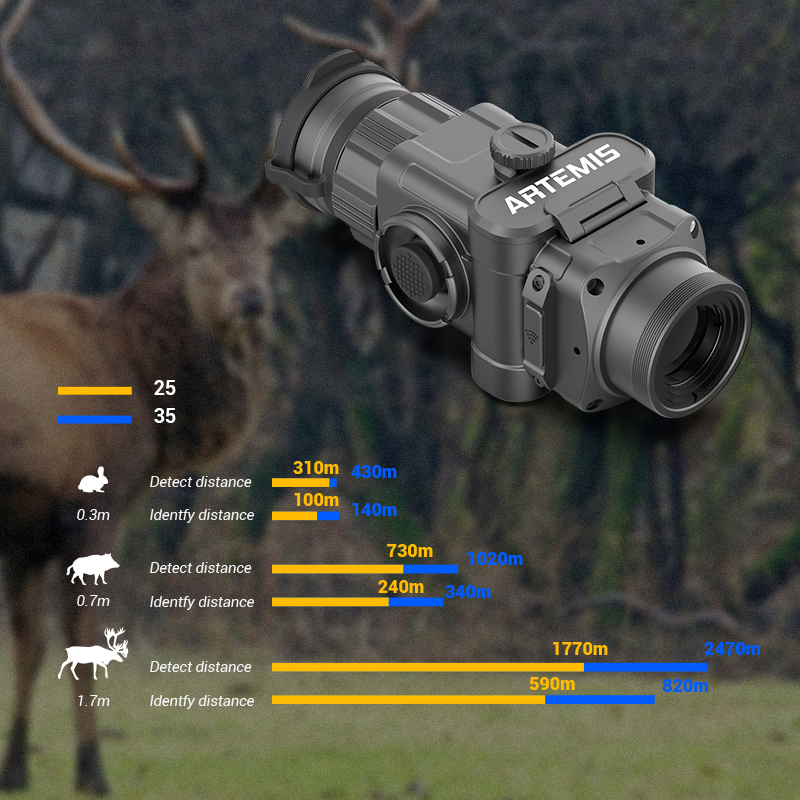

Long Range DetectionDetect standard 1.7m objects up to 2470 meters away in complete darkness.

🎨

Multiple Palette6-color palette options to enhance viewing in various environmental conditions.

🖥️

High-Resolution OLED1024x768 OLED display provides vivid colors and a crisp field of view.

🔋

Long Operation TimeUp to 6.5+ hours with 2x18500 batteries; supports external power banks.

🛡️

Shock ResistanceFeatures high shock resistance up to 1200G/ms for reliable performance.

💧

IP67 WaterproofProtected against heavy rain and snow; submersible up to 1 meter for 30 mins.

● Specifications

Model Parameter	Artemis 25	Artemis 35
Detector
Resolution / Pitch	384x288 / 12µm
Frame Rate / NETD	50Hz / < 30mk
Optical Characteristics
Objective Lens	25mm/F1.0	35mm/F1.0
FOV at 100m	18.4 x 14m	13.2 x 10m

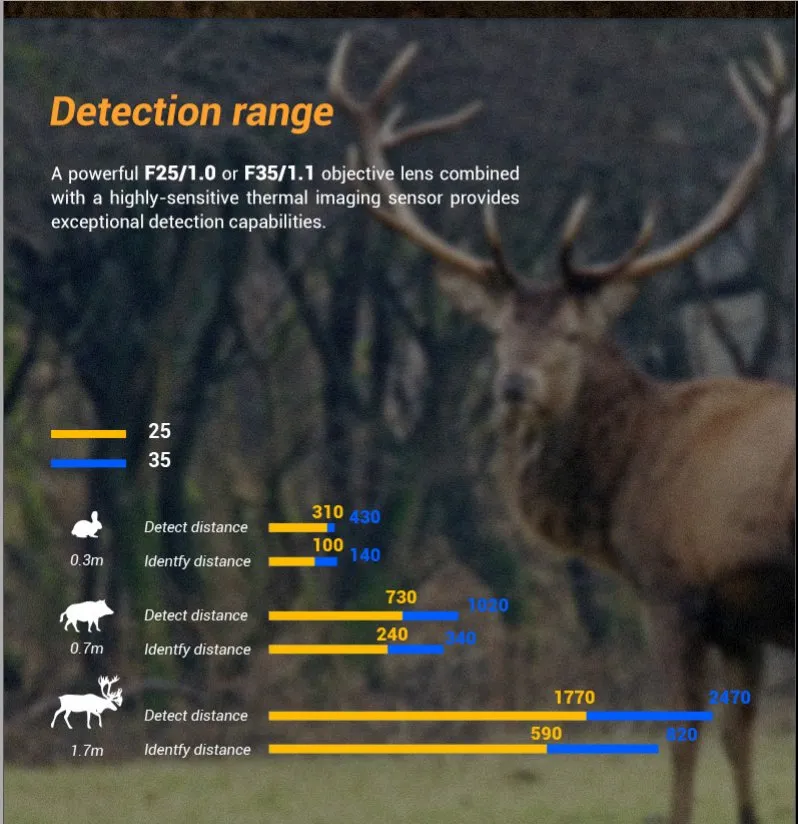

Detection Range (1.7m)	1770m	2470m
Recognition Range (1.7m)	590m	820m
Display & Power
Display Type / Resolution	OLED / 1024x768
Battery Life	6.5 Hours (2x18500)
Physical
Weight (without battery)	450g	470g
Dimensions	145x67x69 mm	155x67x69 mm

● Integrated Precision Laser Rangefinder

Integrated, precision laser rangefinder provides accurate rangefinding in two modes - Single Time Measurement and Scanning mode with ±1 m accuracy up to 1 km distance. Accurate distance readings help to quickly assess the size of territory, distance and relief.

Frequently Asked Questions

What is the detection range of the Artemis thermal imager?

The detection range depends on the model. Artemis 25 can detect a 1.7m tall object up to 1770 meters, while Artemis 35 extends this range to 2470 meters.

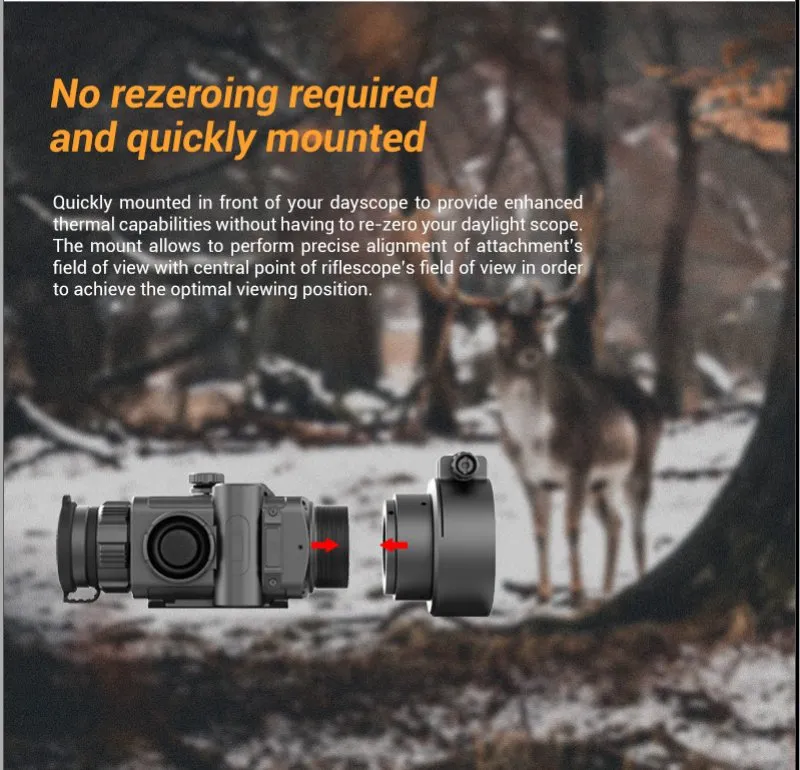

Is re-zeroing required when mounting the clip-on?

No re-zeroing is required. It is designed to be quickly mounted in front of your day scope without losing your daylight scope's central point alignment.

How long does the battery last during field use?

The device uses 2x18500 batteries providing approximately 6.5 hours of continuous operation. You can also use a Type-C power bank for extended use.

What is the environmental protection rating?

The unit features an IP67 waterproof protection level, meaning it is protected from heavy rain, snow, and immersion in 1 meter of water for up to 30 minutes.

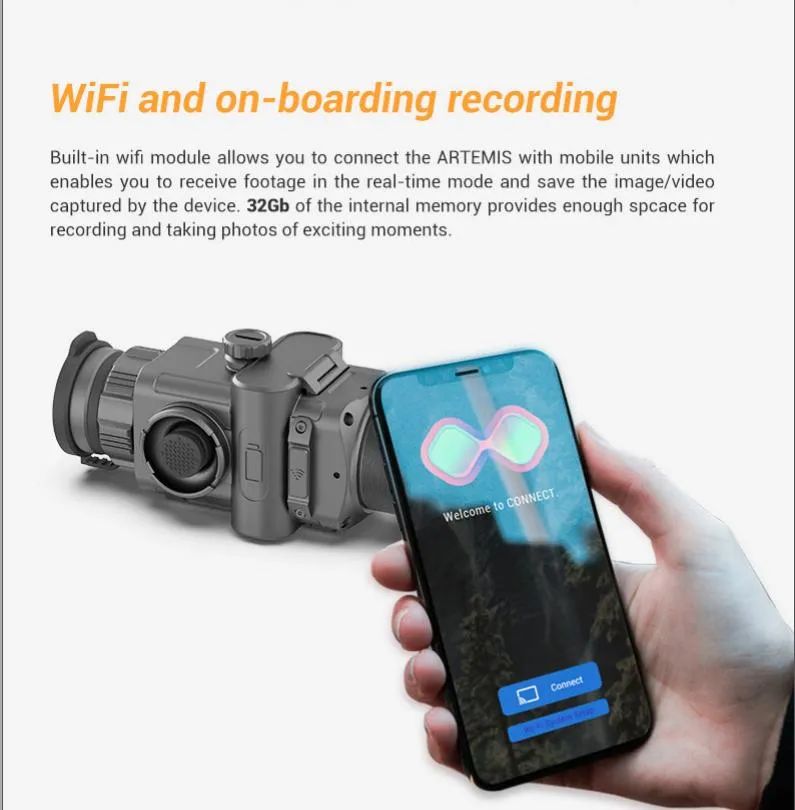

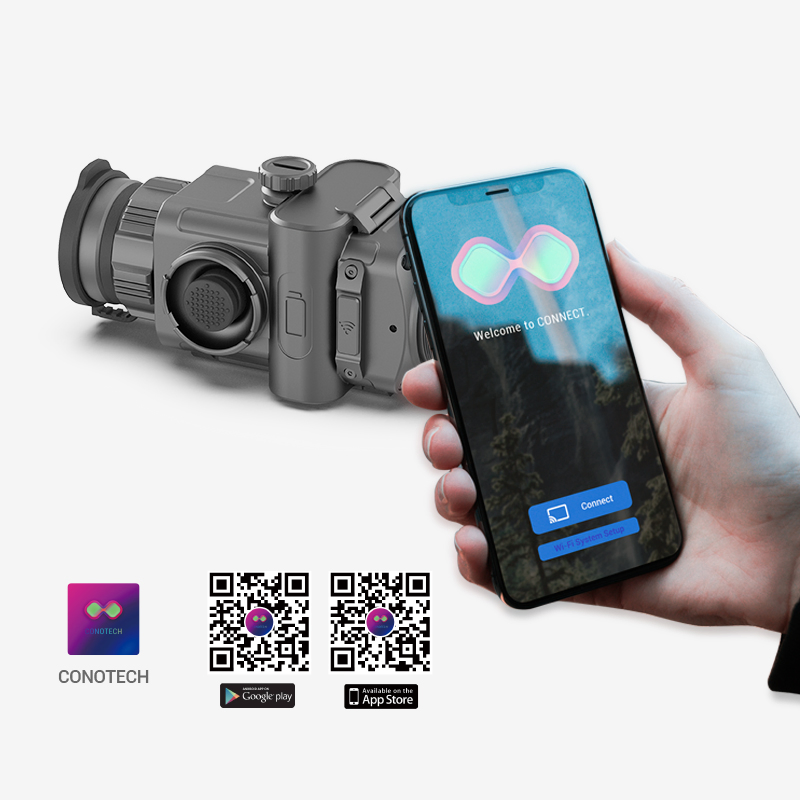

Does the device support video recording and WiFi?

Yes, it features a built-in photo and video recorder with 32GB of internal memory and WiFi connectivity for seamless data transfer.

What kind of sensor and display technology is used?

It utilizes an advanced 12µm thermal imaging sensor with <30mK NETD sensitivity and a high-resolution 1024x768 OLED display for superior image contrast.
