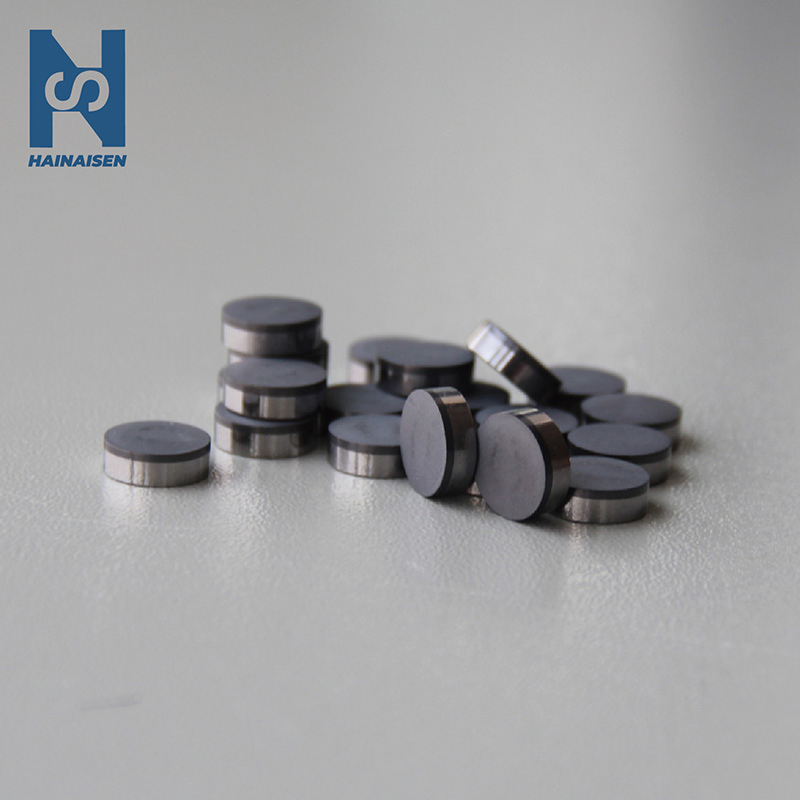

High Thermal Stability Hard Alloy Diamond Formation Drilling Tool

1 / 5

High Thermal Stability Hard Alloy Diamond Formation Drilling Tool

Customization:	Available
Customized:	Customized
Standard:	ISO

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

S0808

Type

PDC Cutter/Insert/Button

Material

Tungsten Carbide

Usage

Metal Drilling, Oilfield, Mining, Construction

Wear Resistance

Super High

Thermal Stability

750℃ - 900℃

Diamond Grade

PCD

Impact Toughness

Excellent

Certification

ISO 9001

Diameter

8.00 mm

💎 Product Description

Dome Cutter Series

Core Features:
Multilayer structure of diamond and transition layer. Significantly improves impact resistance, making it the ideal alternative for roller cone applications.

Applicable Position: Priority for rear row teeth. Buffers impact, protects main teeth, and prevents gravel damage.

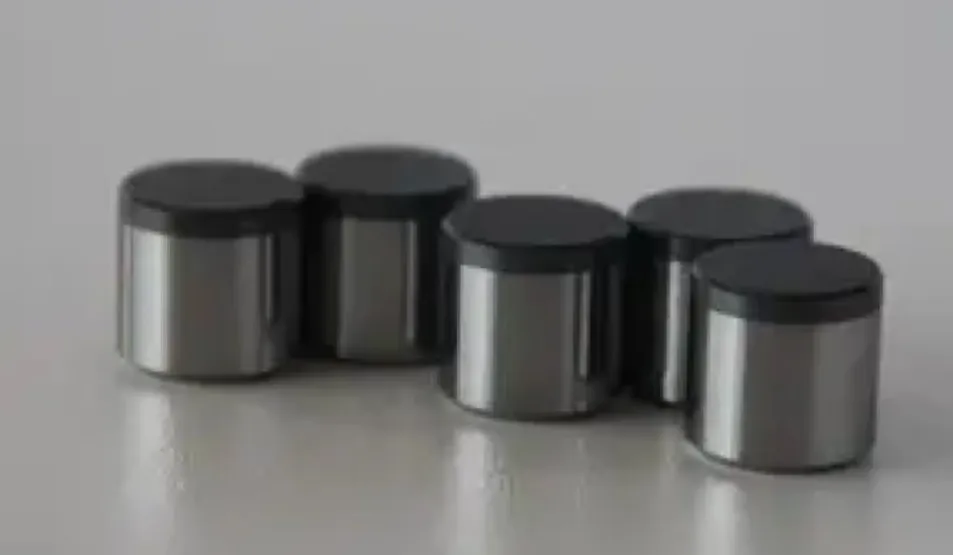

Flat Cutter Series

Core Features:
Large contact area with high cutting efficiency. Delivers outstanding wear resistance and uniform force bearing to avoid local wear.

Applicable Position: Main teeth (primary) and rear row teeth (auxiliary). Crushes rocks quickly and extends overall bit life.

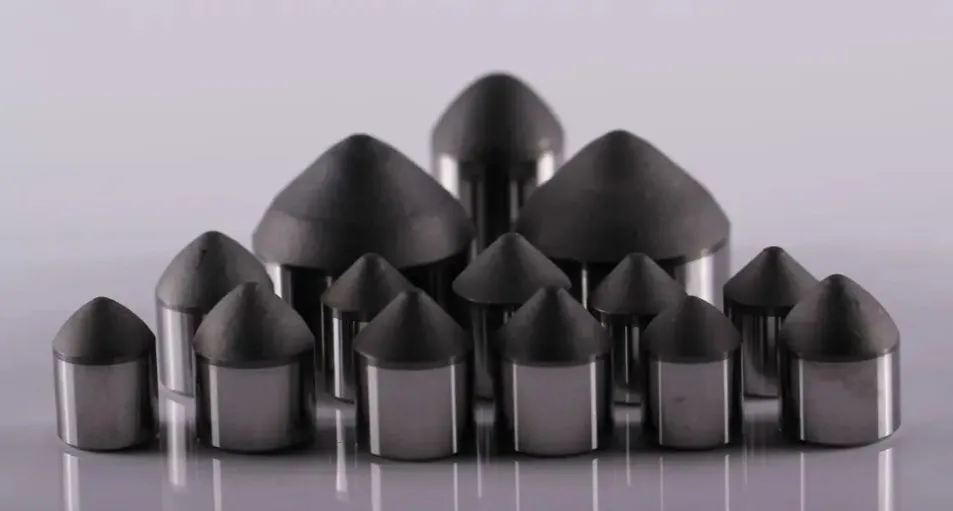

Conical Cutter Series

Core Features:
Sharp tapered tip for extremely strong penetration. Reduces drilling resistance in medium-hard to hard formations. Disperses stress effectively.

Applicable Position: Exclusively for main teeth. Optimized for hard formation crushing where high penetration is required.

📊 Specification

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
S1308	13.44	8.00	2.00	0.40
S1313	13.44	13.20	2.00	0.40
S1316	13.20	15.88	2.00	0.35
S1613	15.88	13.20	2.40	0.40
S1913	19.05	13.20	2.40	0.30
S1916	19.05	16.00	2.40	0.30
S2219	22.20	19.05	2.00	0.30

Model No.	Diameter (mm)	Total Height (mm)	Diamond Thickness (mm)	Chamfer (mm)
DE1319	12.925	19.00	4.60	5.94
DE2028	20.00	28.00	5.40	11.0

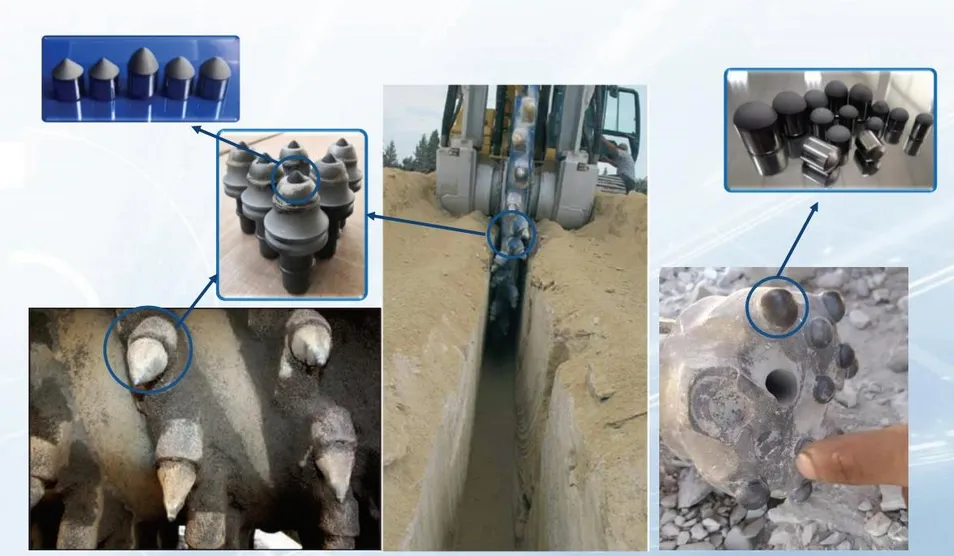

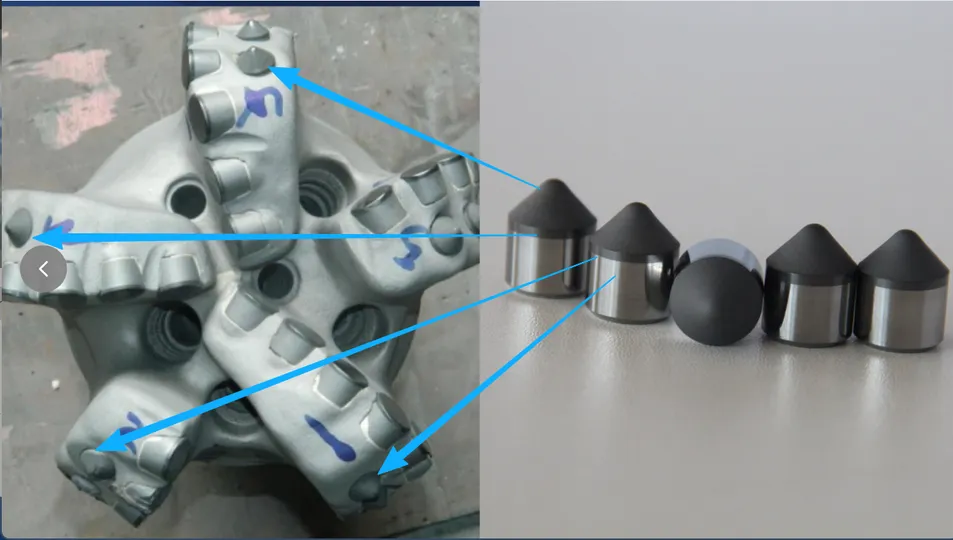

🛠️ Application Case

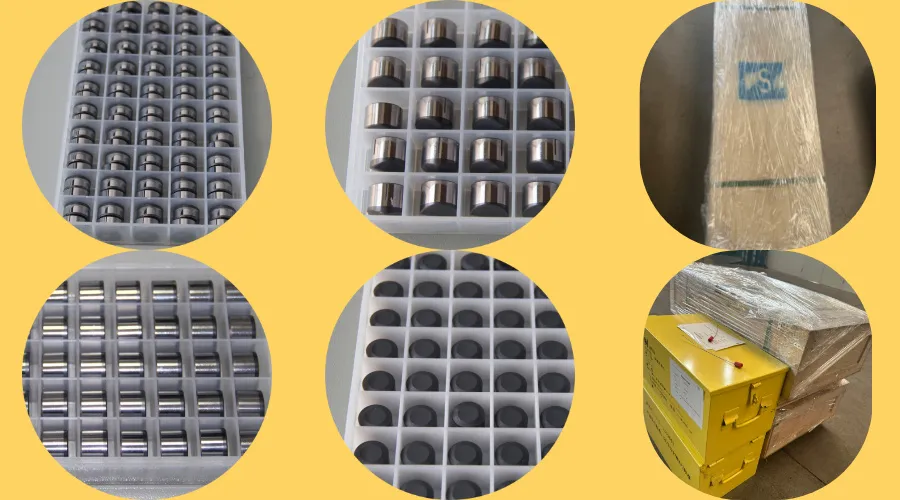

📦 Packing & Delivery

📜 Certifications

❓ FAQ

Are you a factory or a trading company?

We are a professional PDC Cutter manufacturer with our own production line and R&D team, providing factory direct sales with competitive pricing and stable quality.

Do you accept OEM/ODM customization?

Yes. We support OEM (custom packaging) and ODM (custom size/performance) to meet your specific brand and market requirements.

Can PDC Cutters be mixed and used on one drill bit?

Yes. Half moon and full round PDC Cutters can be combined according to stratum characteristics to optimize drilling efficiency and stability.

Do you provide technical support after sale?

Yes. Our professional technical team provides 24/7 online service, including drill bit matching, usage guidance, and failure analysis.

What shipping methods do you support?

We support Express (3-7 days), Air (5-10 days), and Sea (20-35 days). We choose the most cost-effective way based on your urgency and address.

Can I place a trial order with a small quantity?

Yes. Trial orders are acceptable for new customers to test our product quality.
