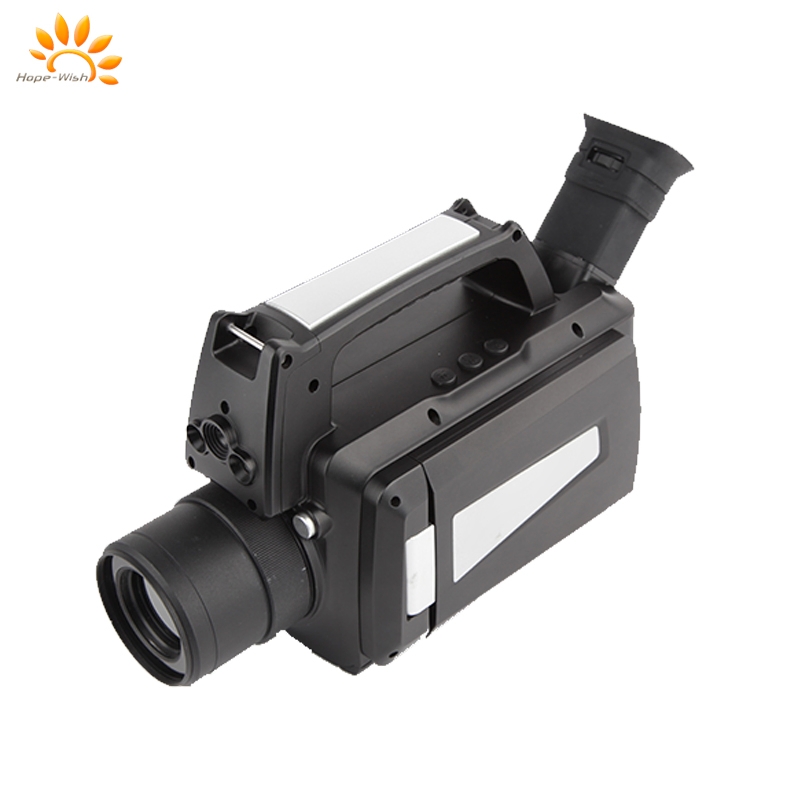

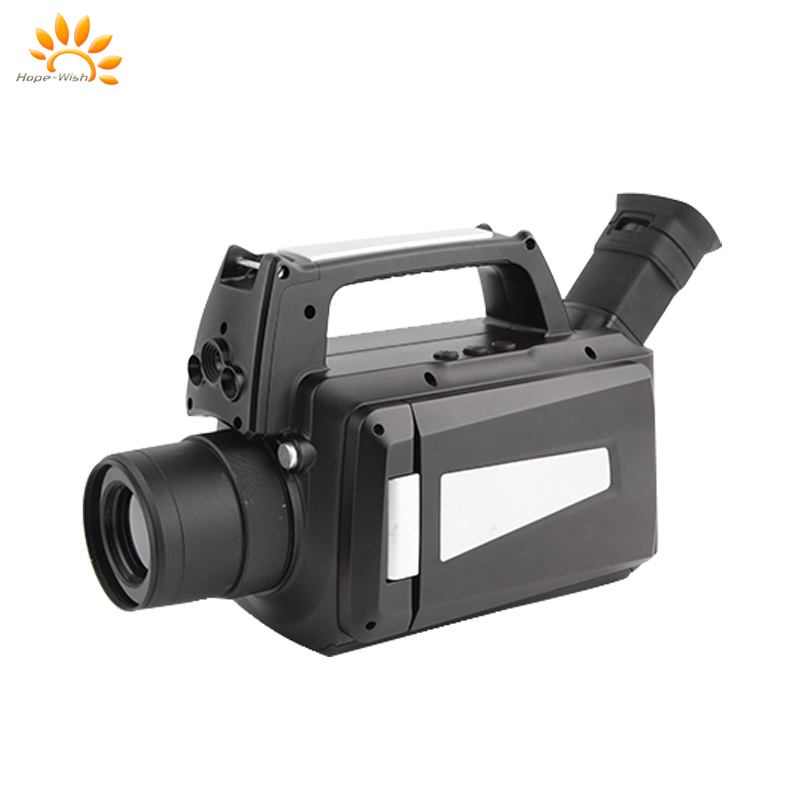

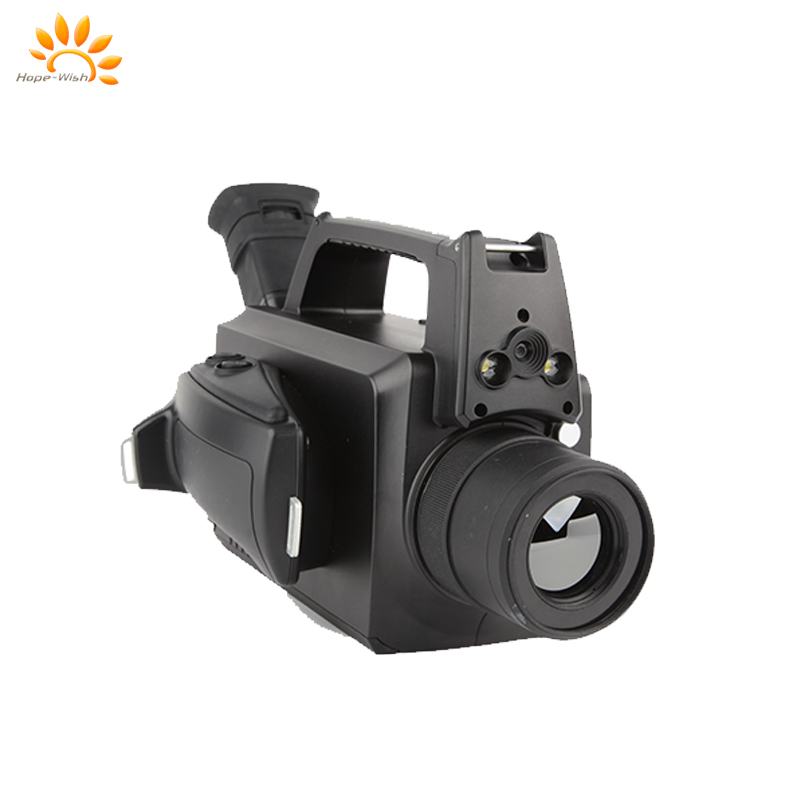

Infrared Gas Leakage Detection Thermal Imaging Tool

1 / 5

Infrared Gas Leakage Detection Thermal Imaging Tool

Customization:	Available
Technology:	Infrared
Style:	Fixed Focus Lens

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.:HP-GF706

Type:CCTV Camera

Sensor:Vox

HDMI Format:720P

Horizontal Res:600tvl

Certification:CE, FCC, CCC, ISO9001

Feature:Waterproof / Weatherproof

Effective Dist:≧30m

Detection Dist:6000m

Origin:China

⚙️

Key Functions

11 color pallet / 11 languages
1-8x digital zoom
10 movable spot temp measurement
5 movable area temp measurement
2 line temperature measurement
Auto & Electrical focus
LCD brightness adjustment
SD card capture & video storage
Gas leak detection & jitter mode
Infrared & visible light image fusion
Capture voice or text annotations
Isothermal function

📊

Technical Specifications

Detector System
Type	Cooled quantum well FPA
Resolution	320×256
Imaging & Optical
NETD	≤0.025ºC @ 30ºC
SF6 Detection Sensitivity	≤0.001ml/s
Frame Rate	60Hz
Spectral Range	10.3 - 10.7um (Peak 10.55μm)
Visual Camera	5 Megapixels CMOS with LED
Measurement & Display
Temperature Range	-40ºC to +500ºC
Accuracy	±2ºC or ±2%
Display	5" Color Digital Touch Screen + HD 0.6" OLED Viewfinder
Physical Parameters
IP Rating	IP54
Weight / Dimension	2.5Kg / 270mm×172mm×177mm

📦

Standard Accessories

GF706 Infrared Thermal Imager
Shoulder strap & Safety box
Lens cap
Li-on Battery (2pcs)
Smart Charger & Power adapter
Video output cable
SD Card & Card reader
Network cable (Mini-USB to RJ45)
User manual

🖼️

Product Display

Frequently Asked Questions

Q1: What is the primary use of the HP-GF706?

The HP-GF706 is a high-sensitivity cooled thermal imager specifically designed for detecting gas leakages, such as SF6, across various industrial environments.

Q2: How sensitive is the device for gas detection?

The device features an exceptional sensitivity level of ≤0.001ml/s for SF6 detection and a thermal sensitivity (NETD) of ≤0.025ºC.

Q3: Does the camera support image fusion?

Yes, it supports the fusion of infrared and visible light images, allowing for better identification and localization of target areas.

Q4: What are the storage capabilities?

It comes with an 8G SD card as standard, supporting up to 32G. It allows for single frame JPEG storage and dynamic MPEG-4 video recording.

Q5: Is it suitable for outdoor use?

Absolutely. With an IP54 protection rating and a working temperature range of -15ºC to +50ºC, it is built for reliable performance in various environmental conditions.

Q6: How long does the battery last?

The rechargeable Li-ion battery provides approximately 2 hours of continuous operation. The package includes two batteries for extended field use.
