Overview
Weight
About 1.3kg (with Battery)
Battery
10,000mAh Lithium-Ion Battery
Detector Type
12μm Uncooled Infrared Detector
Infrared Resolution
640×512
Super Resolution
1280×1024
Display

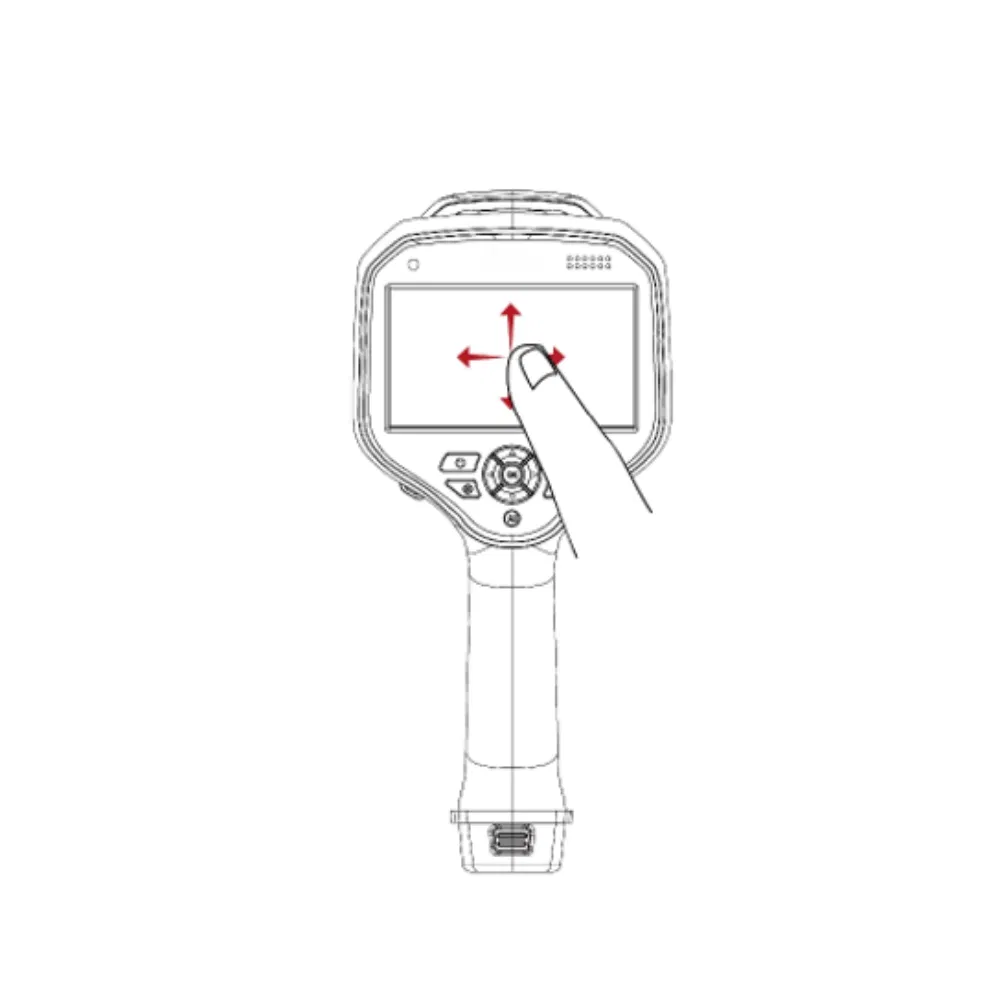

5-Inch OLED Touch Screen, 1280×720
Product Description

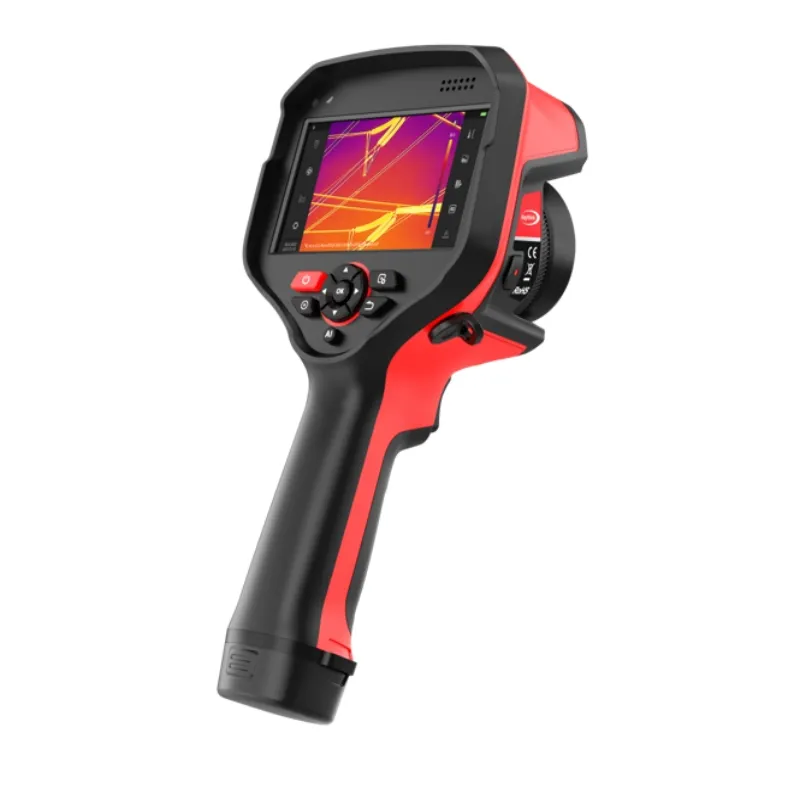

Equipped with a new-generation detector with a resolution of 480×360/640×512 and a NETD as low as 35mK, the new RT400/630 series can capture more subtle hotspots, and display sharper and cleaner thermal images. The device has rich and powerful features such as Android OS, trend analysis, area measurement. It is a new strong tool for expert-level full-scene analysis.
Product Highlights
🎯
Clear Thermal Images, Precise Temperature Measurement
Equipped with a 12μm uncooled infrared detector, supporting super resolution. NETD as low as 35mK, and measurement accuracy of ±2°C or ±2% of reading.
🔍
Various Lenses and Fast Focusing
Standard 25° lens, with optional wide-angle, long-focus, ultra-long-focus, and macro lenses flexible for diverse scenarios.
⚡
Functional Upgrade to Improve Efficiency
Android operating system for easier operation. Support intelligent image stabilization, laser rangefinding, and area measurement.
📊
Intelligent Analysis
Support up to 20 points/lines/areas for analysis. Customized isotherms to highlight specific temperature segments and intelligent routine inspection task packages.
Specifications
| Thermal Imaging |
|---|
| Detector Type | 12μm uncooled infrared detector |
| Infrared Resolution | 640×512 |
| NETD | <35mK (25°C,F1.0) |
| Focal Length | Standard 17.7mm; telephoto 31.5mm; wide-angle 9.5mm; macro 13mm |
| Measurement Range | -20°C~+150°C, 100°C~650°C; optional up to 1500°C |
| Image Display |
|---|
| Display | 5-inch OLED touch screen, 1280×720 |
| Visible Light Camera | 13 megapixels |
| Image Mode | Infrared, visible light, PIP, dual-spectrum fusion |
| Storage & System |
|---|
| Storage Medium | 64GB Micro SD (up to 2TB) |
| Battery | 10,000mAh lithium-ion, field-replaceable |
| IP Grade | IP54 |
Applications
Electric Routine Inspection

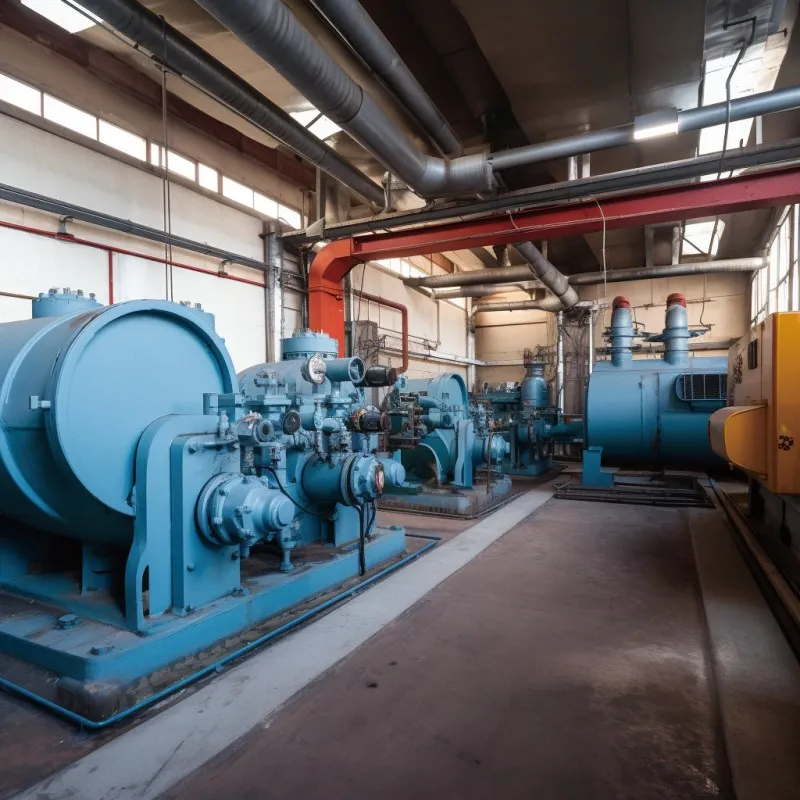

Chemical O&M

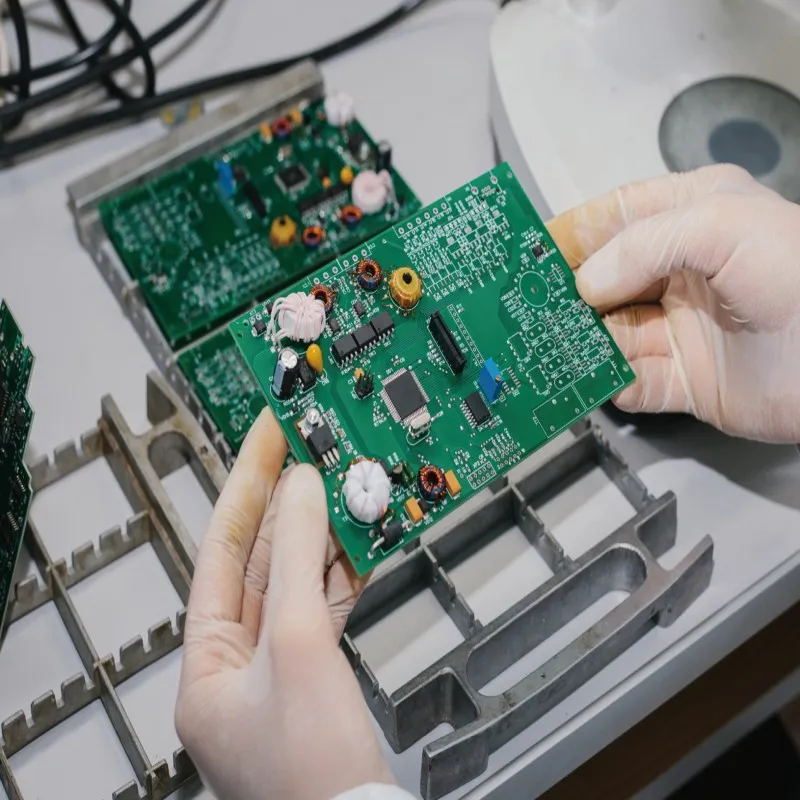

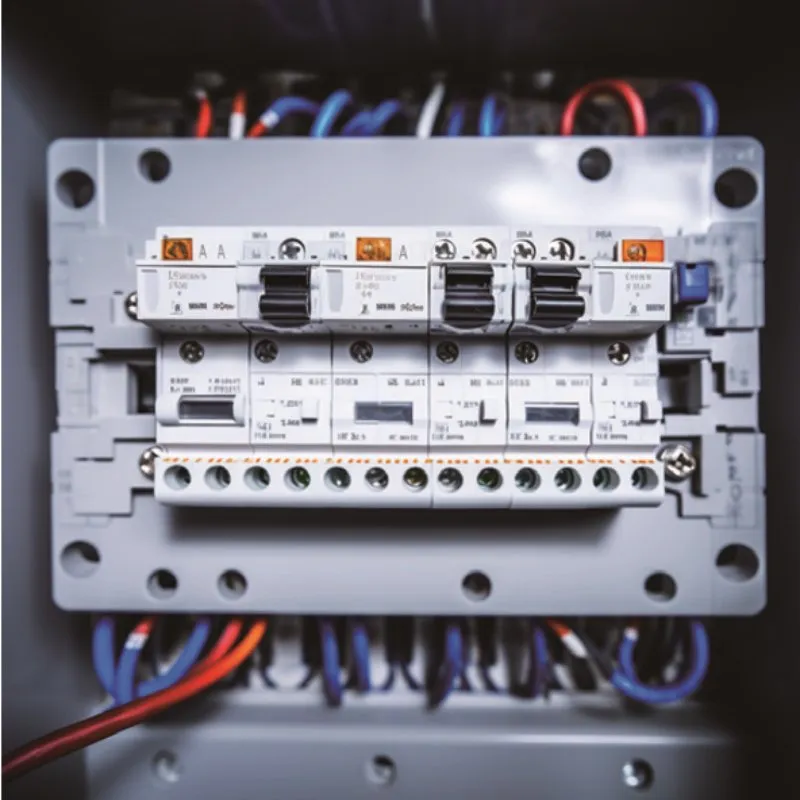

Electronic & Electrical R&D
Material Monitoring
Professional Manufacturing
FAQ
How can we guarantee quality?

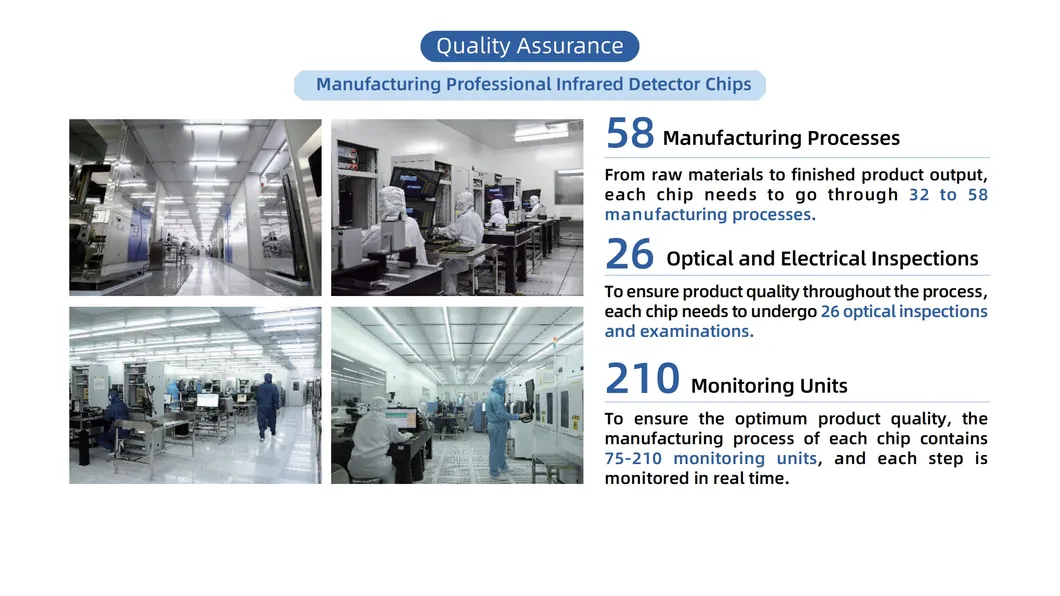

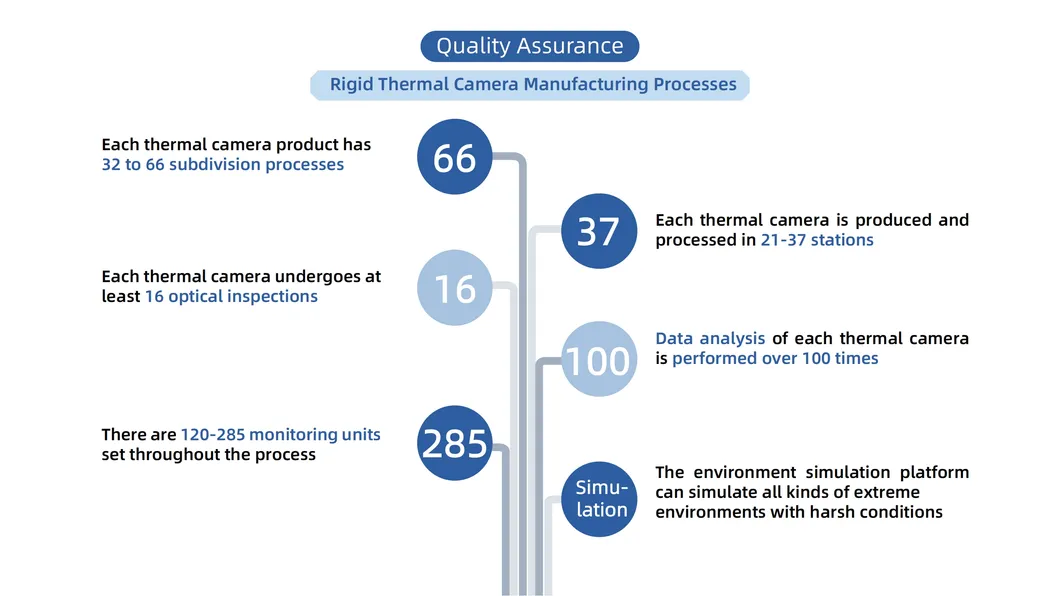

We have professional infrared detector chip manufacturing, rigid thermal camera manufacturing process, a perfect quality management system, and a CNAS certification reliability test platform.
How long is your delivery time?
For small orders, it usually takes 7 working days. For OEM orders, please check the shipping time with us.
What's the MOQ?
The MOQ depends on the specific product requested.
What are your payment terms?
Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
What is the product warranty policy?
Thermal cameras come with a 2-year warranty, while our detectors are covered by a 10-year warranty.
How about after-sale support?
We provide lifetime technical support, and our engineers will respond to your requests within 24 hours.
