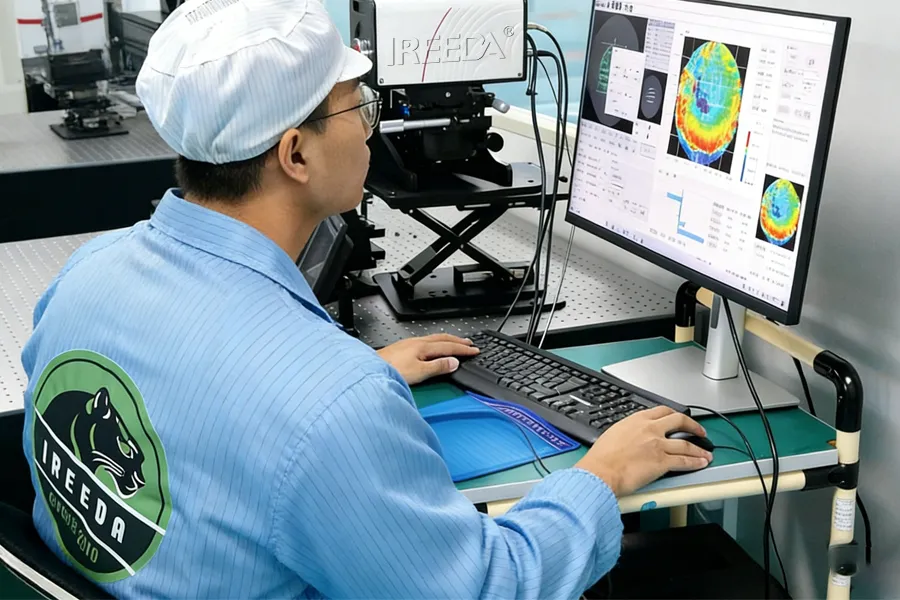

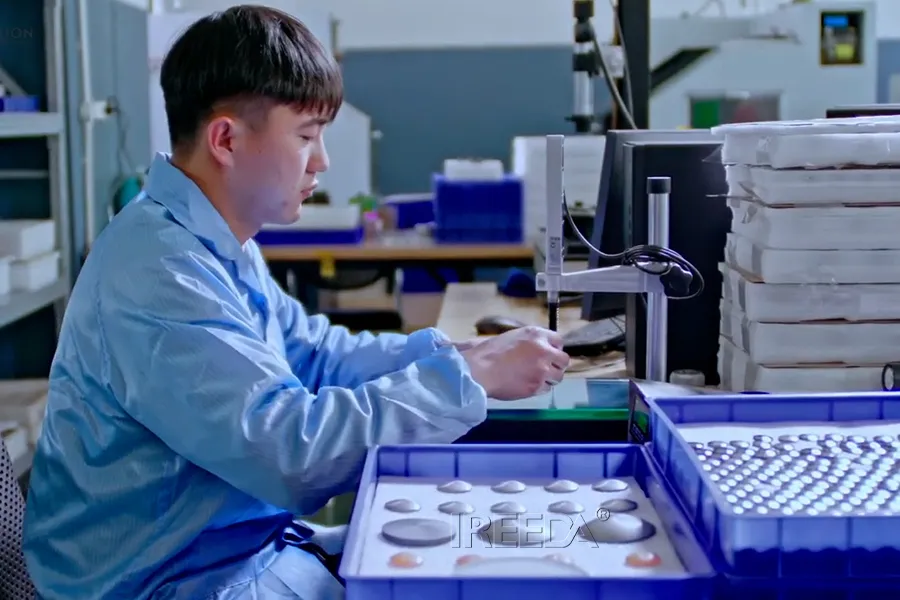

With more than 105 employees, including 25 core R&D engineers, a full-chain R&D system has been established covering optical design, mechanical engineering, hardware development, embedded software, FPGA programming, image processing, industrial design, and reliability testing.
| Category | Specifications | |
|---|---|---|

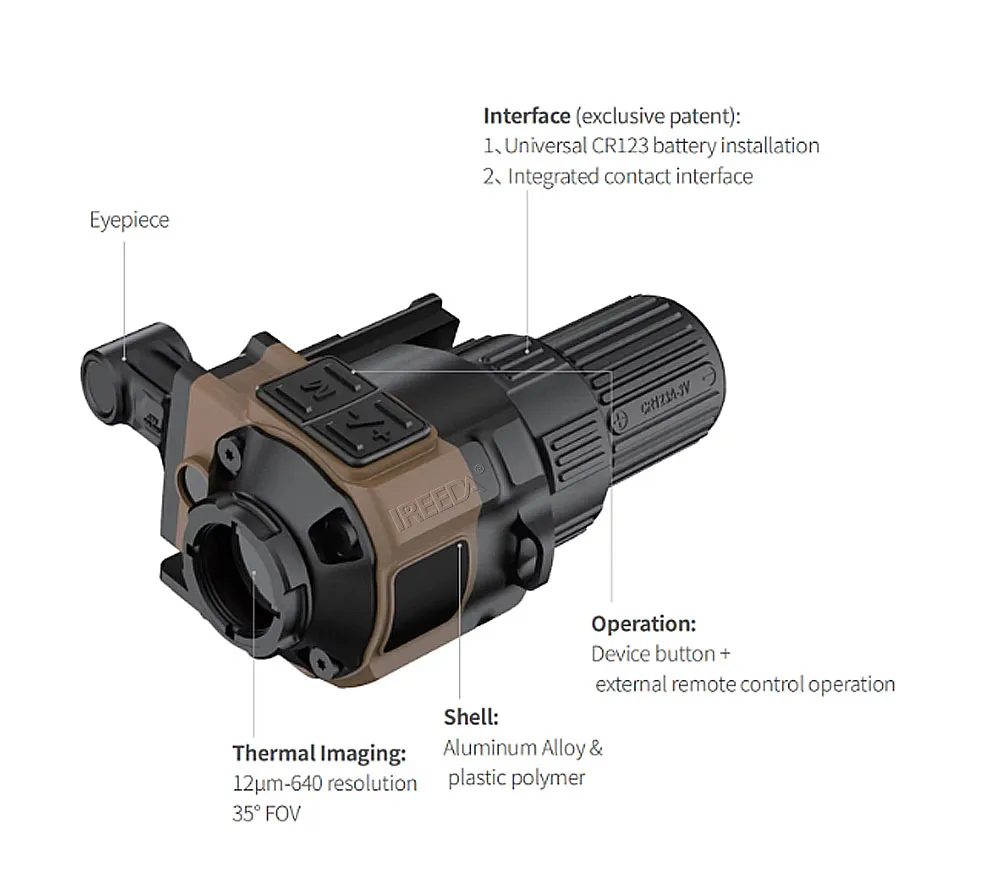

| Thermal Specs | Resolution | 640 × 512 Pixels |
| Pixel Pitch | 12 μm | |
| Frame Rate | 50 Hz | |
| Optics Specs | Magnification | 1× |
| Lens System | 11.5 F1.0 | |
| FOV (H × V) | 35° × 30° | |
| Functions | Image Modes | Adjustable Threshold, Auto Control, Highlight/Outline |
| Compass | Supported | |
| Battery Life | 3h (CR123A) / 10h (Battery Pack) | |
| Physical | Dimension | 86 × 65 × 40 mm |
| Immersion | IP67 | |

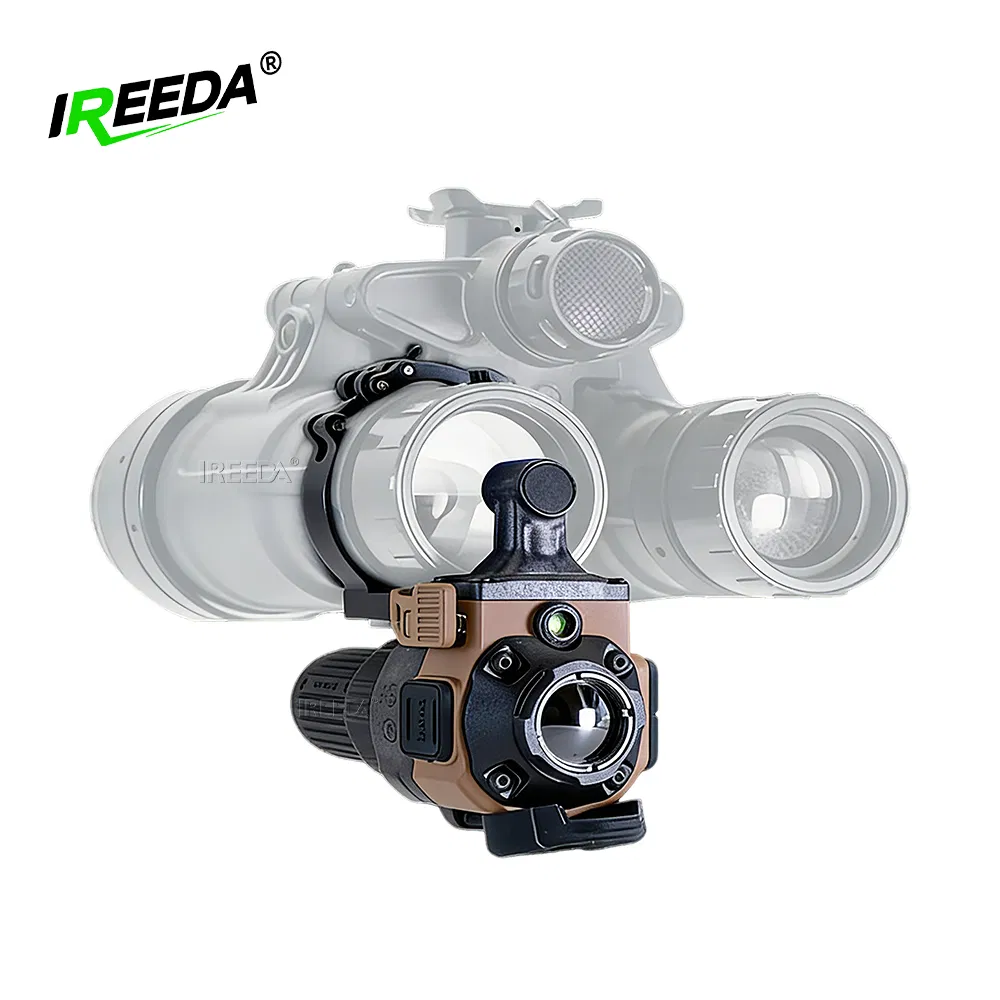

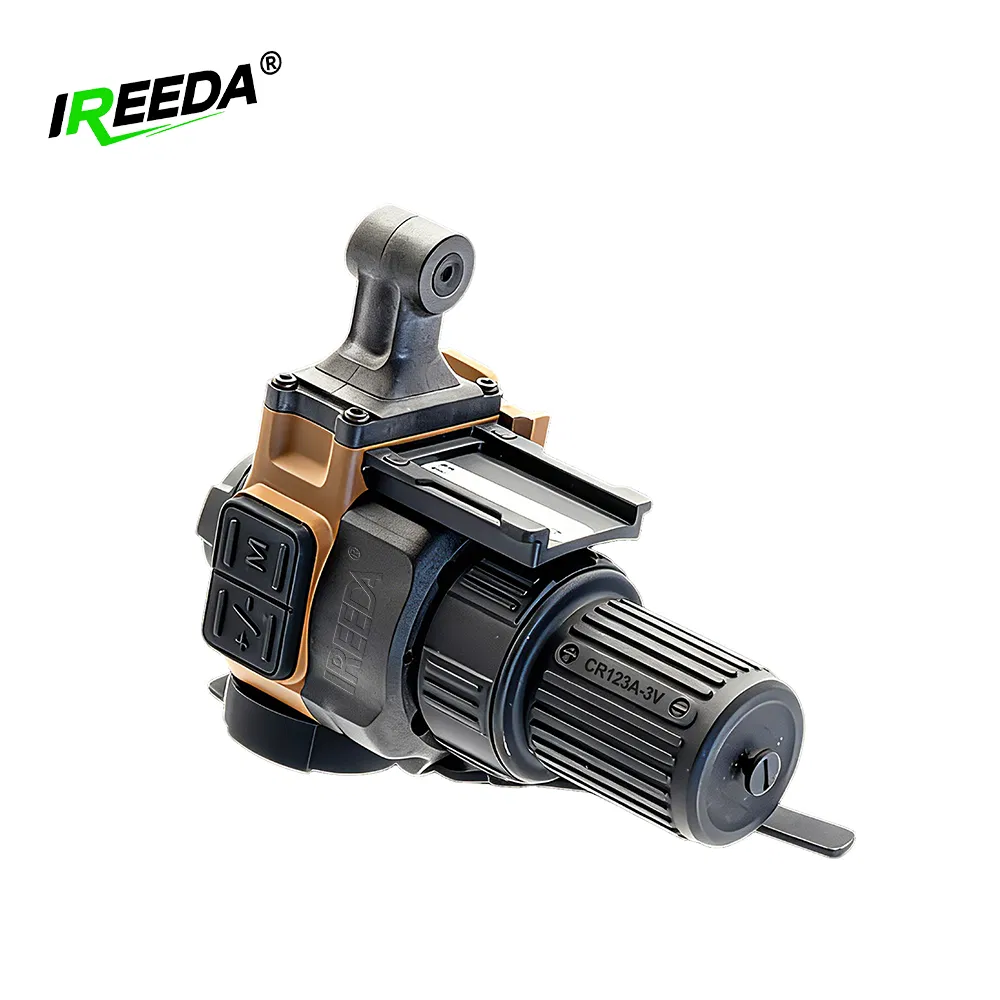

A: It is ultra-lightweight (65g) and offers a wide 35° Field of View, allowing users to add thermal fusion capability to existing night vision goggles without significant weight penalties.

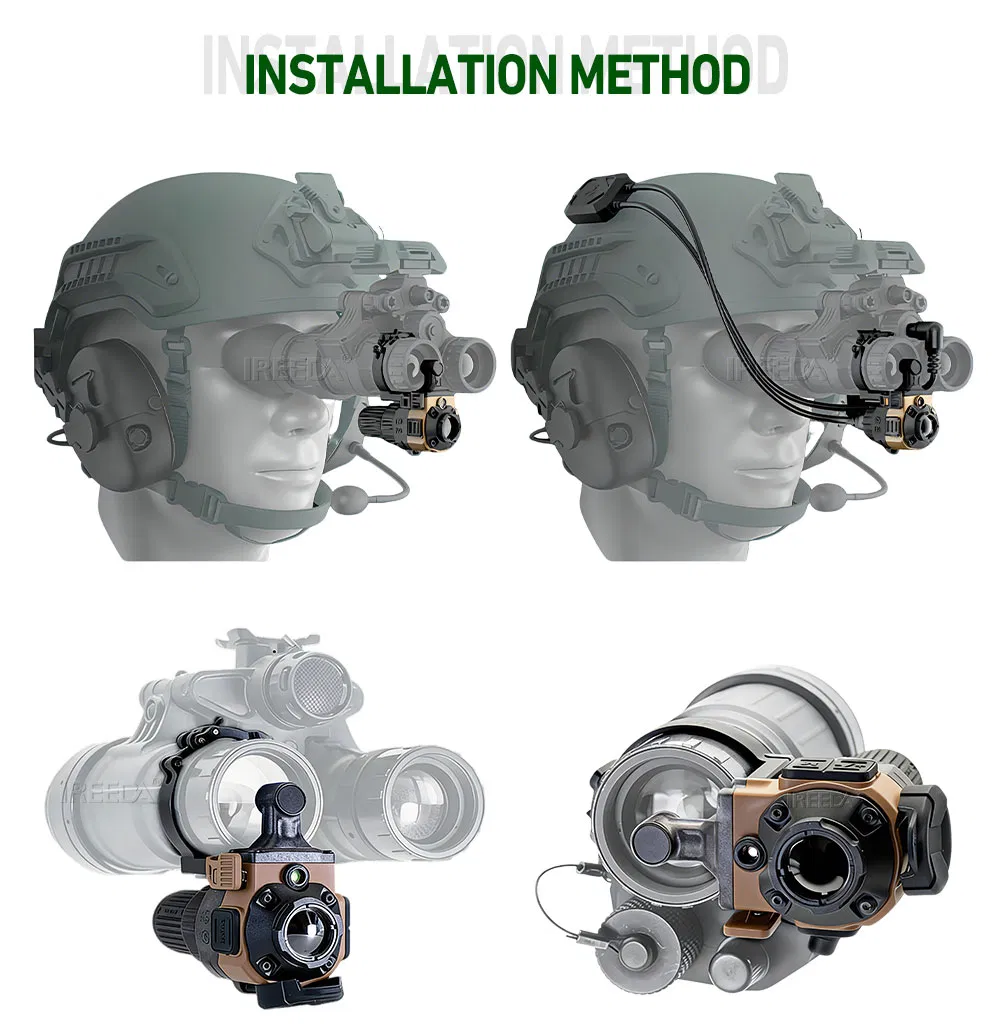

A: It is compatible with most standard NVGs, including PVS-14, PVS-31A, BNVD, and GPNVG systems.
A: Using a single CR123A battery, it lasts about 3 hours. When connected to an external battery pack, the operation time extends to 10 hours.
A: No, the Jerry-C is designed for quick disassembly and calibration-free use, ensuring it can be deployed rapidly in the field.
A: Yes, the device features an IP67 rating, meaning it is dust-tight and can withstand immersion in water, making it suitable for all-weather operations.
A: It supports several modes including Highlight, Outline, and Adjustable Threshold to suit different tactical and environmental requirements.
