Product Description

📋 Basic Information

Model NO.Pir233W

Output SignalDigital Type

Production ProcessCeramics

MaterialMetal

IP RatingIP20

CertificationRoHS

Number of Pins3/4/6

Wavelength Range5.5-14um

Supply Voltage2.2-5V

Transport PackageTape

SpecificationTO39

HS Code8541401000

🔍 Product Description

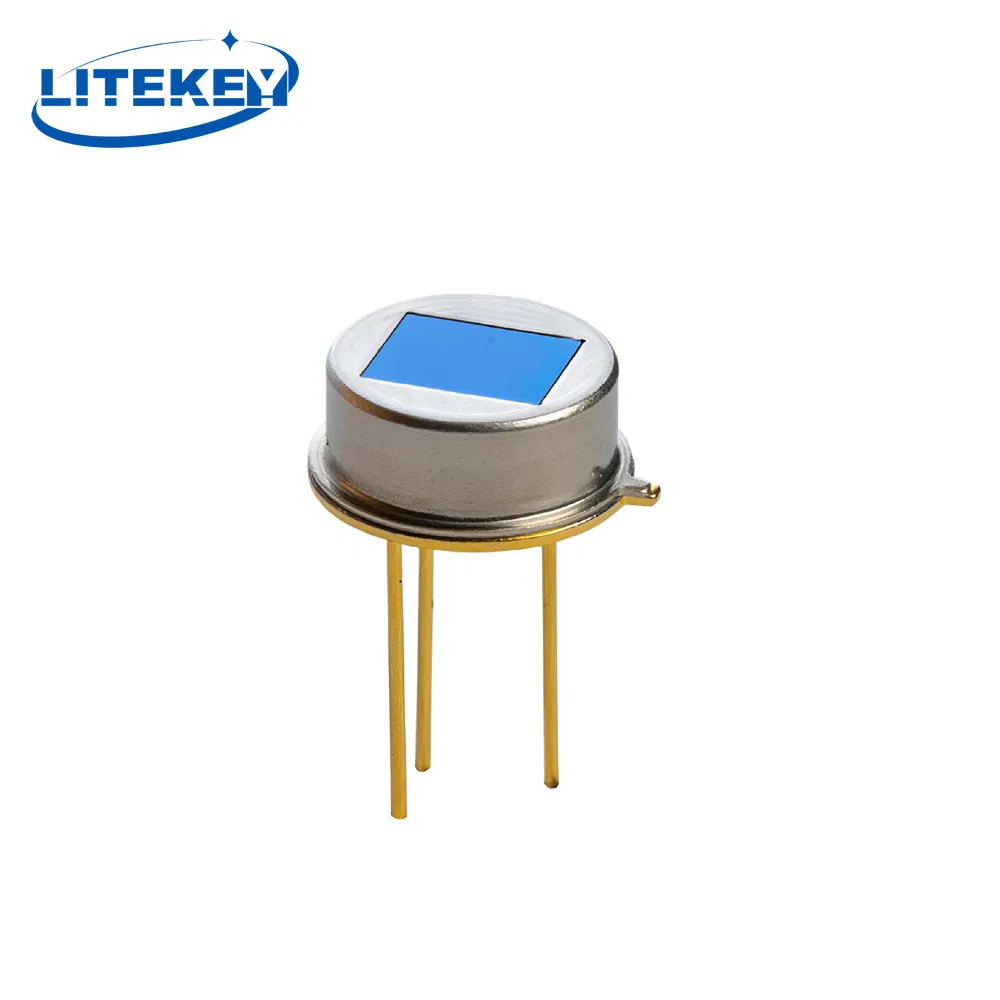

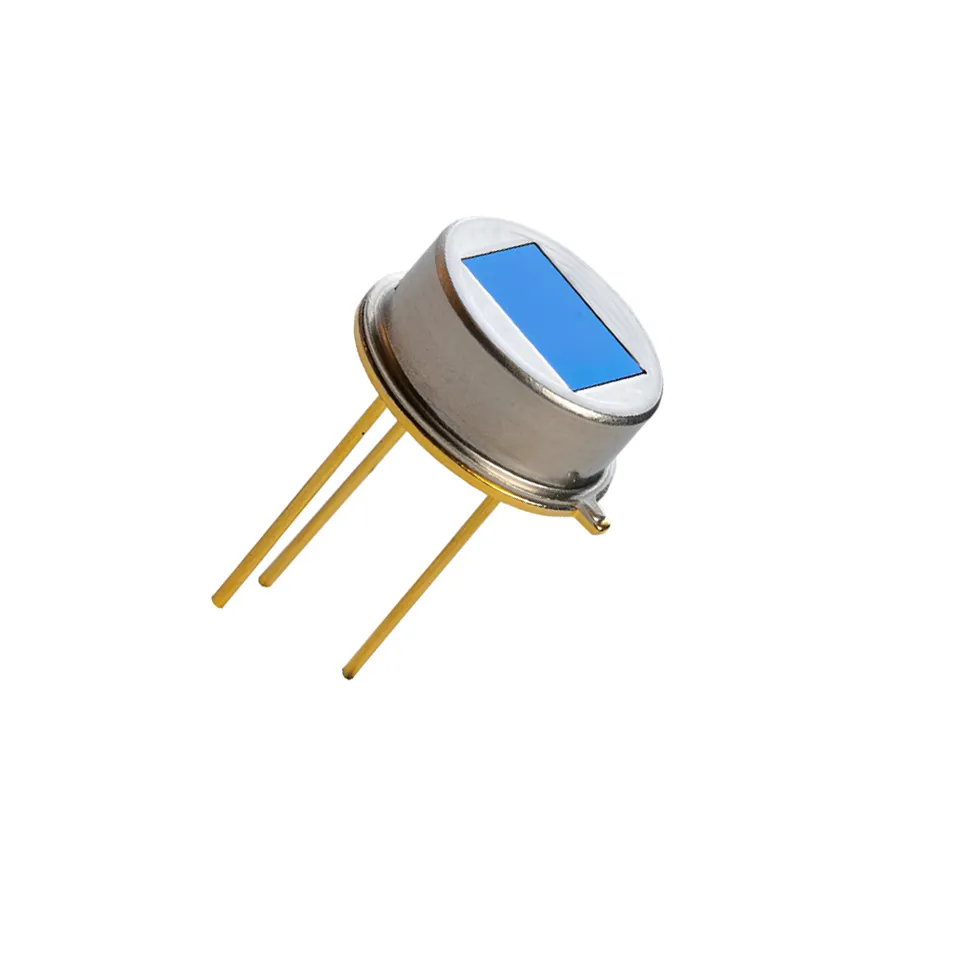

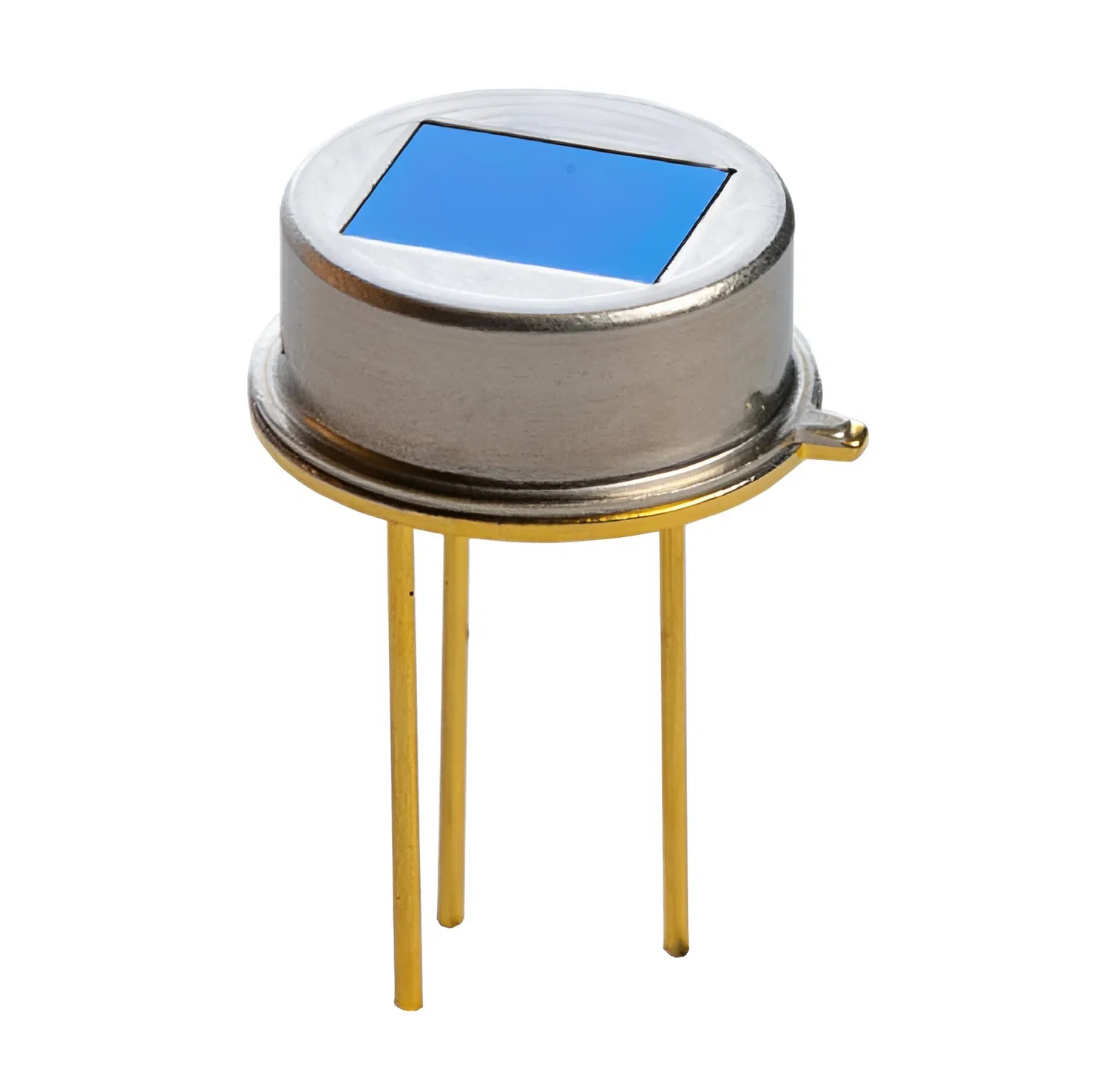

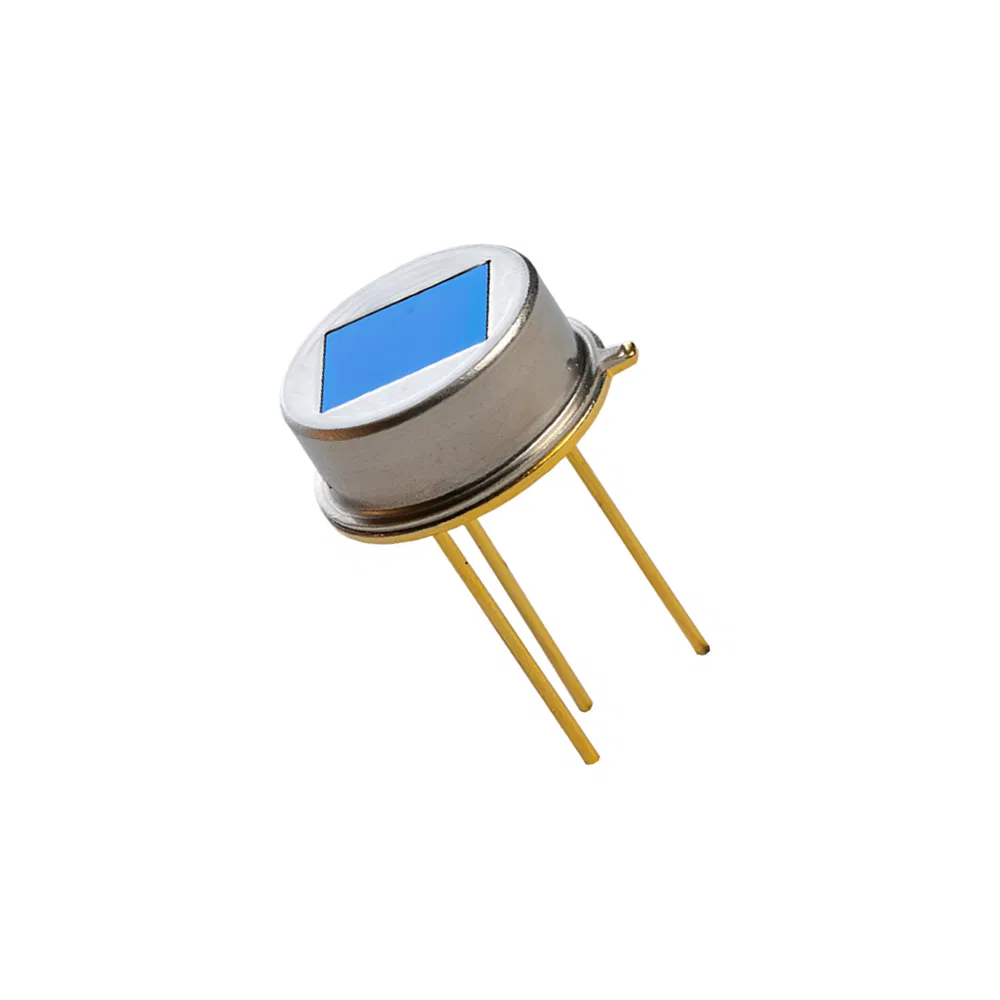

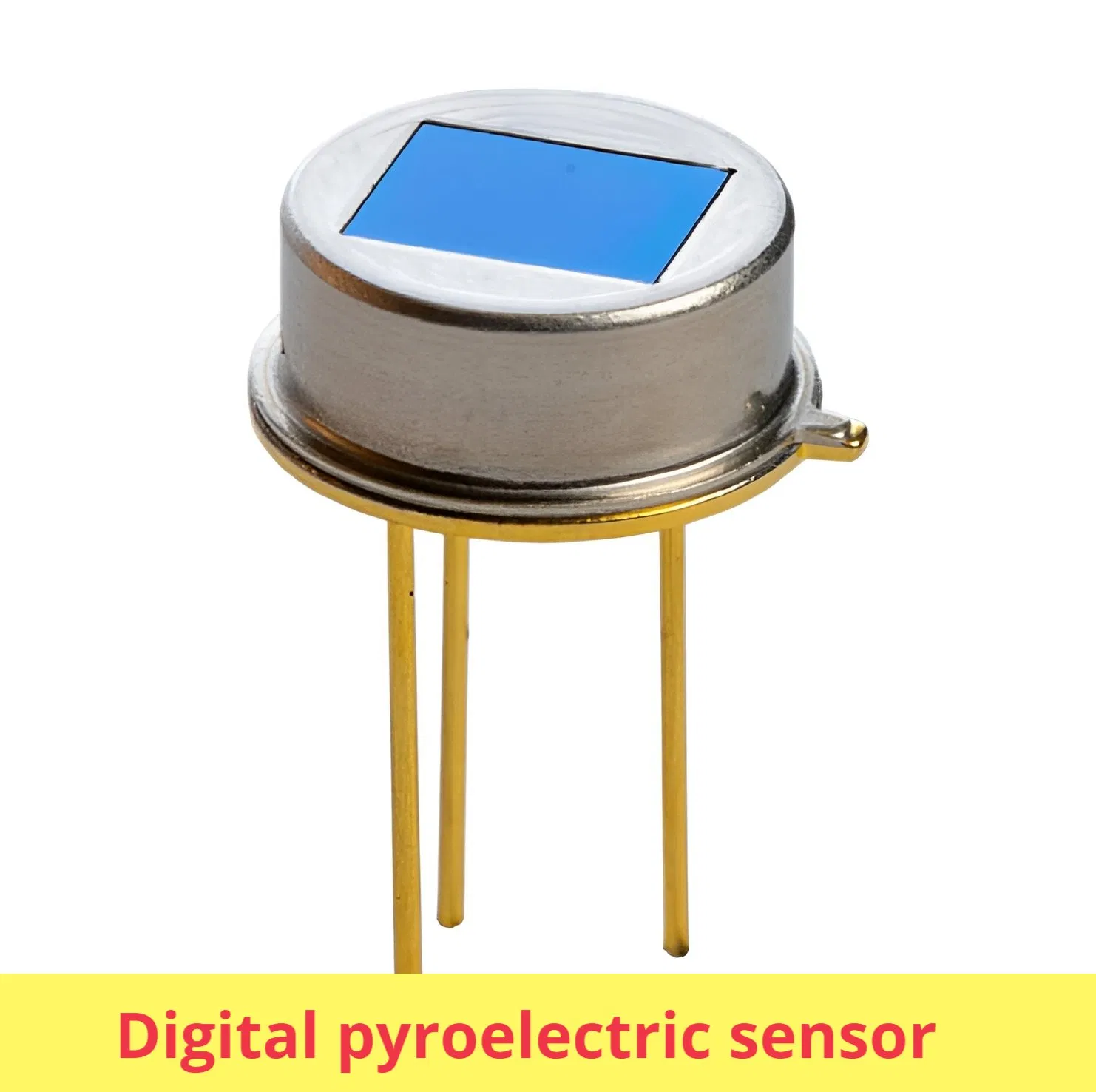

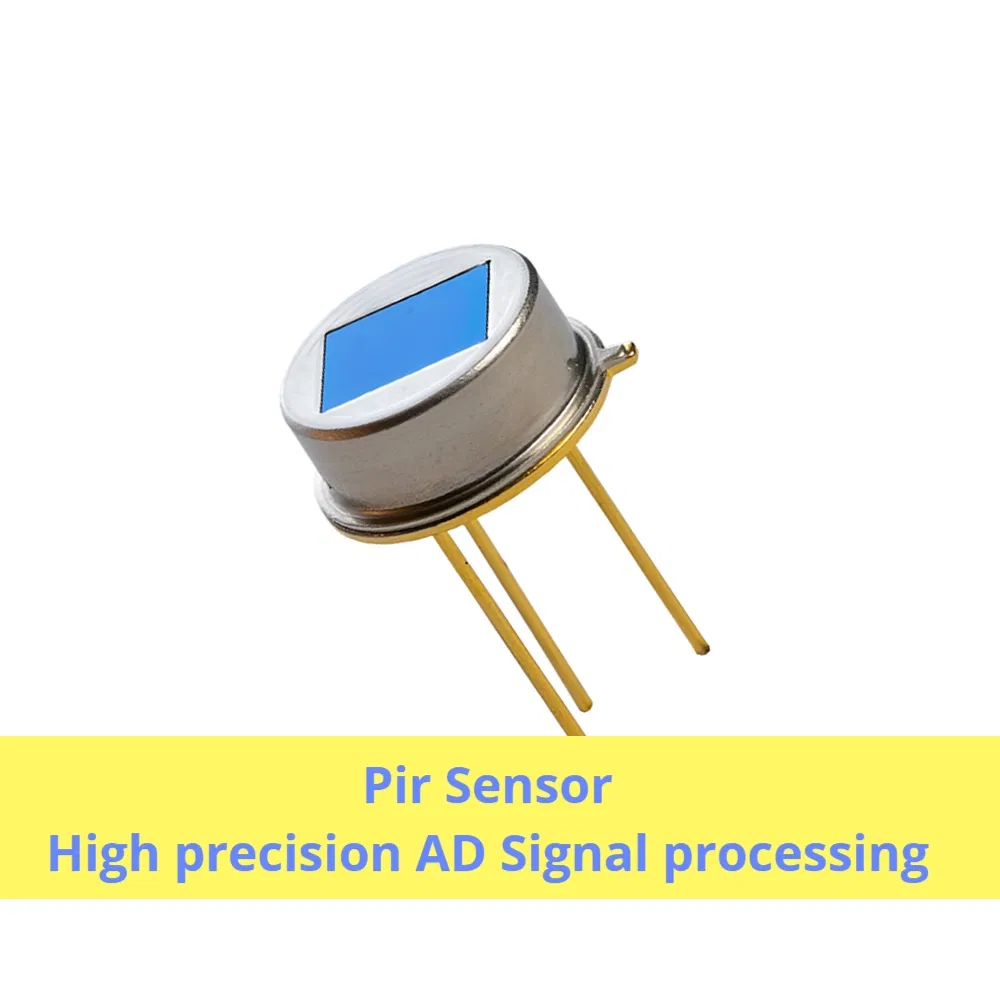

Digital Pyroelectric Infrared Sensor

Thin-film pyroelectric infrared detectors offers fast response and integrated electronics, designed for high-performance detection requirements.

⭐ Key Features

High precision AD signal processing.
Low operating voltage and low power consumption.
Interference filter with high cut-off depth.
Strong white light resistance.
Excellent anti-radio frequency interference ability.

🚀 Applications

Automatic lighting switches.
Intrusion detectors for burglar alarms.
Smart toys and interactive devices.
Smart household appliances.

📊 Detailed Specifications

Feature	Pir-233W	Pir-224S	Pir-433F
Output time	2S	2S	2S
Sensitivity modulation	Non-modulation	Available	Available
Photosensitive enablement	Non	Non	Yes
Stability time	2S	2S	2S
Quiescent current	10uA	10uA	10uA
Sensing angle	X:138°, Y:125°	X:138°, Y:125°	138°
Number of pins	3	4	6
Window size	4*3mm	4*3mm	5*3.8mm
Sensitive sources	2 channels	2 channels	4 channels
Wavelength Range	5.5-14um	5.5-14um	5.5-14um
Supply Voltage	2.2-5V	2.2-5V	2.2-5V

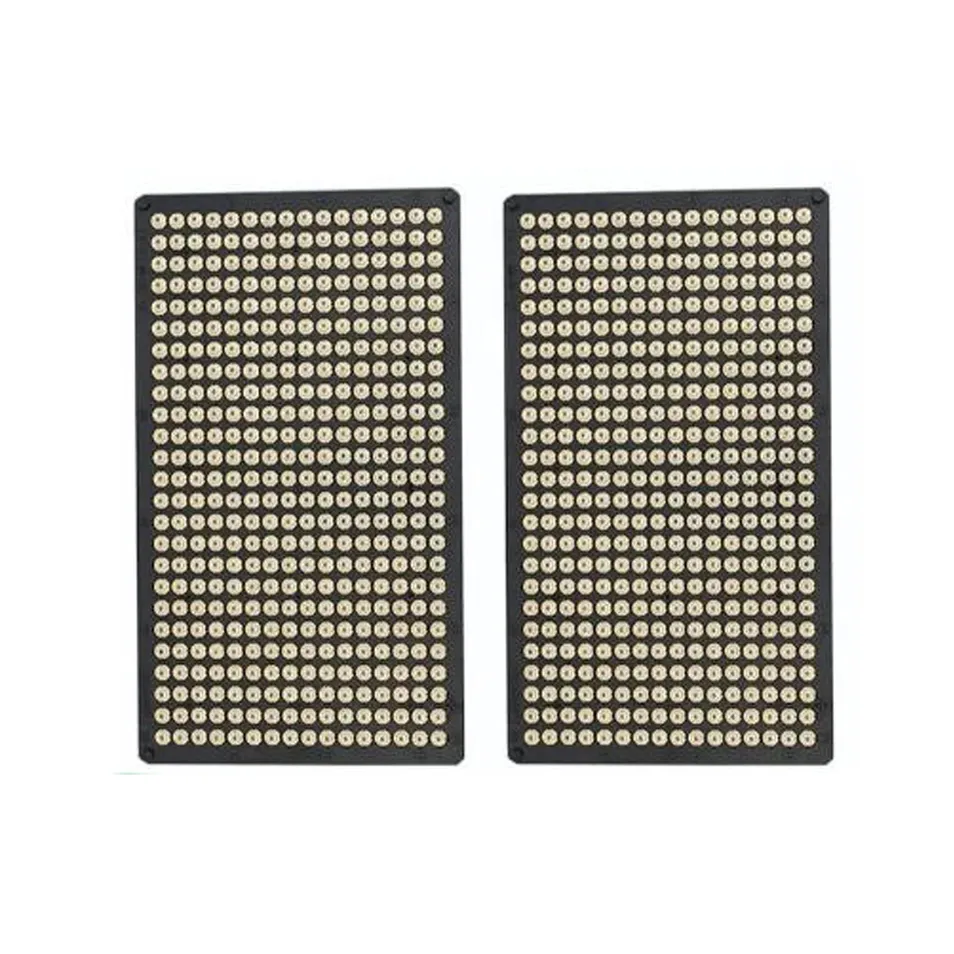

📦 Packing & Delivery

Package Size35.00cm * 35.00cm * 35.00cm

Gross Weight8.000kg

Fast Delivery12-15 days

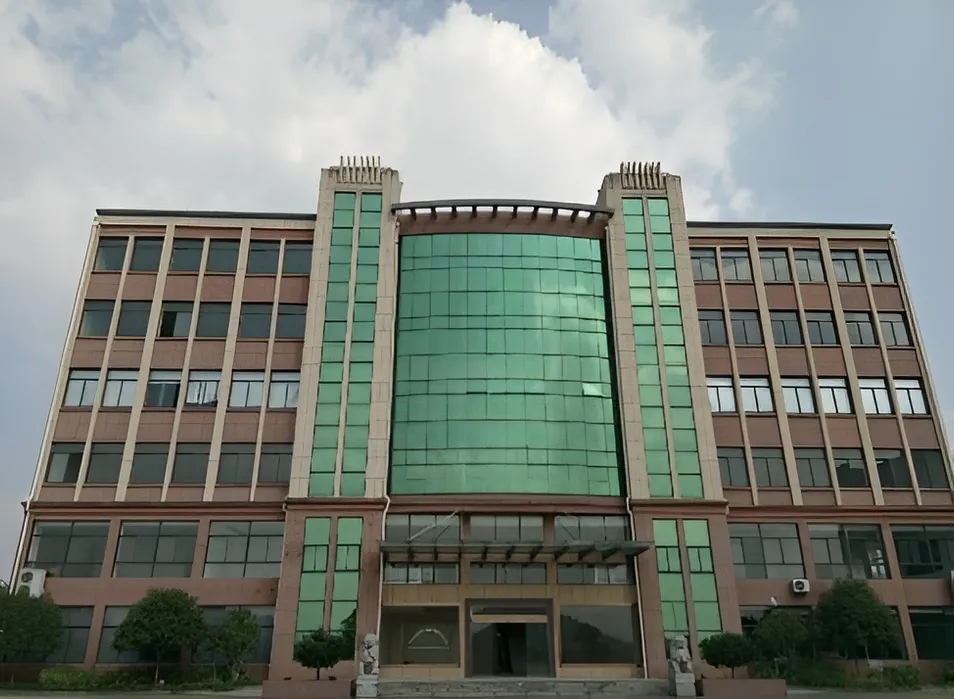

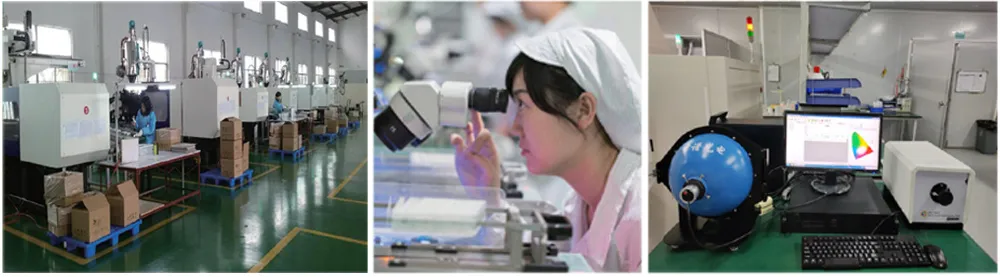

🏭 Manufacturing & Quality

Our facility features vertically integrated production with a strong engineering team. We focus on launching innovative products to fulfill customer needs through design flexibility and product customization.
