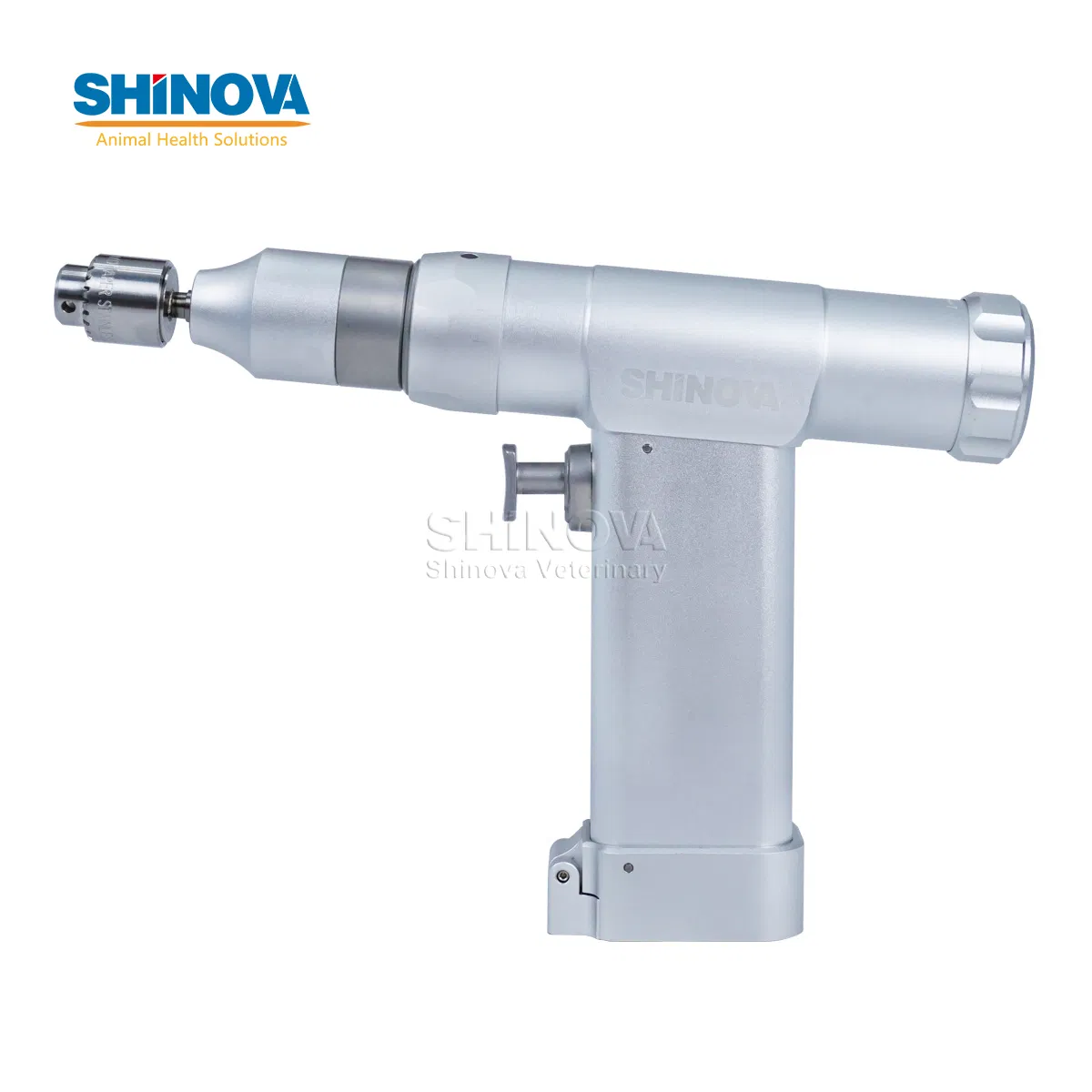

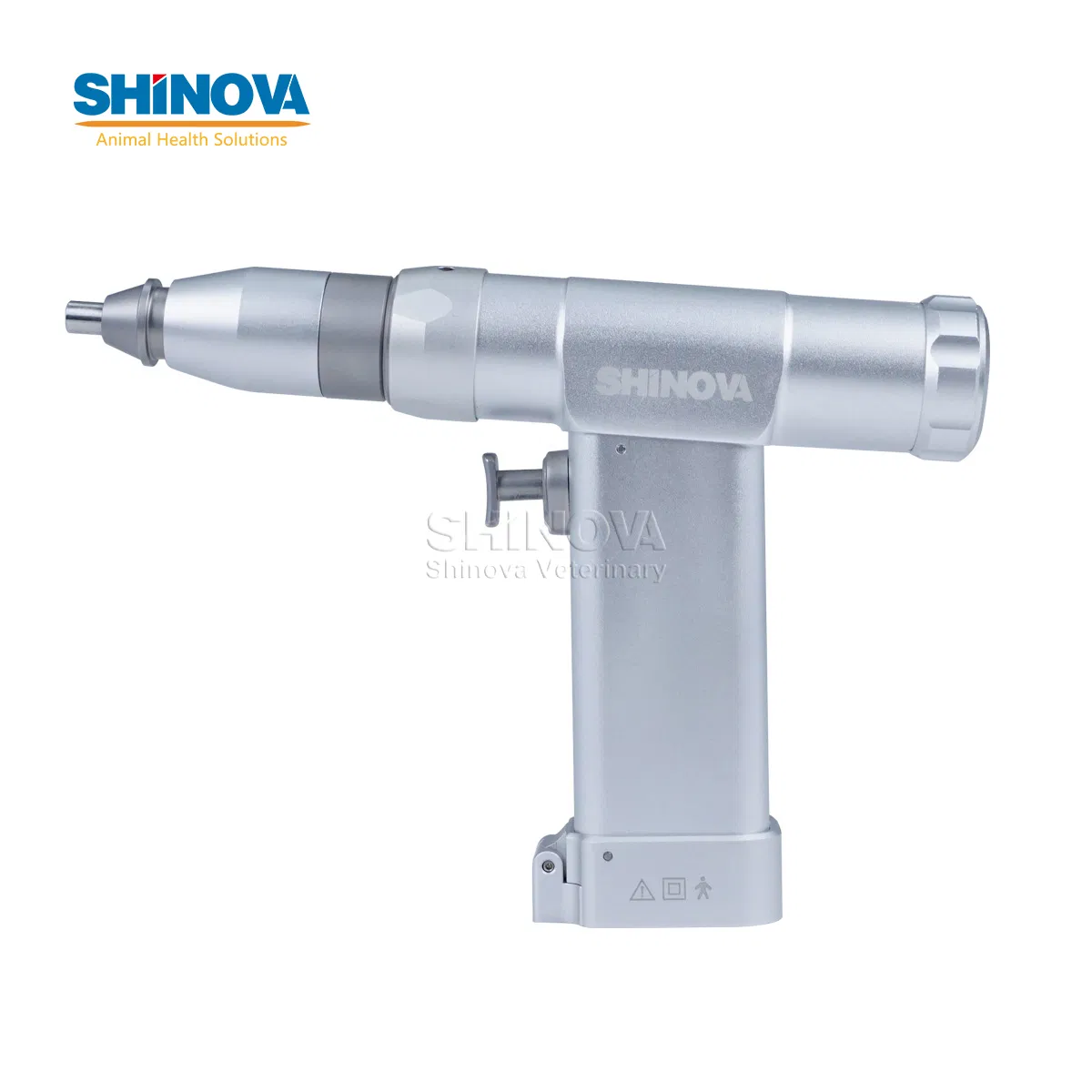

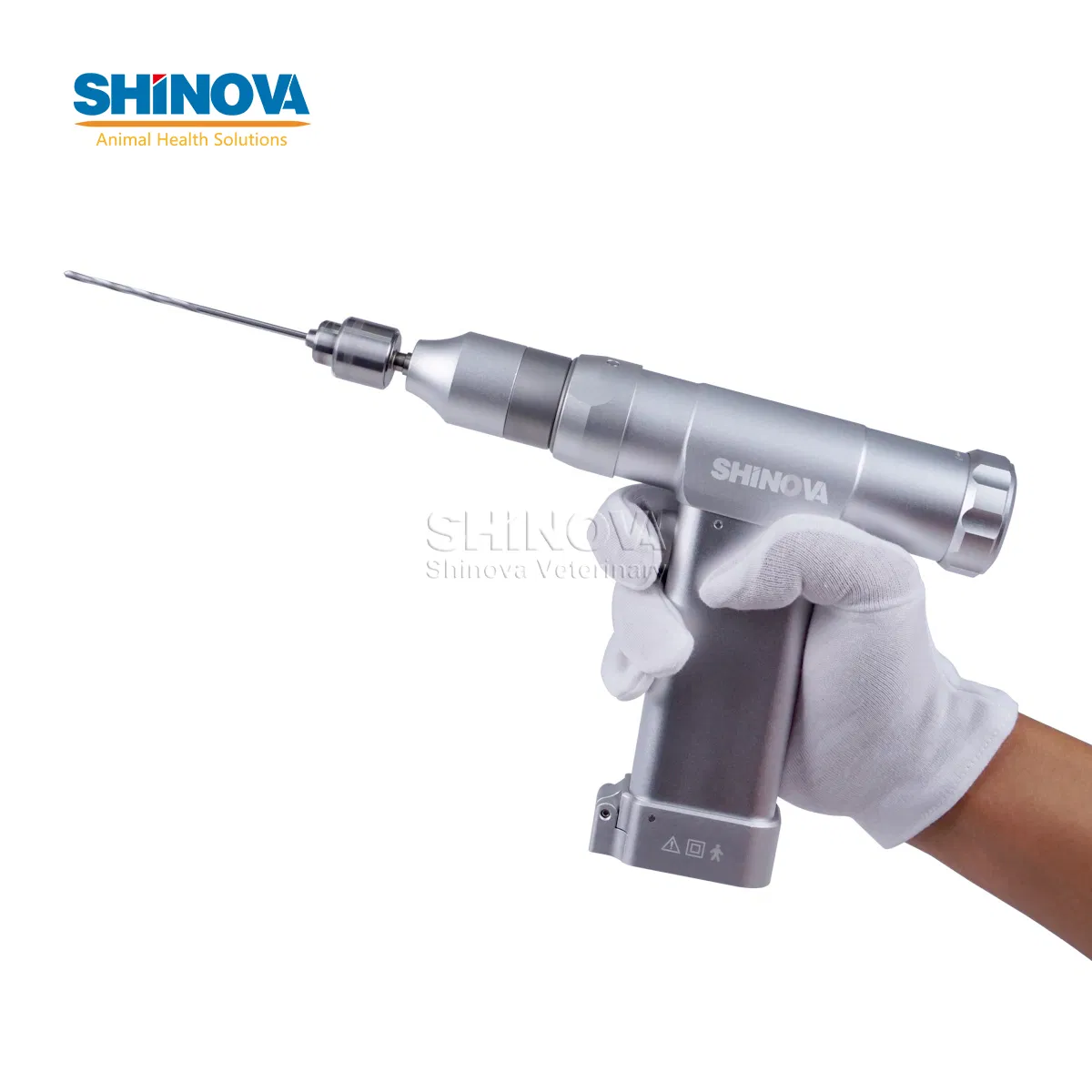

Shinova Veterinary Multifunction Bone Tool with Drill & Saw Attachments

Customization: Available
Type: Operation Apparatus
Syringe: **

Product Description

Veterinary Micro/Mini Multifunctional Tool
High-Performance Veterinary Bone Drill & Saw System | Model: DS-0610A
Technical Specifications
Basic Information
Model NO.DS-0610A
Frequency0-20000OS/Min
Non-Load Noise≤70dB
Output Power50W
Sterilized≤135°C
OriginChina
Packaging & Delivery
Package Size38.00cm * 26.00cm * 31.00cm
Gross Weight7.000kg
Transport PackageAluminum Box / CTN
Capacity10000PCS/Month
Key Features
⚙️
Quick Chuck: Ensures outstanding performance and stability during surgical operations.
🔄

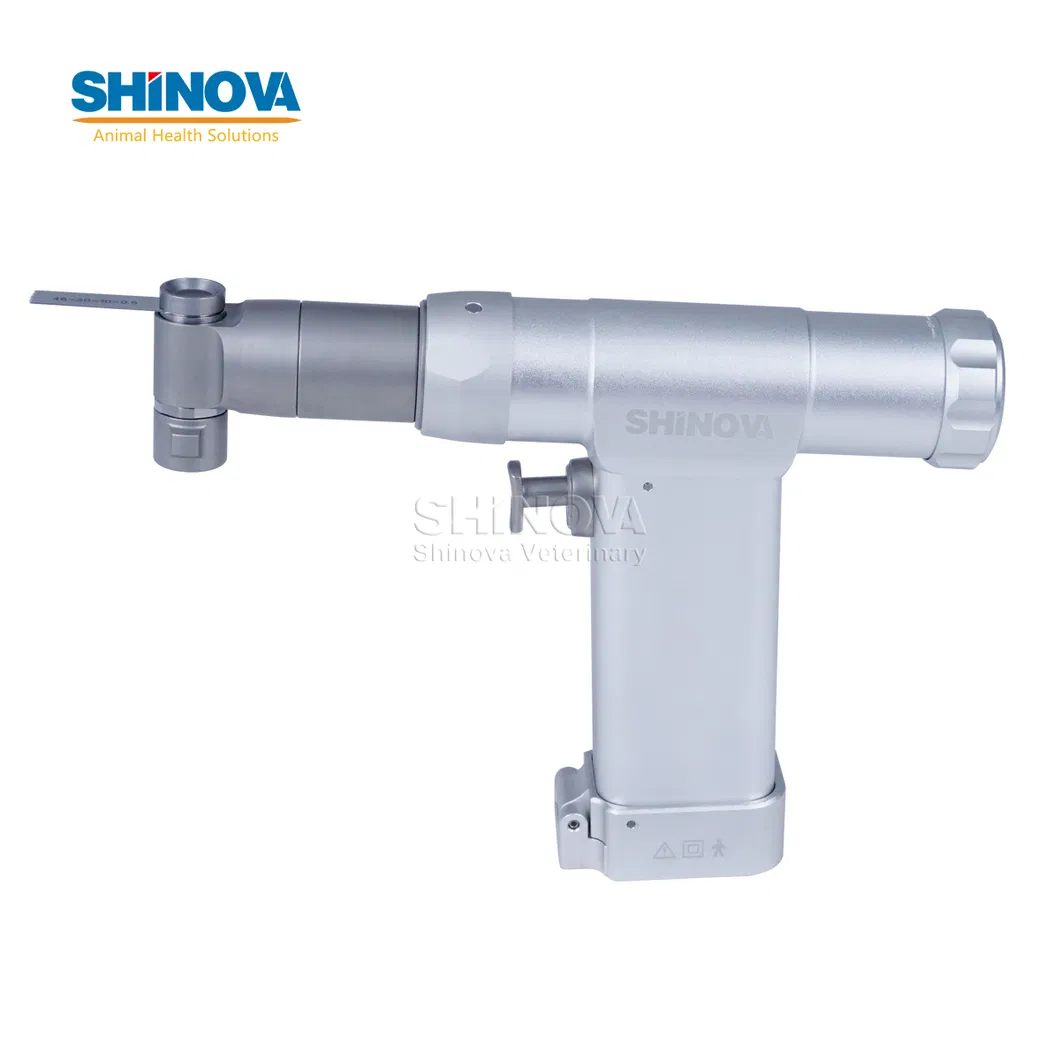

360° Rotating Head: Oscillating saw head can be adjusted to any surgical site for maximum flexibility.
🛠️
Wrenchless Collect: Allows for easy, fast, and safe loading and unloading of blades.
🏗️
Aluminum Mainframe: Lightweight yet durable construction for long working sessions.
🤲
Ergonomic Design: Perfect balance and grip for high-precision veterinary surgery.
Performance Parameters
Component Technical Data
Hand Piece Working Voltage7.2V
Output Power≥50W
Temperature Rise≤20°C
Charger InputAC 110V-240V, 50Hz-60Hz
Battery Charging TimeApprox. 2 hours
Bone Drill Speed0-1300 r/m
Oscillating Saw Frequency0-20000 osc/m
Noise Level≤60db - 70db

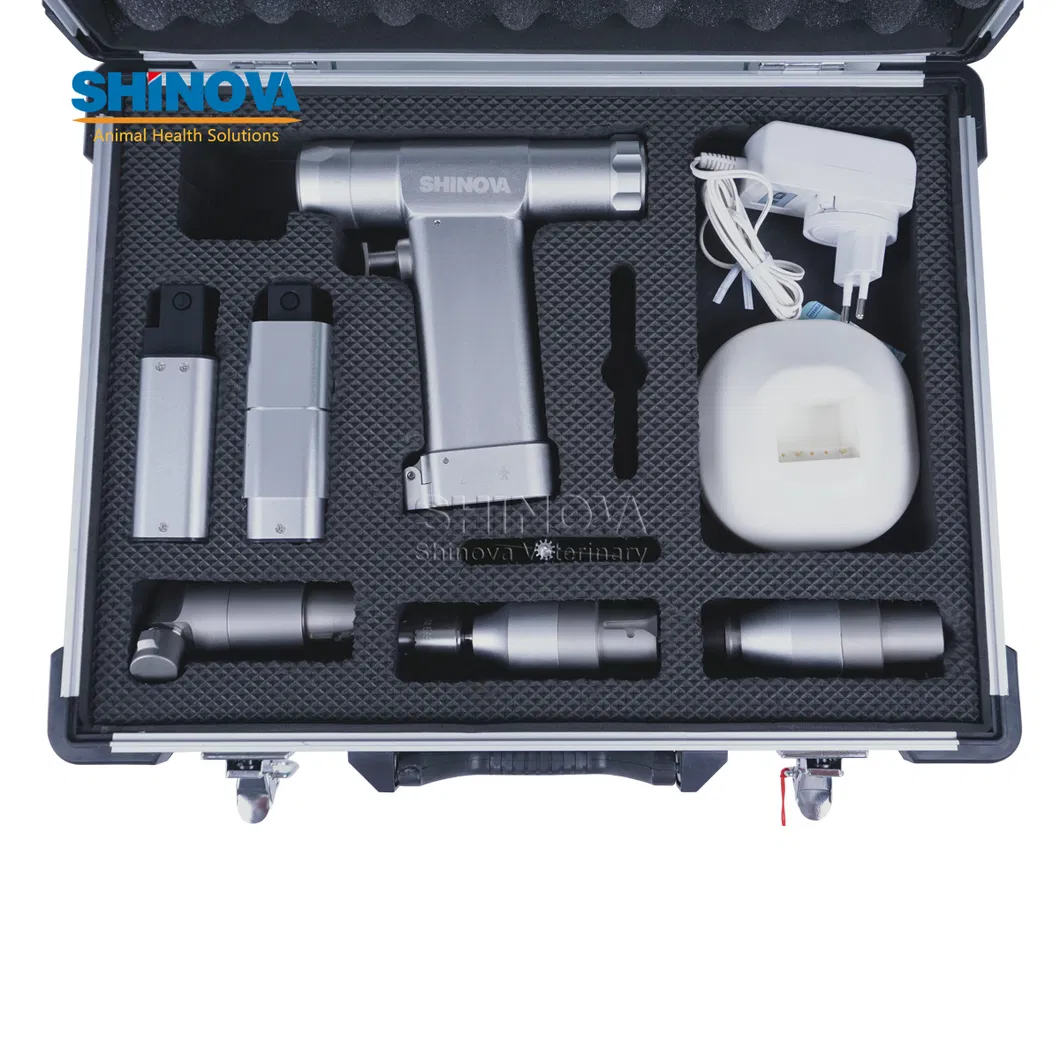

Standard Configuration
Item Name Quantity
Hand piece1
Charger1
Battery (7.2V)2
Drill chuck1
Sterilized channel2
Saw blade2
Key2
Aluminum box1

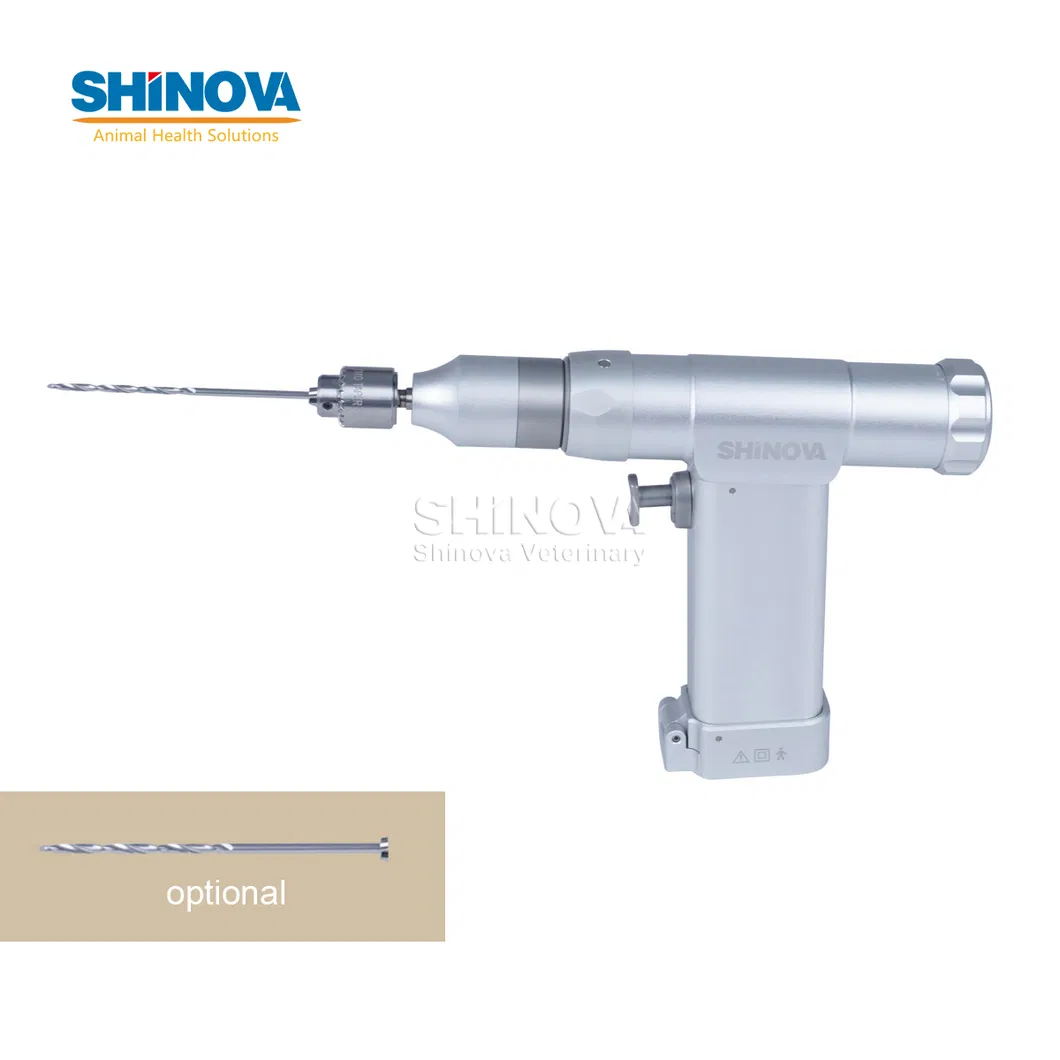

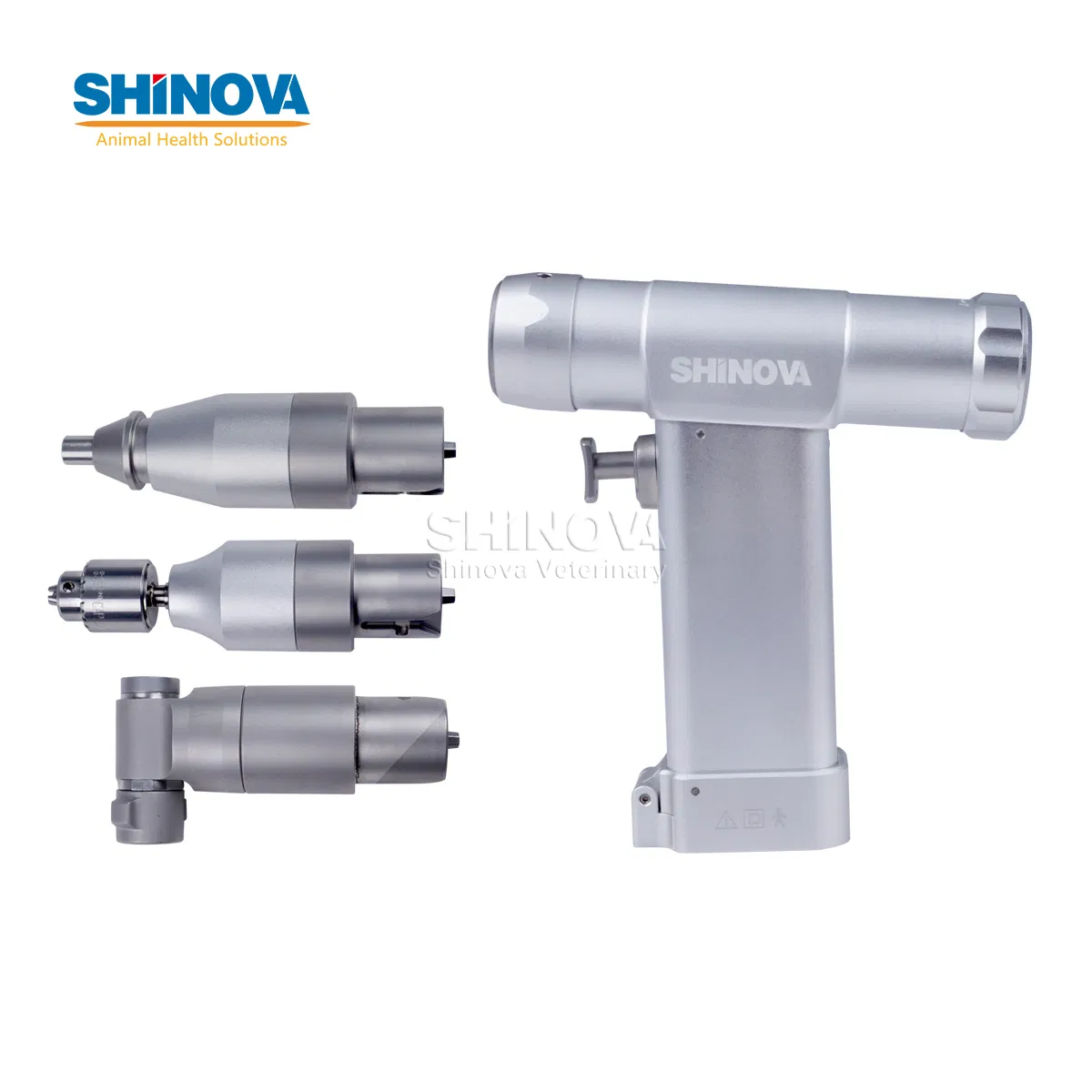

Quick chuck (bone drill) attachment1

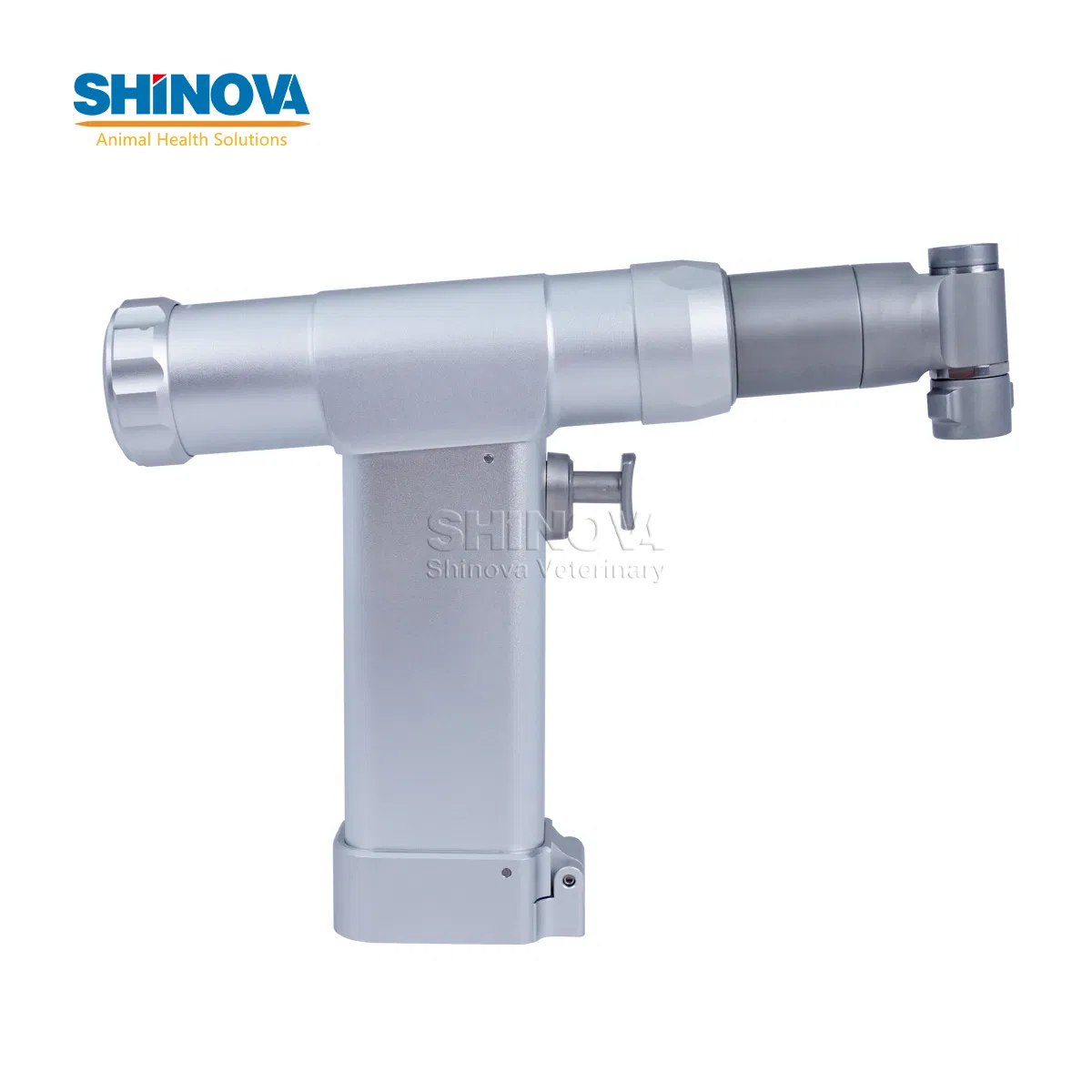

Oscillating saw attachment1
Product Display & Gallery
Frequently Asked Questions (FAQ)
Q: What is the sterilization temperature for the attachments?
A: Both the quick chuck and the oscillating saw attachments are designed to withstand sterilization temperatures up to 135°C.
Q: How long does the battery take to charge?
A: The 7.2V battery typically requires about 2 hours or more for a full charge. The standard configuration includes two batteries to ensure continuous operation.
Q: Is the mainframe heavy for long surgeries?
A: No, the mainframe is constructed from high-grade Aluminum, making it lightweight and durable, specifically designed to reduce hand fatigue during extended procedures.
Q: Can the saw head be adjusted?
A: Yes, the oscillating saw features a 360° rotating head, allowing it to be applied to any surgical site conveniently.
Q: What is the noise level during operation?
A: The bone drill attachment operates at ≤60dB, and the oscillating saw at ≤70dB, ensuring a relatively quiet surgical environment.
Q: What is included in the standard package?
A: The set includes a handpiece, charger, two 7.2V batteries, drill chuck, saw blades, keys, and both drill and saw attachments, all housed in a professional aluminum box.
