Basic Specifications
Color
White, Black, Red, Transparent, Yellowish
Composition
Organic & Inorganic Material
Morphology
Solvent, Liquid State
Main Agent
Thermosetting Resin
Specification
1kg/50ml/30ml
Product Description
The main components of single component epoxy adhesive include epoxy resin base material, curing agent, diluent, and accelerator. It can be used directly without mixing. This adhesive offers convenience, excellent performance, fast curing speed, and wide adhesion. It features high adhesion strength, a simple process, small curing shrinkage, good fatigue resistance, and contains no volatile solvents, making it low harm to the environment.

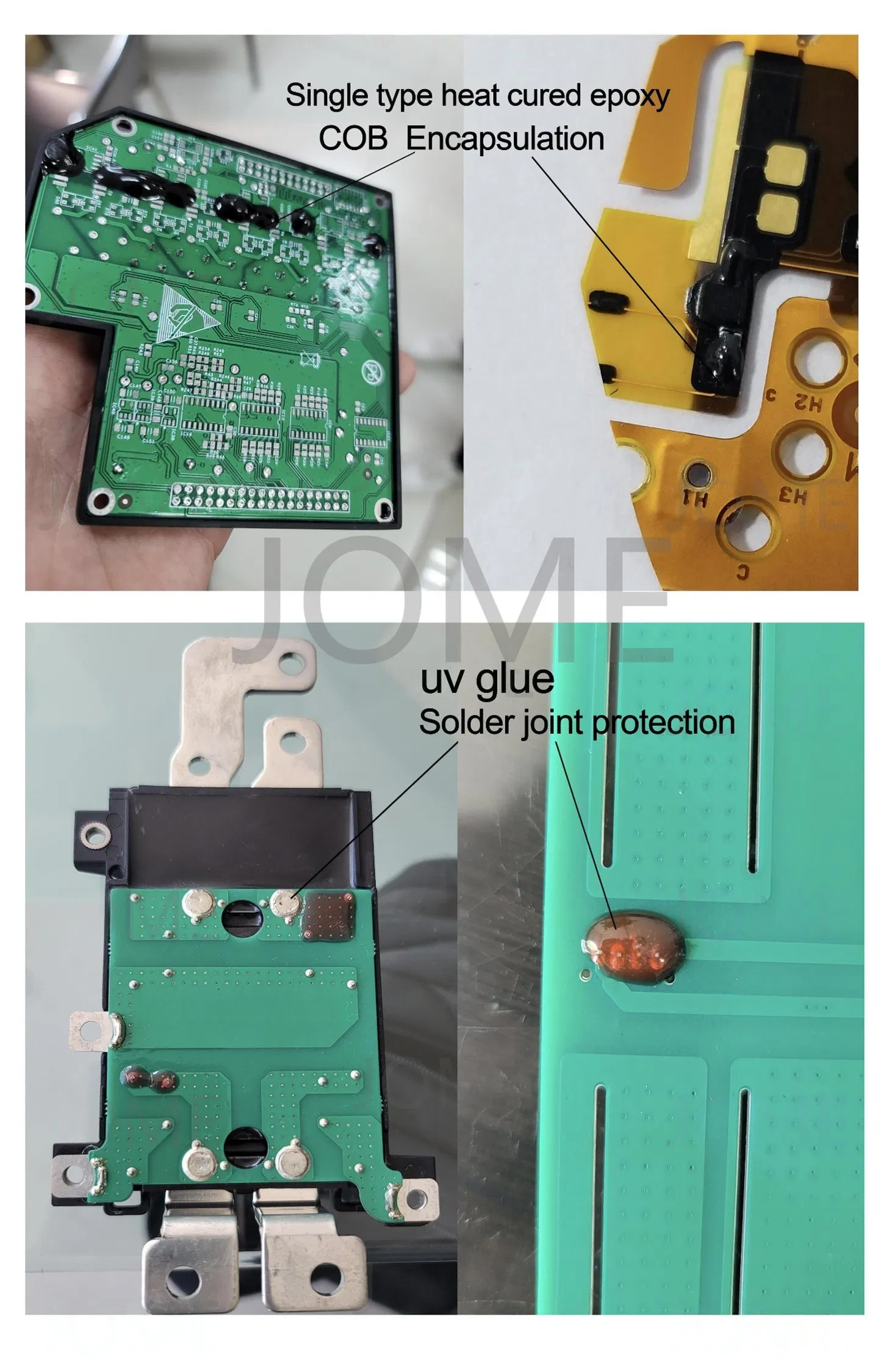

Model 3621 is a grey, solvent-free, one-component epoxy structural adhesive. This product has good toughness and impact strength. When fully cured by heat, it provides excellent bonding properties, electrical properties, moisture resistance, and mechanical properties. It has high bonding strength to most substrates including glass, metal, and ceramics. It meets performance requirements under high temperatures and is widely used in automotive electronics, pressure sensors, wire harnesses, and motor magnetic sheet bonding.
Technical Parameters
| Curing State |
Item |
Test Method / Condition |
Result (3621) |
| Before Curing |
Appearance |
Visual |
Black |
| Viscosity |
Thixotropic paste |
- |
| Thixotropic Index |
- |
2.5 |
| Density |
g/cm³, 25ºC |
1.25-1.35 |
| After Curing |
Hardness |
Shore-D, 25ºC |
85 |
| Glass Transition (Tg) |
DSC, ºC |
145 |
| Temp Resistance |
ºC Range |
-50 to 180 |
| Shear Strength (Steel) |
MPa, 25ºC |
27 |
| Impact Strength |
KJ/m², 25ºC |
>6 |
| Volume Resistivity |
Ω · cm, DC500V |
1.0×10¹⁵ |
Product Series Comparison
| Model |
Key Features |
Color |
Viscosity |
Curing Time |
Conductivity |
| 3621 |
High thixotropy, high-strength |
Grey |
Paste |
120ºC, 1h |
0.2W |
| 3618 |
Low viscosity, low-temp curing |
Matte black |
15000cps |
75ºC, 30min |
0.3W |
| 491 |
High temp resistance, high strength |
Cream |
200000cps |
120ºC, 1h |
- |
| 9468 |
High transparency |
Colourless |
600cps |
80ºC, 30min |
- |
| 7997 |
3.0W high thermal conductivity |
Grey |
480,000cps |
150ºC, 60min |
3.0W |
Frequently Asked Questions
Are you a factory or trading company?

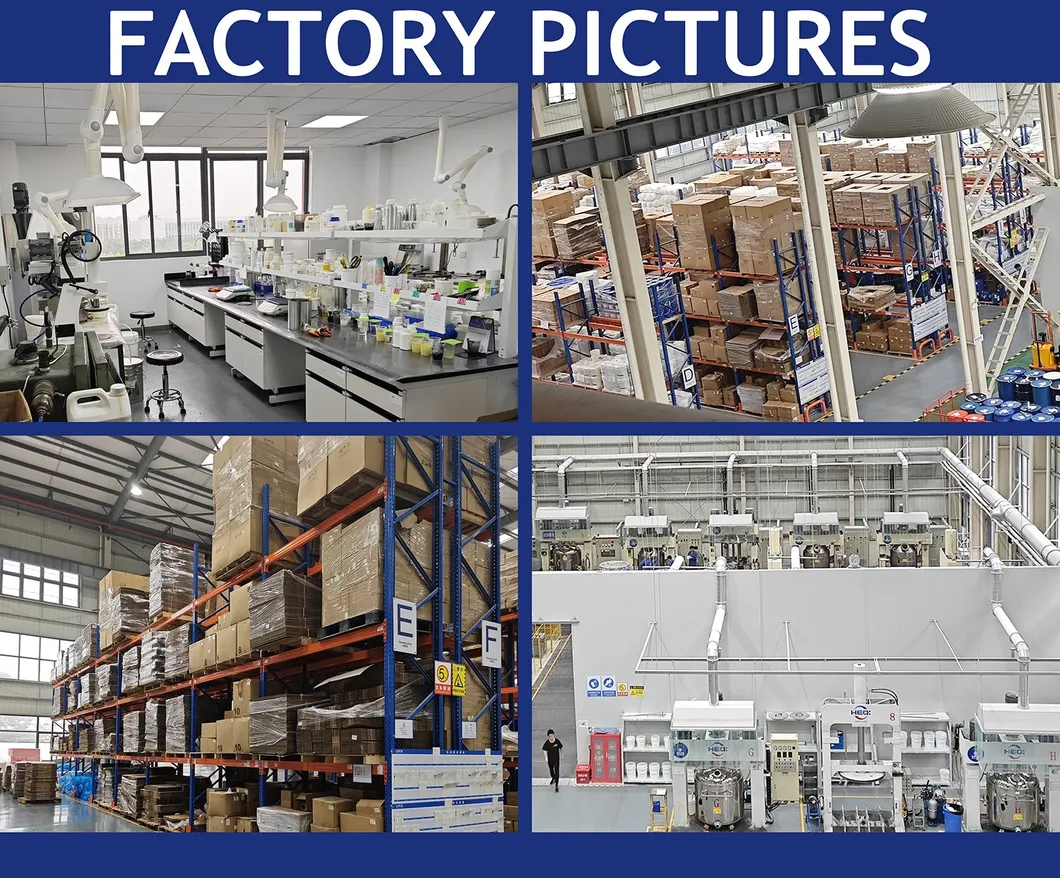

We are a factory focused on the development and application of polymer materials and high-end electronic adhesives.
