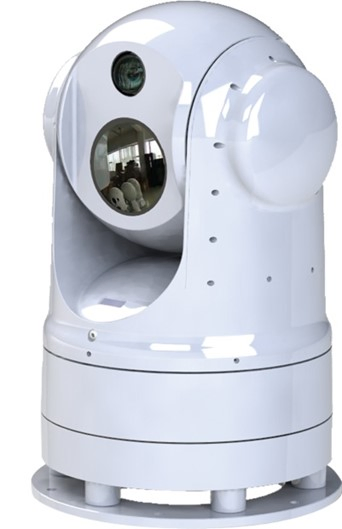

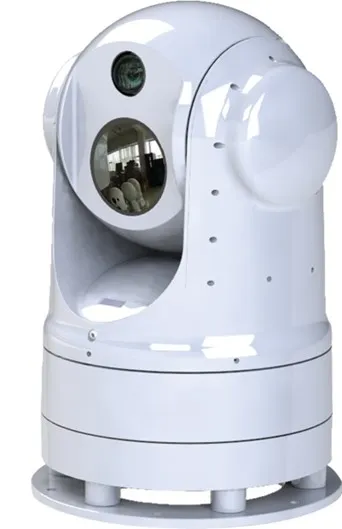

2MP 45X Marine Thermal Vehicle Camera System
2MP 45X Marine Thermal Vehicle Camera System
2MP 45X Marine Thermal Vehicle Camera System
2MP 45X Marine Thermal Vehicle Camera System
2MP 45X Marine Thermal Vehicle Camera System
1 / 5
2MP 45X Marine Thermal Vehicle Camera System
2MP 45X Marine Thermal Vehicle Camera System
2MP 45X Marine Thermal Vehicle Camera System
2MP 45X Marine Thermal Vehicle Camera System
2MP 45X Marine Thermal Vehicle Camera System

2MP 45X Marine Thermal Vehicle Camera System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Info
Model NO.
IPTZ-M900-Z245-HTB
Type
IP Camera
Sensor
CMOS
Certification
CE, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition, Vandal-proof
Effective Distance
5km
Protection
IP 66
Focal Length
48X Optical Zoom 6.7~300mm
Power Supply
DC12V
Weight
36kg
🛡️ Product Description
  • Multi-spectral laser tracking with A380 aluminum alloy for high resistance to sea water corrosion.

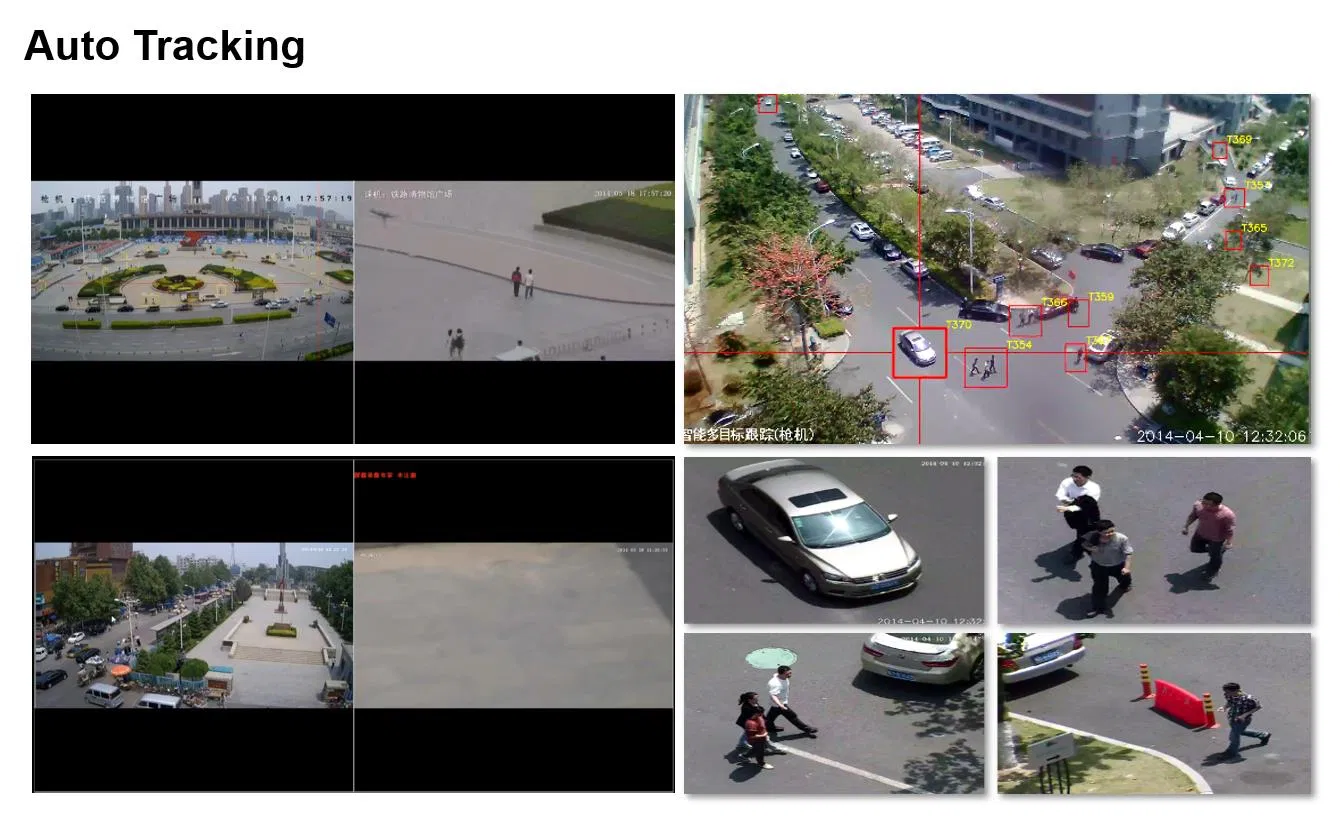

  • Equipped with gyroscope stabilization, target tracking, infrared temperature measurement, and Anti-fog technology.
  • High precision fast response utilizing BEIDOU and GPS for navigation and guidance.
  • 3-5 miles target early scanning and warning to prevent approaching threats.
  • Effective temperature measurement up to 5 km for industrial sites like electricity stations, oilfields, and chemical lanes.

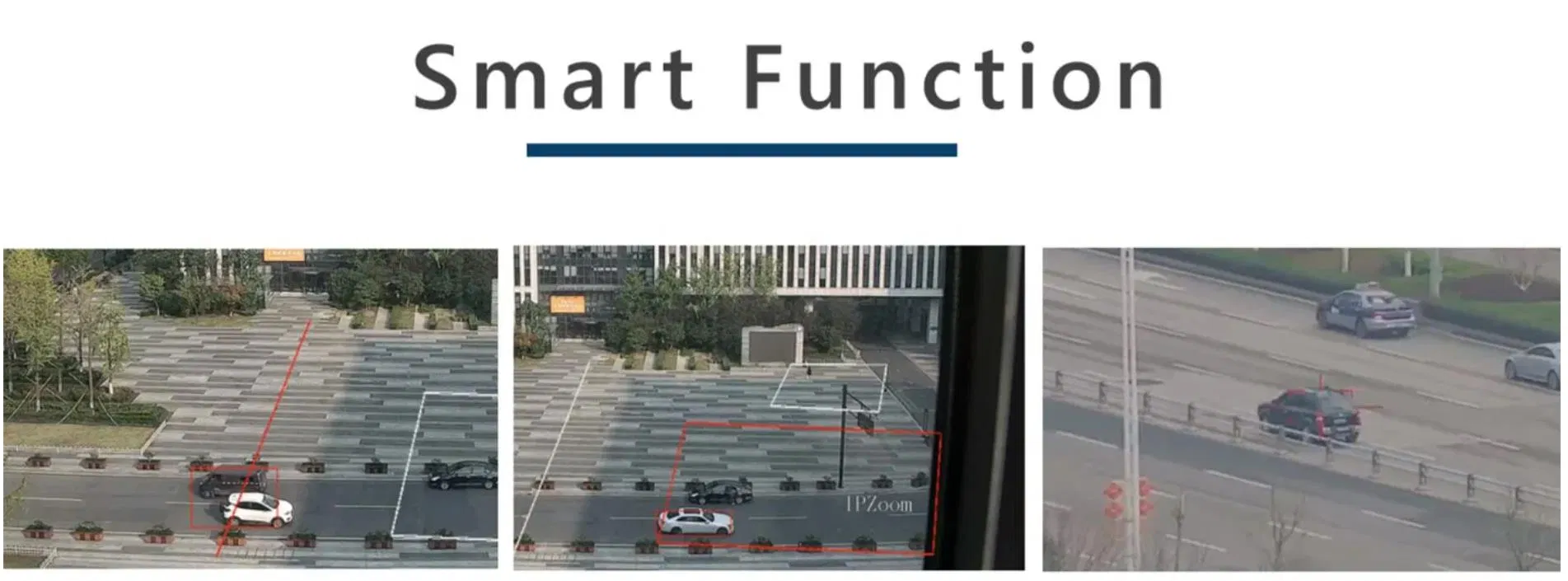

  • Integrates 5G wireless HD monitoring, face identification, license plate recognition, and electronic fence functionality.
2MP 45X Marine Thermal Vehicle Camera System
📏 Dimension

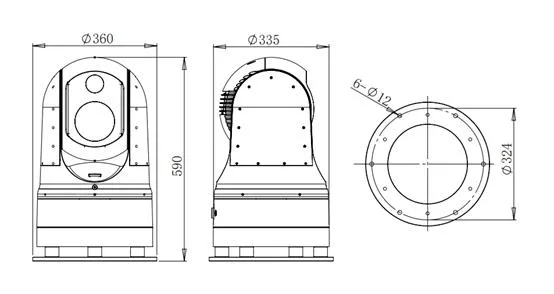

Camera Dimension
🌍 Applicable Environment

Ideal for river monitoring, oil onsite security, railway surveillance, forest fire prevention, airport safety, sea ports, and other locations with low or no light surroundings requiring high-quality video and imagery.

⚙️ Specifications
Category Detail Specification
Image Device 1 / 1.8'' CMOS, 2 million in HD (2MP)
Min. Illumination 0.0005Lux / F1.5 (Color), 0.0001Lux / F1.5 (B/W)
Focal Length 45X, 6.7~300mm anti-shake function lens, auto focus
HD Distance 3-5 Km
Thermal Resolution 384*288 / 640*480 Uncooled Focus plane array
Thermal Zoom 4.5X, 20-90mm zoom with Auto Focus
Rotation Range Horizontal 360° continuous, Vertical -45° to +95°
Positioning Accuracy 0.1 degrees
Protection Grade IP67, anti-corrosion
Dimensions 360(L) x 360(W) x 590(H) mm
🏭 Production

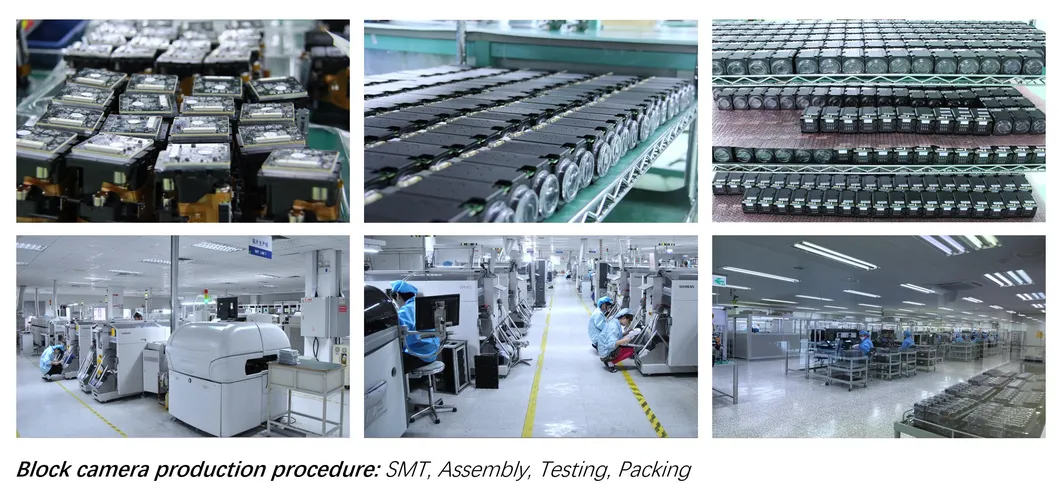

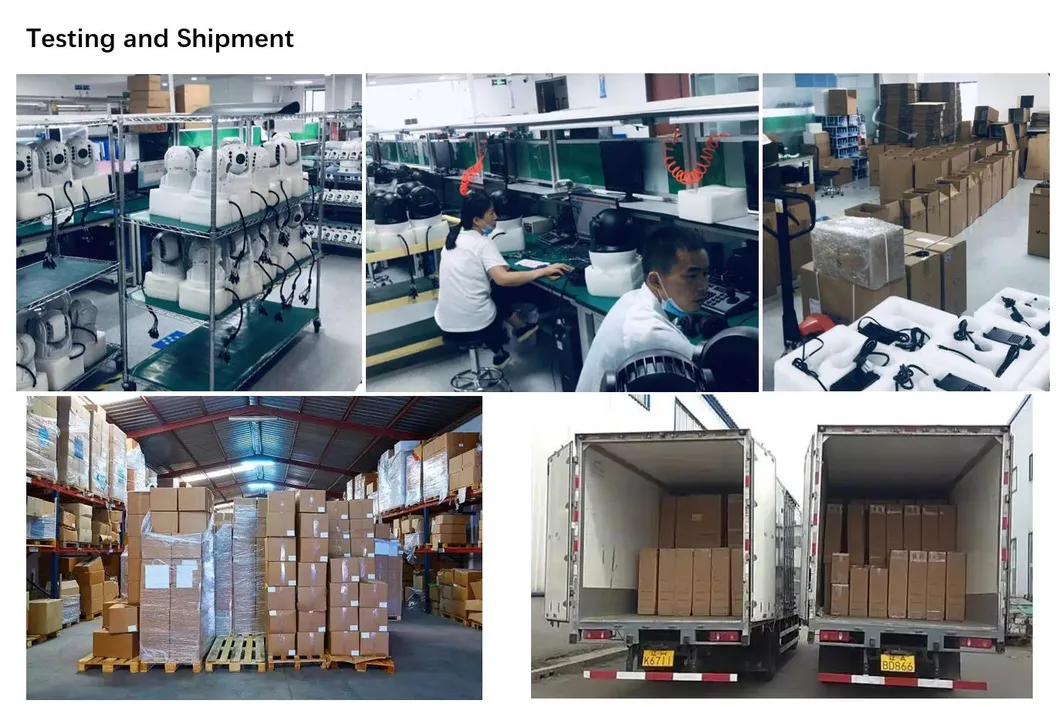

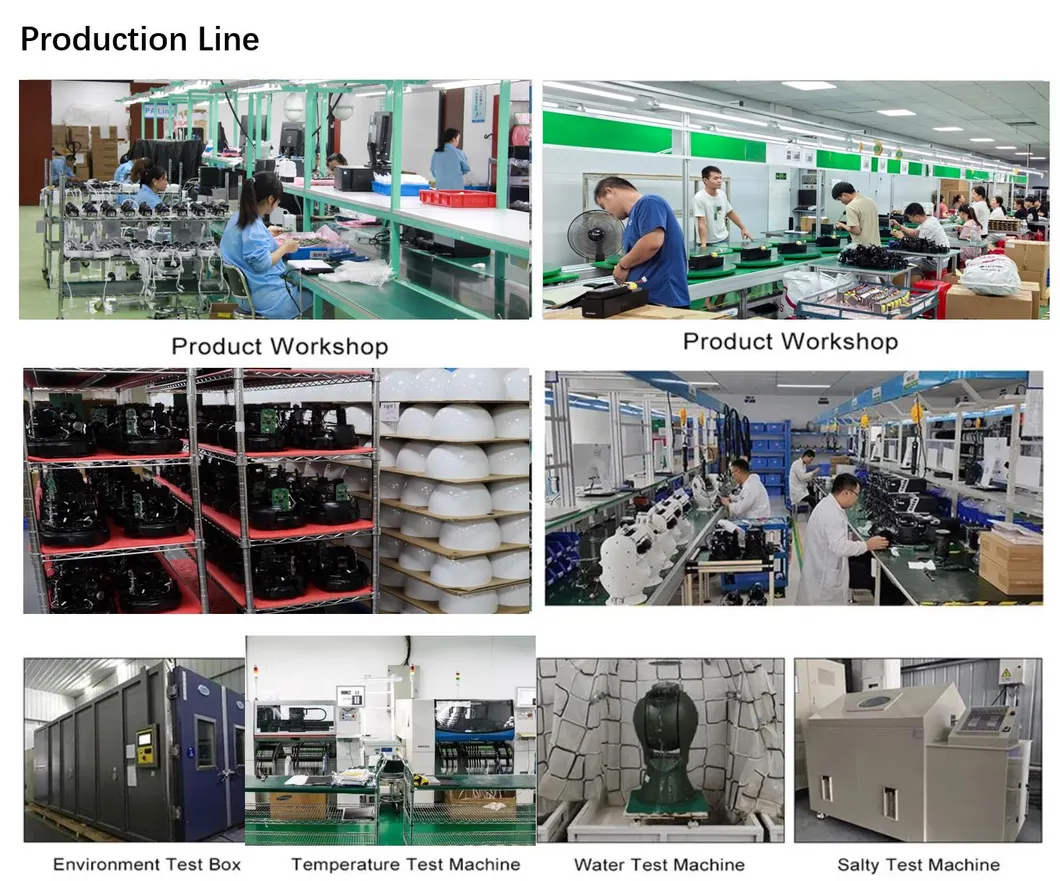

Production Process 1 Production Process 2 Production Process 3
❓ Frequently Asked Questions
Q1: Do you support sample orders for testing? A: Yes, we support sample orders for customers to test quality before placing bulk orders. Basic sample and shipping costs apply.
Q2: What is the typical lead time for orders? A: For sample orders, it is 3-5 days. For bulk orders, the lead time is generally 3-5 weeks depending on the items and quantity.
Q3: How are the goods shipped and how long does it take? A: Samples are usually shipped via DHL, Fedex, UPS, or TNT. Bulk orders are scheduled by air, sea, or train. We also accept client-appointed forwarders.
Q4: What is the warranty period for your products? A: Our standard warranty is 2 years. We also offer extended warranty periods at a reasonable cost.
Q5: Do you provide OEM/ODM services? A: Yes, we are a professional manufacturer and can provide comprehensive customized services to meet your specific requirements.
Q6: What are your payment terms? A: Usually, we require T/T 30% as a deposit and 70% before delivery. We also accept PayPal and West Union for sample orders.
