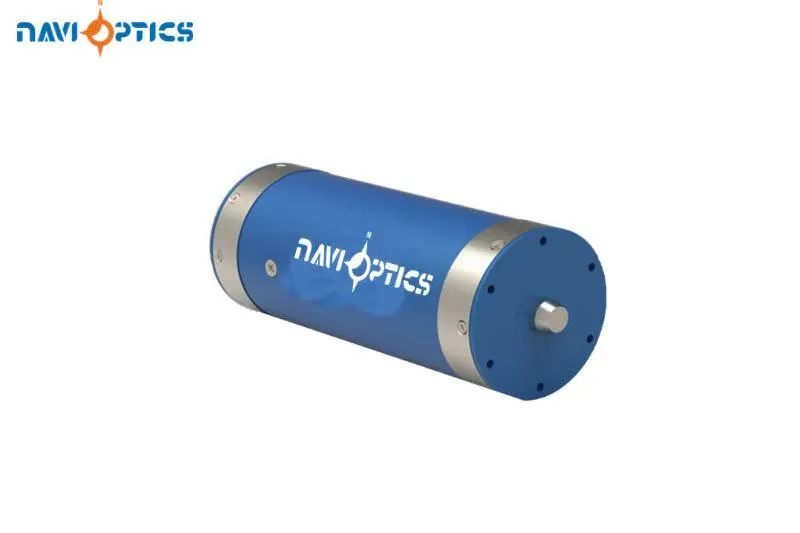

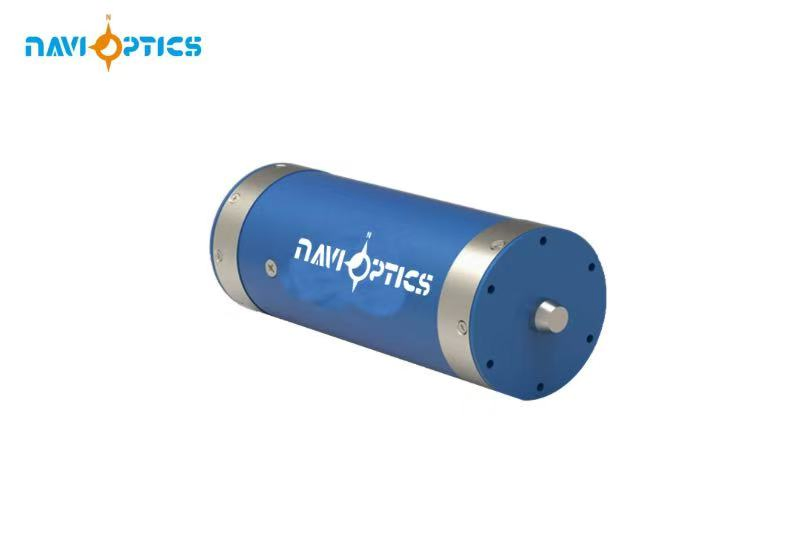

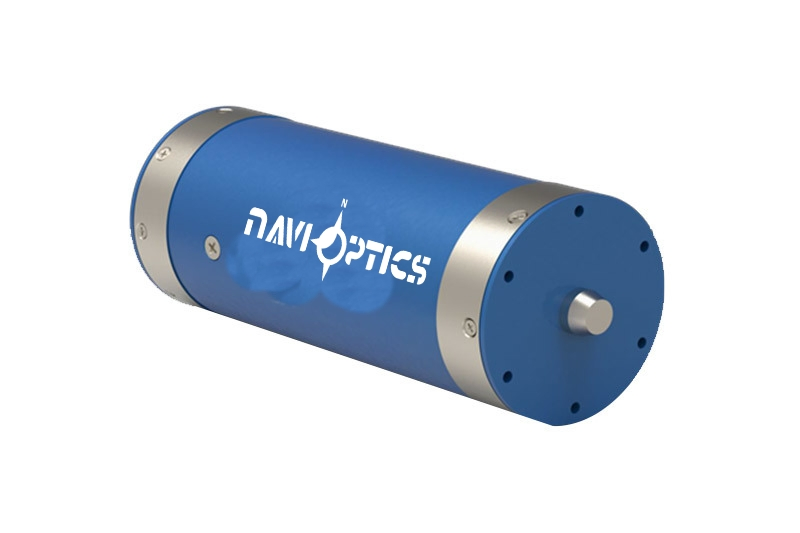

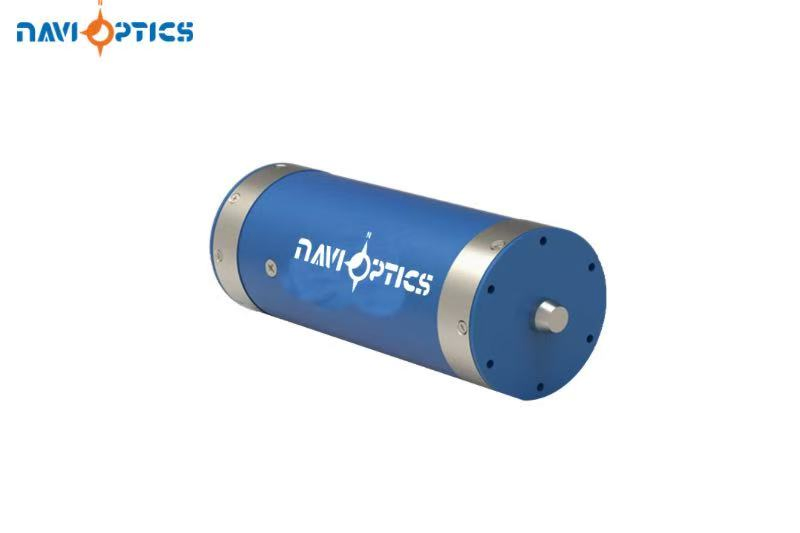

High Quality Ptk-20 Pipeline Surveying Use Inertial Navigation System with Proven Reliability

Customization: Available
Type: Servo
Output Signal Type: Digital Output

Product Description

🗂️

Basic Information

Model NO.
PTK-20
Measuring Shafts
Double
Accuracy Grade
0.5G
IP Rating
IP30
Certification
ISO
Alignment
5min
Attitude
0.05deg, 1σ
Heading
0.5deg, 1σ
Origin
China
Product Categories
Inertial Sensor
🚀

Product Description

Inertial Navigation System
Feature Specification
Performance Alignment 5min
Attitude 0.05deg, 1σ
Heading 0.5deg, 1σ
Storage Capacity ≥32G
Reading speed USB2.0, ≥35Mb/s
Accuracy 1.8m — 3.6m over 1 km — 2km aiding
Measuring Range Velocity ±400deg/s
Acceleration ±20g
Environment Operating Temp -40℃~+70℃
Storage Temp -55℃~+85℃
Vibration 0.04g2/hz @ 20~2000hz
Shock 30g @ 6ms (Accuracy); 50g @ 11ms (Survival)
SWAP Size Φ80 x 190 mm
Power supply 24VDC
Weight ≤2.5kg
Consumption ≤15W
Interface RS232, USB
🛠️

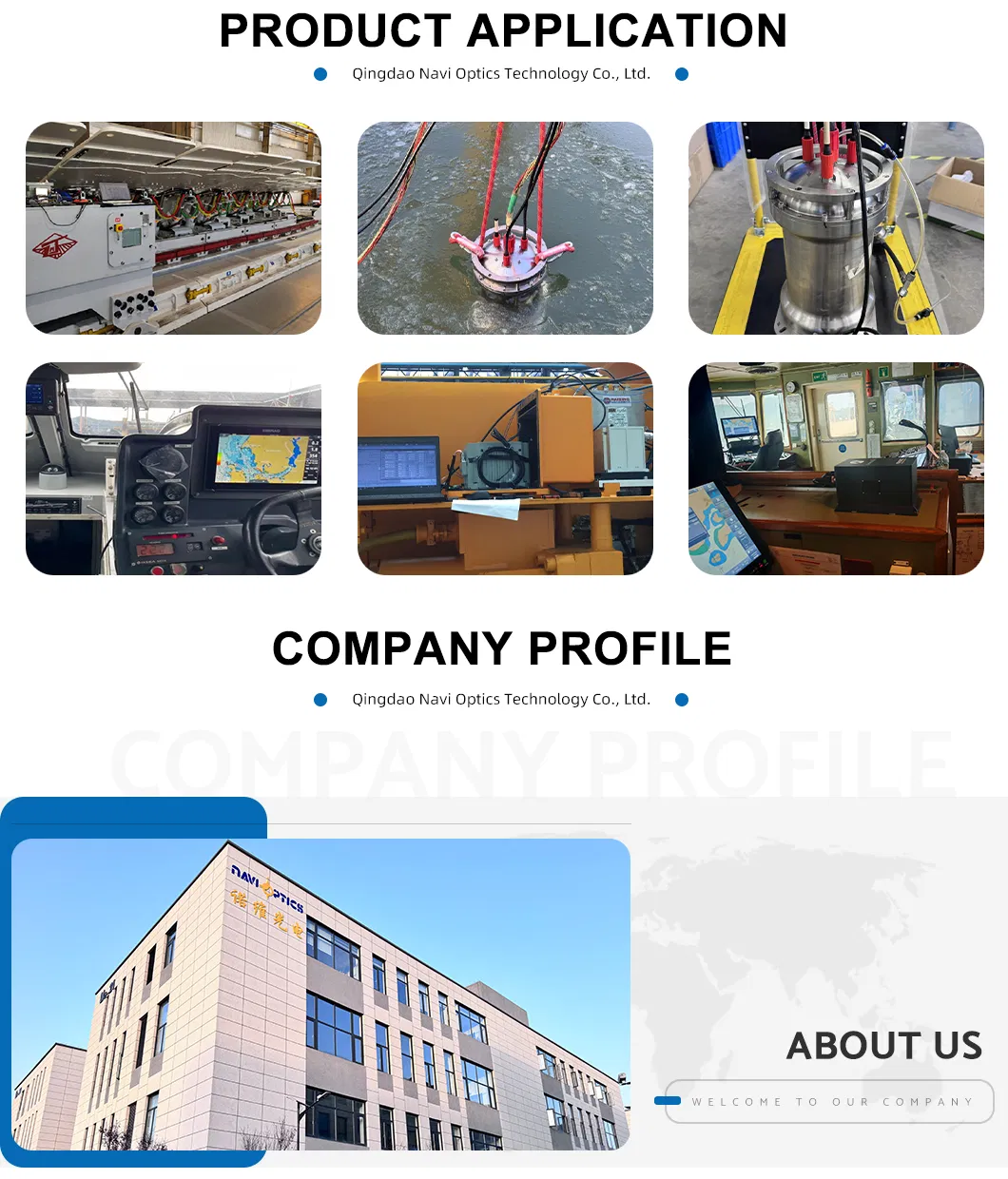

Product Application

Application Usage
Professional Imaging and Navigation Solutions

Our systems provide high-precision solutions for surface and underwater navigation. Specializing in cooled and uncooled infrared thermal imaging, fiber optic gyrocompasses, and inertial navigation systems, we strive to enhance human perception through best-in-class intelligent imaging.

With a focus on sustainable and efficient technology, our production lines deliver reliable quality for marine and industrial applications, ensuring low cost and high performance for international major projects.

🏭

Our Factory

Frequently Asked Questions

What kind of certificates do you have for this product?
Currently, as a professional manufacturer, we hold ISO, SGS, CCS, and MED certifications to ensure international quality standards.
Can we perform a remote inspection of the product?
Yes, we provide inspection services via video or other chatting software to allow you to check your product remotely.
Do you support third-party inspections at your factory?
Absolutely. We welcome third-party inspectors to visit our factory and verify our product quality before shipment.
How is the after-sales service handled?
We treat every customer with the highest priority. Our team provides prompt responses and aims for long-term, reliable partnerships with efficient technical support.
What are the typical shipment methods?
Products are usually shipped via air-express for speed and safety. We provide a tracking number via email immediately after dispatch.
What is the core business philosophy?
Our philosophy is based on "Quality Service First" and "Customer Satisfaction." We lead with technology and maintain a human-oriented approach to design and integration.
