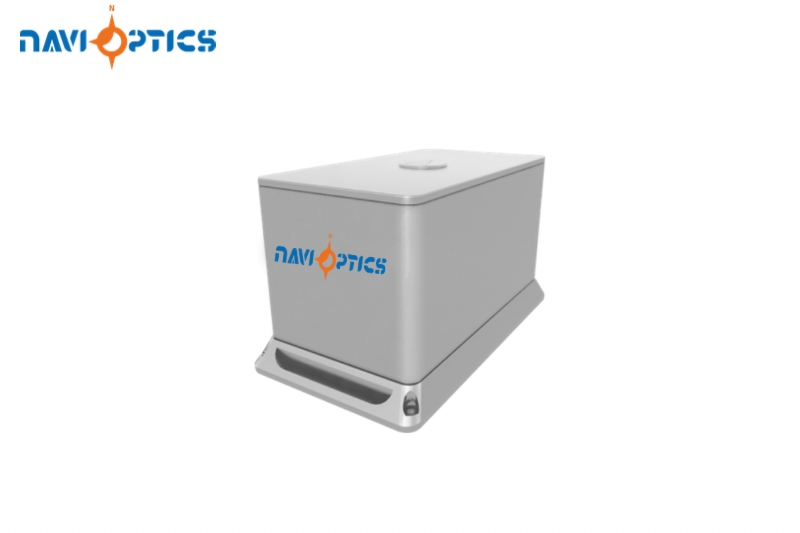

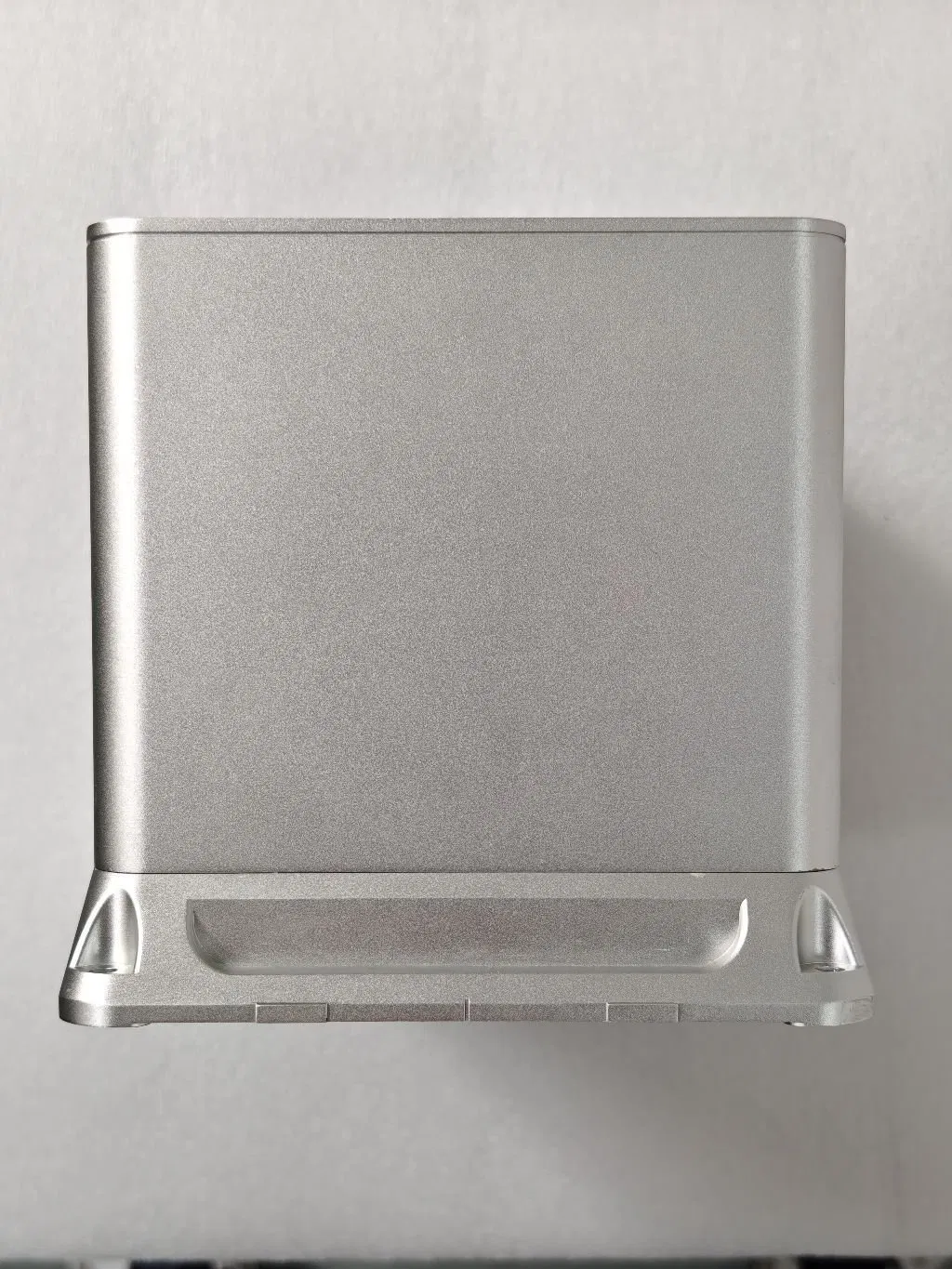

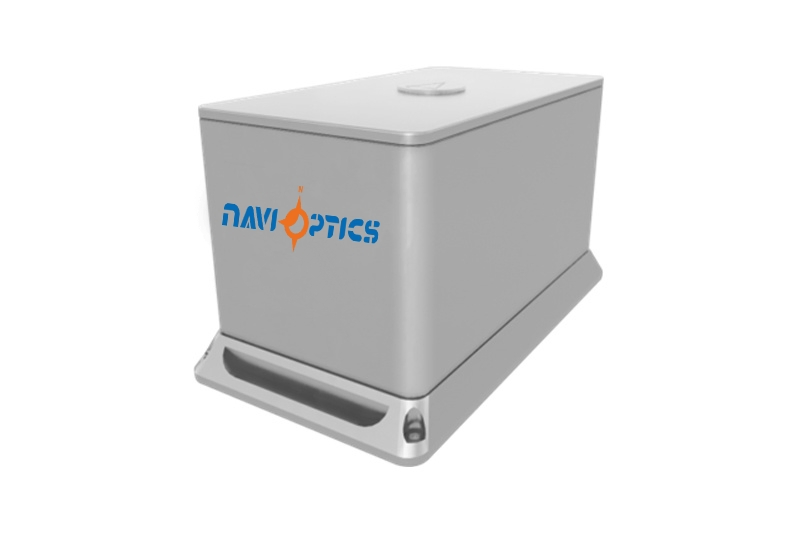

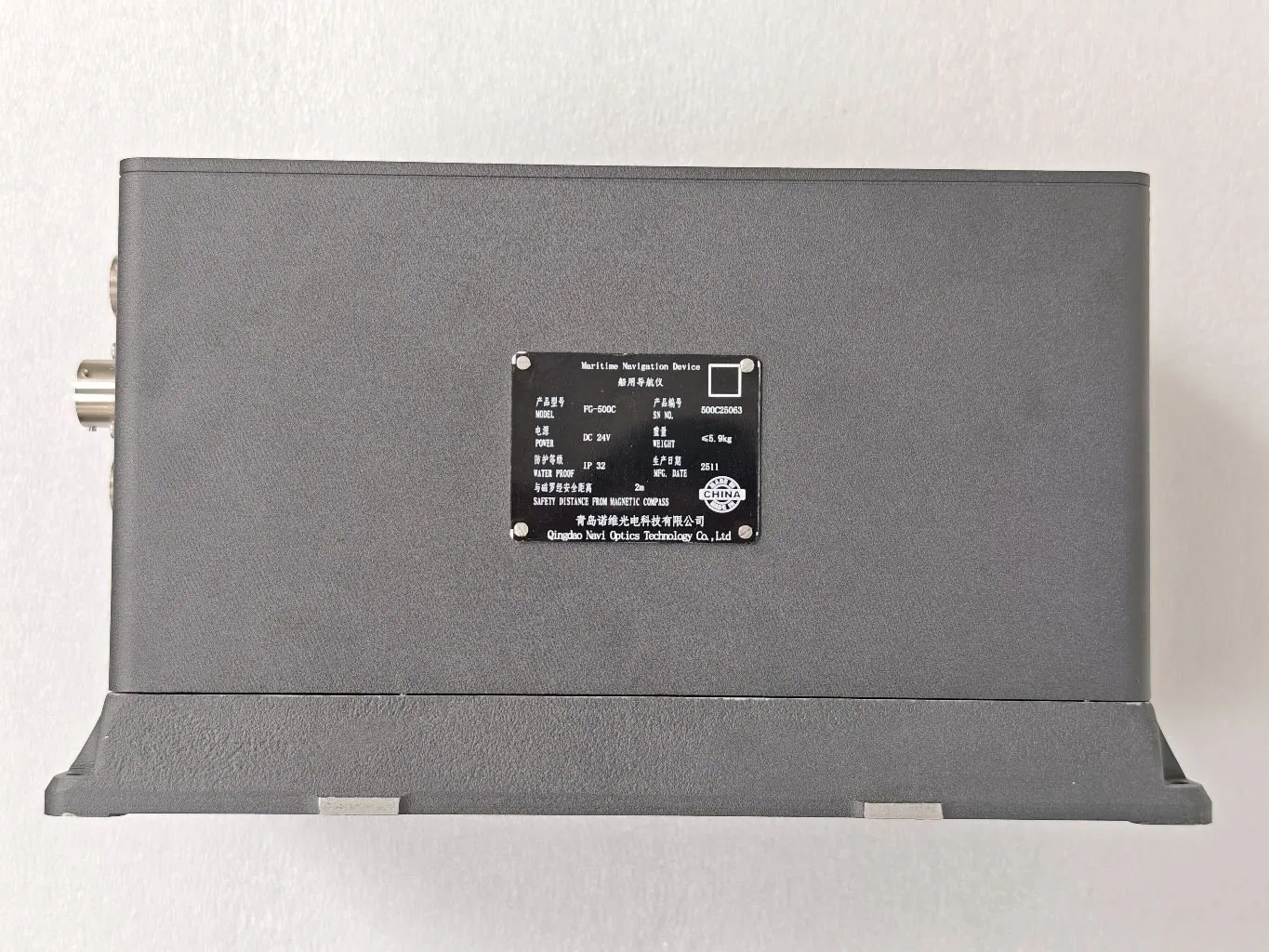

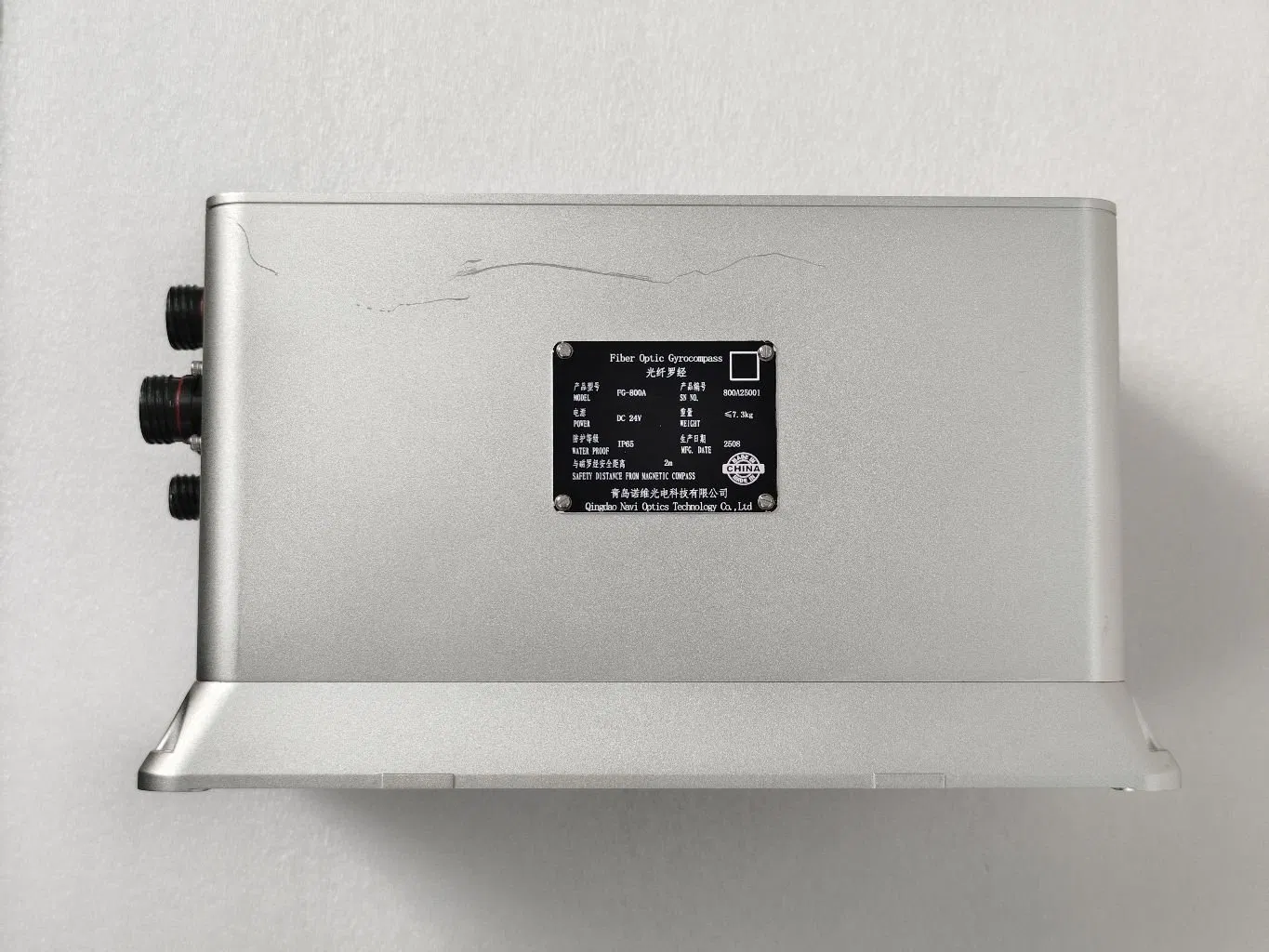

Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range
Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range
Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range
Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range
Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range
1 / 5
Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range
Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range
Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range
Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range
Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range

Remote Control Fg-800A Fiber Optic Type Inertial Navigation System with Widely Using Range

Customization: Available
Type: Servo
Output Signal Type: Digital Output
Send Inquiry

Product Description

Basic Information
Model NO.
FG-800A-SURFACE
Measuring Shafts
Double
Accuracy Grade
0.5G
IP Rating
IP30
Certification
ISO
Customized
Available
Product Categories
Inertial Sensor
Transport Package
Carton
Specification
171×308×172 mm
Origin
China
Product Description
Fiber Optic Type Inertial Navigation System

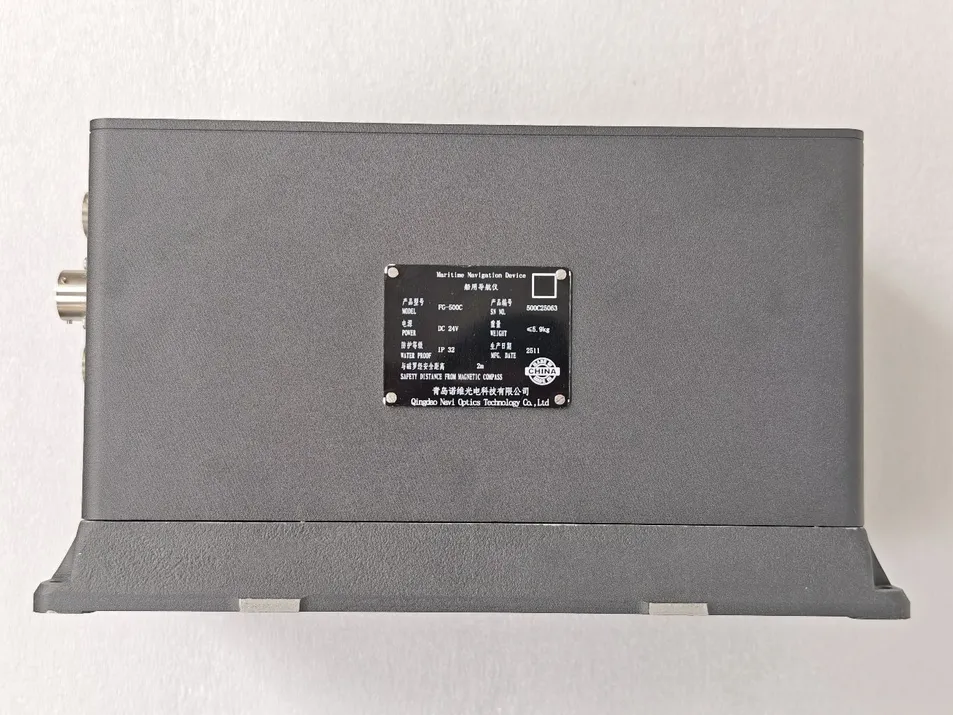

Inertial Navigation System Detail 1
Inertial Navigation System Detail 2
Fiber Optic Component 1

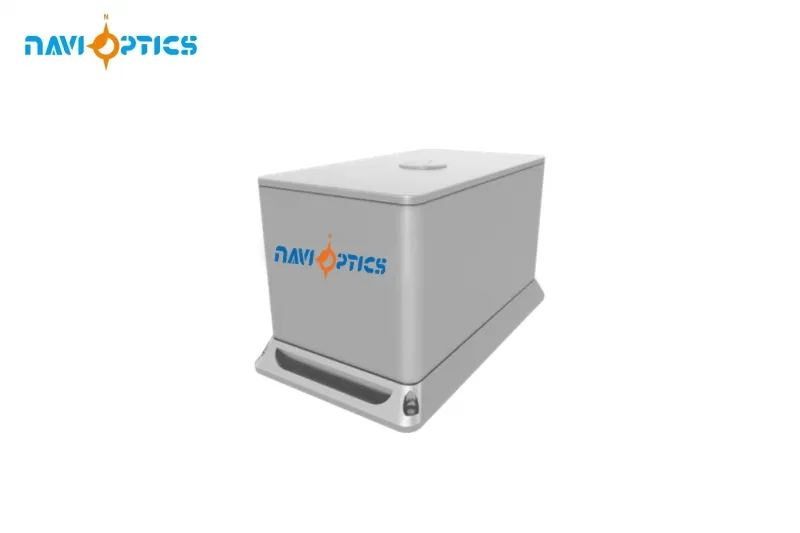

Fiber Optic Component 2
Performances Settling Time 10min
Attitude 0.01 deg, 1σ
Heading accuracy 0.05° (Autonomous) / 0.02° (GPS aiding)
Heave 5cm or 5%
MTBF 80000 hrs
Measuring Ranges Rotation rate ±400deg/s
Acceleration ±20g
Operating Environment Temperature Range -40℃ to +70℃ (Operating)
Vibration 0.04g2/hz @ 20~2000hz
Shock 30g @ 6ms (Accuracy), 50g @ 11ms (Safety)
Electrical Power supply 18~36VDC / ≤15W Consumption
Physical Size & Weight 171×308×172 mm / ≤6.8kg / IP 66
Warranty Support Three years
Product Application

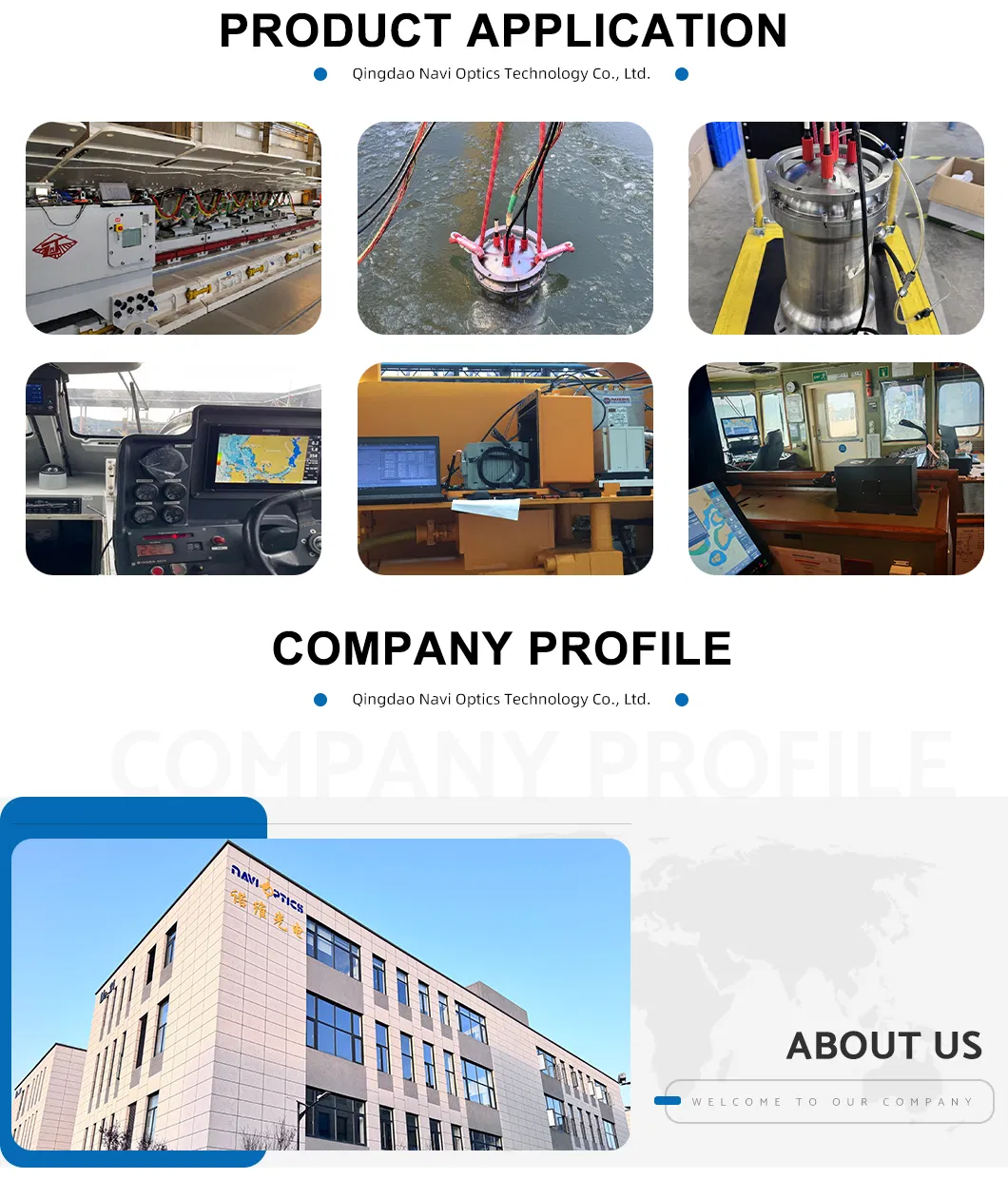

Application Usage Display
A leading manufacturer of cooled and uncooled infrared thermal imaging cameras and modules, surface or underwater fiber optic gyrocompasses, and inertial navigation systems. Striving to enhance human perception through best-in-class intelligent imaging solutions and high-precision navigation sensors.
Our Factory & Production

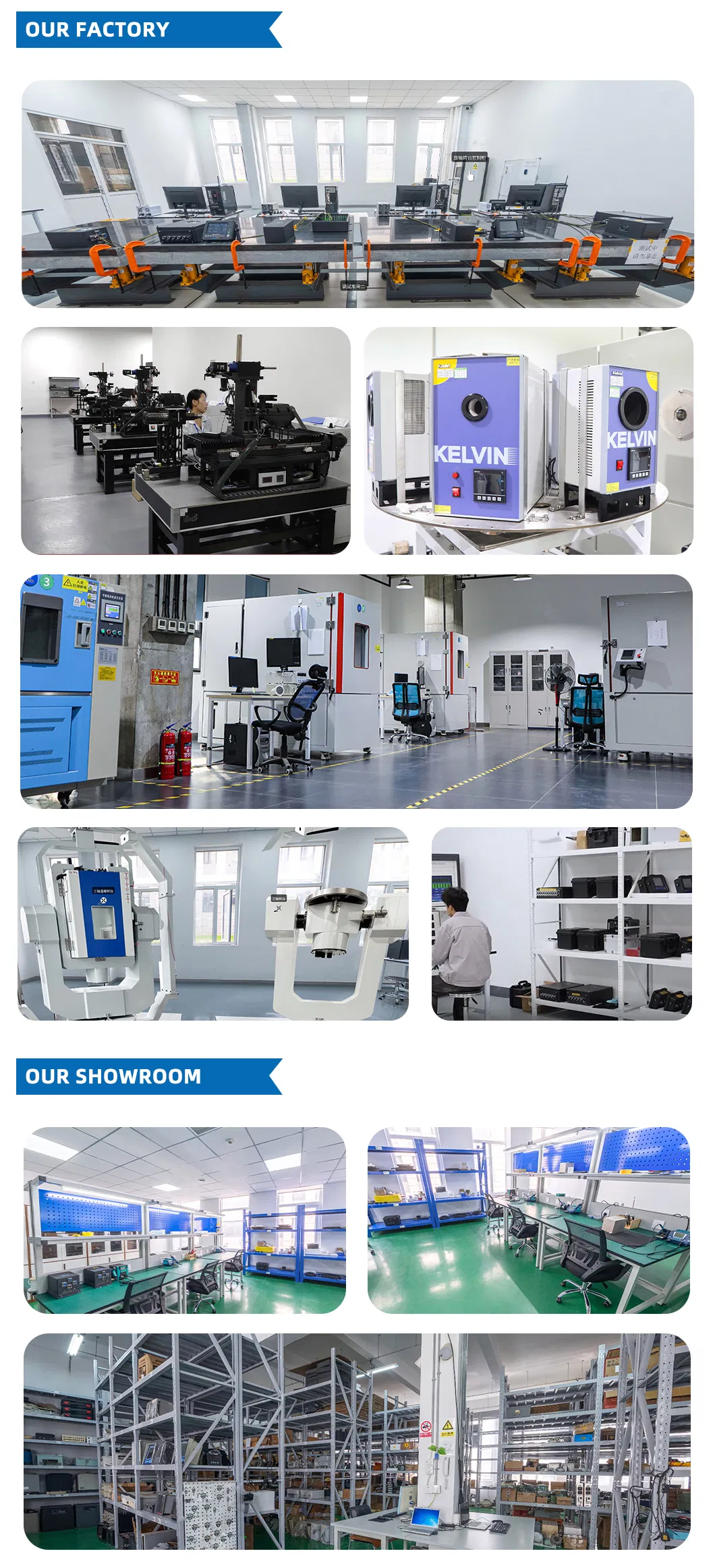

Production Facility 1
Production Facility 2
Frequently Asked Questions
1. What certificates are available for this product?
As a professional manufacturer, we hold ISO, SGS, CCS, and MED certifications for our inertial navigation systems.
2. Is video inspection available for remote verification?
Yes, we provide inspection services via video calls or other communication software to allow you to check your products remotely.
3. Do you support third-party factory inspections?
We welcome third-party inspections. You are free to arrange for external inspectors to visit our factory to verify product quality.
4. What is the typical shipping method?
Products are usually shipped via air-express to ensure speed and safety. Tracking numbers are provided immediately after dispatch.
5. What is the warranty period for the FG-800A?
This model comes with a comprehensive three-year warranty, reflecting our confidence in the product's 80,000-hour MTBF reliability.
6. How does the system achieve high heading accuracy?
The system achieves a heading accuracy of 0.05° autonomously and can be enhanced to 0.02° when aided by GPS signals.
