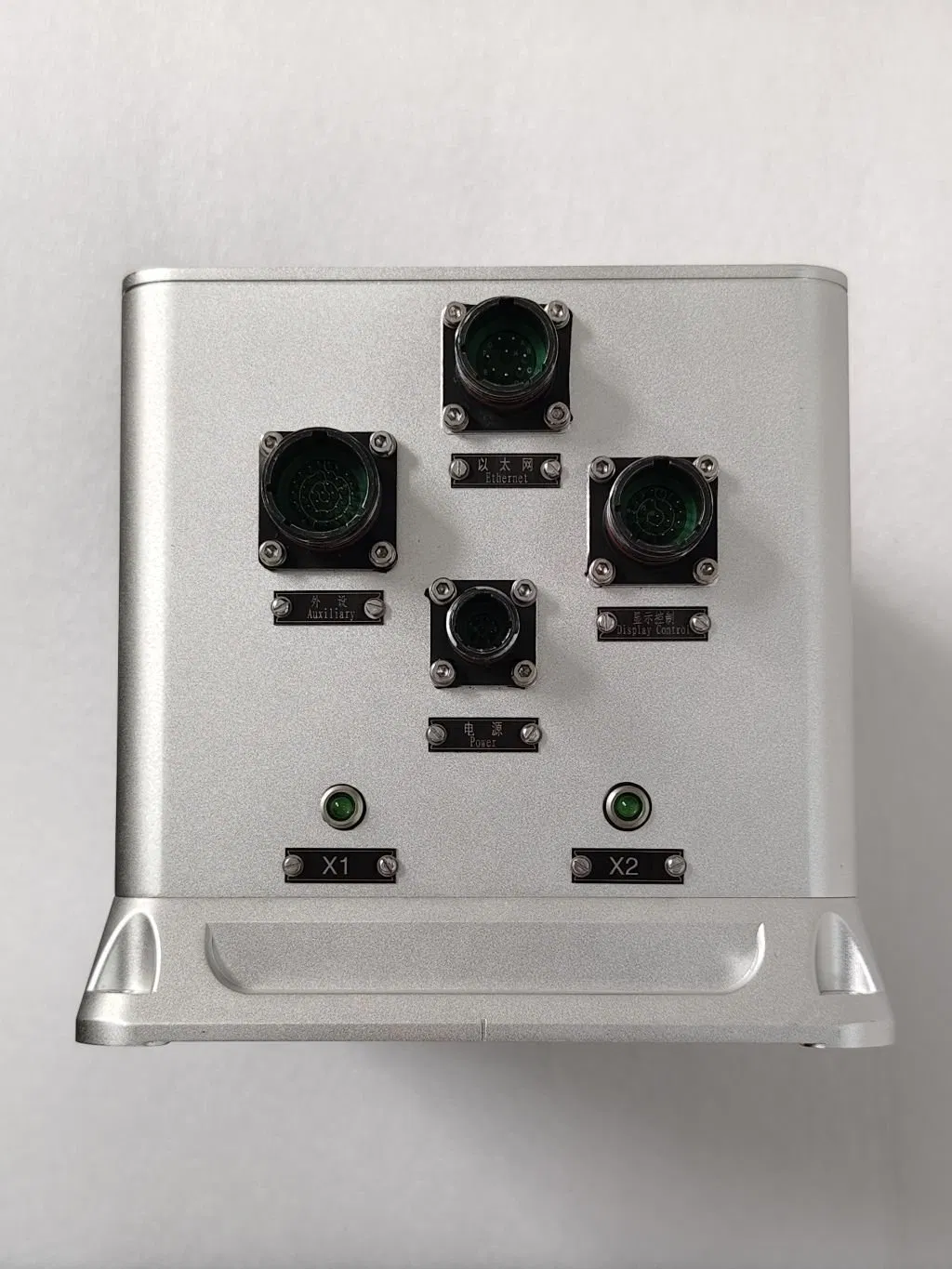

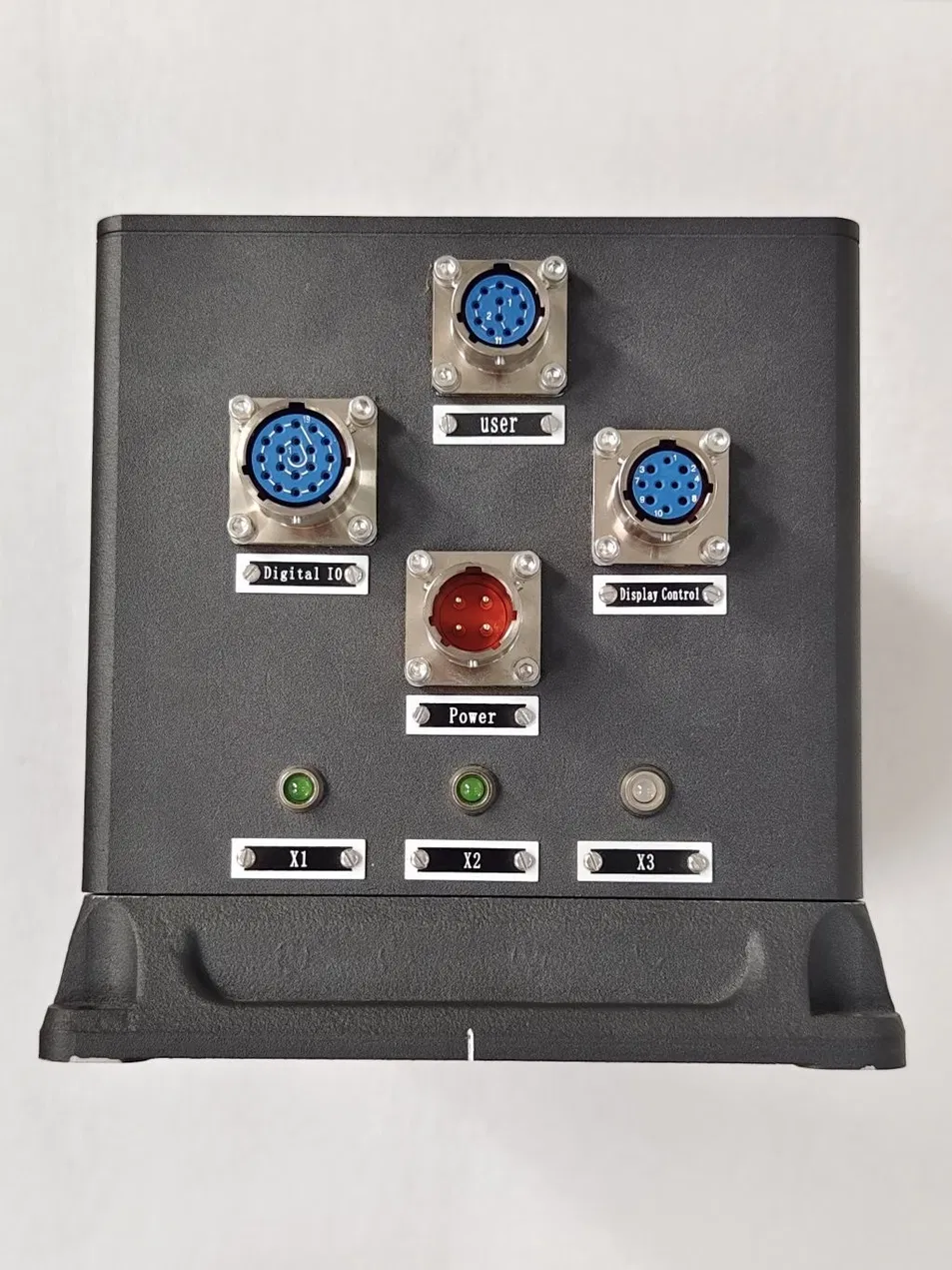

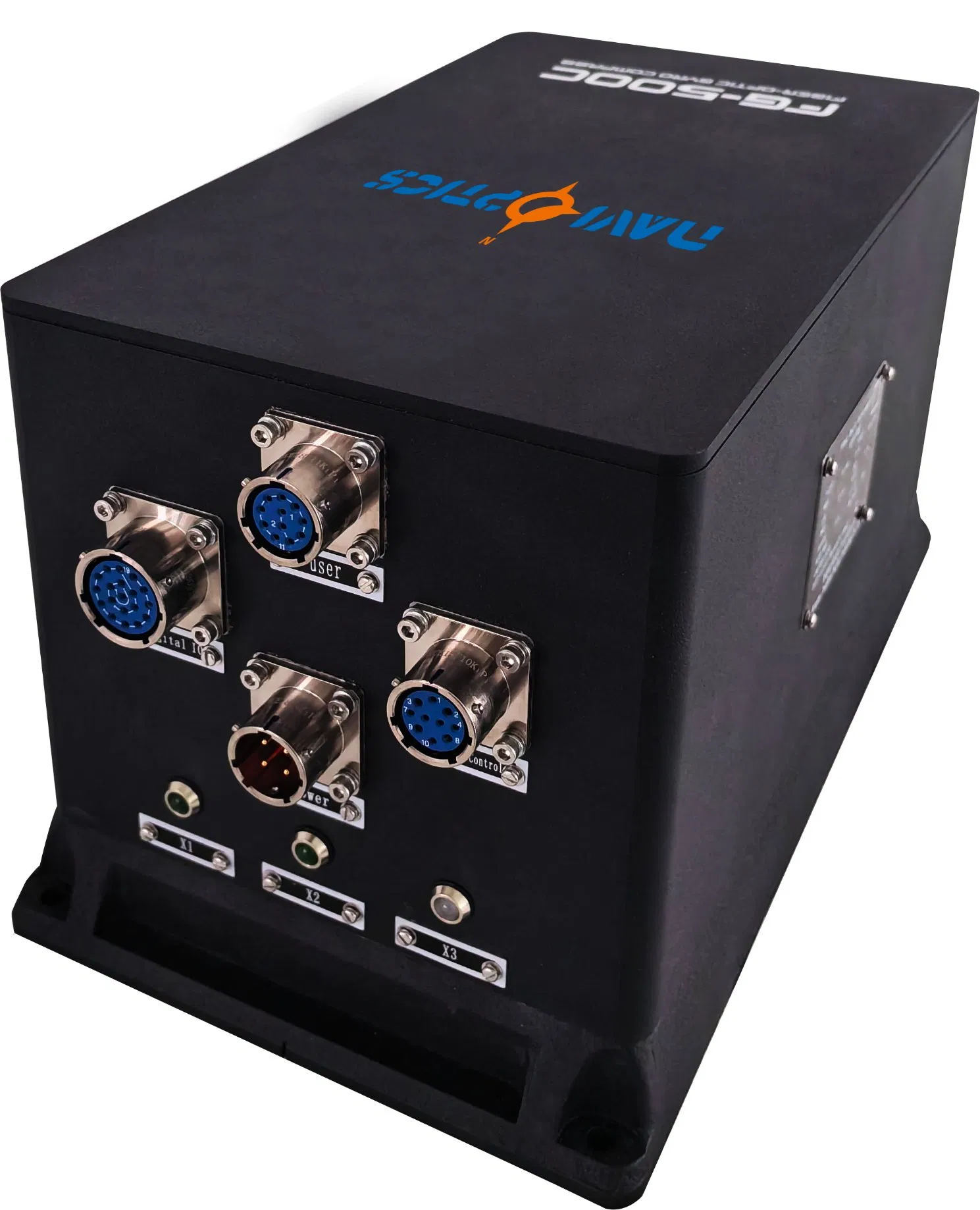

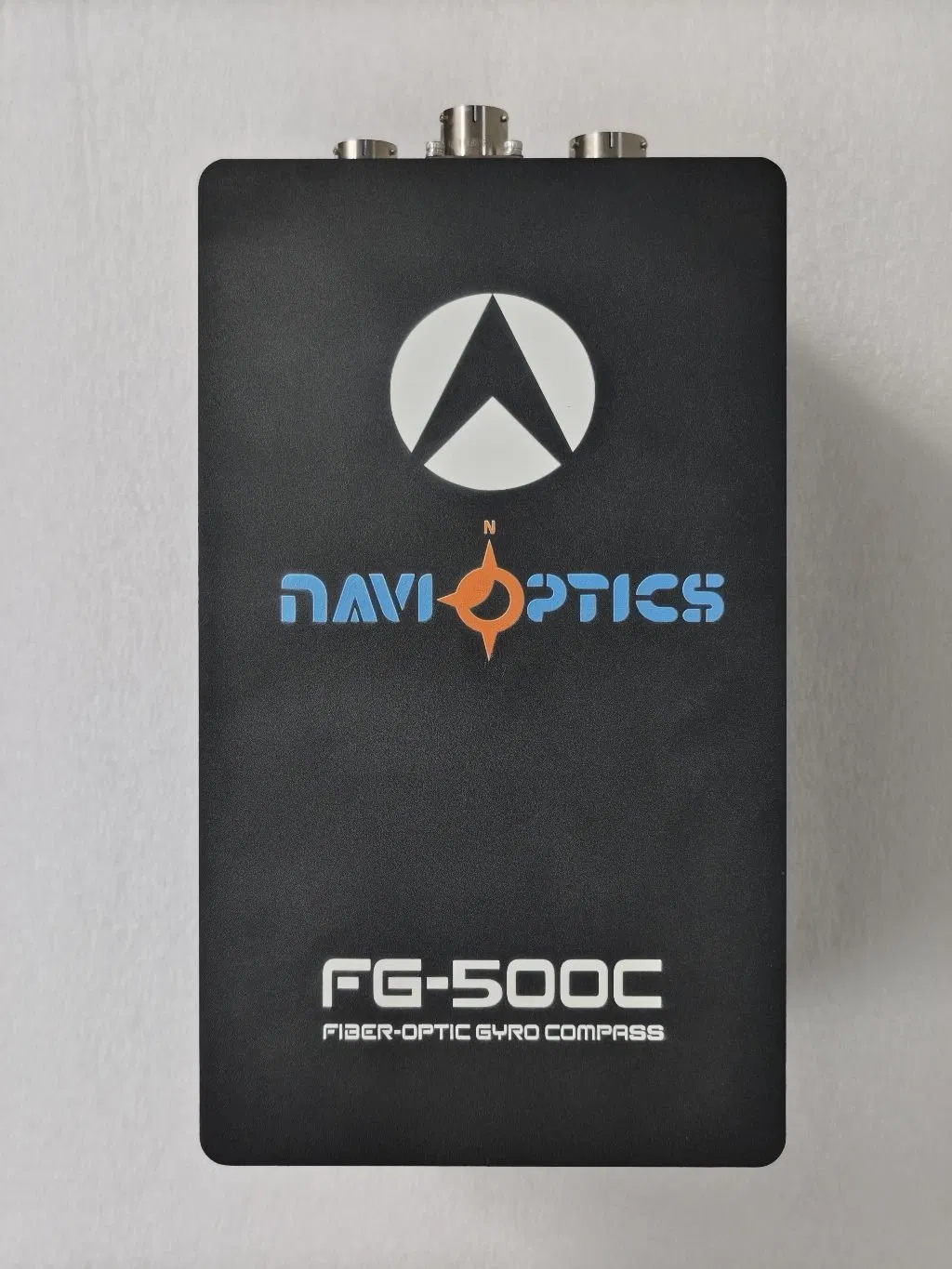

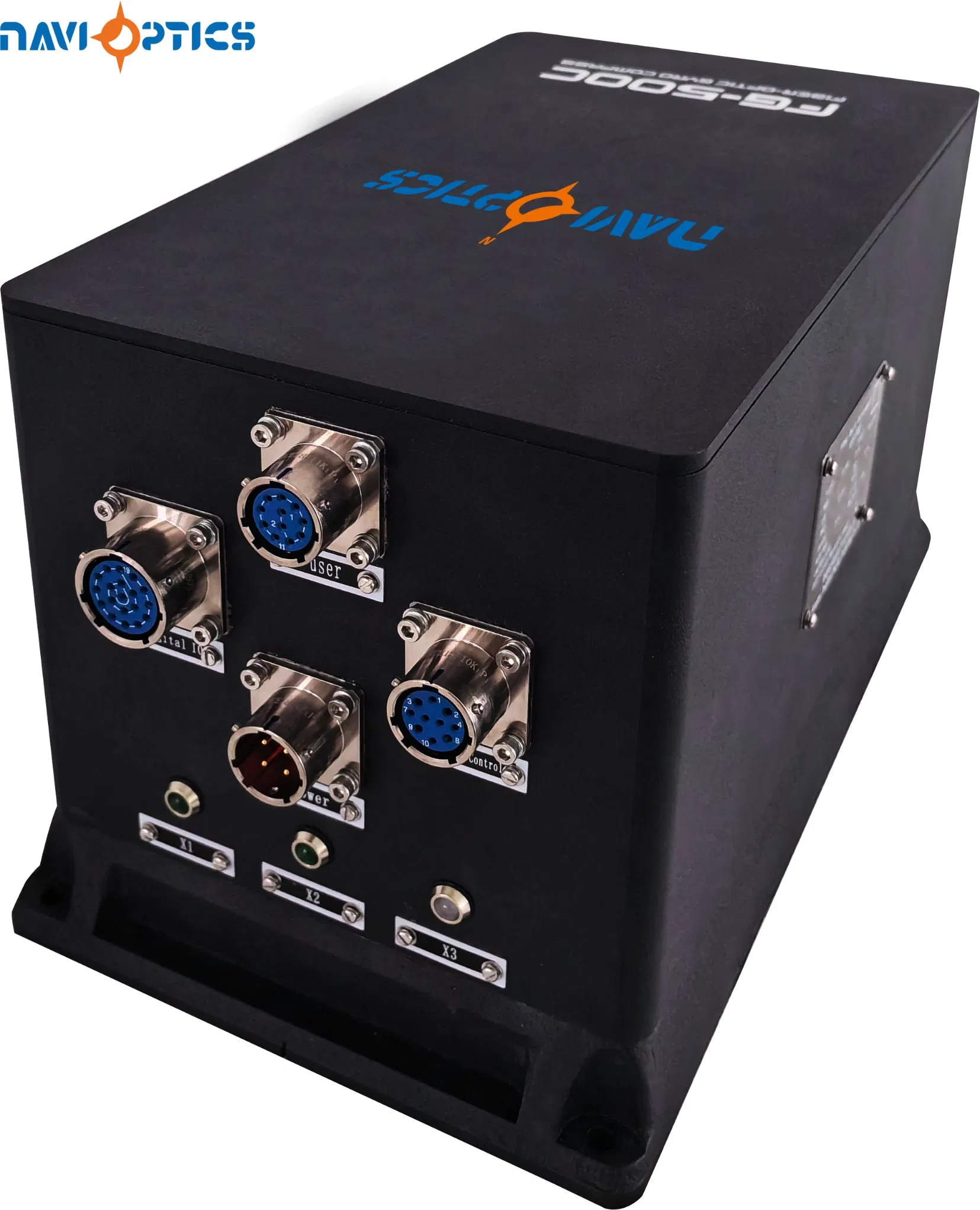

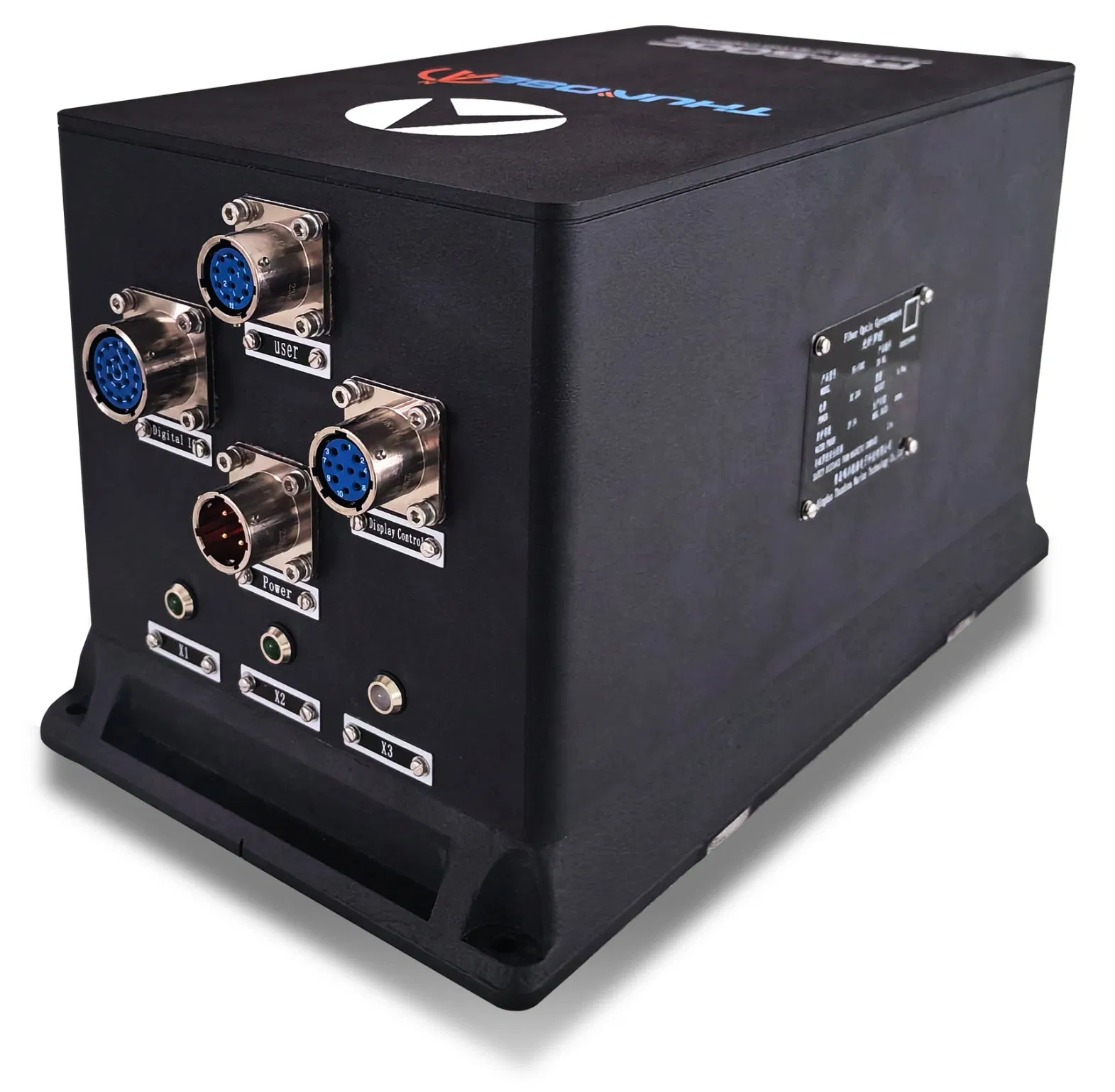

| Model NO. | FG500C |
| Measuring Shaft Quantities | Double |
| Accuracy Grade | 0.5G |
| IP Rating | IP30 |
| Certification | ISO, MED |
| Start-up Time | 10min |
| Power Consumption | 24VDC/15W |
| Dimensions | <308mm × 171mm × 171mm |
| Weight | <5.9kg |
| Trademark | Navioptics |
| Origin | China |
| Package Size | 37.00cm * 24.00cm * 26.00cm |
| Package Gross Weight | 6.750kg |
| Transport Package | Carton |
| Feature | Specifications | |
|---|---|---|
| Settling Time | Static Align: 10min / Dynamic Align: 15min | |
| Accuracy | Roll & Pitch (1σ) | 0.05° |
| Heading (1σ) | 0.2°secLat | |
| Dynamic Range | Angular Rate | ±400°/s |
| Acceleration | ±12g | |
| Interface | RS-232 / RS-422 | |
Industry-Leading Navigation Solutions
We are a leading provider of cooled and uncooled infrared thermal imaging solutions, surface and underwater fiber optic gyrocompasses, and inertial navigation systems. Our products are designed to enhance human perception through best-in-class intelligent imaging and precision sensing solutions.
With a focus on sustainable and efficient technology, our production lines for fiber optic gyro compasses offer reliable quality and cost-effectiveness, making them ideal for modern maritime operations and stability platforms.
