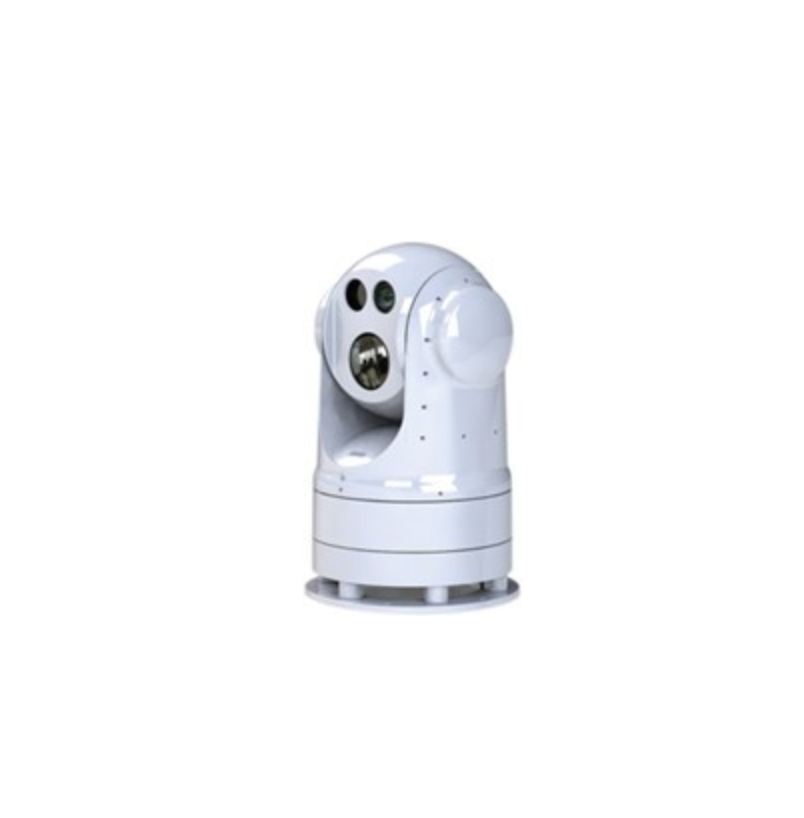

2MP 48X Multi-Spectrum Marine Thermal Vehicle Camera System

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
IPTZ-M600-Z248-HTB
Type
IP Camera
Sensor
CMOS
Effective Distance
5km
IP Protection
IP 66
Focal Length
48X Optical Zoom 6.7~300mm
Weight
36kg
Certification
CE, ISO9001: 2000
Power Supply
DC12V
Product Description
  • Multi-spectral laser tracking, use A380 aluminum alloy that high resistance to sea water corrosion, with gyroscope stabilization, target tracking, infrared temperature measurement, Anti-fog, laser assisted lighting, laser ranging.
  • High precision and Respond fast. BEIDOU and GPS apply to guide and navigation. 3-5 miles of the target early scanning and warning to prevent approaching. Temperature measurement is effective about 5 km on electricity station, forest, oilfield, gas lane, and chemical industry to provide real-time temperature.
  • 5G wireless high-definition monitor can recognize high-risk target with face identification and license plate. Integrate BEIDOU and GPS Location, electronic fence, patrol path set, 1 km laser night vision, remote Start-Up RS422 data two-way transmission, radar fire control system, vehicle shock absorption design.
Marine Thermal Vehicle Camera System

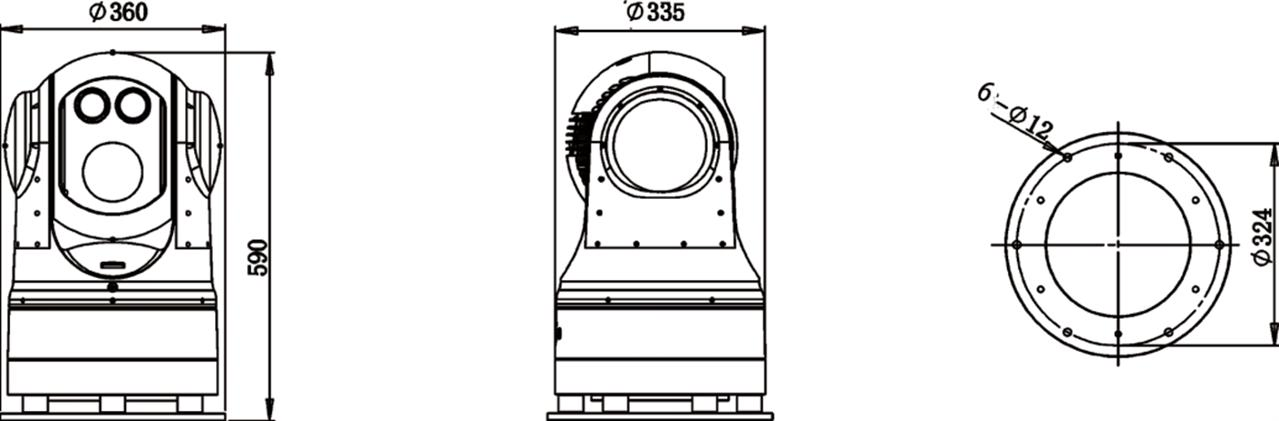

Dimension
Product Dimension
Applicable Environment

Application to river, oil onsite, railway, forest, airport, sea port and other places with low or no light surroundings while requiring high video/picture quality.

Specifications
Model IPTZ-M600-Z248-HTB
Optical Image device 1 / 2.8'' CMOS, 2 million in HD
Resolution 2MP
Focal length 45X, 6.7~300mm anti-shake lens, auto focus
HD distance 3-5 Km
Laser Power rate 10~35W
Focus Synchronous zoom between laser and lens
Laser distance 3~6KM
Thermal Resolution 384*288 / 640*480
Lens 4.5X, 20-90mm zoom, Auto focus
Sensitivity ≤30mK@300K
Distance 2~6Km
PTZ Speed Azimuthal rotation ≥ 45°/s; Min 0.1°/s
Accuracy 0.1 degrees
Rotation Horizontal 360° continuous, vertical -45° to +95°
General Power AC220V or 24V DC (Normal 140W, Peak 290W)
Temp -40ºC ~ +70ºC
Protection IP67, anti-corrosion
Size 360(L) x 360(W) x 590(H) mm

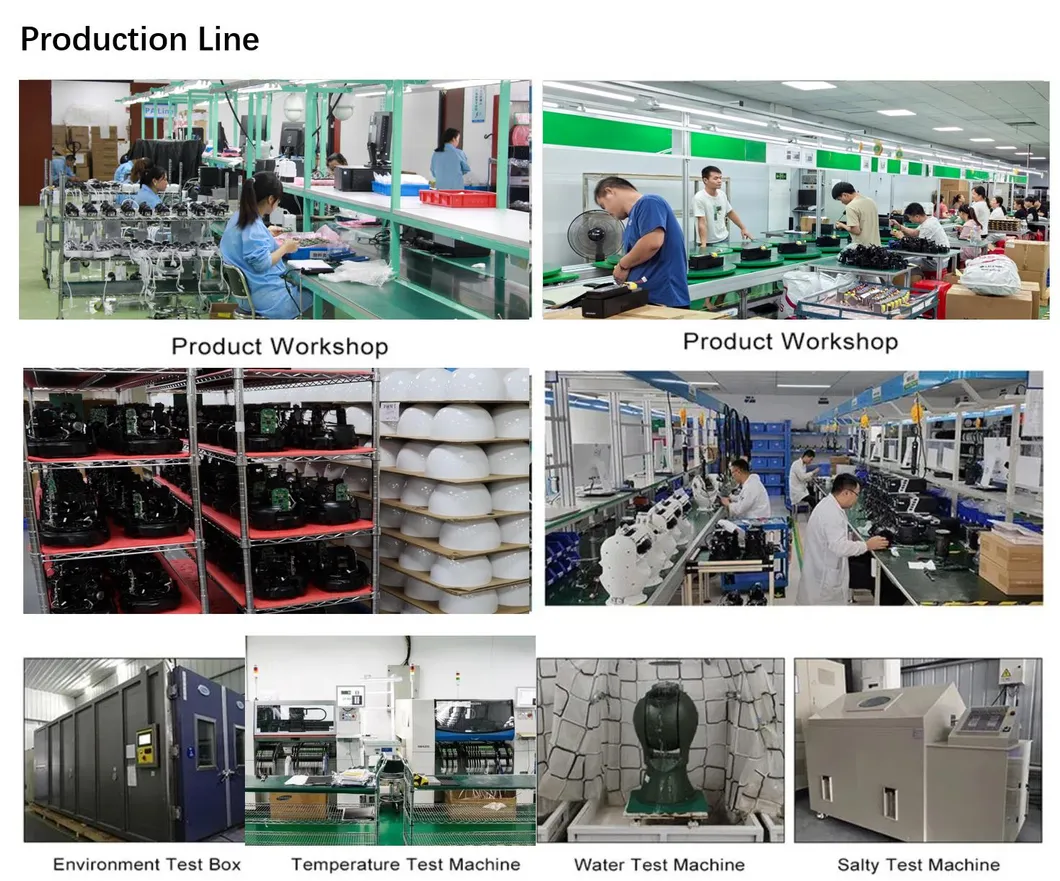

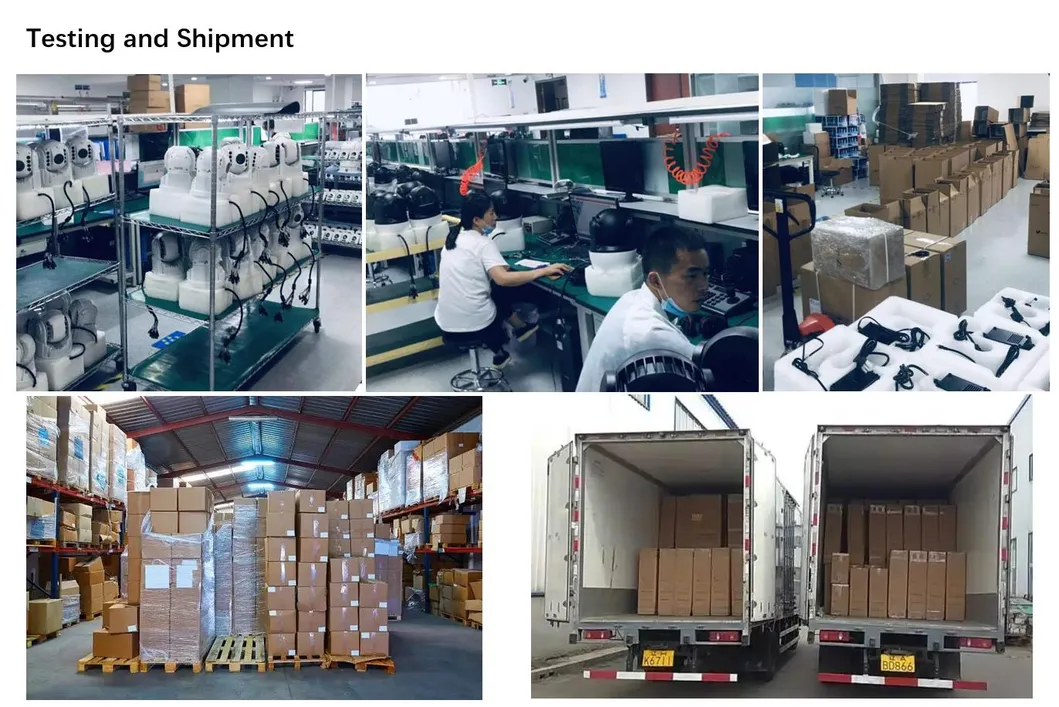

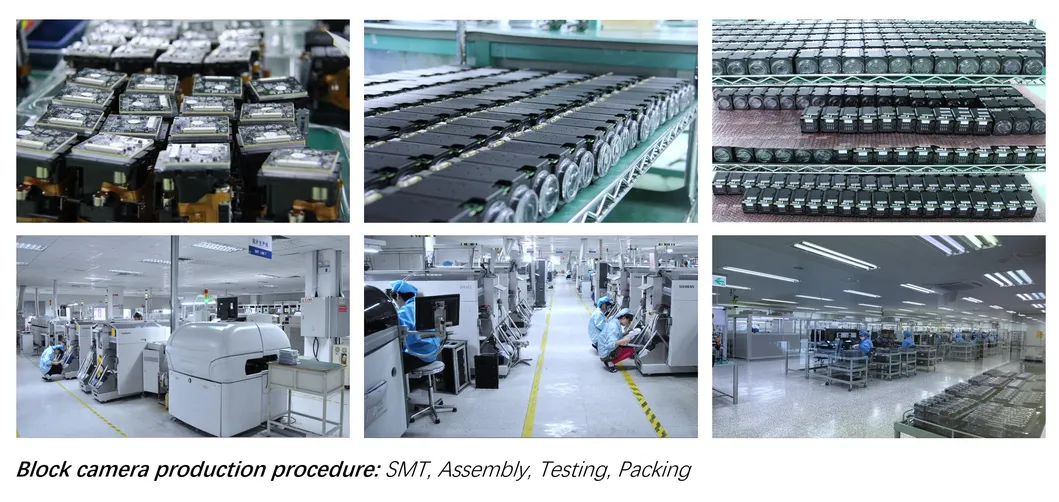

Production Display
?Frequently Asked Questions
Do you support sample orders?
Yes, we support sample orders for customers to test quality before placing bulk orders. The client covers the sample and shipping costs.
What is the lead time for delivery?
For sample orders, the lead time is 3-5 days. For bulk orders, it typically takes 3-5 weeks depending on the items and quantity.
Is there a Minimum Order Quantity (MOQ)?
We have no MOQ limit for sample orders. For bulk orders with customized services, MOQ requirements can be discussed on a case-by-case basis.
How are the goods shipped?
Samples are usually shipped via DHL, Fedex, UPS, or TNT. Bulk orders are shipped by air, sea, or train. Client-appointed forwarders are also accepted.
What is the warranty period for your products?
Our standard warranty is 2 years. We also offer extended warranty periods upon request with a reasonable cost.
What are your terms of payment?
Typically, we require T/T 30% as a deposit and 70% before delivery. We also accept PayPal and West Union for sample orders.
