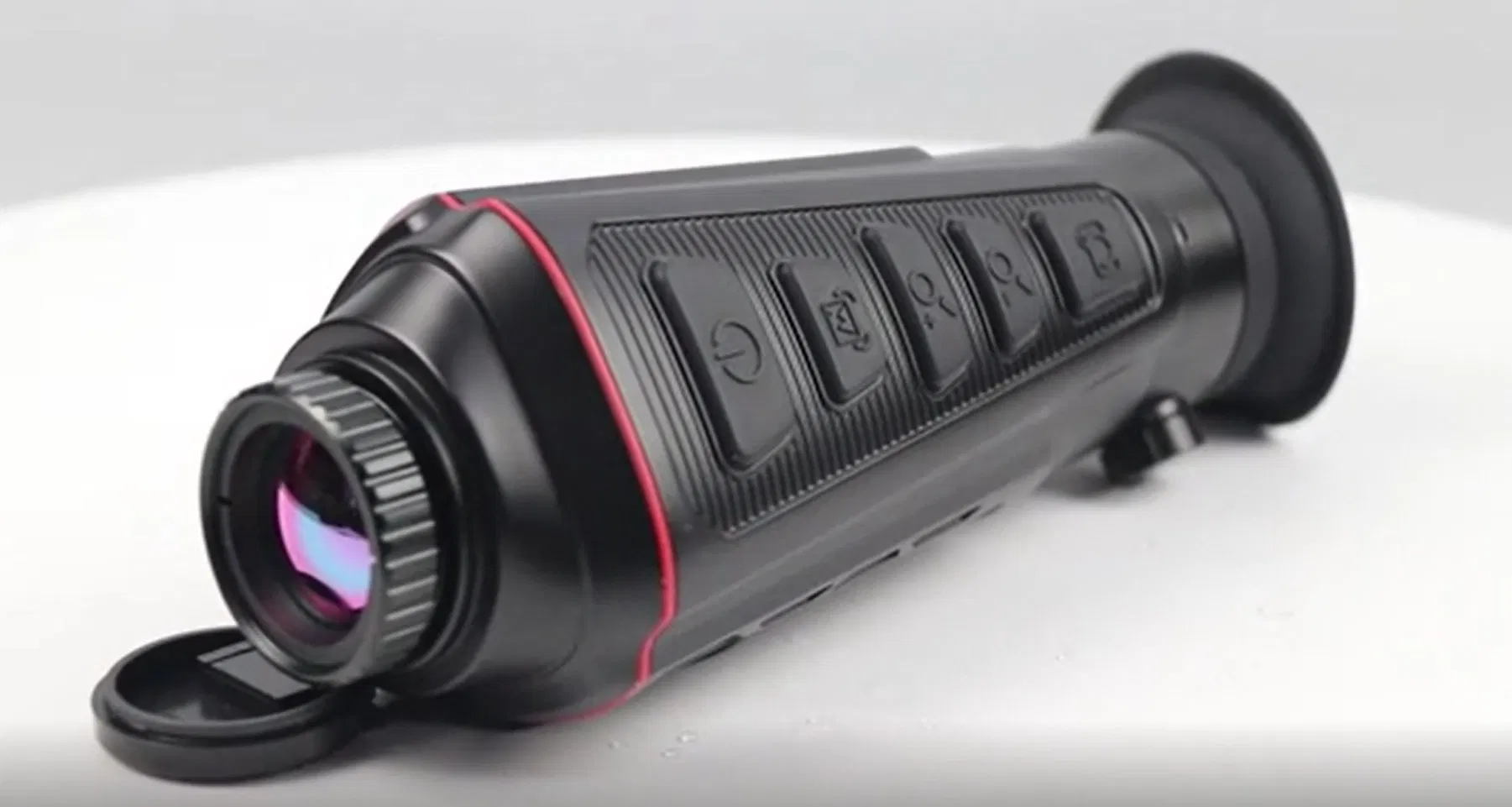

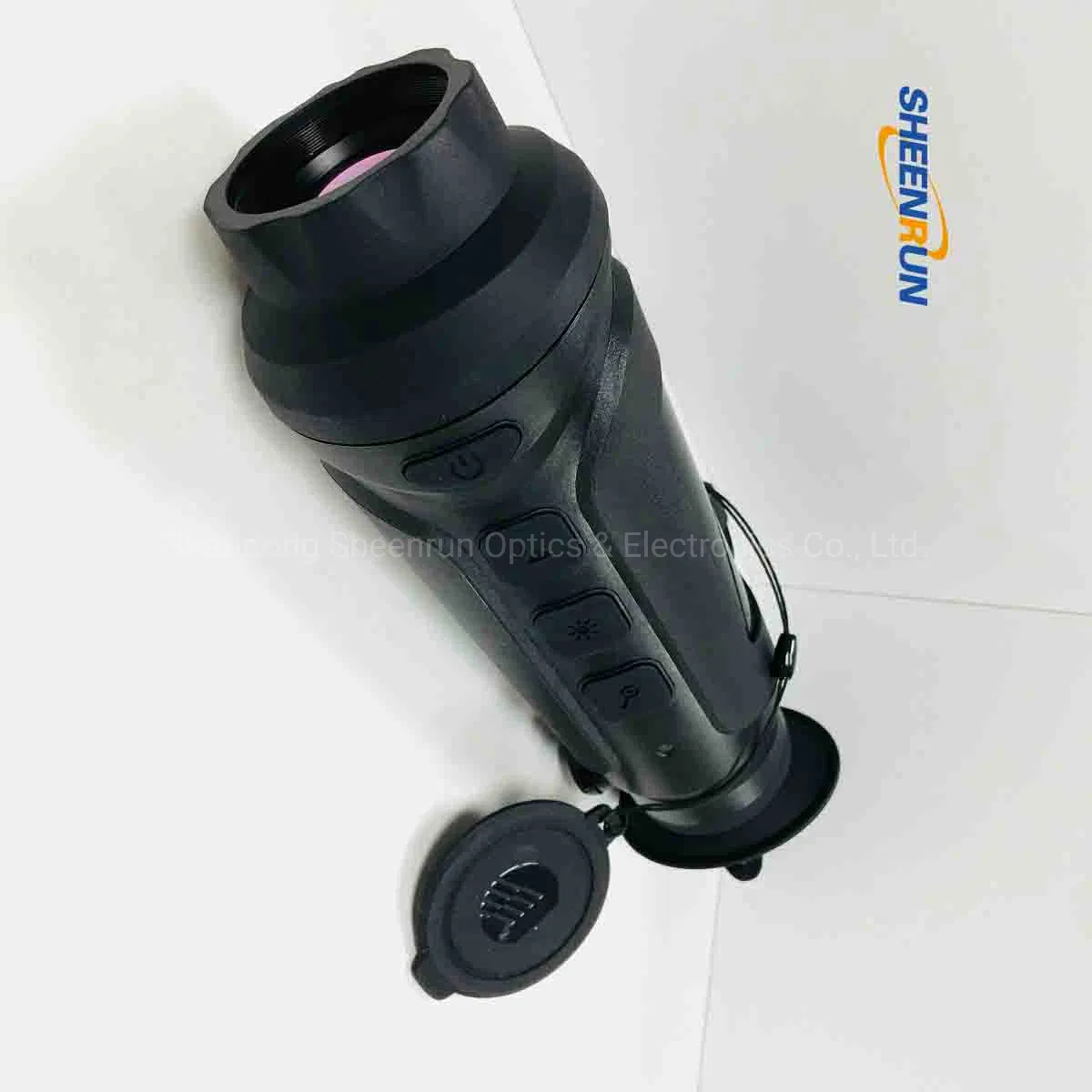

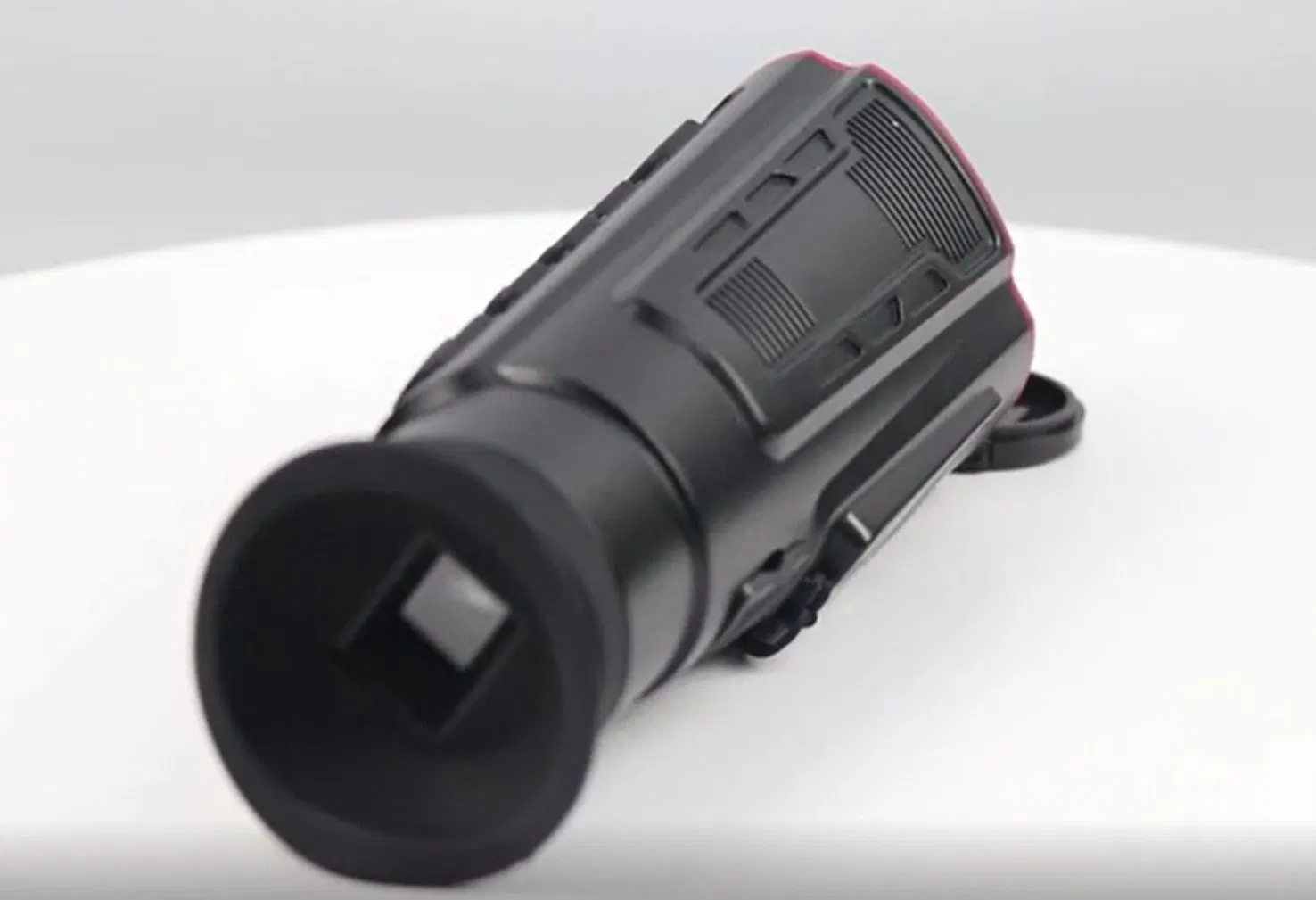

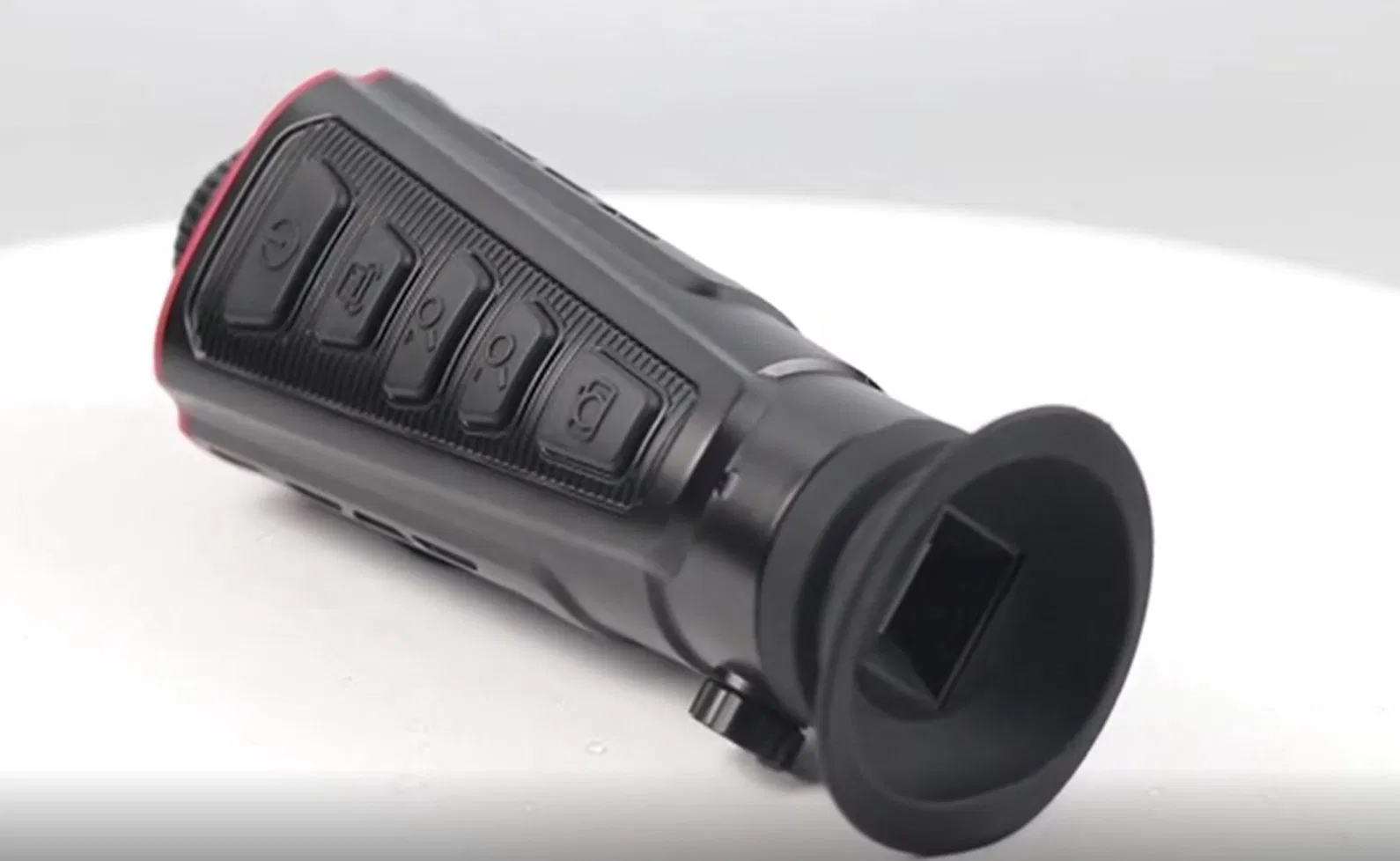

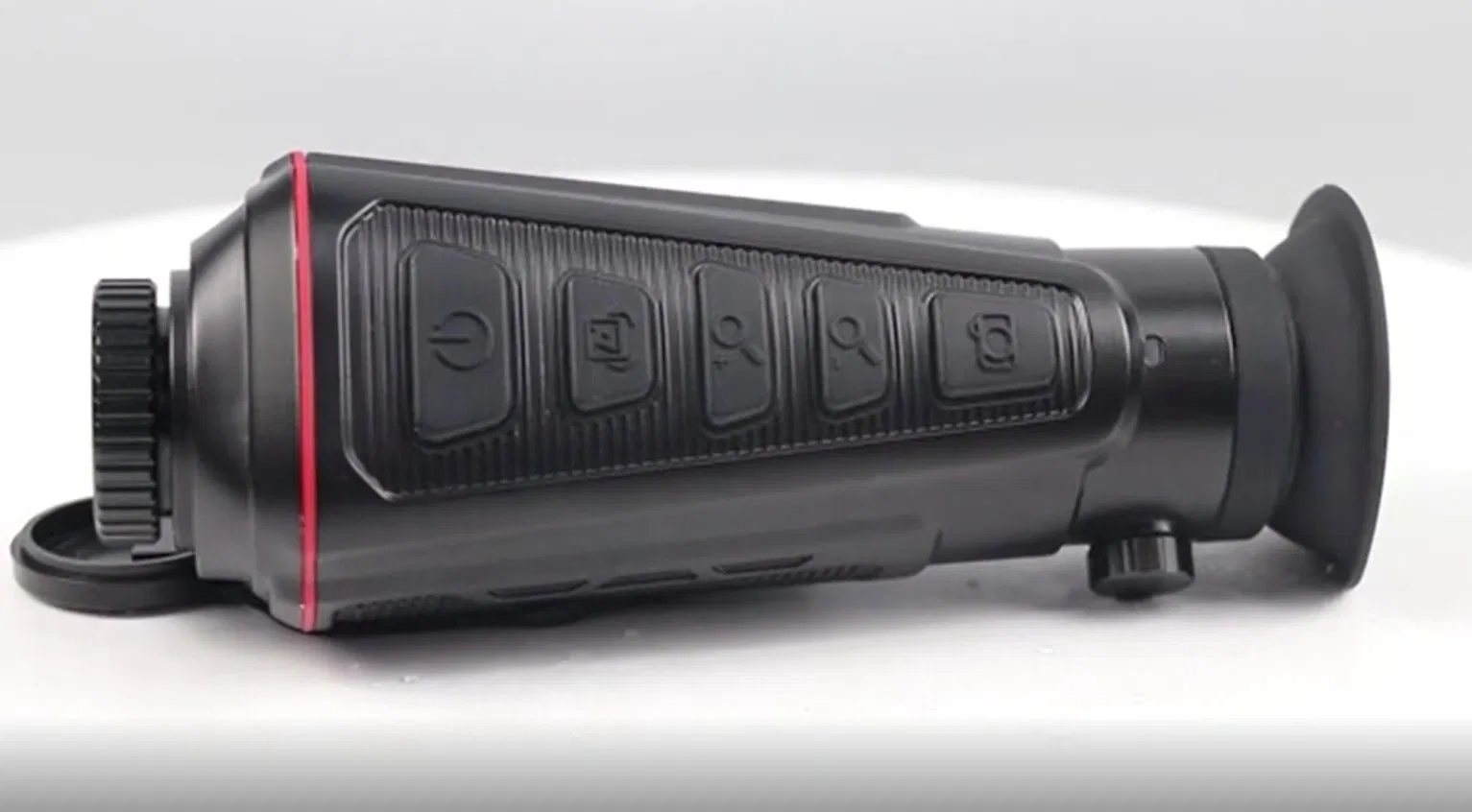

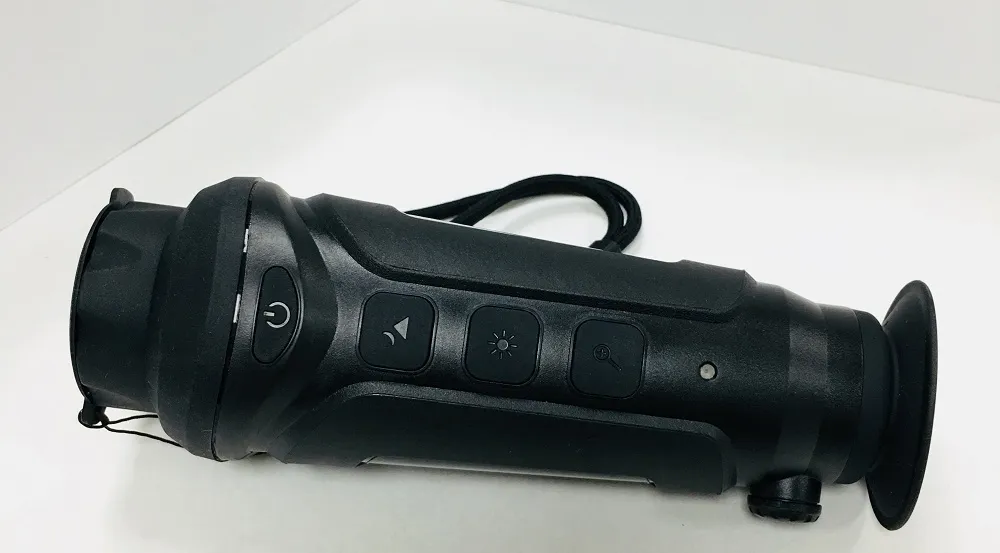

35mm Lens Handheld Hunting Thermal Monocular

1 / 5

35mm Lens Handheld Hunting Thermal Monocular

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

SHR-PS

Type

Monocular

Sensor

Thermal Detector

HDMI Format

720P

Horizontal Resolution

540tvl

Kind

Manual Focus Lens

Certification

CE, FCC, ISO9001: 2000

Feature

Waterproof, High Definition, Mini Size, Vandal-proof, Auto BLC

Effective Distance

500m Human Detection

Focal Length

19mm

Detector

Uncooled 400*300, 25μm

E-Zoom

2×, 4×

Battery

Lithium Battery Built in

Weight

350g

Size

160×67×62mm

Working Temp

-10~50℃

Product Key Features

📡

Wi-Fi Image Transfer

Upgraded image record and Wi-Fi transfer capabilities enable you to save and share moments easily.

⚖️

Lightweight Design

With a small pocket size and ergonomic design, it weighs only 350g for long-period use without fatigue.

🔘

Easy Operation

Straightforward operation using only four buttons assists your vision without adding complexity.

🖥️

High-tech LCOS Display

Next generation LCOS display offers superior image quality for clear observation.

Technical Specifications

Monitoring Distance	Object	Human (1.8m×0.5m)	Vehicle (2.3m×2.3m)
	Detection	1100m	2300m
	Recognition	600m	1000m
Lens & Detector	Lens Focus	35mm, F1.0 / Athermalizing
	Detector Type	400x300 @25um, 8~14um spectral range
Image Display	Frame Rate	25Hz/50Hz
	Color Palette	Black hot, white hot, red hot
Environmental	Encapsulation	IP66 / 1m drop test
	Operating Temp	-10ºC ~ +60ºC

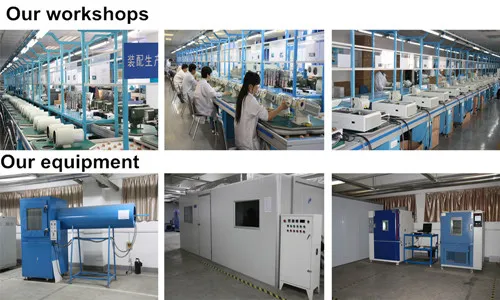

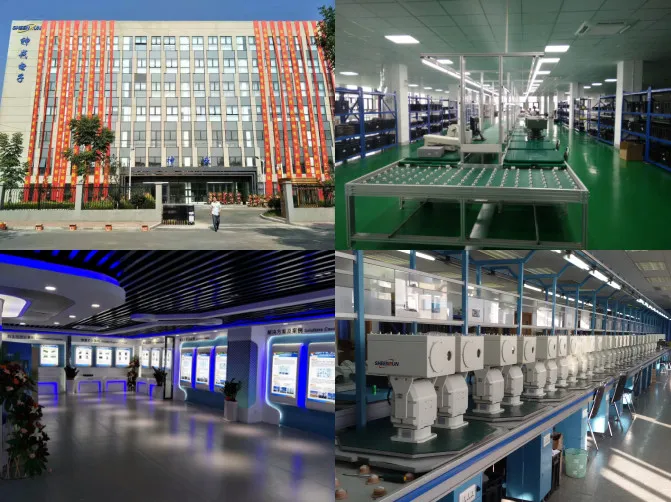

Manufacturing & Exhibition

Frequently Asked Questions

What is the maximum detection distance for this monocular?

The device can detect a human-sized object at up to 1100 meters and a vehicle at up to 2300 meters.

How long does the internal battery last?

The built-in Lithium-ion battery provides a continuous working time of ≥5 hours and can be charged via a standard USB adapter.

Is the device waterproof and durable for outdoor use?

Yes, it features an IP66 encapsulation rating, making it waterproof and weatherproof, and it has passed a 1-meter drop test.

Can I transfer images to my phone or tablet?

Yes, the device supports Wi-Fi image transfer, allowing you to read and save pictures directly through a Wi-Fi connection.

What kind of display technology does it use?

It utilizes a high-tech colorful LCOS (Liquid Crystal on Silicon) display, which provides superior image quality compared to standard LCDs.

How heavy is the thermal monocular?

The device is designed for portability, weighing only 350 grams, which minimizes arm fatigue during long periods of observation.

Product Detail

35mm Lens Handheld Hunting Thermal Monocular
