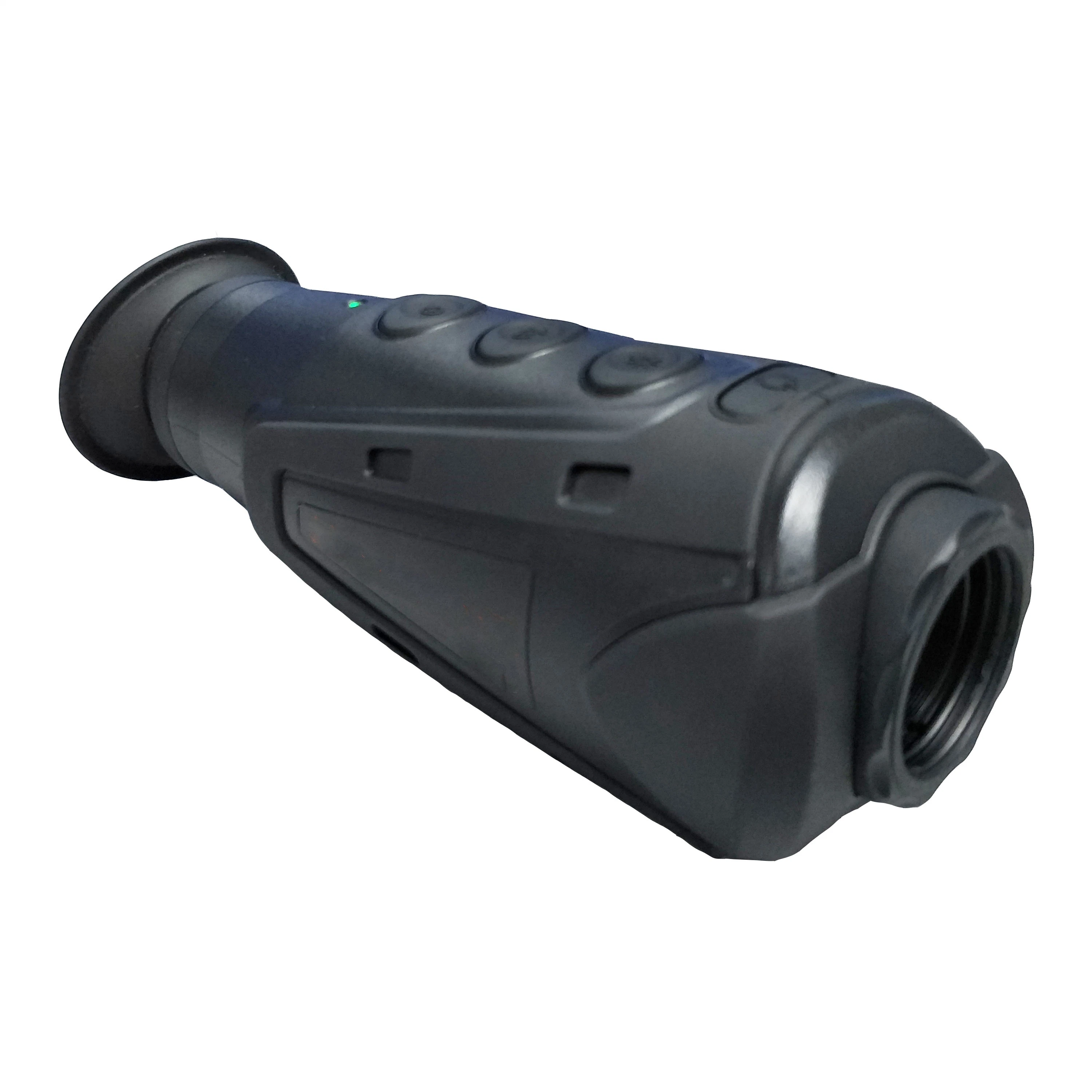

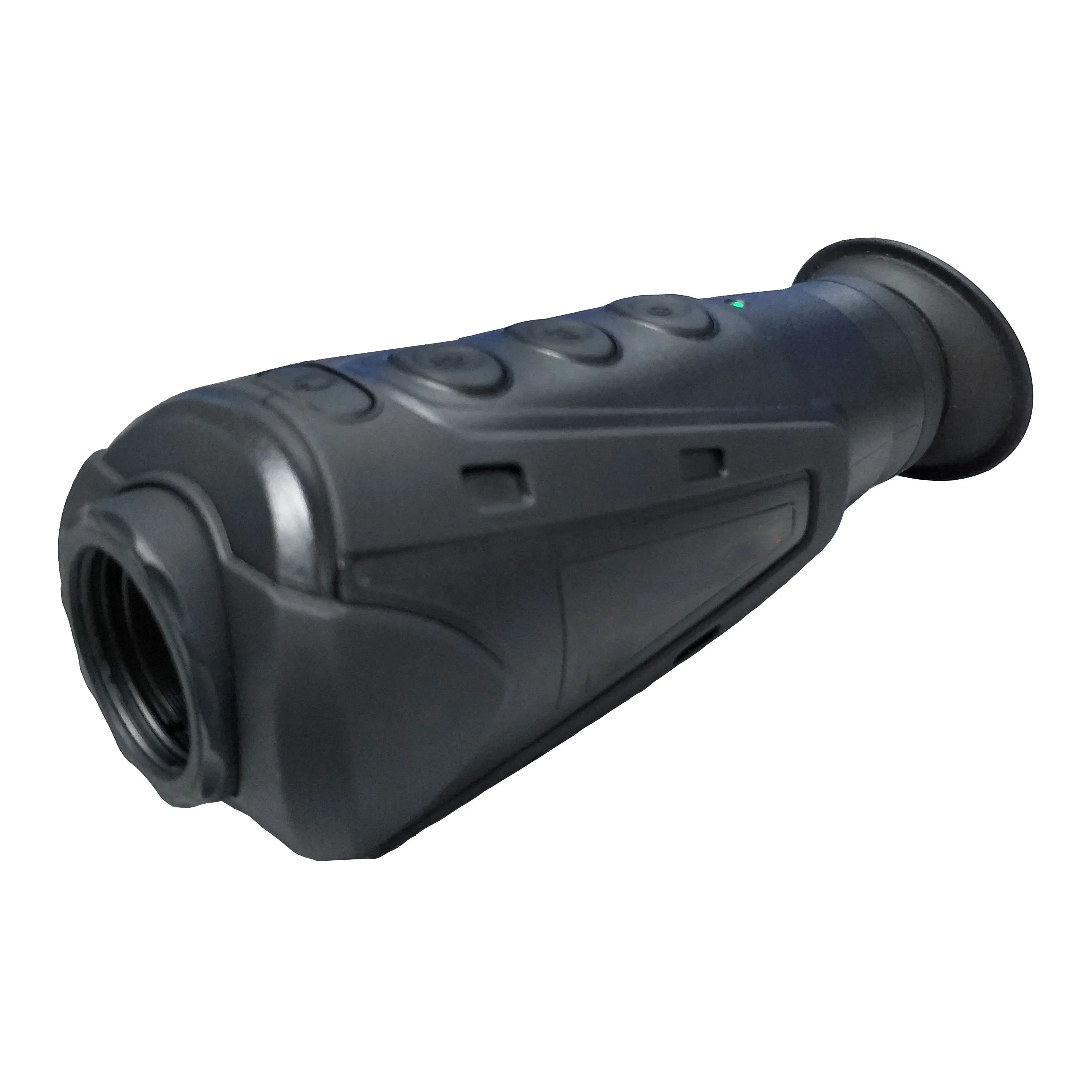

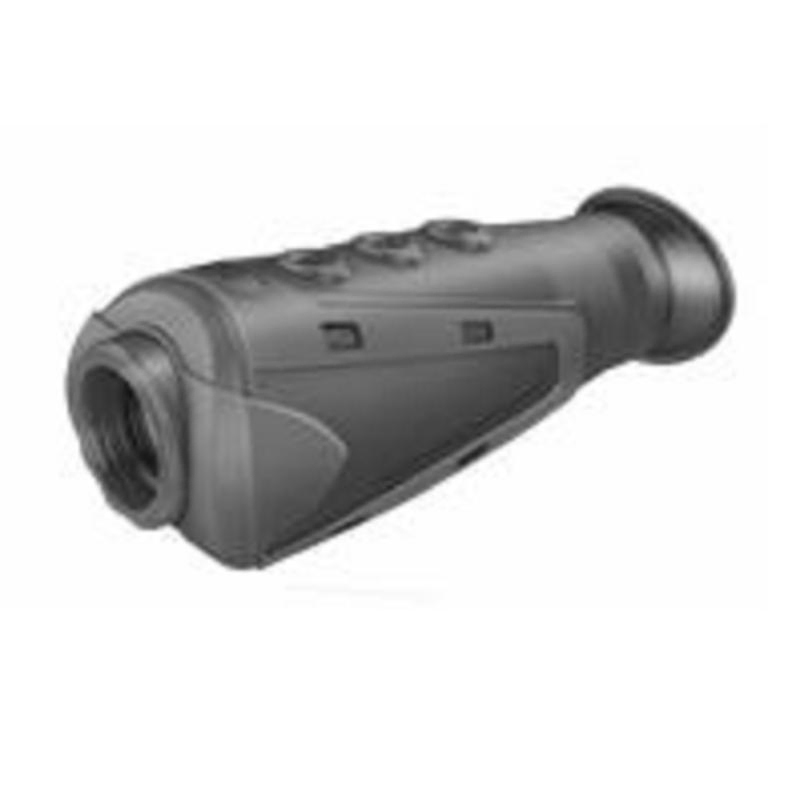

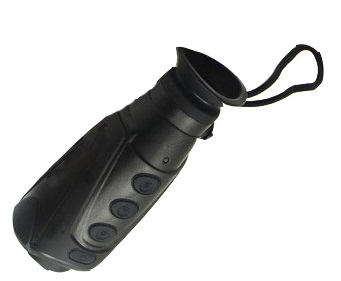

Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular
Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular
Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular
Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular
Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular
1 / 5
Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular
Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular
Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular
Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular
Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular

Wi-Fi Handheld Animal Hunting Thermal Imaging Monocular

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SHR-MR19
Type
Monocular
Sensor
CMOS
HDMI Format
480P
Horizontal Res.
520tvl
Lens Kind
Manual Focus Lens
Certification
CE, FCC, CCC, ISO9001
Features
Waterproof, High Definition, Mini Size
Sensor Size
1/3 inch
Battery Time
5h
Focus
Fixed
Specification
160mm X 67mm X 62mm
📦 Packaging & Delivery
Package Size
35.00cm * 20.00cm * 15.00cm
Gross Weight
10.000kg
Transport
Wooden Case/Carton
🔍 Product Description

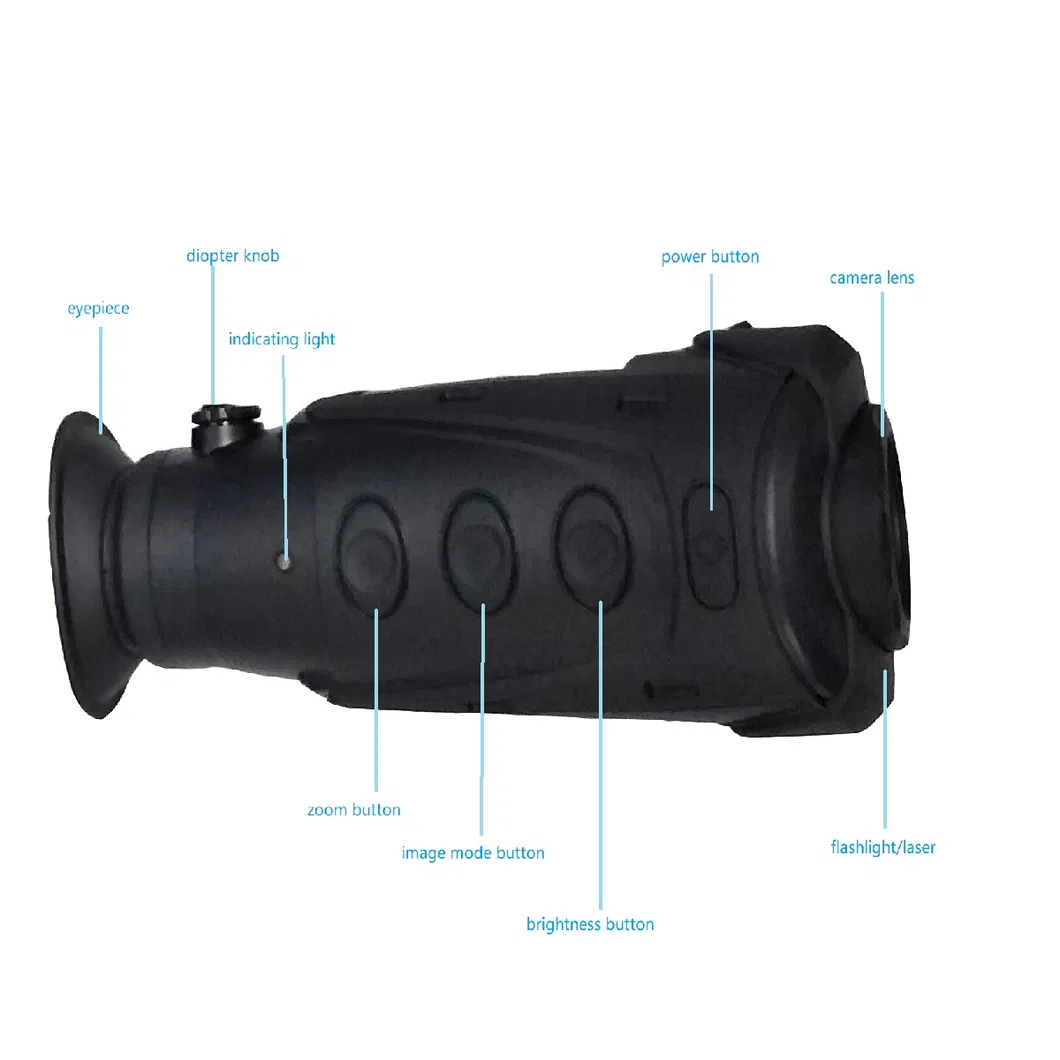

Thermal Imaging Monocular View 1
Thermal Imaging Monocular View 2
✔ Minute extension, one-handed performance
✔ IP66 protection, 1m anti-dropping
✔ Kinds of color code, cursor alignment
Detector Detector type Uncooled FPA bolometer
Array size 384×288
Image FOV / Focal length 28.4°x21.5° / 19mm
NETD 80mk@30ºC
Frame rate 50HZ
Digital Zoom 2X, 3X, 4X
Spectral range 8-14μm
Laser point Yes
Display Display Color LCD 640*480
Polarity Black/White/Red-hot
Power Battery type Li-ion, rechargeable
Working time 5h
External power DC5V/2A (Micro USB)
Environment Protection Level IP66
Anti-dropping 1 M
❓ Frequently Asked Questions
How long does the battery last on a single charge?
The device is equipped with a rechargeable Li-ion battery that provides up to 5 hours of continuous working time.
Is this thermal monocular waterproof?
Yes, it has an IP66 protection rating, making it waterproof and weatherproof for reliable use in harsh environments.
What is the detection resolution of the sensor?
It uses an uncooled FPA bolometer detector with an array size of 384×288 and a 50Hz frame rate for smooth imaging.
Does the device support digital zooming?
Yes, the monocular features electronic zoom capabilities of 2X, 3X, and 4X to help identify distant targets.
Can it withstand accidental drops?
The device is designed with durability in mind and features a 1-meter anti-dropping rating.
What imaging modes are available?
Users can switch between different polarities including Black-hot, White-hot, and Red-hot modes on a 640*480 color LCD display.
