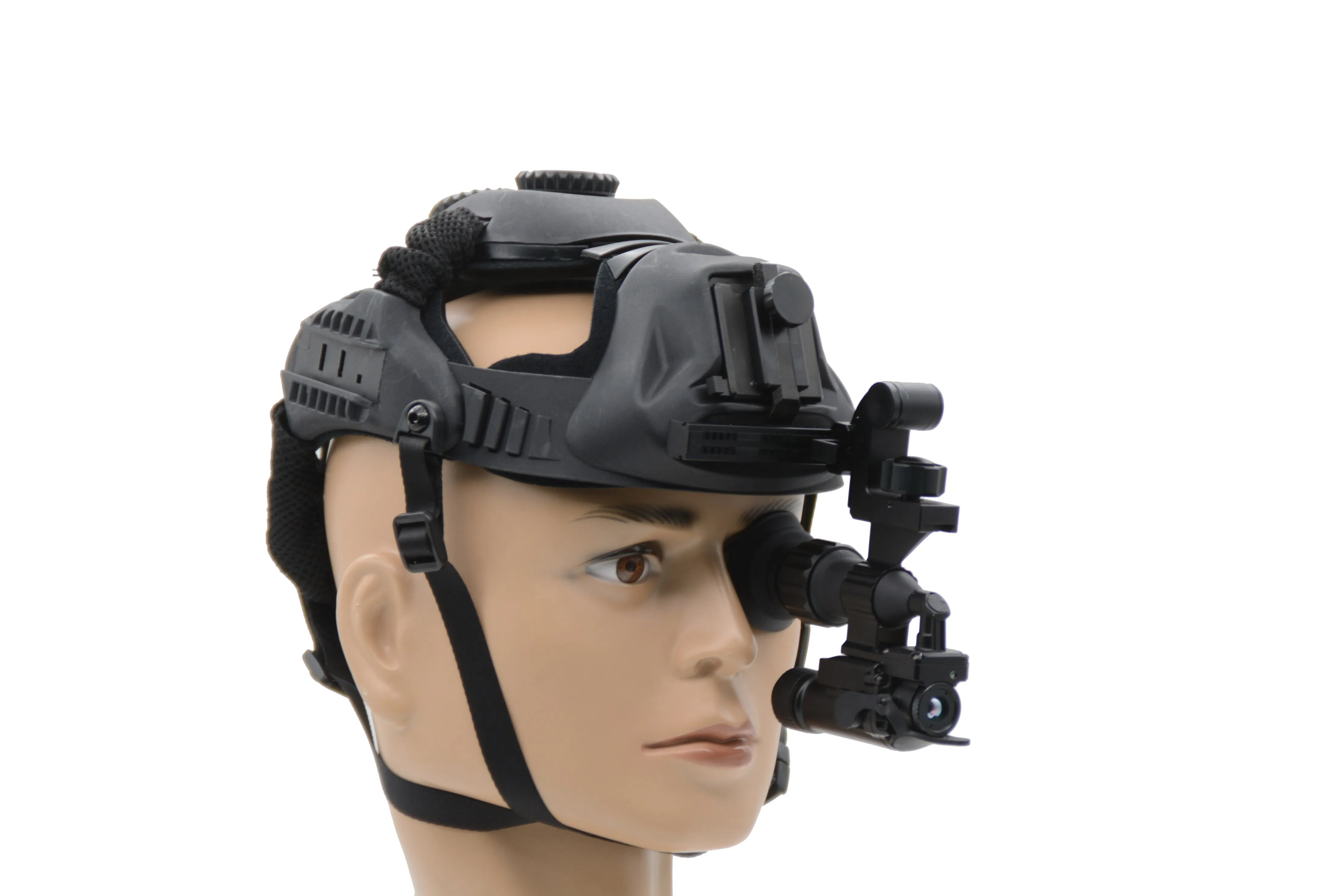

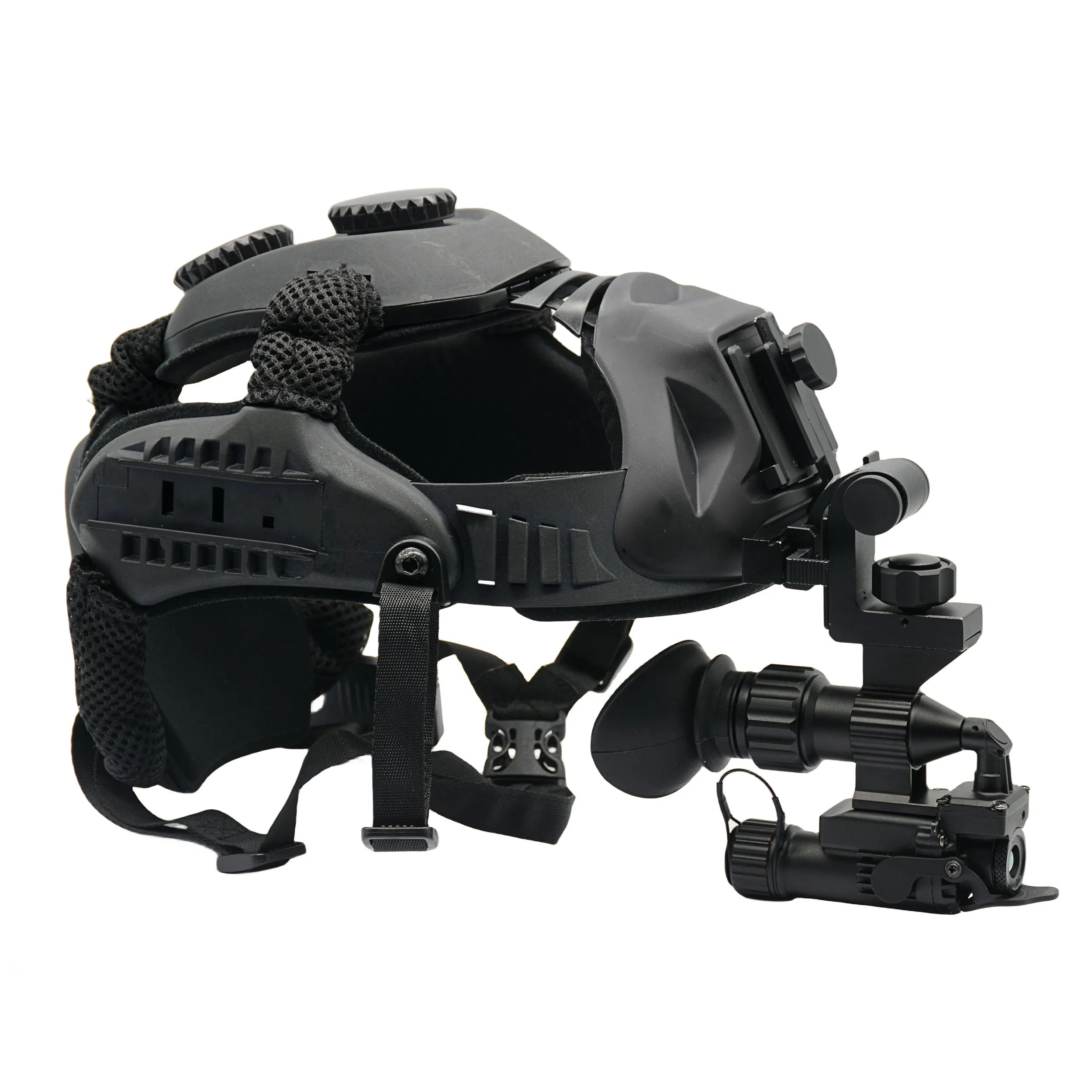

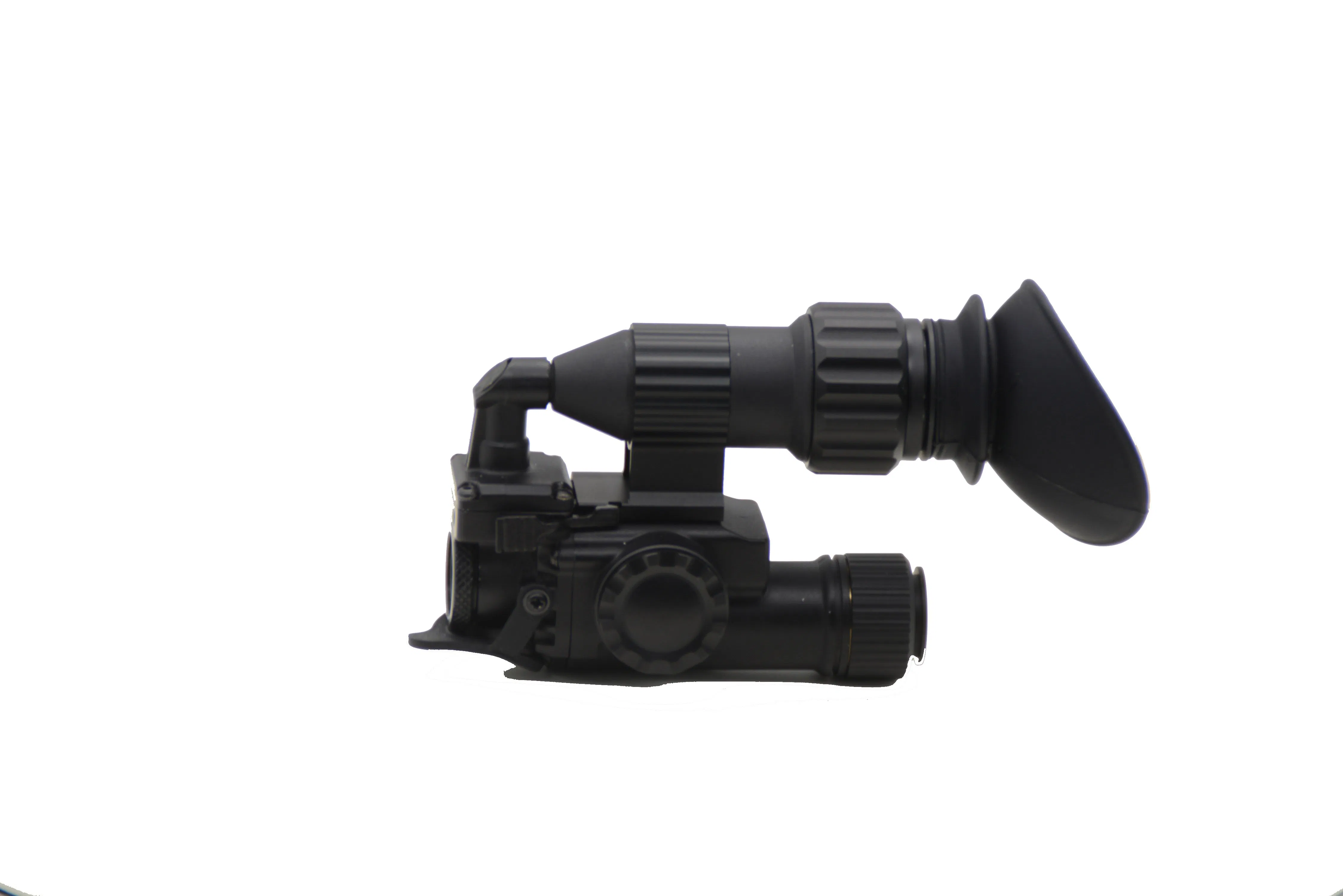

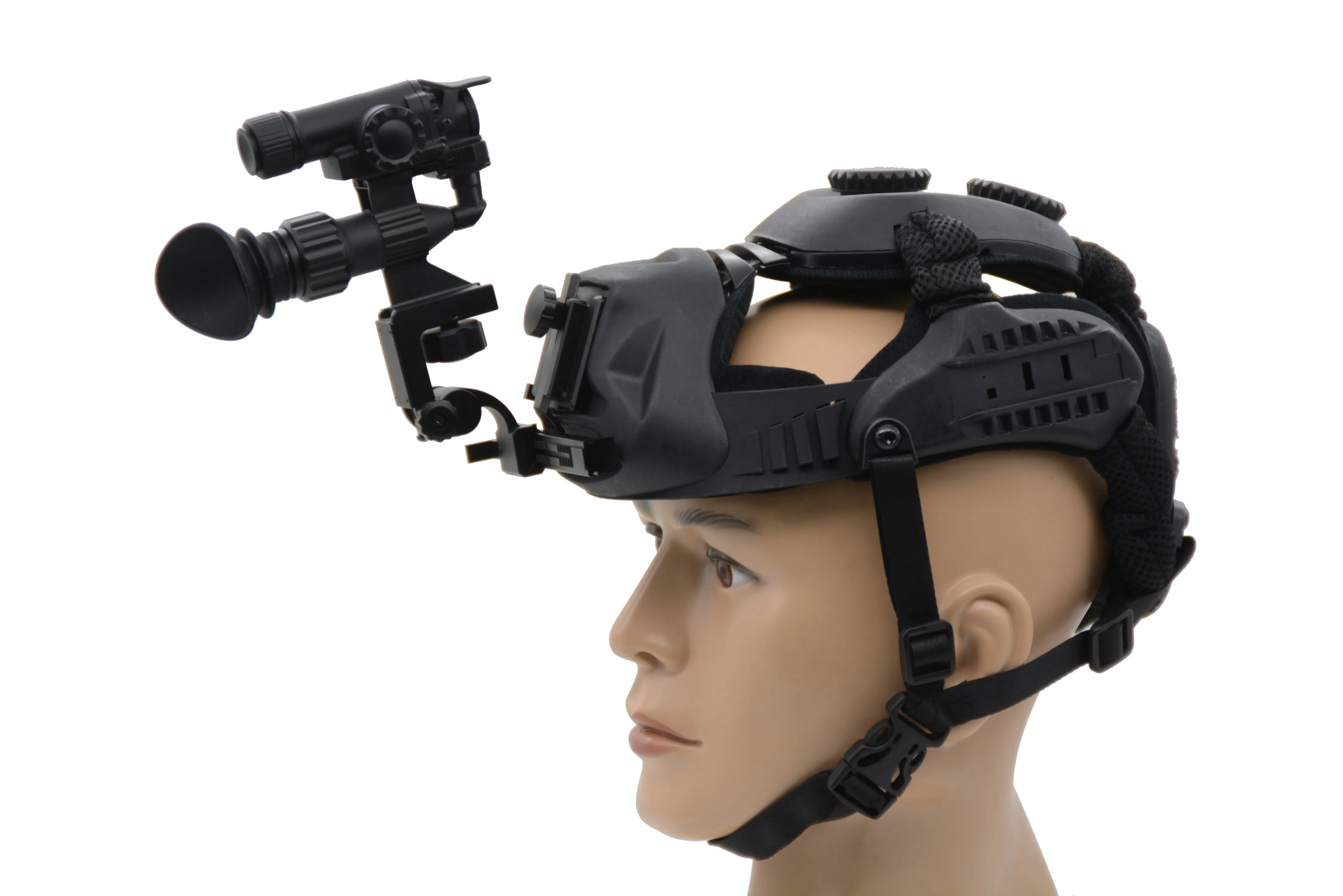

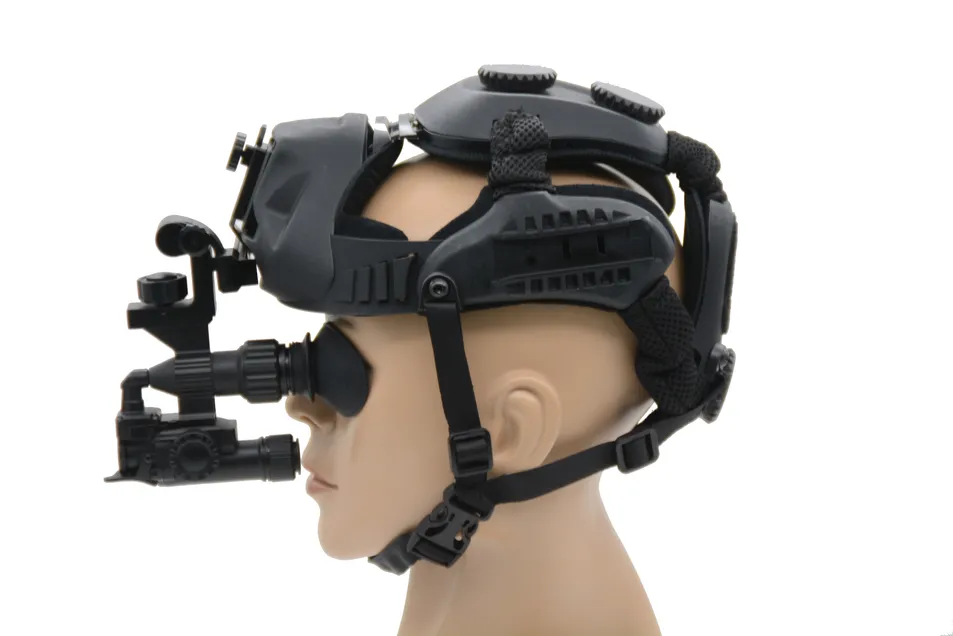

Thermal Imaging Night Vision Monocular with Head Mount Handheld and Clip-on Modes

Customization: Available
After-sales Service: Free 1 Year Warranty
Warranty: 1 Year

Product Description

📋 Basic Information
Model NO.
DT-TW21
Application
Civil
Style
Head-mounted
Structure
Monocular
Kind
Thermal Imaging Night Vision
Material
Metal (Magnesium Alloy)
Origin
China
🛡️ IP67 Waterproof

Exceptional durability in extreme environments.

🔄 3-in-1 Versatility

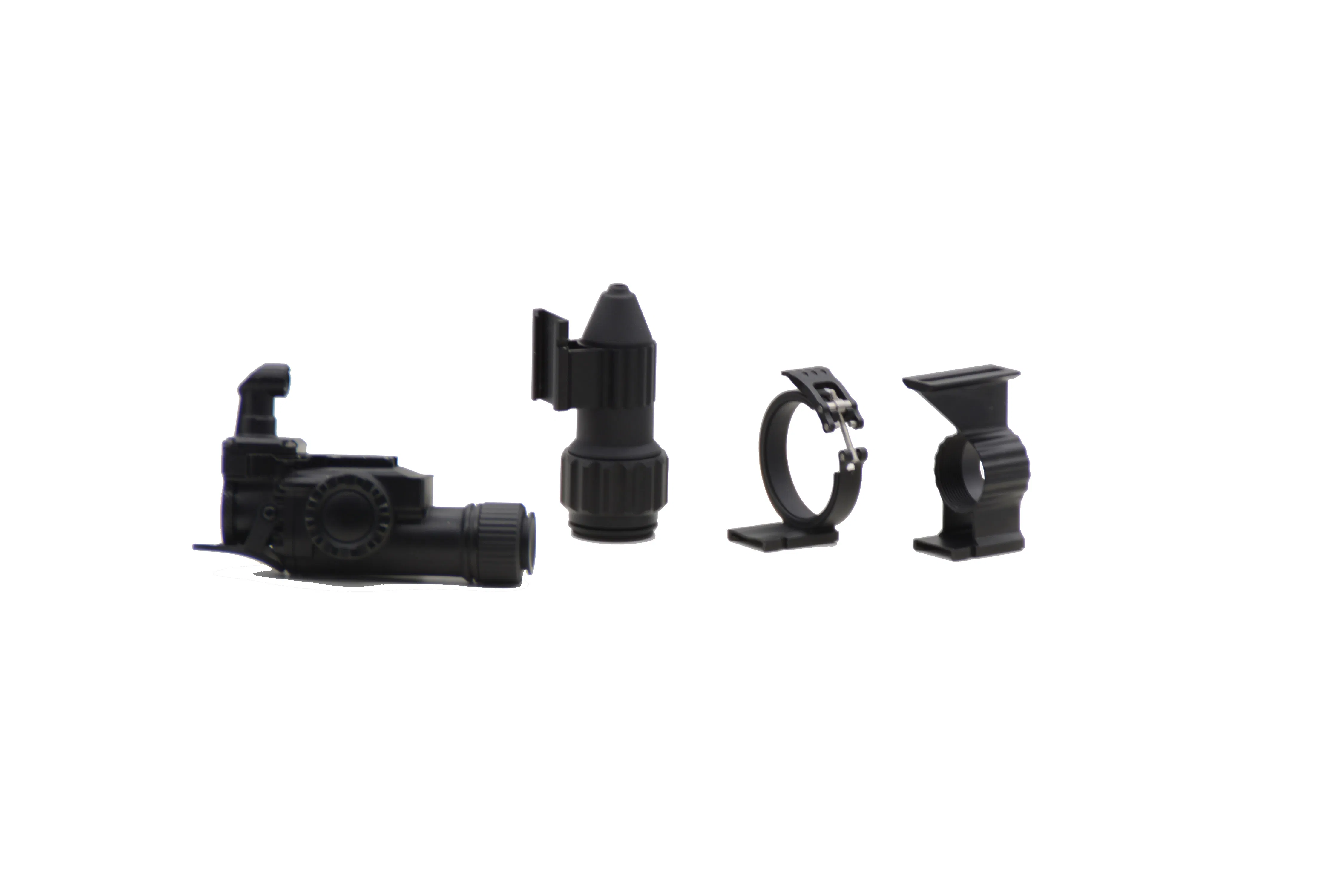

Handheld, Head-mounted, or Clip-on modes.

👁️ Thermal Overlay

Real-time fusion with night vision goggles.

📝 Product Description

The DT-TW21 thermal imager visual enhancement system represents global cutting-edge technology. Its core strength lies in exceptional versatility: it functions as a standalone handheld thermal imager for patrols and inspections, a helmet-mounted thermal sensor for navigation and awareness, and most powerfully, as a clip-on system in front of standard night vision goggles. In this clip-on configuration, it provides a real-time thermal overlay, creating an instant fusion capability that significantly improves night recognition by allowing operators to quickly pinpoint living targets against the darkness.

The system features a rapid-attach/detach mount that requires no tools and maintains zero retention, ensuring a secure fit on various platforms. The thermal sensor offers multiple fields of view and digital zoom functions, while the video output port allows for real-time streaming of footage to command units or recording devices. Constructed from magnesium alloy, the DT-TW21 is both lightweight and exceedingly durable, capable of operating in extreme temperatures and resistant to water immersion. This makes it an indispensable force multiplier for missions ranging from long-range observation and firefighting to maritime interdiction and wildlife management.

⚙️ Technical Specifications
ModelDT-TW21
Volume (mm)88x38x70 (Handheld) / 88x38x82 (Head-mounted) / 88x43x78 (Clip-on)
Weight (g)140 (Handheld) / 144 (Head-mounted) / 92 (Clip-on)
BatteryCR123A(1) / Battery pack
Battery Life3.5 - 4.5 Hours
Waterproofing GradeIP67
CompatibilityPVS31, PVS14, NVG18, DTS31, DTS35, DTGI8, DTNH9, DTS13
Sensor TypeUnrefrigerated long wave infrared thermal radiometer
Detector Resolution384x288
Applicable Wavelength8-12um
Amplification FactorX1.2 (Handheld/Head-mounted) / x1.0 (Clip-on)
Field of View (FOV)32° (Clip-on) / 36° (Handheld/Head-mounted)
Objective ApertureF1.0
Image ModelsWhite / Black / Green / Red / Highlight / Outline
🖼️ Product Showcase

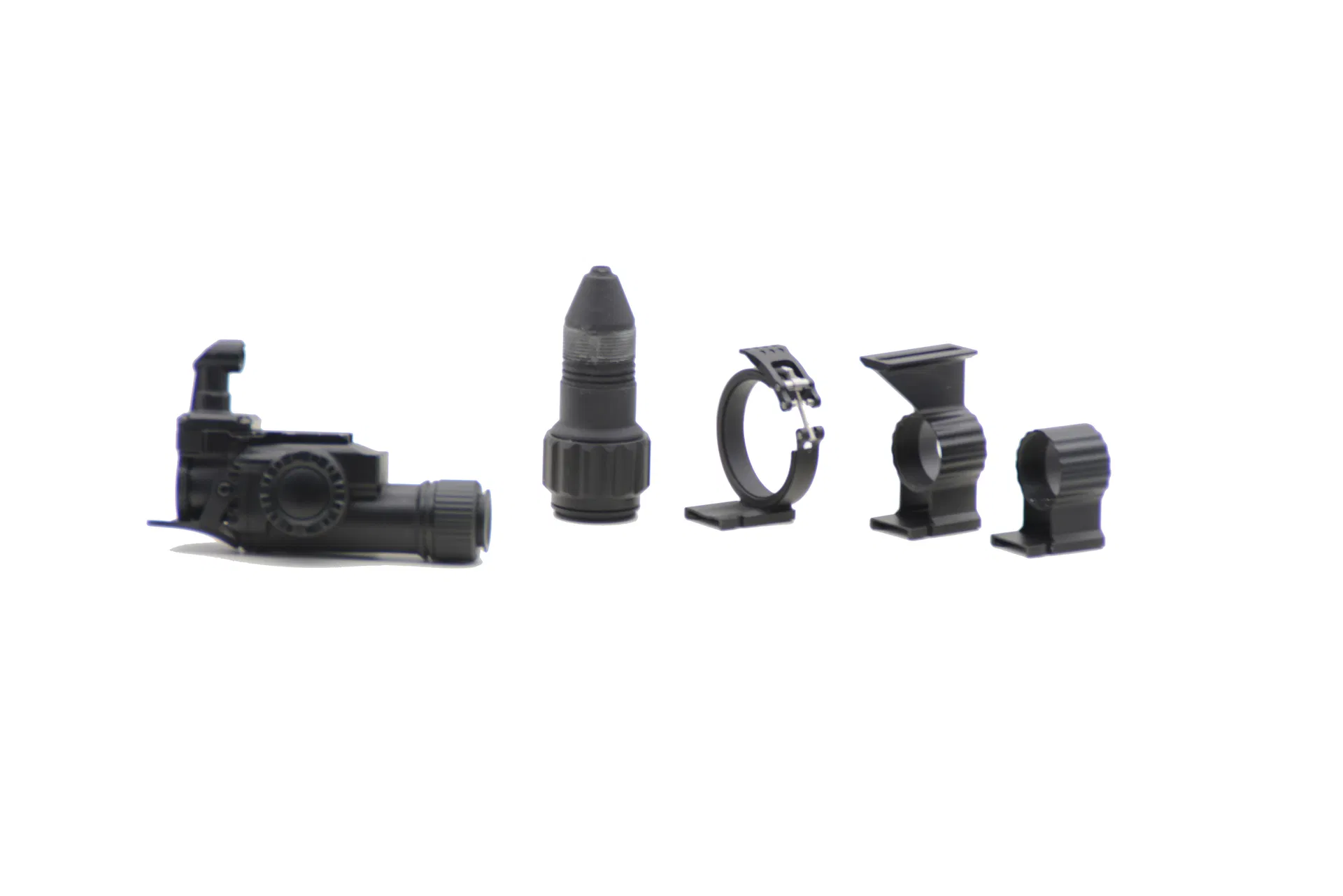

Detailed Thermal View Application Modes Technical Layout
Frequently Asked Questions
Q: What are the primary operating modes of the DT-TW21?
A: The device is designed for three main modes: Handheld for inspections, Head-mounted for hands-free navigation, and Clip-on for use with existing night vision goggles.
Q: Is the system compatible with common Night Vision Goggles (NVG)?
A: Yes, it is compatible with a wide range of devices including PVS31, PVS14, NVG18, DTS31, and several other standard models.
Q: What is the thermal sensor's resolution?
A: The DT-TW21 features a high-performance detector with a resolution of 384x288 pixels.
Q: How durable is the DT-TW21 for outdoor missions?
A: It is constructed from lightweight magnesium alloy and features an IP67 waterproofing grade, making it resistant to dust and water immersion.
Q: What image color modes can I choose from?
A: Users can toggle between White, Black, Green, Red, Highlight, and Outline modes to suit different tactical environments.
Q: How long does the battery last?
A: The system provides a battery life of approximately 3.5 to 4.5 hours using a single CR123A battery or an external battery pack.
