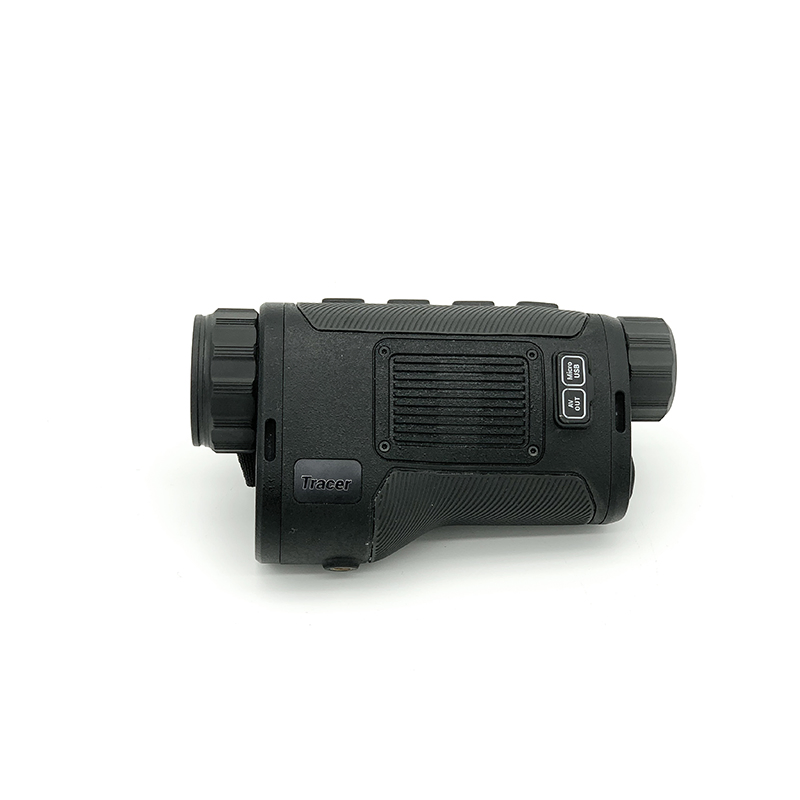

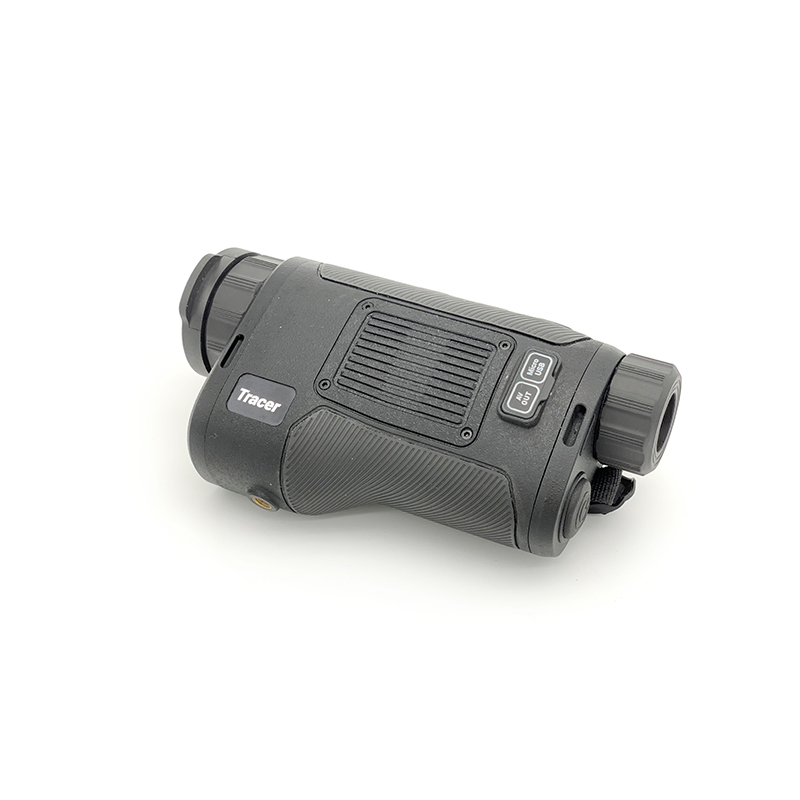

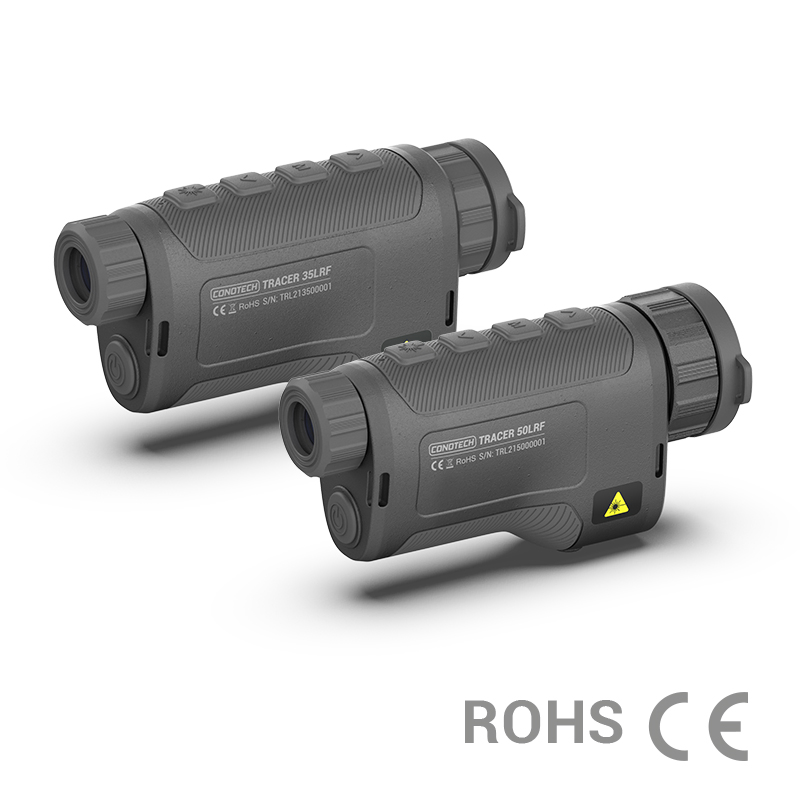

Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld
Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld
Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld
Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld
Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld
1 / 5
Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld
Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld
Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld
Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld
Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld

Conotech Aquila Tracer Thermal Monocular 384X288 640X512 Sensor Liir Laser Rangefinder Handheld

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.: Tracer
Application: Civil
Style: Handheld
Structure: Monocular
Kind: Thermal Imaging Night Vision
Principle: Infrared Night Vision
Sensor: Vox
WiFi: Support
Laser Rangefinder: Built-in (1000m)
Tracing: Hot Spot Tracing
🔭 Product Description

Thermal Night Vision Monocular Tracer 35 50LRF Thermal Scope Product for hunting OEM ODM

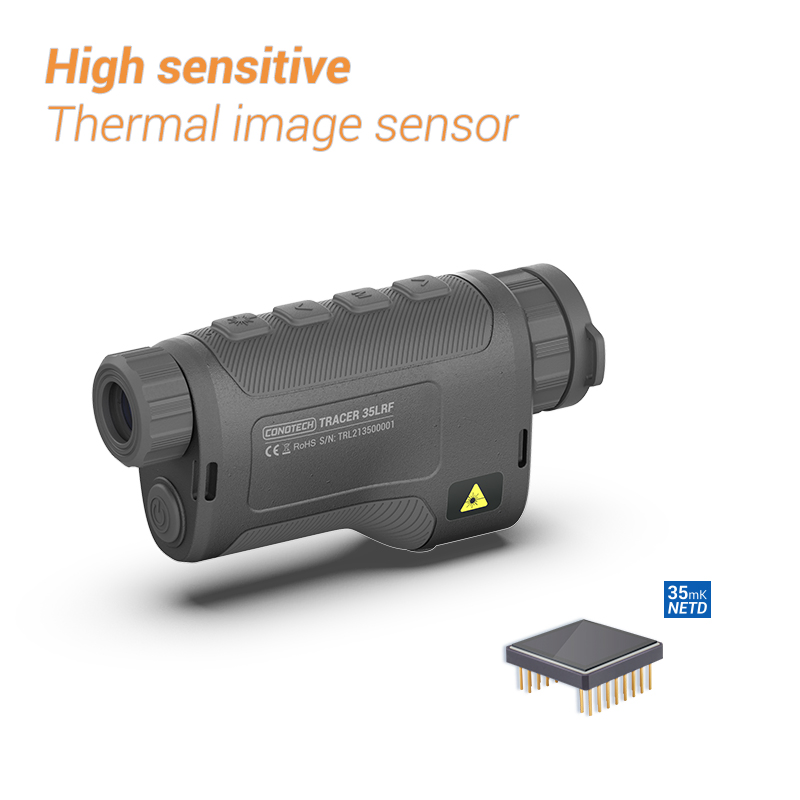

Tracer LRF thermal imagers are equipped with a built-in laser rangefinder with a range of up to 1000 m and measurement accuracy of ± 1 m. High sensitive thermal image Vox sensor with NETD 35mK allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants. They can be used in various applications including hunting, observation, security, terrain orientation, search and rescue operations, etc.

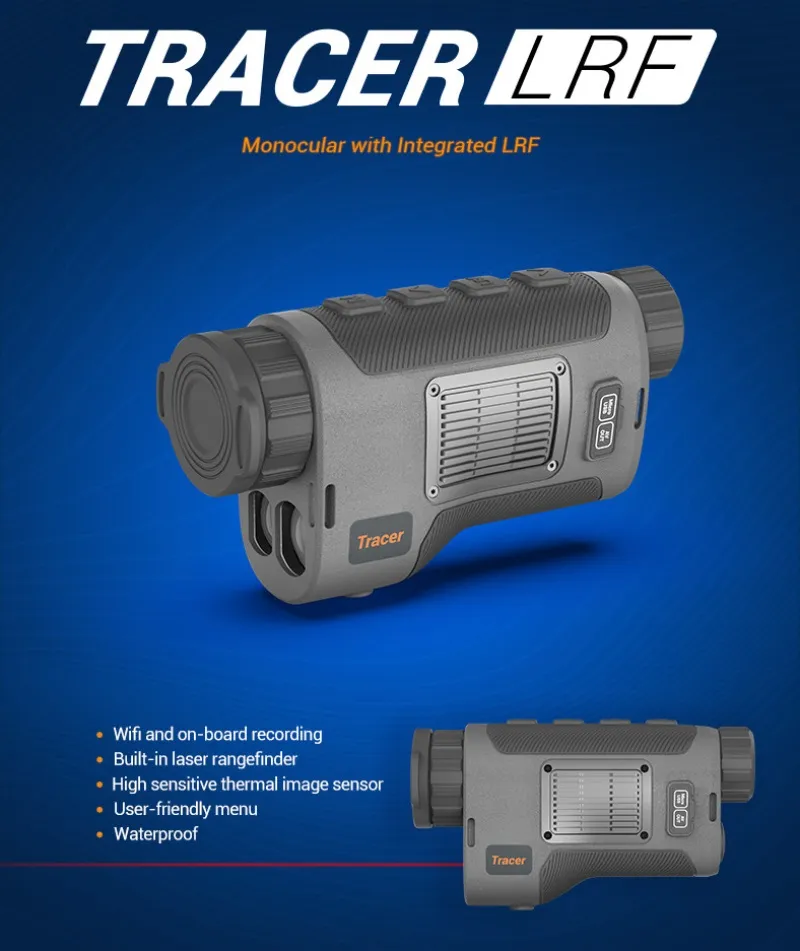

Thermal Monocular Overview
⭐ Key Features

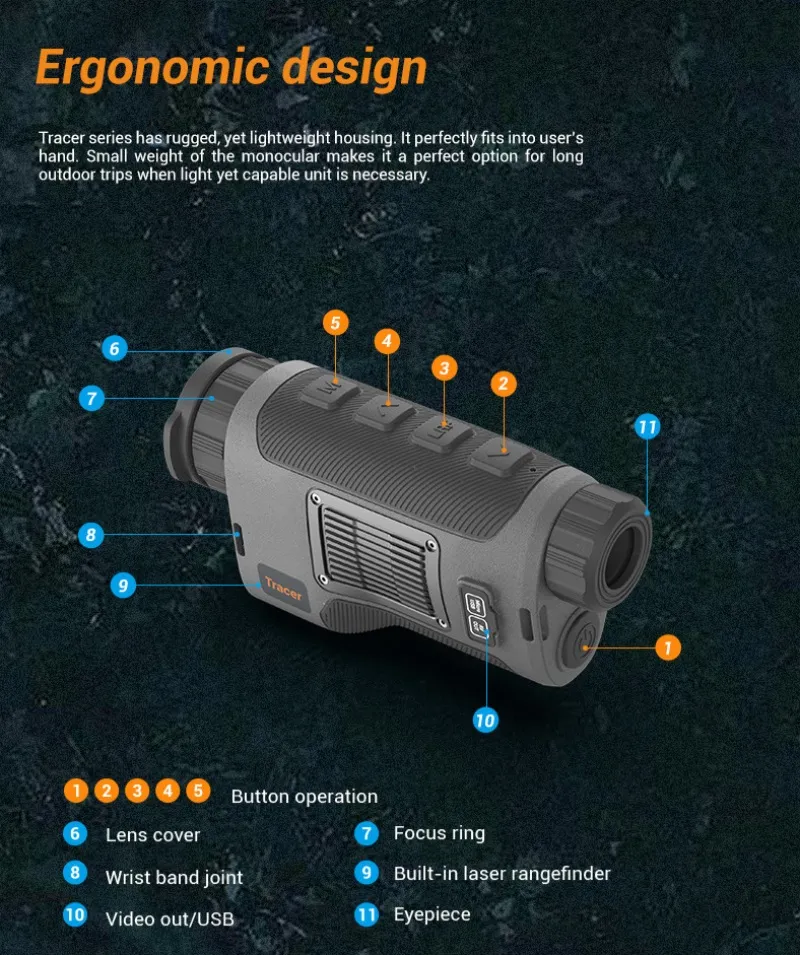

Feature 1

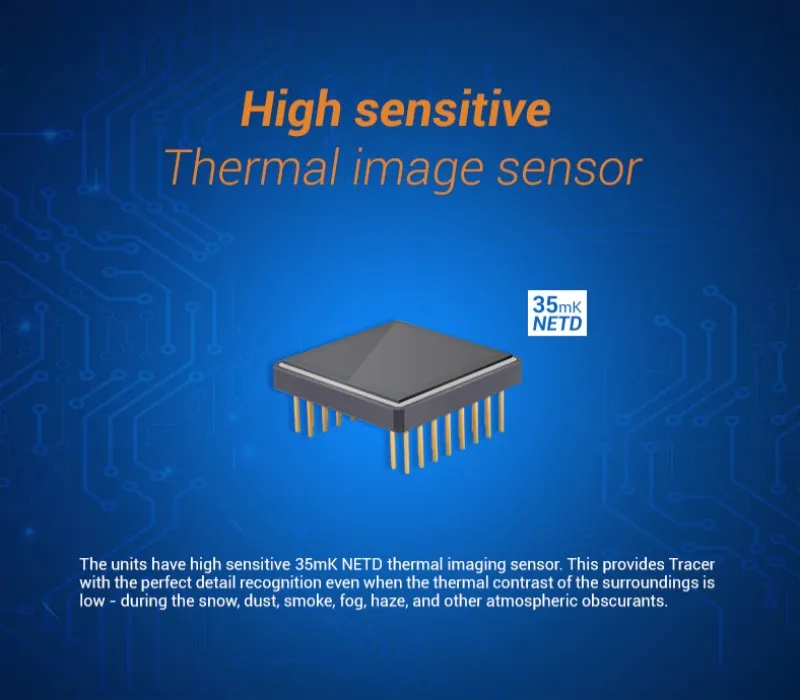

Feature 2

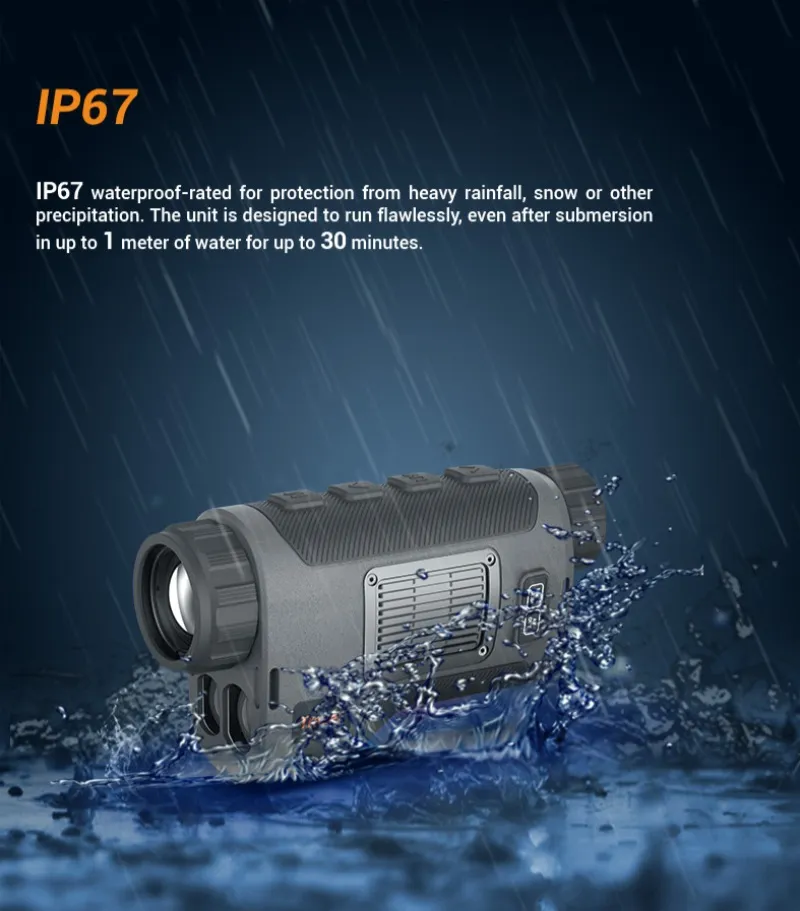

Feature 3
Feature 4
Feature 5
📊 Product Parameters
Specification TracerLRF 35 TracerLRF 50
Detector
TypeUncooled Vox
Resolution384×288
Frame rate50Hz
NETDLess than 35mk
Optical Characteristics
Objective lens35mm50mm
Magnification2.7x3.9x
FOV10.6°×8.0°7.4°×5.6°
Display
TypeOLED
Resolution1024×768
Power Supply
Battery life8h+
Laser Rangefinder
Measuring range5-1000m
Accuracy±1m
Tracer LRF Dimensions
🏢 Factory & Company View
Office View

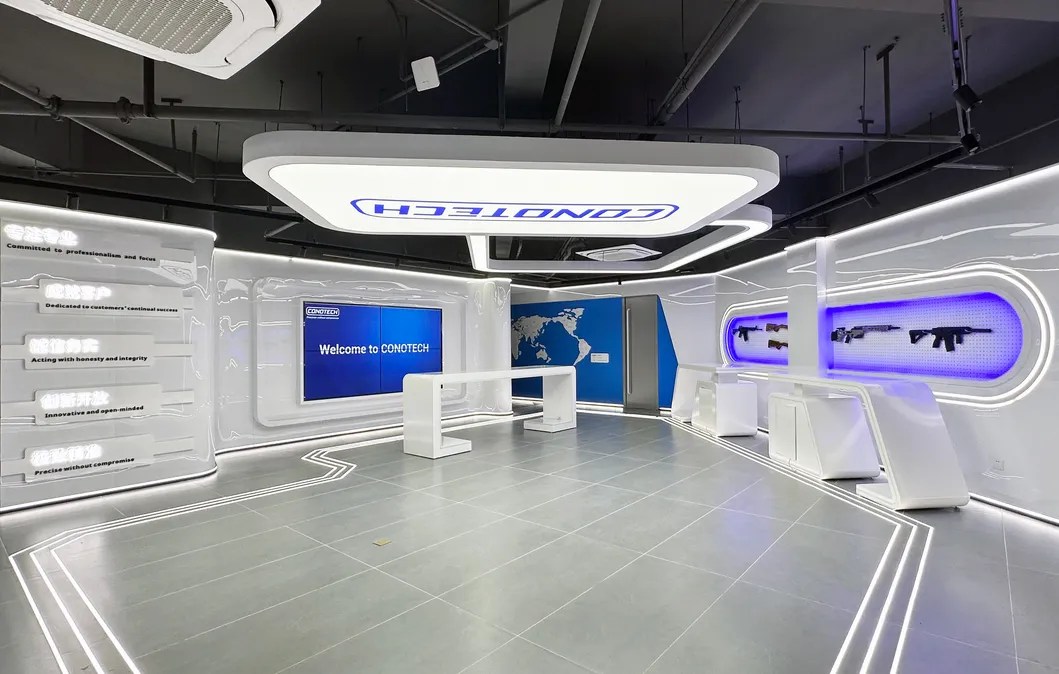

Facility
Production Line
Workshop 1

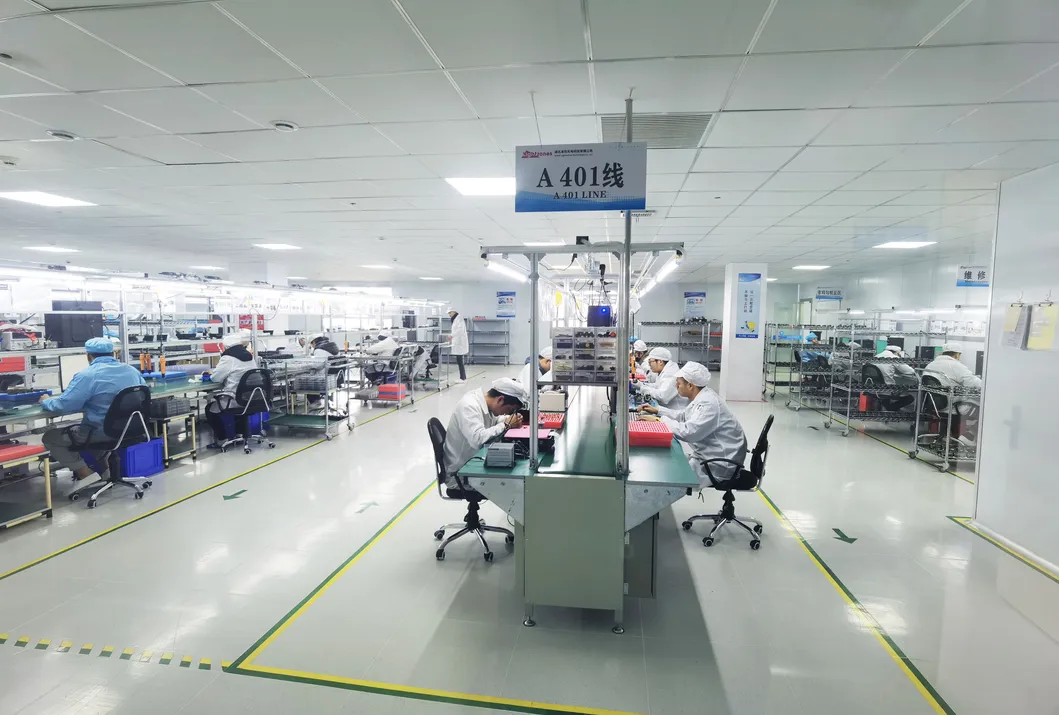

Workshop 2
📜 Certificates
Quality Certificates
❓ Frequently Asked Questions
Are you a manufacturer?
Yes, we are an ISO approved manufacturer specialized in thermal imaging devices, offering both OEM and ODM services.
What is the range of the built-in laser rangefinder?
The Tracer series features a built-in laser rangefinder with a measuring range from 5m up to 1000m with an accuracy of ±1m.
Can the device operate in extreme weather conditions?
Yes, the high-sensitivity Vox sensor (NETD <35mK) allows for clear detection through snow, dust, smoke, fog, and haze. It operates between -20ºC and +50ºC.
How long does the battery last?
The device is equipped with a built-in lithium battery that provides over 8 hours of continuous operation. It also supports external 5V micro USB power supply.
What is the waterproof rating of this thermal monocular?
The Tracer monocular has an IP67 waterproof rating, ensuring reliable performance in wet environments and protection against temporary immersion.
What kind of after-sales support do you provide?
We offer a 3-year warranty on our products to ensure long-term reliability and customer satisfaction.
