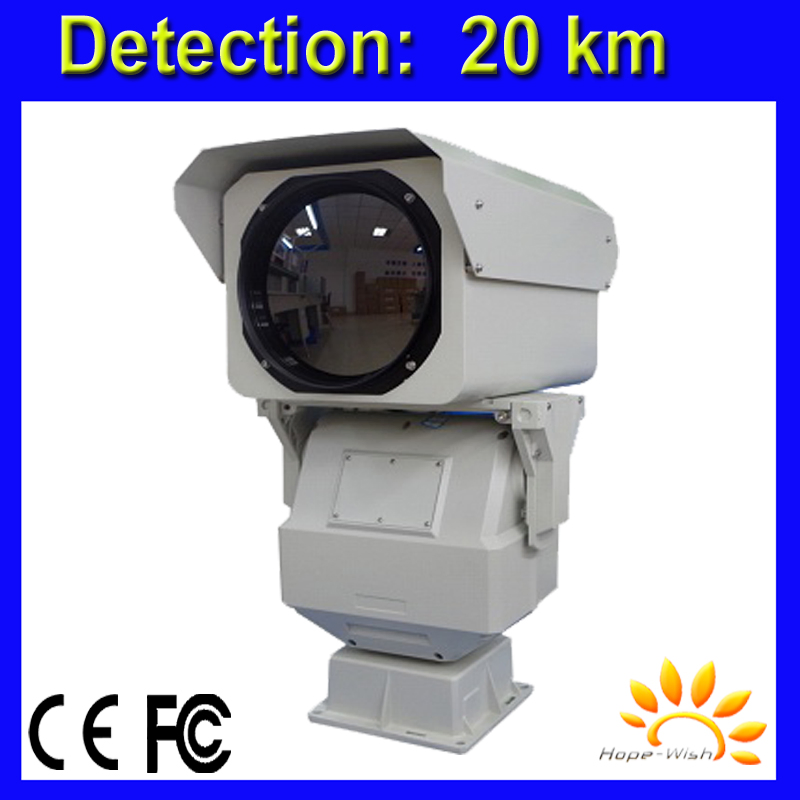

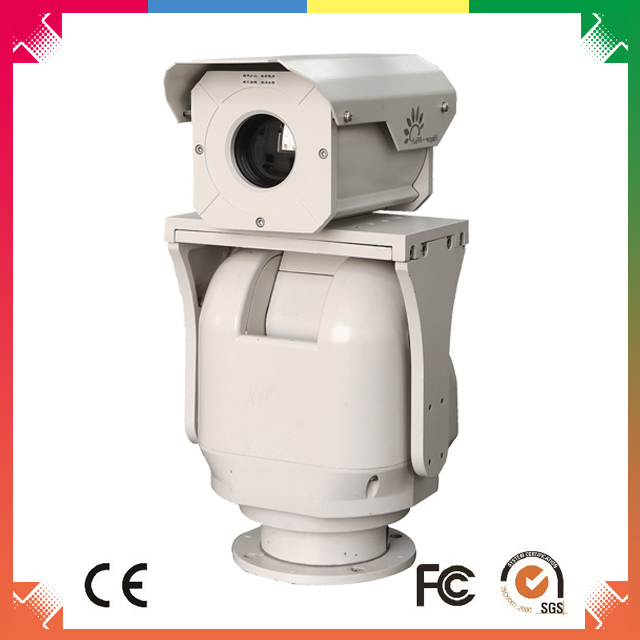

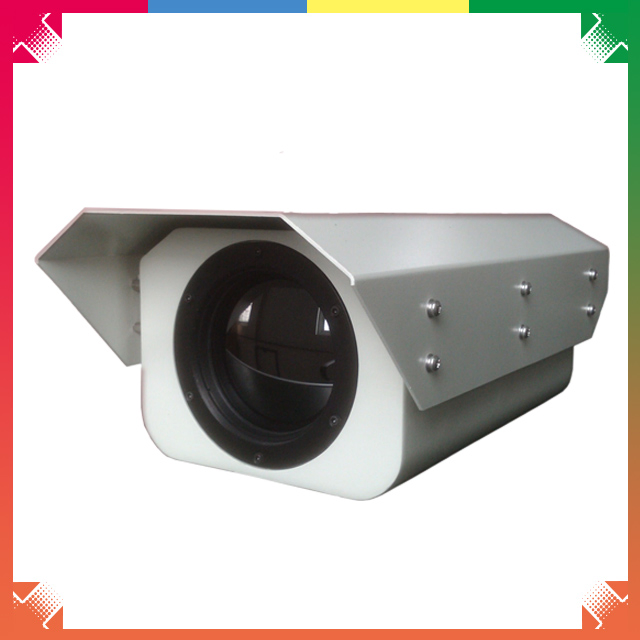

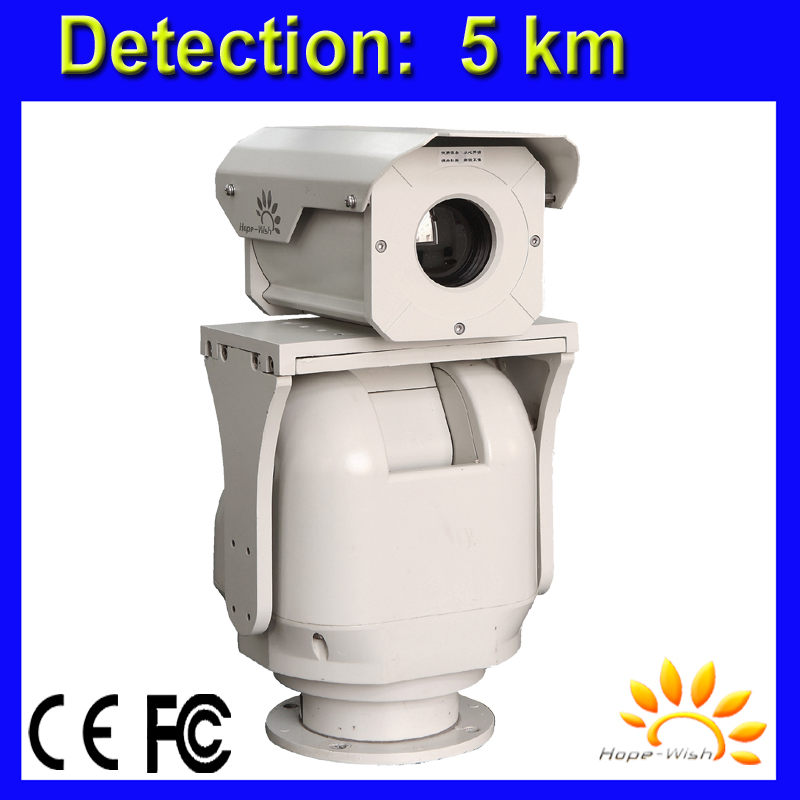

640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ
640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ
640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ
640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ
640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ
1 / 5
640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ
640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ
640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ
640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ
640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ

640*480 Uncooled Sensor Infrared Thermal Imager with 360 Degree PTZ

Customization: Available
Technology: Infrared
Style: Pan/Tilt
Send Inquiry

Product Description

📋 Basic Information
Model NO.
T4C-101V
Type
CCTV Camera
Sensor
Uncooled Fpa Sensor
HDMI Format
480P
Horizontal Resolution
650tvl
Kind
Autofocus Lens
Certification
CE, FCC, CCC, RoHS, EMI/EMC, ISO9001: 2000
Feature
Waterproof / Weatherproof, High Definition, Mini Size, Vandal-proof, Auto BLC
Effective Distance
≥1000m
Sensor Size
1/3 inch
Remote Control
With Remote Control
Surveillance Range
3000m
Resolution
640*512
Focal Length
55mm
Netd
50mk
Waterproof
IP66
Video
PAL/NTSC
HS Code
8525801390
🔍 Product Description
640*480 uncooled sensor infrared thermal imager with 360 degree PTZ

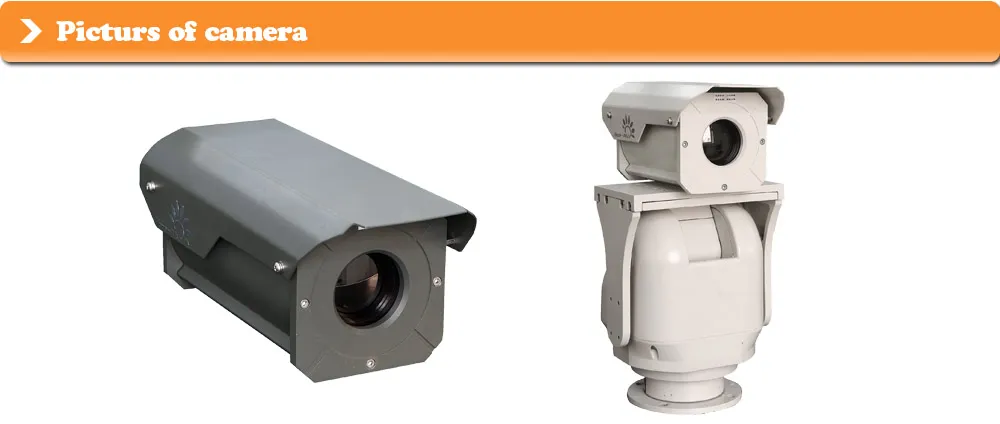

Thermal Imager View 1

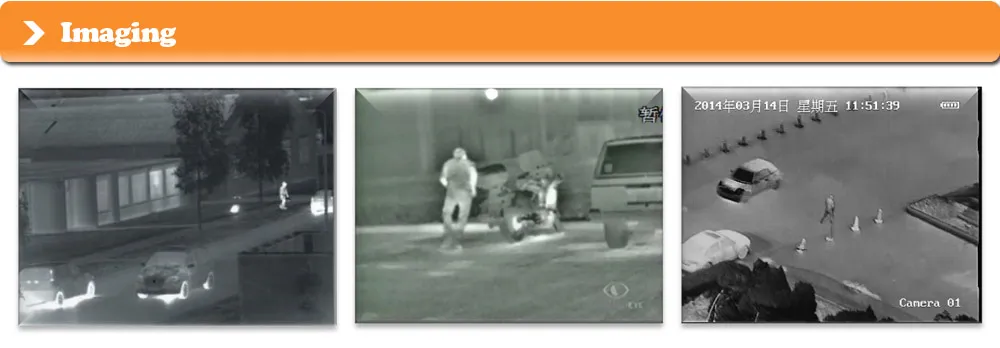

Thermal Imager View 2

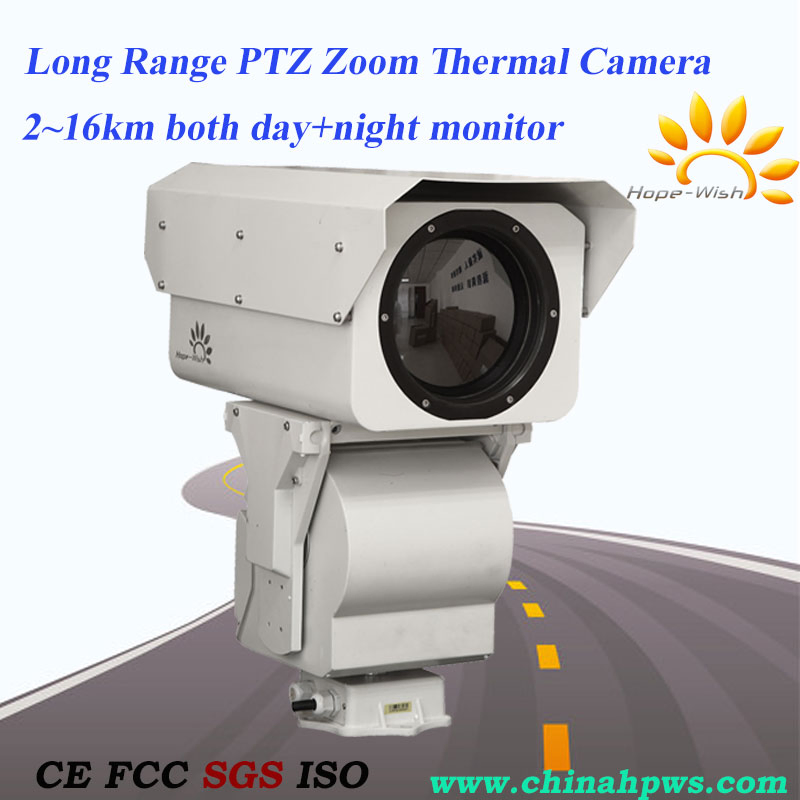

Long Range PTZ Zoom Thermal Camera
  • Based on the latest uncooled IR sensitive technology and continuously IR optical zoom
  • 336*256/640*512 resolution uncooled FPA sensor
  • Surveillance range: 3km - 20km
  • NETD 50mk enhance the imaging details even in foggy/rainy/snowy weather
  • Weatherproof rate IP66, anti-rain, anti-dust
  • 10 colors image and B/W, B/W inverse
Parameter Details (TC41-5GT)
DetectionVehicle: 5000m / Human: 1680m
IdentificationVehicle: 1250m / Human: 500m
Sensor5th generation UFPA sensor
Resolution336×256 pixel, 9HZ
Spectral range7.5~14μm
NETD50mK
Focal length55mm F1.0
Field of view6.5° X 4.8° (Horizontal)
Image processing1. Stable operation without TEC (start < 4s)
2. SDE digital image processing
3. 10 pseudo color and B/W conversion
4. AGC
5. 2X digital amplification
PTZ (Option)1. Duty: 10kg
2. Rotation: pan: 0~355°, tilt: -60~+10°
3. Speed: Pan: 7°/S, tilt: 3.4°/S
4. 32 presets
InterfaceRS-485 (PELCO D), Remote OSD, PAL/NTSC output, AC24V/DC12V, Aviation connector
EnvironmentAluminum alloy housing, Temp: -35°~55°, Power: 8W-36W
Thermal Camera Dimensions
Product Unit
❓ Frequently Asked Questions
What is the maximum detection range of this thermal camera?
The camera features a long-range surveillance capability, with an effective detection distance for vehicles up to 5000m and humans up to 1680m.
Does the camera work effectively in bad weather like fog or snow?
Yes, with a NETD of 50mk and SDE digital image processing, it significantly enhances imaging details even in foggy, rainy, or snowy weather conditions.
What are the PTZ capabilities for this model?
The PTZ option supports a 355° pan rotation and -60° to +10° tilt, with 32 presets available for efficient area monitoring.
Is the housing durable for outdoor installation?
Absolutely. It features an integral aluminum alloy housing with an IP66 waterproof rating, making it anti-rain and anti-dust for harsh environments.
What types of image display modes does it support?
The camera supports 10 pseudo color palettes as well as standard Black/White and Black/White inverse imaging modes.
How long does the camera take to start up?
Thanks to the stable operation temperature technology without TEC, the starting time is less than 4 seconds.
