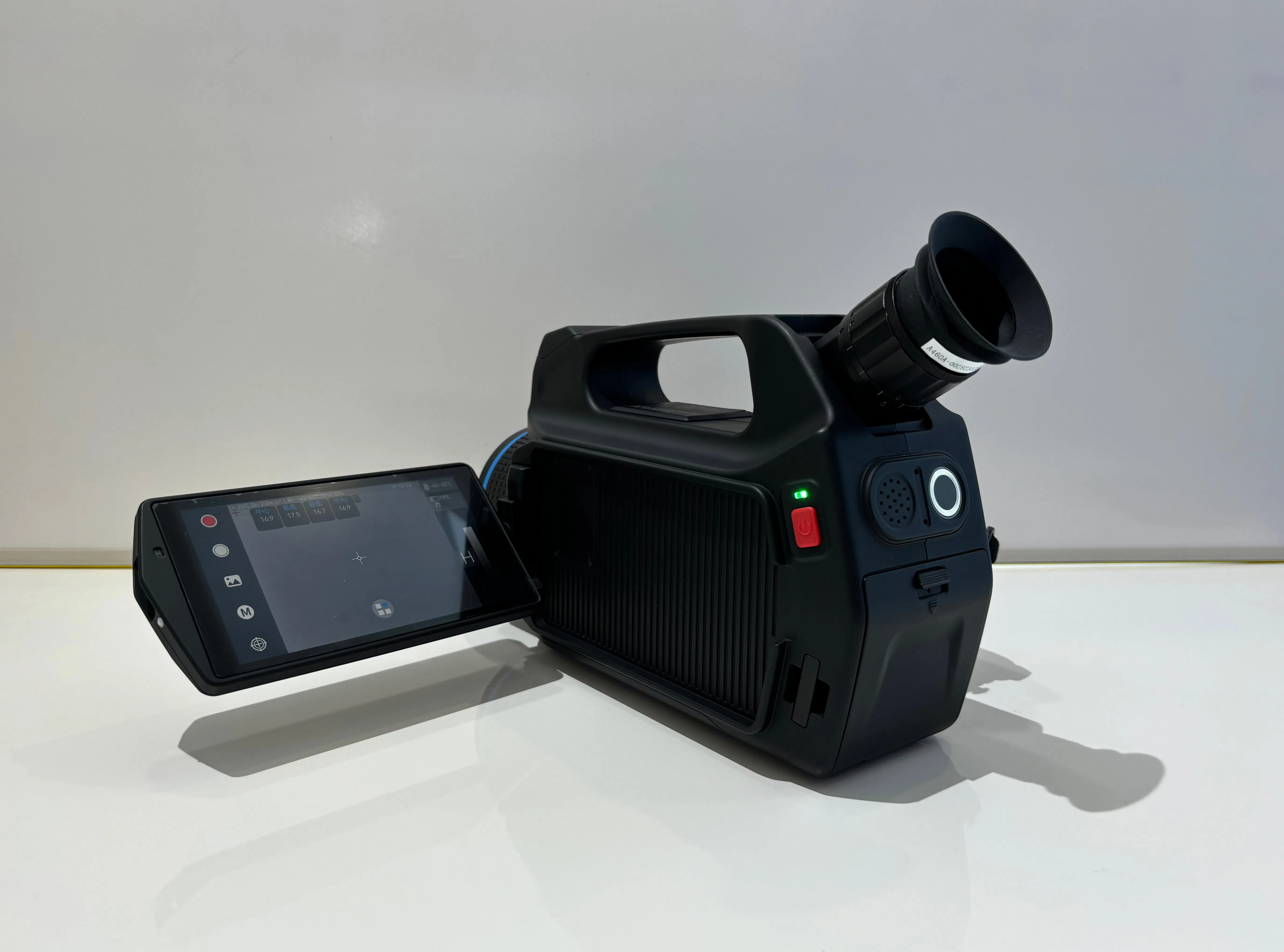

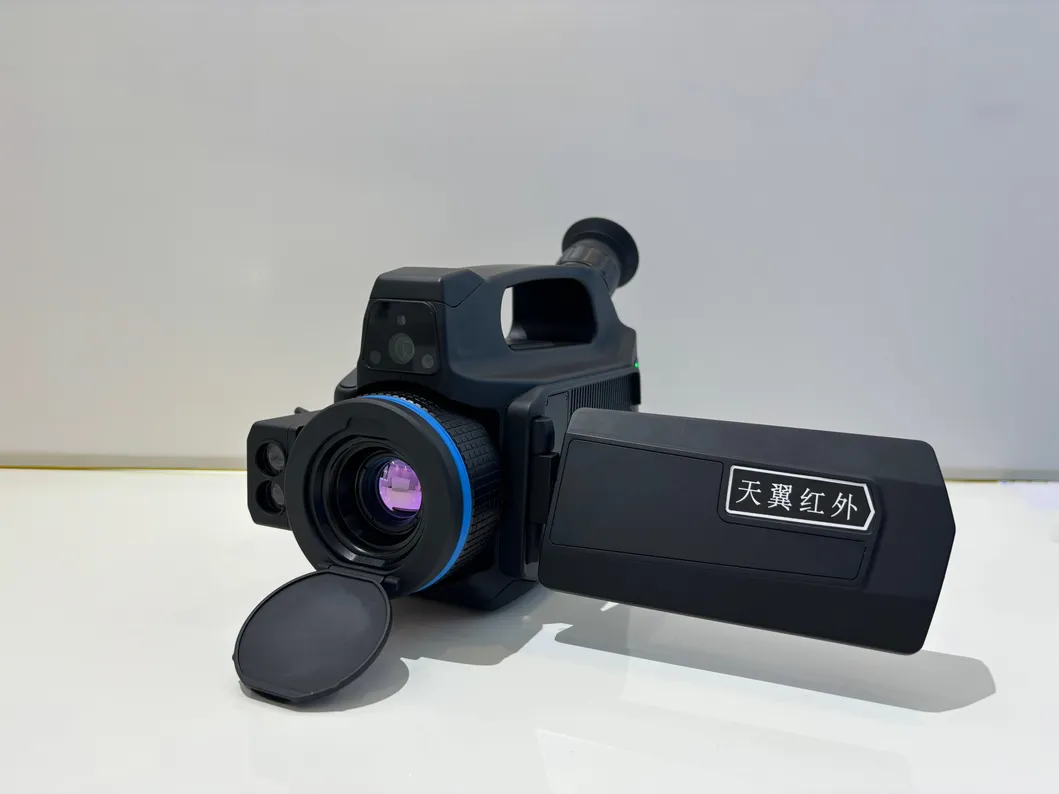

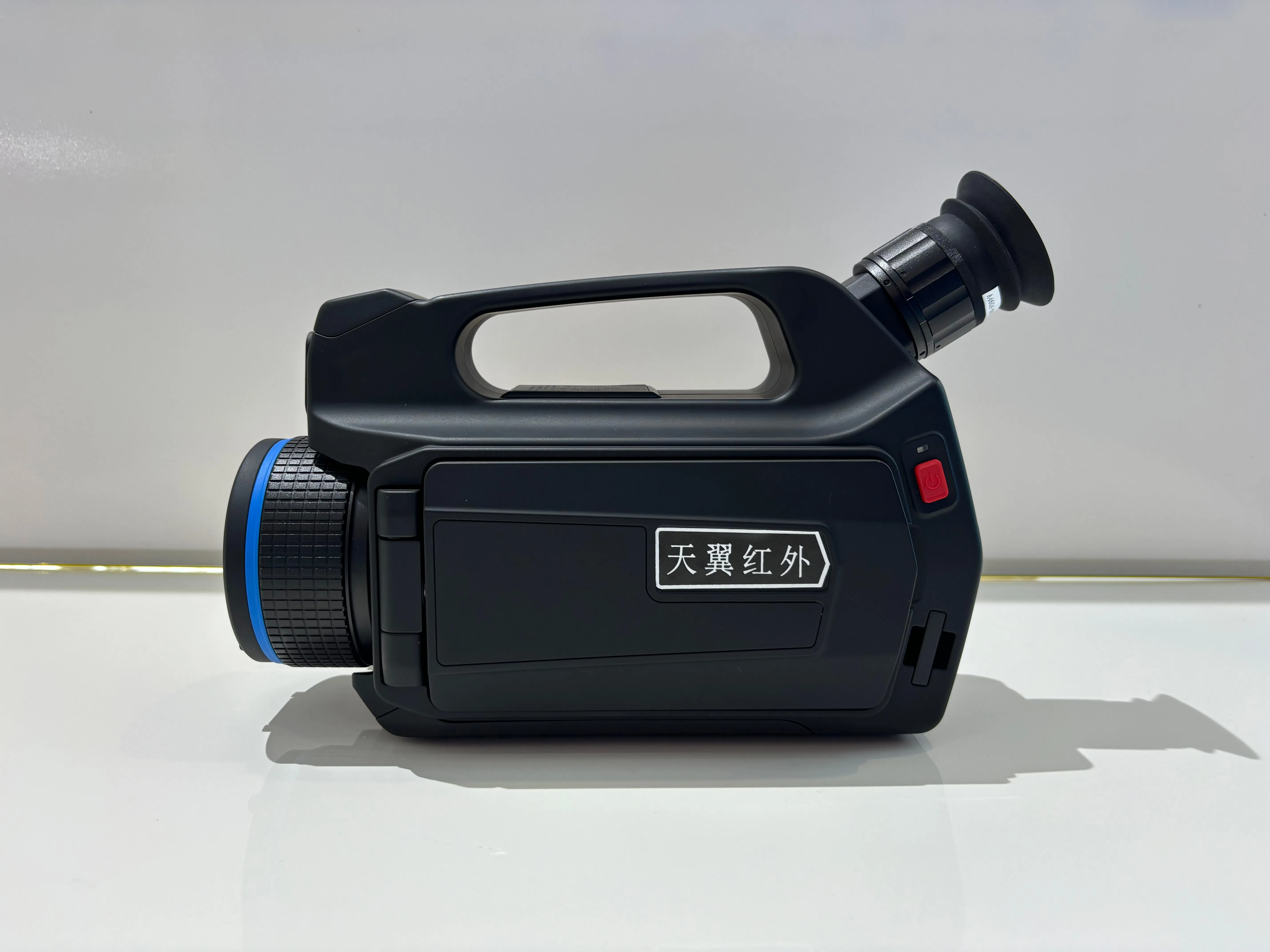

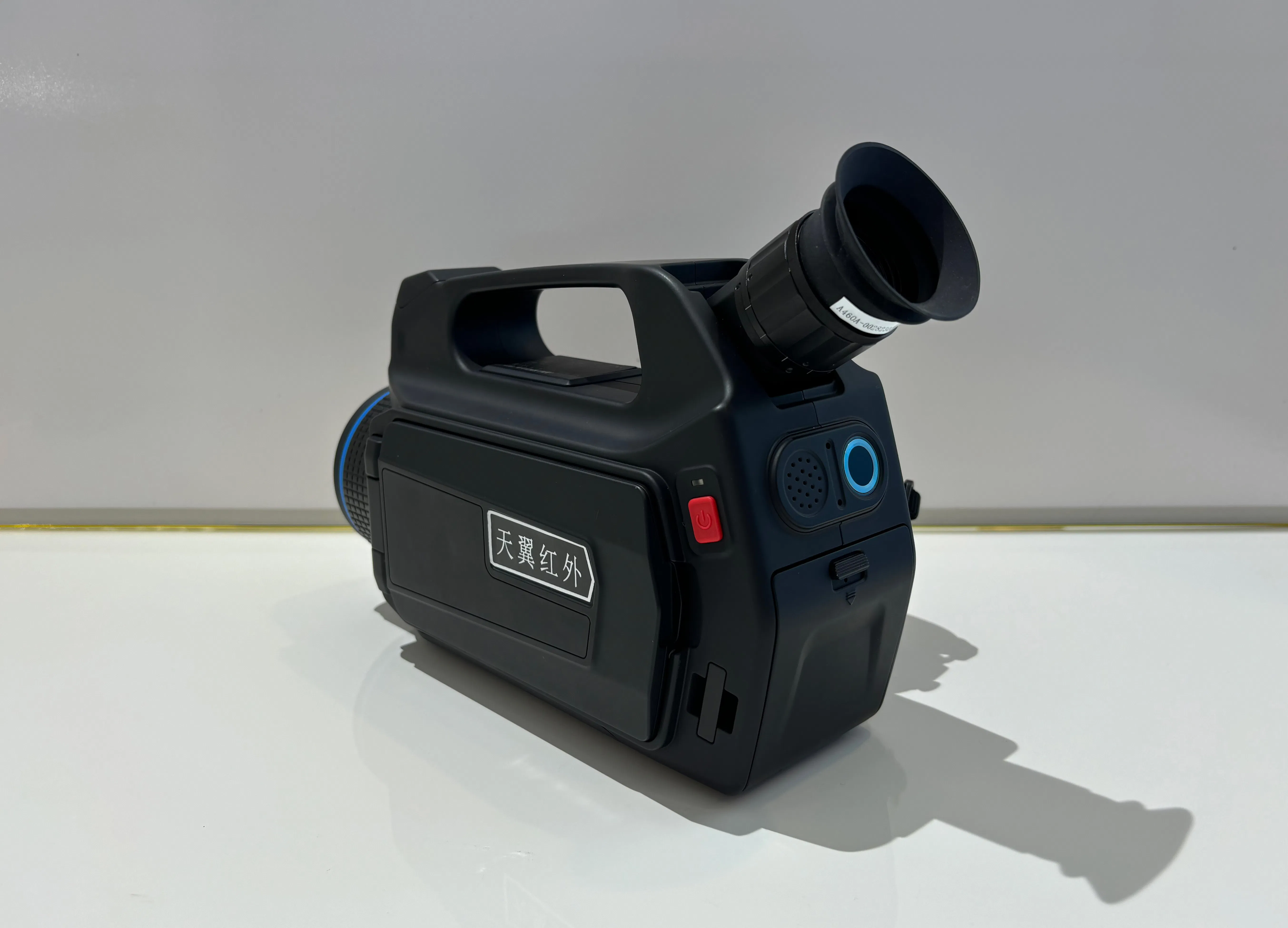

Introducing the HW-330G, a state-of-the-art device featuring a high-sensitivity cooled detector that excels in identifying both organic volatile leaks and elusive fugitive emissions. Its prowess in detecting even the smallest leak rates sets it apart as a leading-edge solution for industry professionals.
| Project Details | HW-330G Specifications | |
| Detector | Resolution Ratio | 320×256 pixels |
| Pixel Pitch / Spectral Range | 30μm / 3.2μm~3.5μm | |
| NETD | ≤15mK @ 25ºC | |
| Frame Frequency | 60Hz | |
| Optics | Field of View | 24°×19° (Standard), 14.5°×11.6° or 7°×6° (Optional) |
| Focus | Automatic / Electric / Manual focus ring | |
| Display | LCD Screen | 5.5-inch bright touch screen, 1080x1920, Sunlight visual |
| Viewfinder | 0.49-inch HD OLED, 1920x1080, Adjustable diopter | |
| Image Modes | GVETM (Gas enhancement), DB-FusionTM, IR, Visible light | |
| Measurement | Temperature Range | -40ºC to +350ºC (Accuracy ± 2ºC or ± 2%) |
| Target Gases | Methane, ethane, propane, butane, benzene, toluene, xylene, methanol, ethanol, and ~400 kinds of VOCs. | |
| Environment | Operating/Storage | -20ºC~+60ºC / -40ºC~+80ºC |

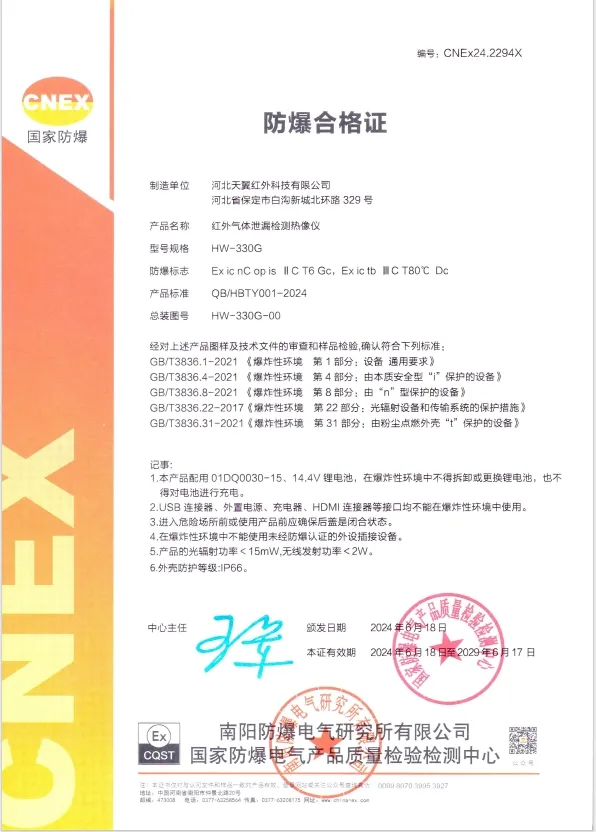

| Protection / Ex-proof | IP66 / Ex ic nC op is IIC T6 Gc | |
