Customization: Available
Measuring Method: Automatic
Application: Industry
Send Inquiry

Product Description

Basic Information
Model NO.
RM305
Weight
About 670g
Battery
Rechargeable and Detachable Lithium-Ion Battery
Detector Type
12μm Uncooled Infrared Detector
Infrared Resolution
384×288
Spectral Band
7.5-14μm
NETD
<35mk (25°c, F1.0)
Frame Rate
30Hz
Lens Focal Length
6.2mm
FOV
43.7°×31.9°
IFOV
1.98mrad
Focus Mode

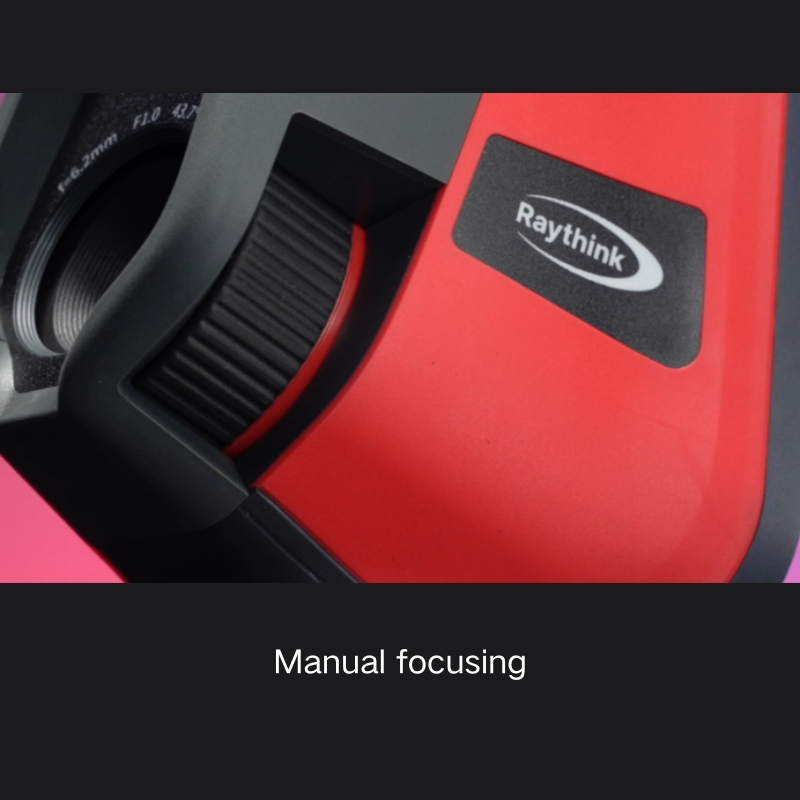

Manual Focusing
Measurement Range
-20~+150°c, 100~550°c
Display
3.5-Inch Touch Screen, 640×480 Resolution
Image Mode
Infrared, Visible Light, Pip, Dual-Spectrum Fusion
Dimensions
258.4*105.1*102.3 mm
Product Description

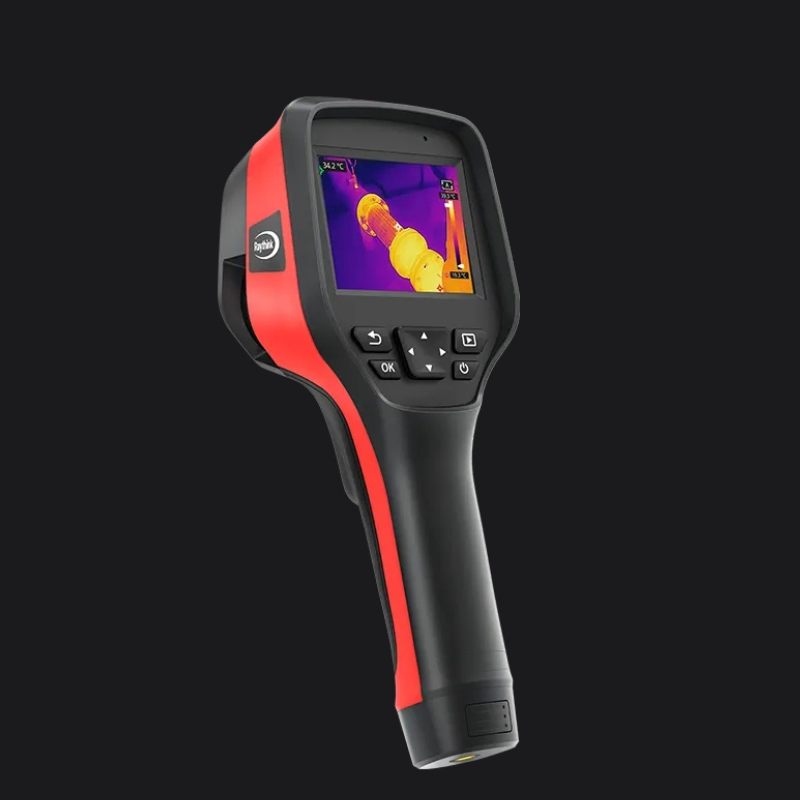

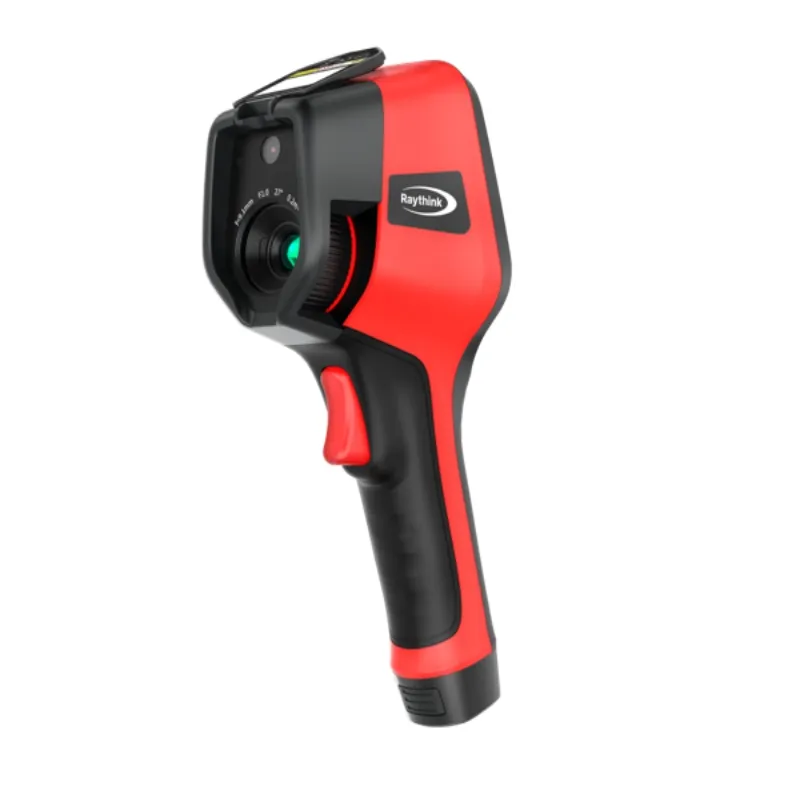

Handheld Thermal Imager

RM305 is a professional handheld thermal camera, featuring high resolution and manual focus for temperature measurement. It is equipped with a self-developed 384×288 infrared detector, providing a high sensitivity of 35mK. It finds extensive applications in fields such as electric power, electrical automation, building inspection, and commercial HVAC.

Product Highlights
Clear Thermal Images, Precise Temperature Measurement 12μm high-performance 384×288 uncooled infrared detector. NETD as low as 35mK, capable of distinguishing temperature differences of 0.035°C. Support USB plug-and-play analysis, real-time full-frame transmission.
Professional Functions, Multi-dimensional Design Support full-frame high/low-temperature alarms and scheduled image capture. Automatically tracking the highest, lowest, and central-point temperatures. Support 10 palette settings and professional analysis software on App, PC, and Cloud.

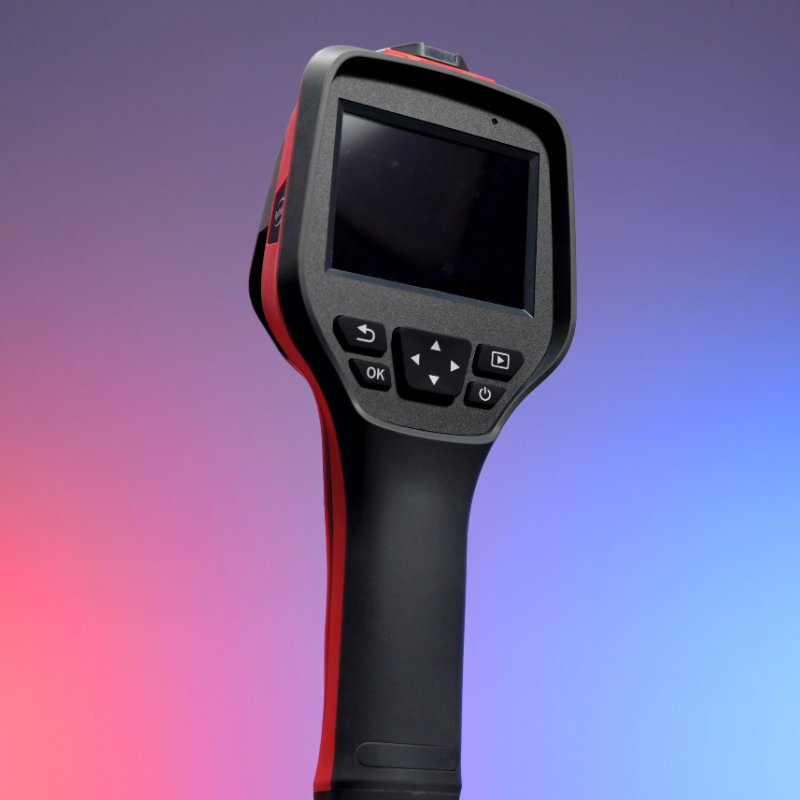

Hard-core Configuration, High-end Experience IP54 and 2m drop protection, solid and durable. 3.5-inch touch screen with 640×480 resolution. Built-in laser pointer module for quick target locating.
Specifications
Thermal Imaging
Detector Type12μm uncooled infrared detector
Infrared Resolution384×288
NETD<35mK (25°C, F1.0)
Frame Rate30Hz
Focal Length / FOV6.2mm / 43.7°×31.9°
Measurement Range-20~+150°C, 100~550°C
Image Display
Display3.5-inch touch screen, 640×480 resolution
Visible Light Camera5 megapixels
Image ModeInfrared, visible light, PIP, dual-spectrum fusion
System & Storage
Storage MediumStandard 32GB MicroSD, up to 512G

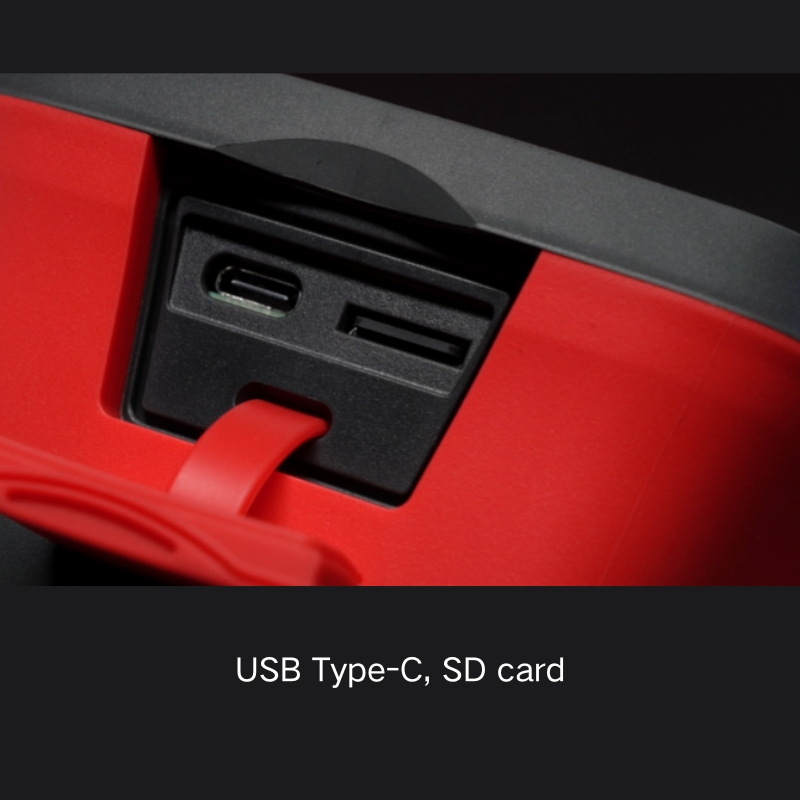

CommunicationWi-Fi, USB Type-C
Battery LifeAbout 6h (with 2 batteries)
Physical Characteristics
Ingress ProtectionIP54, 2m Drop Protection
Weight & Dimensions670g, 258.4×105.1×102.3mm
Applications

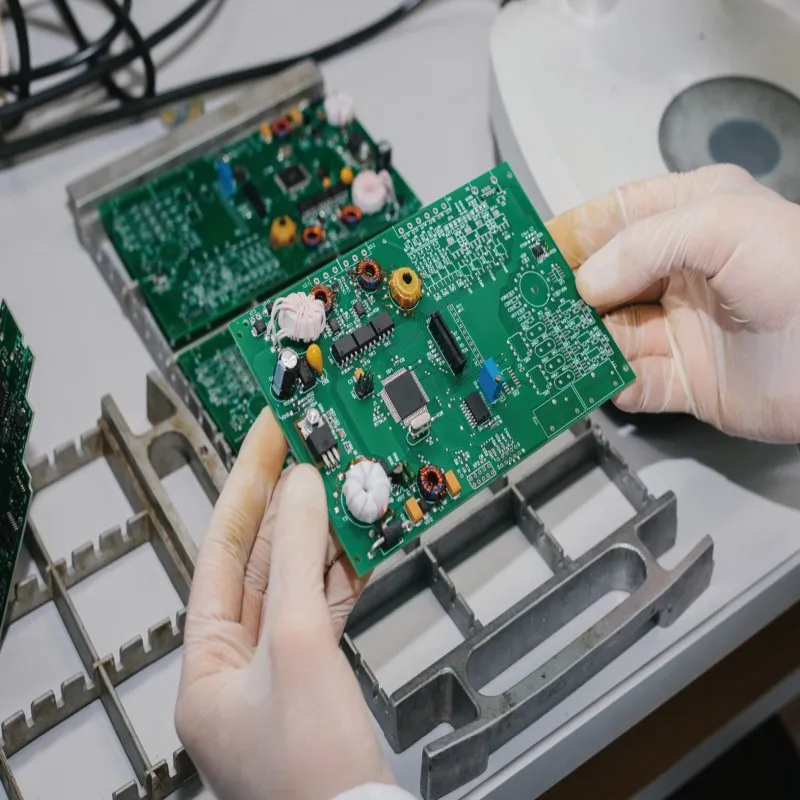

Product R&D

Product R&D

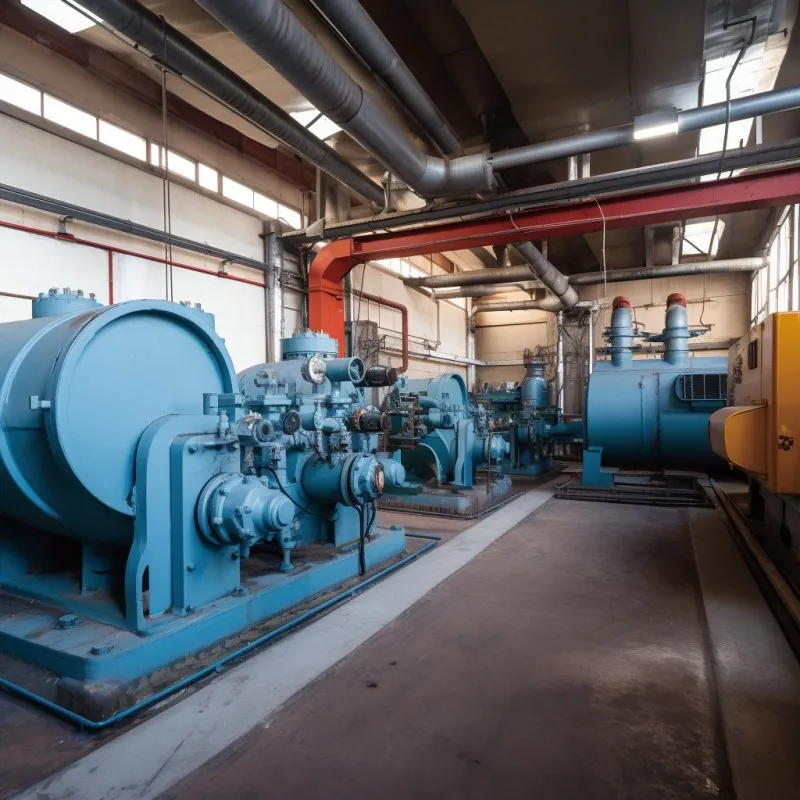

Equipment Maintenance

Equipment Maintenance

Electric Routine Inspection

Electric Routine Inspection

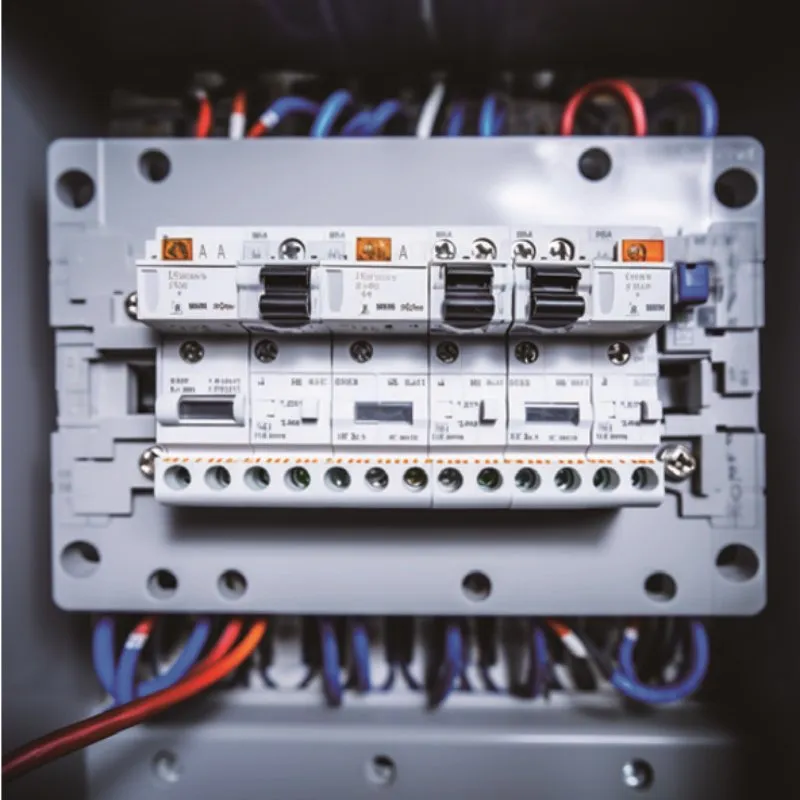

Electrical Maintenance

Electrical Maintenance

Facility & Production
Production Facility
Testing
Laboratory
Assembly Line
Quality Control
R&D Center
Frequently Asked Questions
How can we guarantee quality?

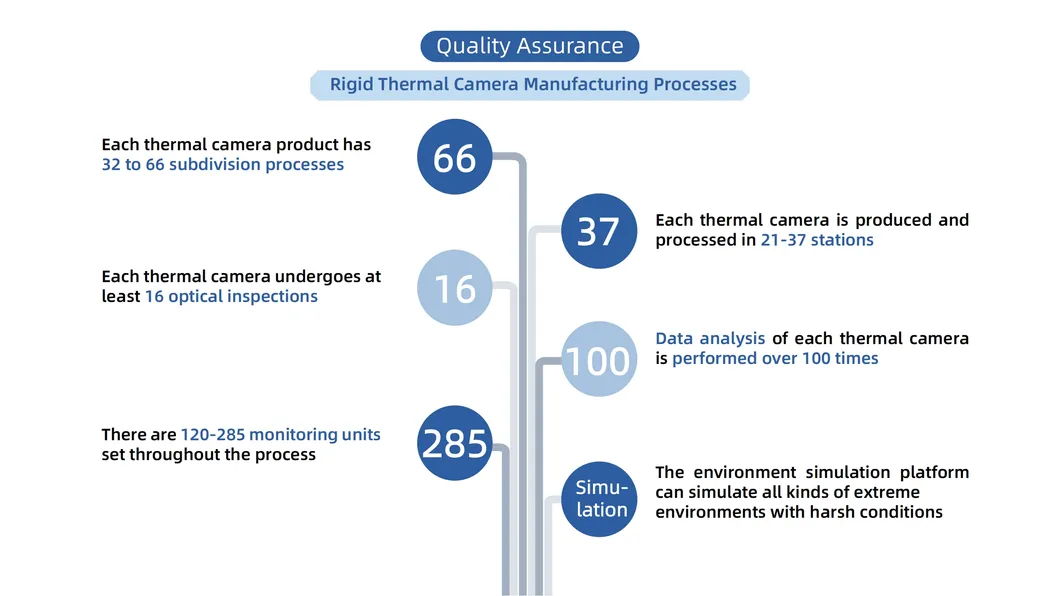

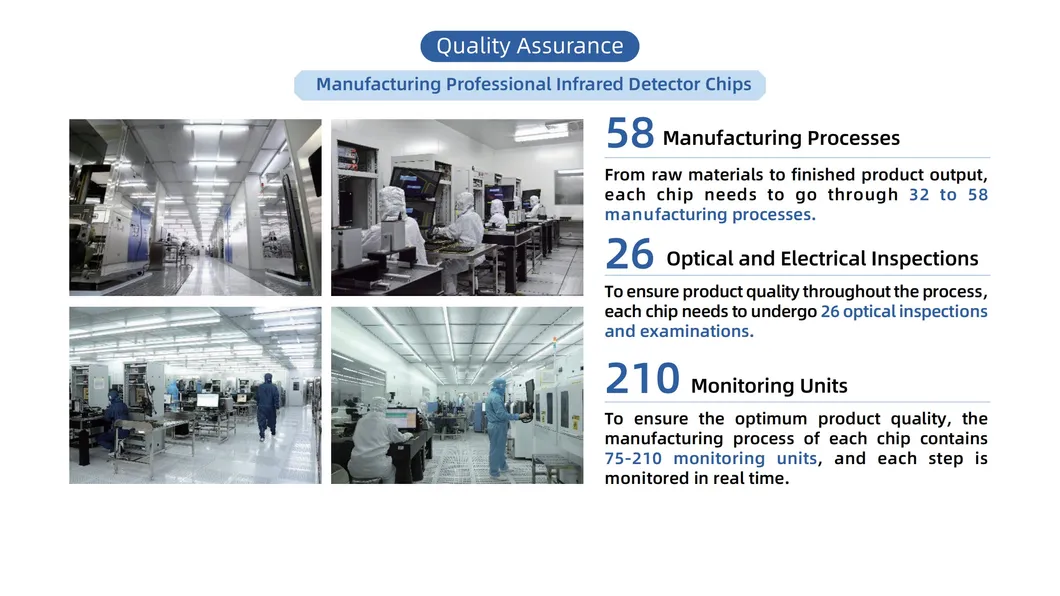

We have professional infrared detector chip manufacturing, a rigid thermal camera manufacturing process, a perfect quality management system, and a CNAS certification reliability test platform.
How long is your delivery time?
For small orders, it usually takes 7 working days. Products that do not have sufficient inventory or require customization will take approximately 2-4 weeks.
What's the MOQ?
The MOQ depends on the specific product requirements. Please contact us for details.
What are your payment terms?
Our payment terms include L/C, T/T, D/P, Western Union, Paypal, and Money Gram.
What is the product warranty policy?
Full thermal camera products come with a 2-year warranty, while our detectors are covered by a 10-year warranty.
How about after-sale support?
We provide lifetime technical support. Our engineers will respond to your technical requests within 24 hours.
