Product Description

■ Basic Information
Model NO.
TY-HF
Transport Package
Wooden Case Packing, Air Freight, and Sea Freight
Production Capacity
50PCS/Month
Package Size
150.00cm * 120.00cm * 150.00cm
Gross Weight
160.000kg
■ Product Description

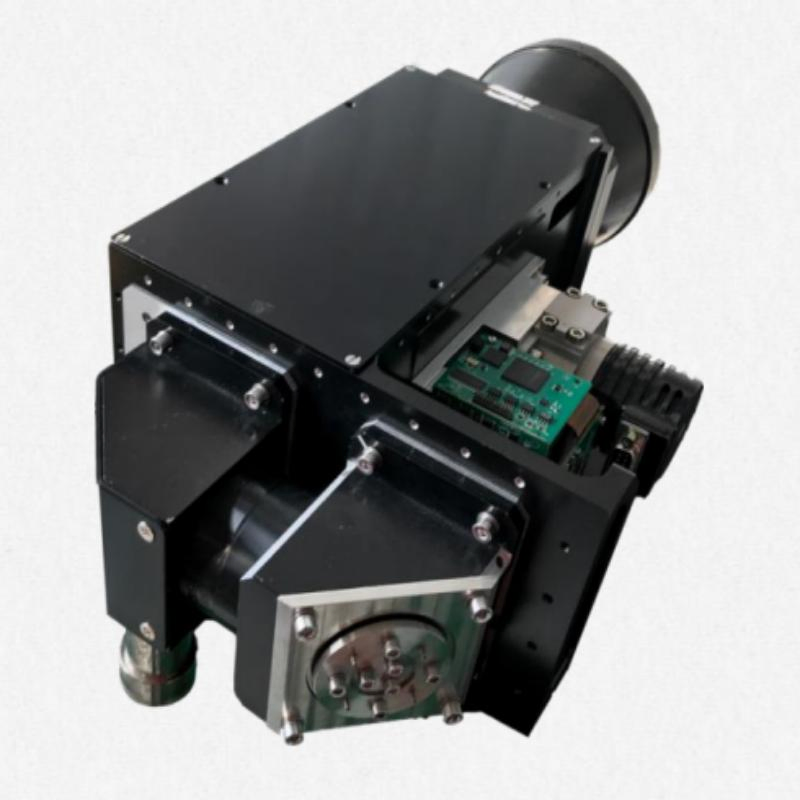

TY-HF High Performance Visible Light Movement & Thermal Imager

Single machine level product - Flyback compensation focal plane thermal imager.

Thermal Imager
Resolution 256×320 / 640×512 / 1280×1024
Band Medium wave, long wave
Pixel Size 30μm / 15μm / 25μm / 10μm
Frame Rate 400Hz / 117Hz / 100Hz
NETD 20mK
High-Performance Visible Light Movement Components

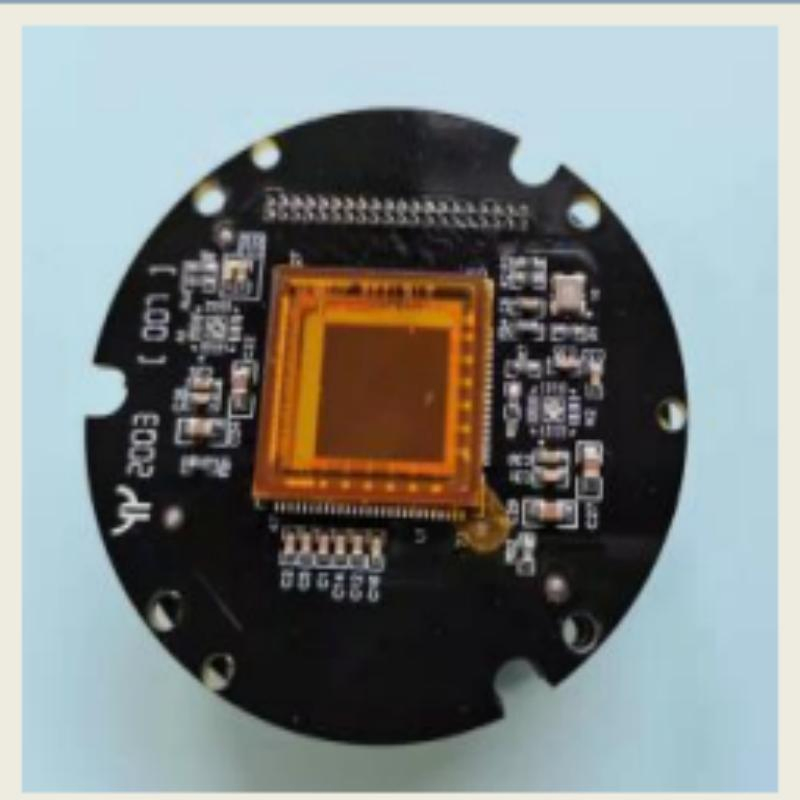

CMOS Detector Imaging Component

CMOS Detector
Frame Rate300Hz
Dynamic Range≥80dB
Sensitivity0.01lx
Resolution2048×2048
Power Consumption≤1.5W
Weight≤40g

SCMOS & EMCCD Detector Imaging Components

SCMOS Detector

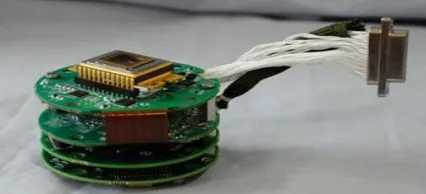

EMCCD Detector
Component Type SCMOS Component EMCCD Component
Frame Rate 150Hz 50Hz
Dynamic Range ≥80dB ≥60dB
Sensitivity 0.01lx 0.0001lx
Resolution 2048×2048 512×512
Power Consumption ≤3.5W ≤7W
Weight ≤60g ≤75g
High-Performance Infrared Movement

Typical application scenarios: Infrared imaging, temperature measurement, power line inspection, detection of toxic and harmful gases, target detection, tracking, recognition, computer vision, etc.

Uncooled Infrared Movement

Uncooled Infrared Movement

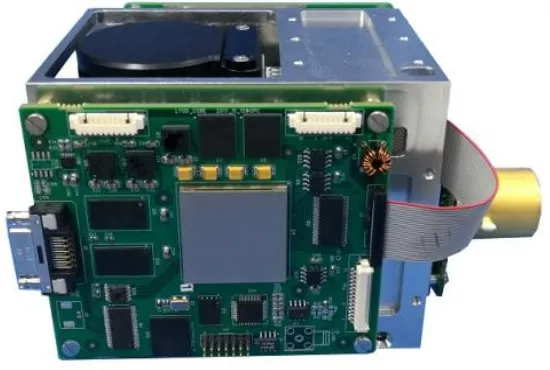

Refrigeration Type Infrared Movement

Refrigeration Type Infrared Movement

Feature Uncooled Infrared Refrigeration Type
Resolution 384×288 / 640×512 / 1024×768 320×256 / 640×512 / 1280×1024
Band Long wave (8-12 μm) Medium wave (3.7~4.8 μm) / Long wave (8~12 μm)
Pixel Size 25μm / 17μm / 12μm 30μm / 15μm / 25μm / 10μm
Frame Rate 100Hz / 50Hz / 25Hz 400Hz / 117Hz / 100Hz
NETD ≤50mK ≤15mK (MW) / ≤22mK (LW)
Frequently Asked Questions
What is the main advantage of the TY-HF flyback compensation thermal imager?
The TY-HF offers high sensitivity with an NETD of 20mK and supports multiple resolutions up to 1280×1024, providing exceptional thermal imaging clarity and precision.
In which scenarios can the high-performance infrared movement be used?
It is ideal for temperature measurement, power line inspection, detection of toxic/harmful gases, target tracking, and various computer vision applications.
What are the differences between the CMOS and EMCCD detector components?
The CMOS component is lighter (≤40g) and has lower power consumption (≤1.5W), while the EMCCD component offers much higher sensitivity (0.0001lx), making it suitable for extreme low-light conditions.
Does the infrared movement support medium wave and long wave detection?
Yes, the refrigeration type infrared movement supports both Medium Wave (3.7~4.8 μm) and Long Wave (8~12 μm) bands.
What is the production capacity and packaging for this equipment?
The production capacity is 50 pieces per month. Units are securely packed in wooden cases suitable for both air and sea freight to ensure safe international delivery.
What frame rates are supported by the visible light movement?
Depending on the detector type, frame rates range from 50Hz (EMCCD) and 150Hz (SCMOS) up to 300Hz (CMOS detector).
