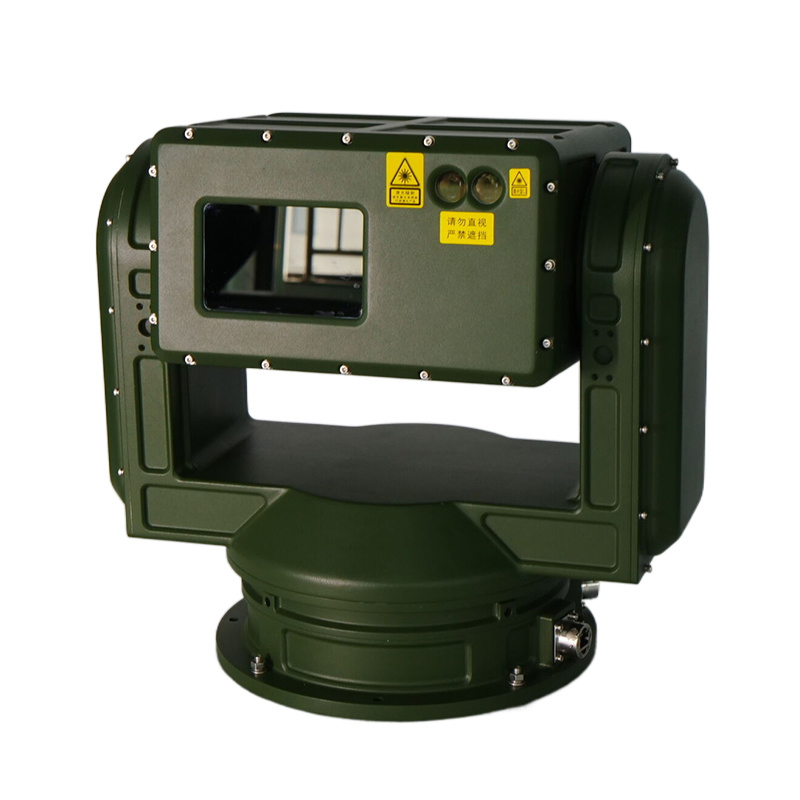

Advanced Thermal Radar System for Accurate Temperature Detection
Advanced Thermal Radar System for Accurate Temperature Detection
1 / 2
Advanced Thermal Radar System for Accurate Temperature Detection
Advanced Thermal Radar System for Accurate Temperature Detection

Advanced Thermal Radar System for Accurate Temperature Detection

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Key Features

1
Utilizes advanced infrared thermal imaging technology for clear imagery and long-distance detection capabilities.
2
Equipped with highly sensitive refrigerated or uncooled infrared detectors, ensuring 24/7 day and night functionality.
3
High-resolution output provides delicate image quality, allowing for precise observation of subtle targets.
4
Intelligent image processing technology enhances details and highlights specific target characteristics.
5
Pan-tilt 360-degree continuous scanning design enables rapid target searching speeds.
6
Direct drive motor for the pan-tilt system ensures fast rotation speeds and stable image capture.

Technical Specifications

Model SHR-UPT300HZIR120 SHR-UPT300UDIR55 SHR-UPT300UDIR75
Monitoring Distance
Drone (0.3m×0.3m) 2×2 pixels 1200m 680m 930m
Human (1.8m×0.5m) 5.3×1.6 pixels 2400m 1450m 2000m
Vehicle (4.6m×2.3m) 6×3 pixels 6000m 3500m 4800m
Photoelectric Pod & Scan
Horizontal FOV 360°
Vertical Angle -45° to +45°
Scan Speed 360°/s 180°/s 154°/s
Video Output / Power Gigabit network / DC24V/5A
Detector Specs
Detector Type Cooled focal plane Uncooled FPA microbolometer, Vox
Effective Pixels 640×512 1280×1024
Spectrum Range 3~5μm 8~14μm
Thermal Lens
Focal Length 120mm 55mm 75mm
FOV 3.7° @512 12.7° @1024 9.3° @1024
F value F2.0 F1.0
Physical & Environmental
Working Temperature -40ºC to +60ºC
Protection Grade / Weight IP66 / ≤18Kg

Frequently Asked Questions

1. What are the primary applications for this thermal imaging system?
It is designed for long-distance monitoring, drone detection, and target search operations, utilizing high-resolution infrared technology for both day and night surveillance.
2. How fast can the system scan the surrounding area?
The system features a 360-degree continuous scanning design with speeds reaching up to 360°/s depending on the specific model.
3. Is the device suitable for extreme outdoor environments?
Yes, it has an IP66 protection grade and an operational temperature range of -40ºC to +60ºC, making it highly durable against dust and water.
4. What kind of monitoring distances can I expect?
The detection range varies by model, with the capability to detect vehicles up to 6000m and human targets up to 2400m.
5. What interface is used for video output?
The system uses a Gigabit network interface for high-speed, stable video transmission.
6. Does it require a specific power supply?
The technical requirements specify a DC24V/5A power supply for optimal performance.
