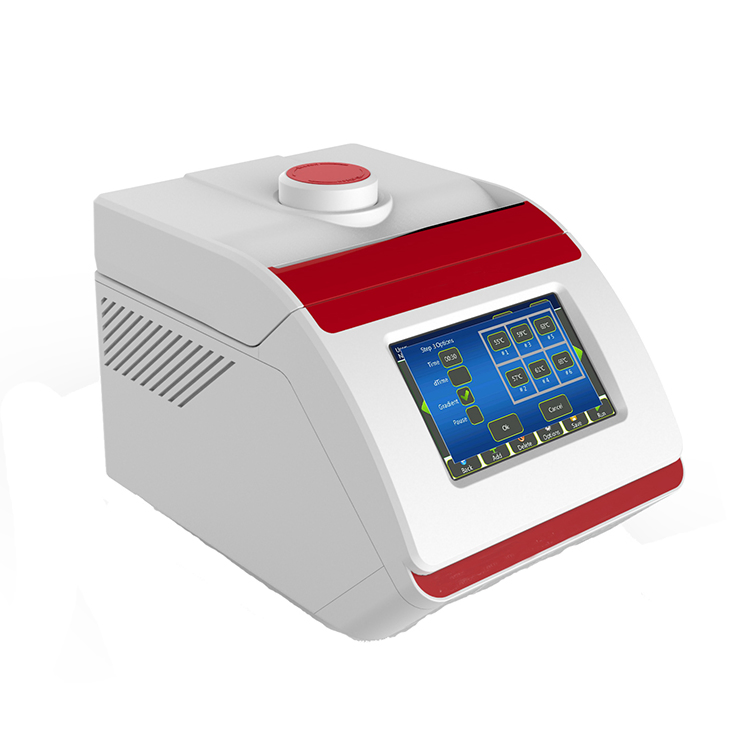

Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System
Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System
Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System
Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System
Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System
1 / 5
Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System
Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System
Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System
Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System
Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System

Laboratory Medical Testing DNA Gene Detection Thermal Cycler Real-Time Portable PCR System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

PCR System Banner
Basic Information
Model NO.
LCR600A
Certification
CE, FDA
Technology
New Generation Peltier Technology
Display
7" Color Touch Screen
Language
English
Venting System
2 USB & 1 LAN
Temp. Range
0°C ~ 105°C
Heating Rate
5.5°C/S
Specification
362 x 256 x 255mm
Net Weight
8KG
Product Description

LCR600A PCR System Digital Super Gradient Thermal Cycler

★ Six different annealing temperatures for each zone
★ Better uniformity than traditional thermal cyclers
★ Full touch screen display of protocol in real time
★ Universal switch power supply (100V~240V)

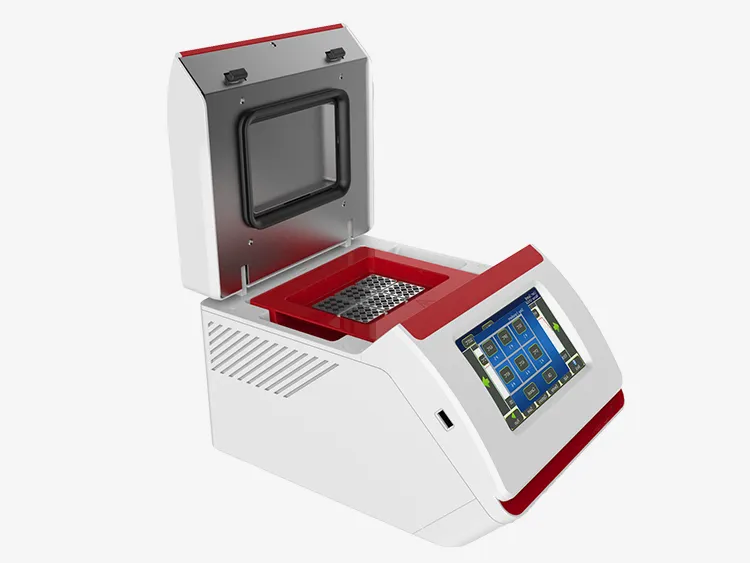

PCR System Front View

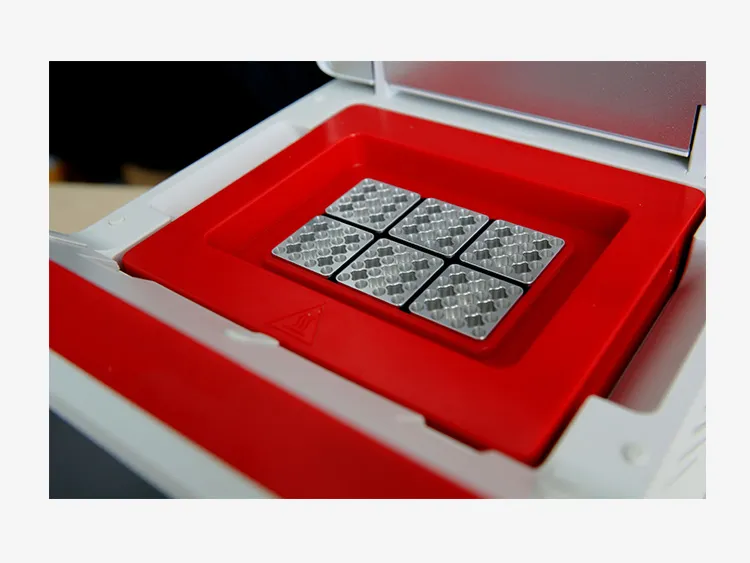

PCR System Side View
Technical Data Specification
Parameter Detail Specification
Sample Block6 zones 4x4 wells x 0.2ml, 6 annealing temp. can be accurately set
Tube Optional0.2ml PCR tube/Strip, 96-well PCR plate
Max. Cooling Rate4.5°C/s
Temp. Uniformity≤±0.15°C (at 90°C)
Temp. Accuracy≤±0.1°C (at 90°C)
Display Resolution0.1°C
Ramping Rate0.1~4°C /s Adjustable
Gradient Accuracy≤±0.2°C (at 90°C)
Gradient Range0°C ~ 105°C
Max. Programs15,000+ onboard, unlimited with USB flash drive
Max. Step/Cycle30 Steps, 100 Typical Cycles (Max 10,000 nesting)
Auto Pause/RestartYes
Heat Lid Temp.30°C ~ 112°C
Lid FeatureInnovative "TOP-OPEN" technology, over-pressure protection
Consumption600W
Production & Quality Control
Product Catalog Gallery

Manufacturing Facility

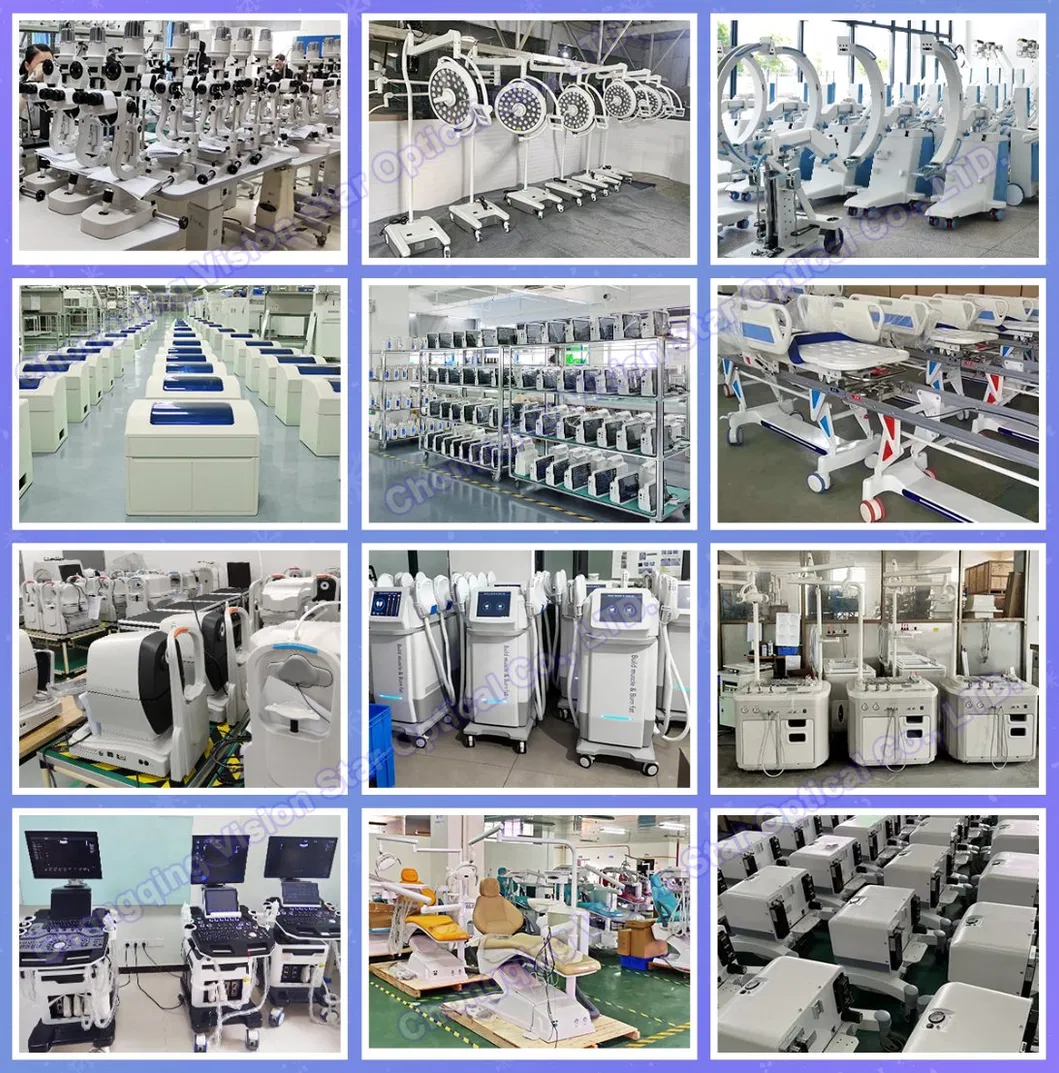

Factory Workshop
Product Line

Certificates & Compliance

Quality Certificates

Professional Team

Our Team
Footer Banner
Frequently Asked Questions
1. What is the maximum heating and cooling rate of the LCR600A?
The system features a maximum heating rate of 5.5°C/s and a maximum cooling rate of 4.5°C/s, ensuring efficient thermal cycling.
2. How does the gradient functionality work in this model?
The LCR600A is equipped with 6 independent temperature zones, allowing for six different annealing temperatures to be set simultaneously for better optimization.
3. What types of PCR tubes and plates are compatible?
It is compatible with 0.2ml PCR tubes, PCR strips, and 96-well PCR plates. The steplessly adjustable heat lid accommodates different heights.
4. Can I store protocols on an external device?
Yes, the system supports unlimited storage of protocols via a USB flash drive, in addition to the 15,000 programs that can be stored onboard.
5. Is the user interface easy to use?
The system features a 7-inch color touch screen with a real-time graphical display and a full English interface for intuitive operation.
6. What safety features are included for the heat lid?
It includes innovative "TOP-OPEN" technology with over-pressure protection and an auto shut-off feature that activates when a protocol finishes or temperatures fall below a set limit.
