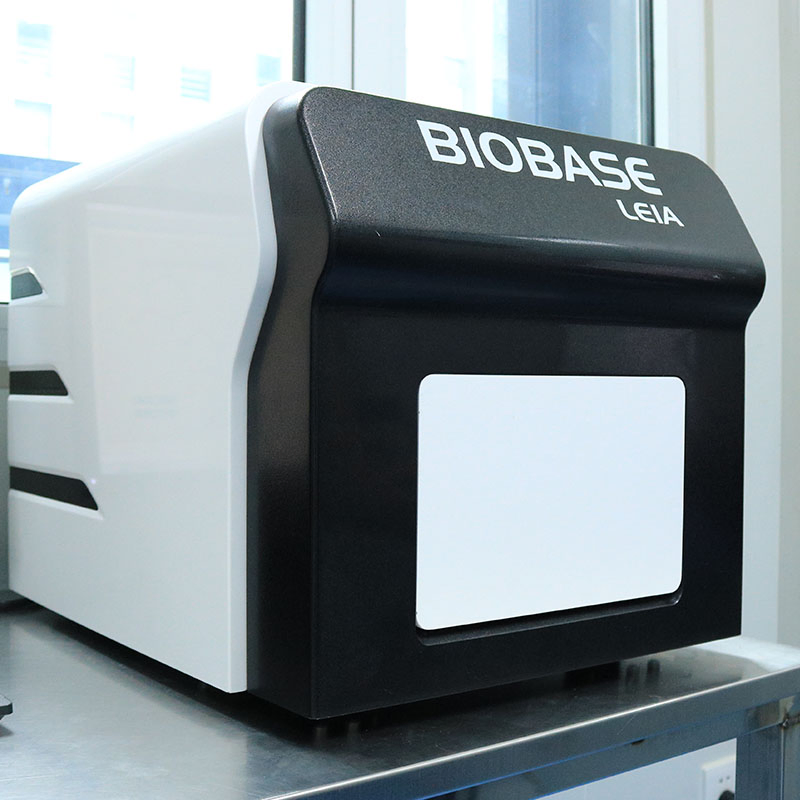

Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab
Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab
Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab
Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab
Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab
1 / 5
Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab
Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab
Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab
Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab
Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab

Biobase PCR Detector Rt-Q PCR Detector Thermal Cycler PCR Detection System for Medlab

Customization: Available
Product Name: Fluorescence Quantitative PCR Detection System
Model: Leia-X4
Send Inquiry

Product Description

📋 Basic Information
Model NO. LEIA-X4
Sample Capacity 96X0.1ml PCR Plate, 12X8-Strip Tubes, 96*0.1ml Single Tube
Reaction System 10~50μl
Channel Count 4 Channels
Emission Light LED
Detector High Sensitivity Pd/MPPC
Excitation Wavelength 455~645nm
Detection Wavelength 510~710nm
Transport Package Wooden Case or Carton Box
🔬 Product Description

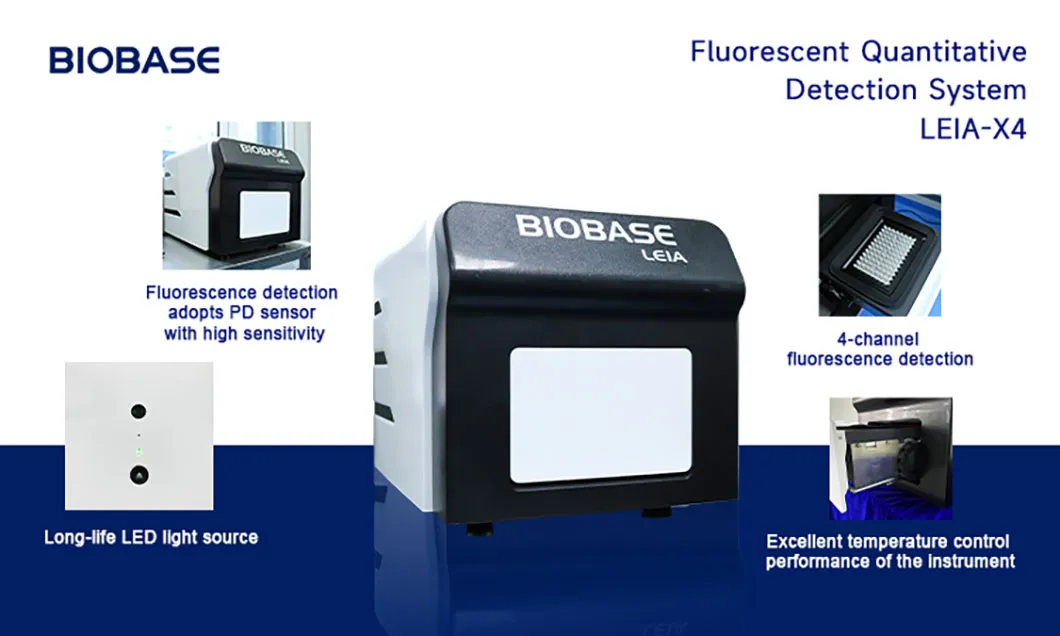

Fluorescent Quantitative Detection System

Fluorescent Quantitative Detection System

Real-time PCR is used for sensitive, specific detection and quantification of nucleic acid targets. This system features powerful assay design algorithms, optimized qPCR reagents, and intuitive data analysis software to help harness the power of qPCR across diverse applications.

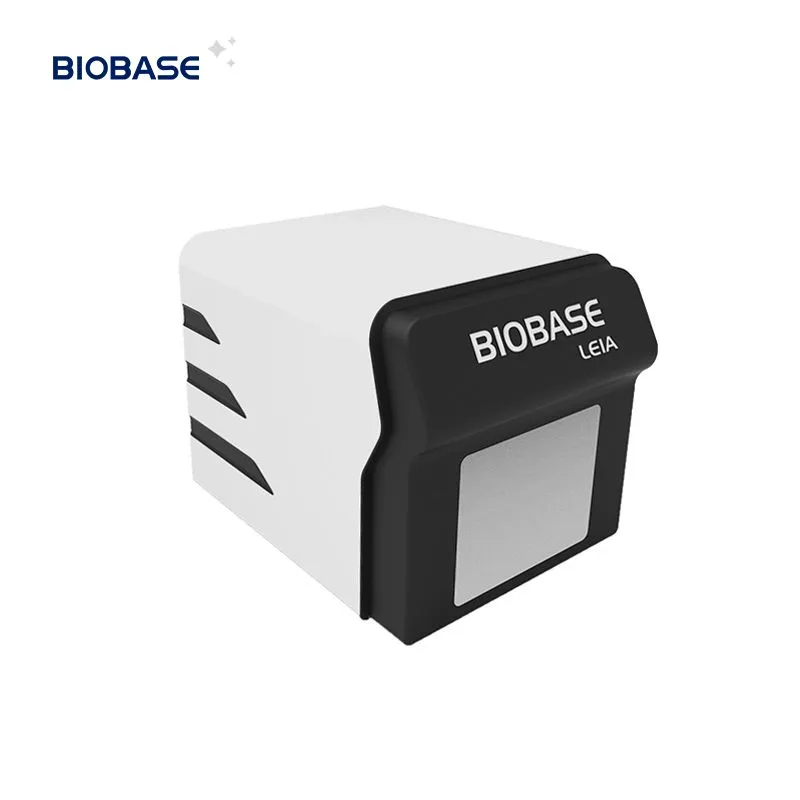

PCR Detection System
  • ✔ Thermoelectric cooling module

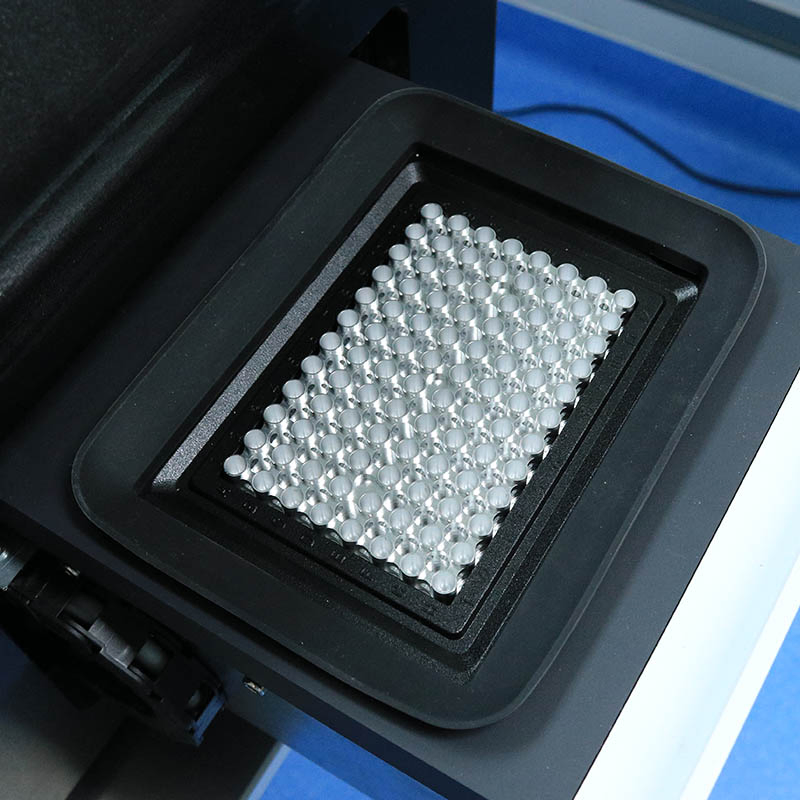

  • ✔ 96-Well Heating Plate
  • ✔ Semiconductor Peltier
  • ✔ Advanced Optical module

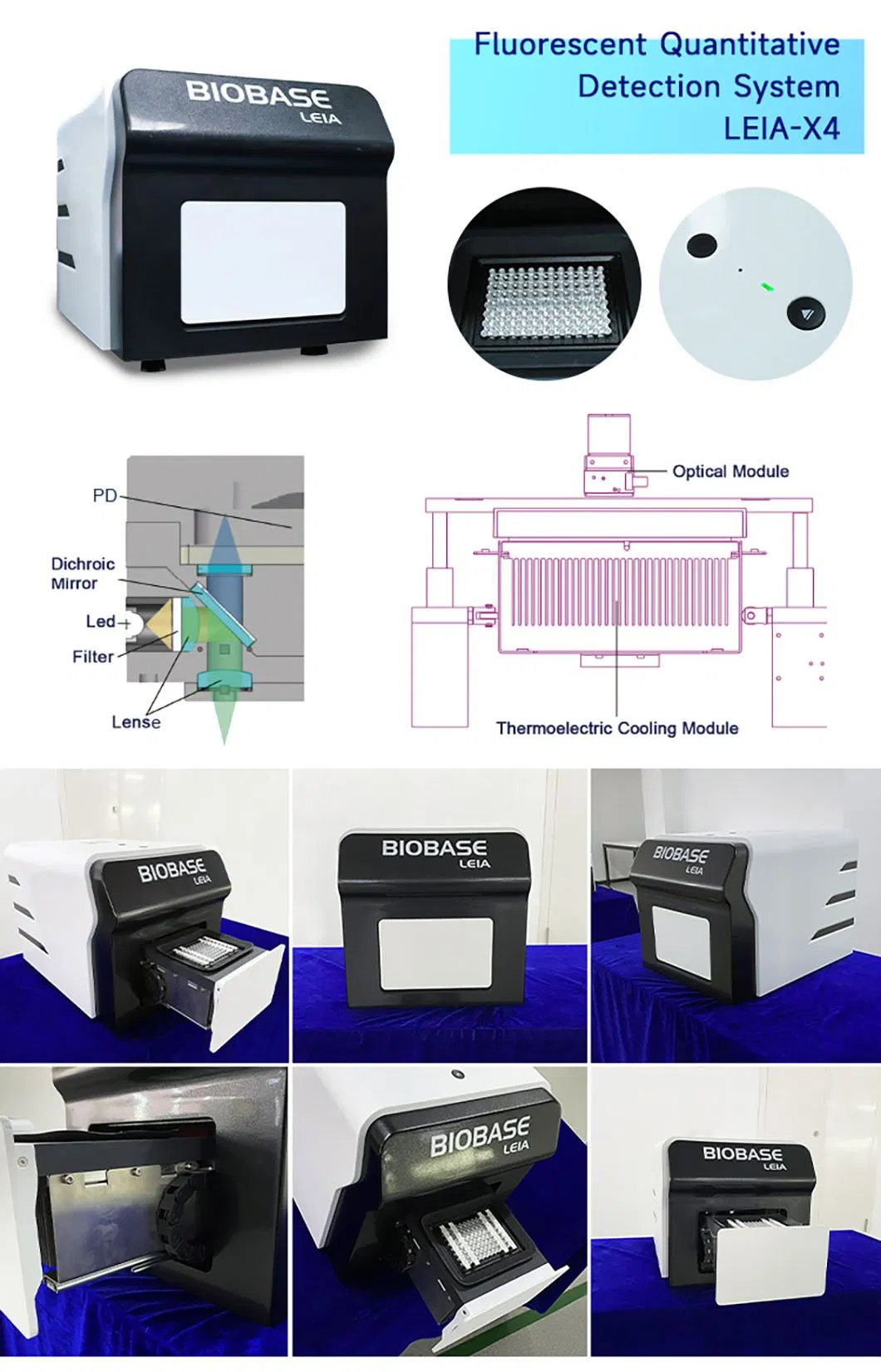

PCR Process

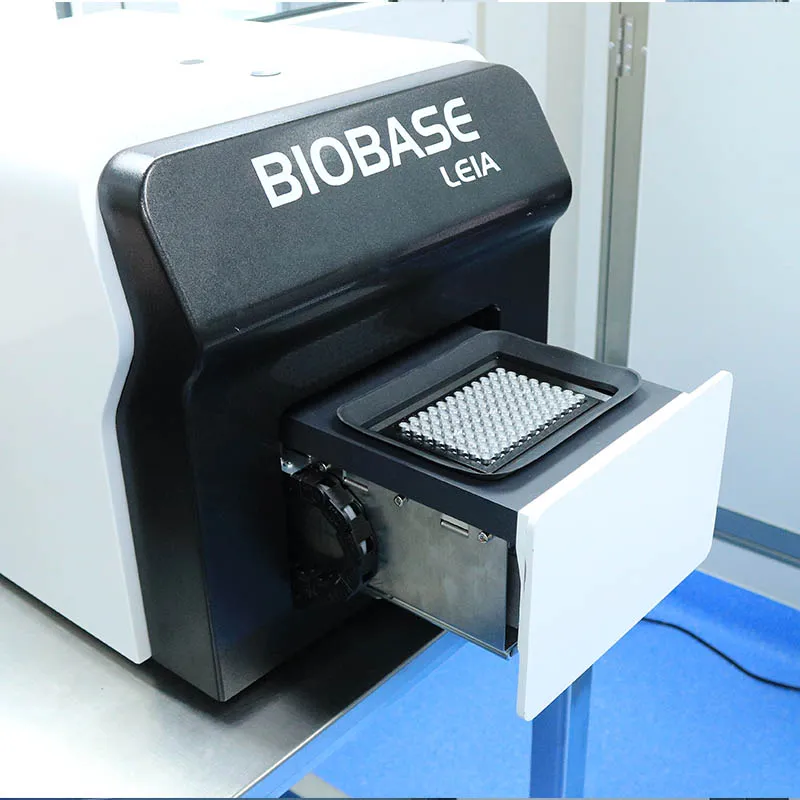

PCR Detail 1
PCR Detail 2

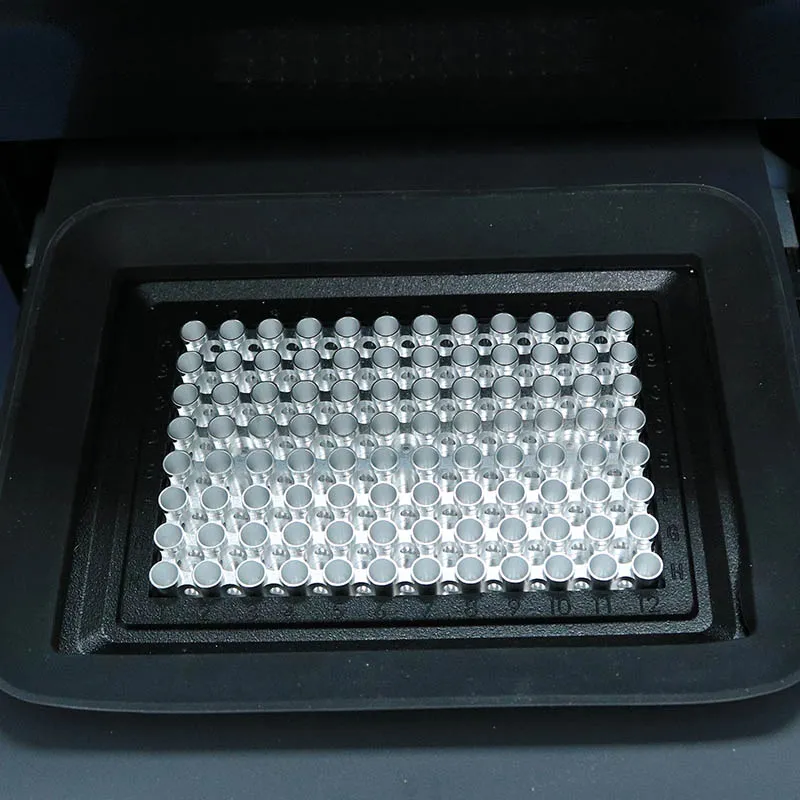

PCR Detail 3

Core Features:

  • ⭐ Excellent temperature control: max temperature rise and fall ≥7.0ºC/s.
  • ⭐ No edge effect: No optical path correction required, top excitation/detection.
  • ⭐ Long-life LED light source: Stable emission wavelength, maintenance-free.
  • ⭐ 4-channel fluorescence detection: No cross interference between channels.
  • ⭐ Analysis Modes: Absolute Quantification, Melting Curve, Relative Quantification (AACT), Genotyping.
📸 Detailed Photos

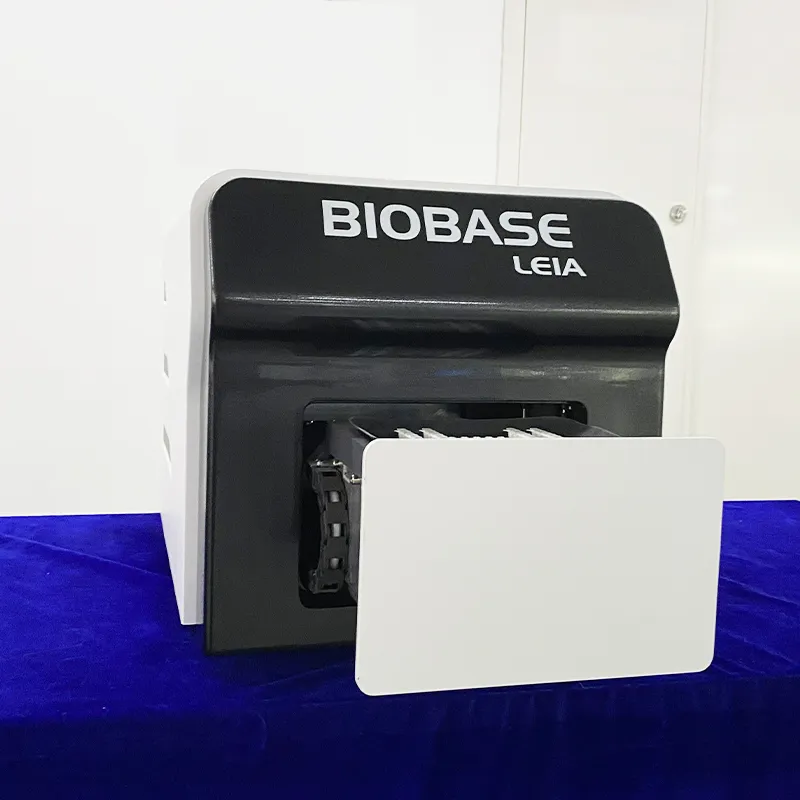

Detailed View 1

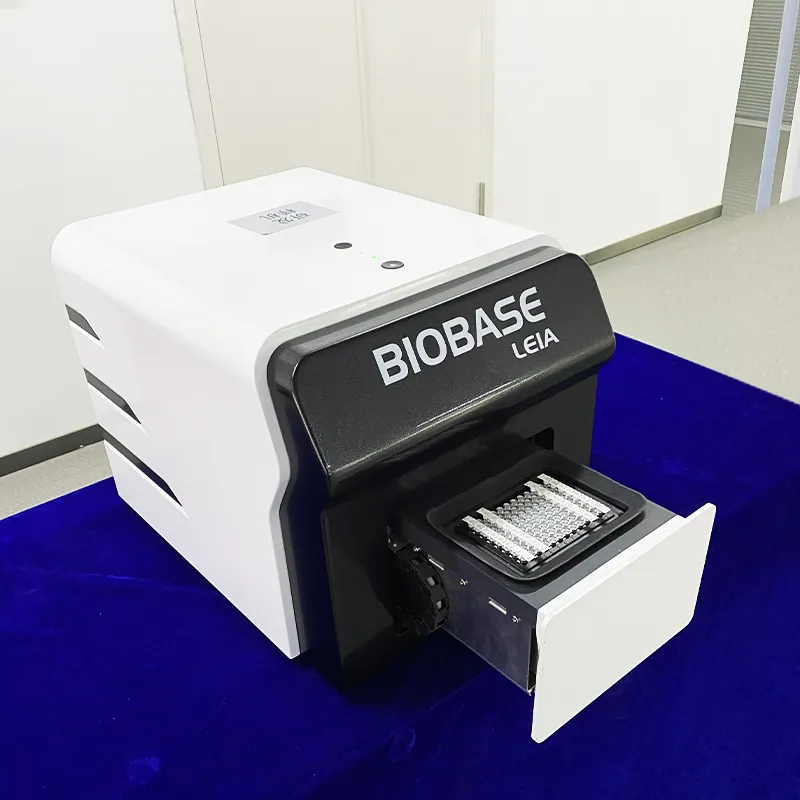

Detailed View 2
Detailed View 3

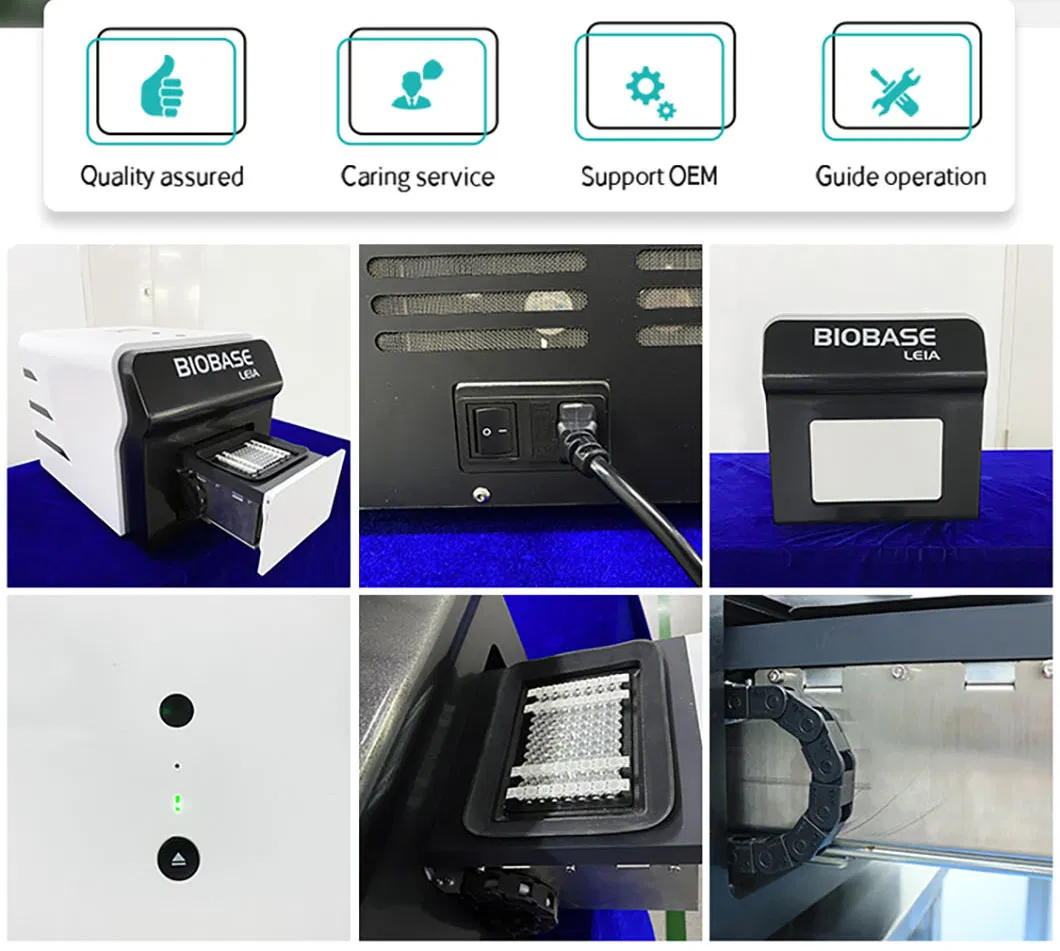

System Interface
📊 Product Parameters
Product Name Fluorescence Quantitative PCR Detection System
Dynamics Range 1-10^10 copies
Suitable Probe/Dye FAM/SYBR GREEN, VIC/JOE/HEX/TET, ROX/TEXAS-RED, Cy5
Ramp Rate 5.0ºC/s (max)
Temp. Accuracy ±0.3ºC
Scanning Time 8.5s
Operation System Windows 10
Dimensions (L*W*H) 375*490*365 mm
🏭 Production & Service

Professional Manufacturing Facility

Our industrial parks cover extensive areas with advanced production lines and a strong quality control team of professional engineers.

Industrial Park
Pre-sale Service After-sale Service
* 24 hours online inquiry support * Free replacement for broken spare parts
* Expert guidance for model selection * 24-hour technical response within 6 hours
* Detailed parameters & competitive pricing * Regular product and promotion updates
📦 Packaging & Shipping
Package Standard Wooden Box and Carton
Shipping Type Sea Freight, Air Freight, Express, Cold-Chain Transportation
Delivery Time 5-15 Days After Payment
Shipping Logistics
❓ FAQ
1. Is this machine suitable for my local voltage? Yes, our equipment supports power supply AC 220V±10%, 50/60Hz, and 110V±10%, 60Hz, making it compatible with most countries worldwide.
2. What is the standard lead time for this product? Typically, the lead time is within 7-15 working days after receipt of payment.
3. Do you provide after-sales technical support? Absolutely. We have a professional after-sales team with extensive overseas experience available 24/7 online to assist with any technical inquiries.
4. How is the product quality ensured? All products are checked by our QC staff and project managers. We also welcome third-party inspections to ensure the highest quality standards.
5. Do you offer OEM services? Yes, we can provide OEM services, including printing your own logo on the products.
6. What is the warranty period? All products come with a standard one-year warranty as part of our commitment to excellence.
