| Model NO. | DDE3 |
| Certification | CE |
| Channel | Drone Detection |
| Receive Frequency | 300-6000MHz |
| Technology | Infrared / EO/IR |
| Working Distance | 2000m |
| Visible Camera Resolution | 2688X1520 |
| Thermal Resolution | 640 X 512 |
| Production Capacity | 5000/Year |

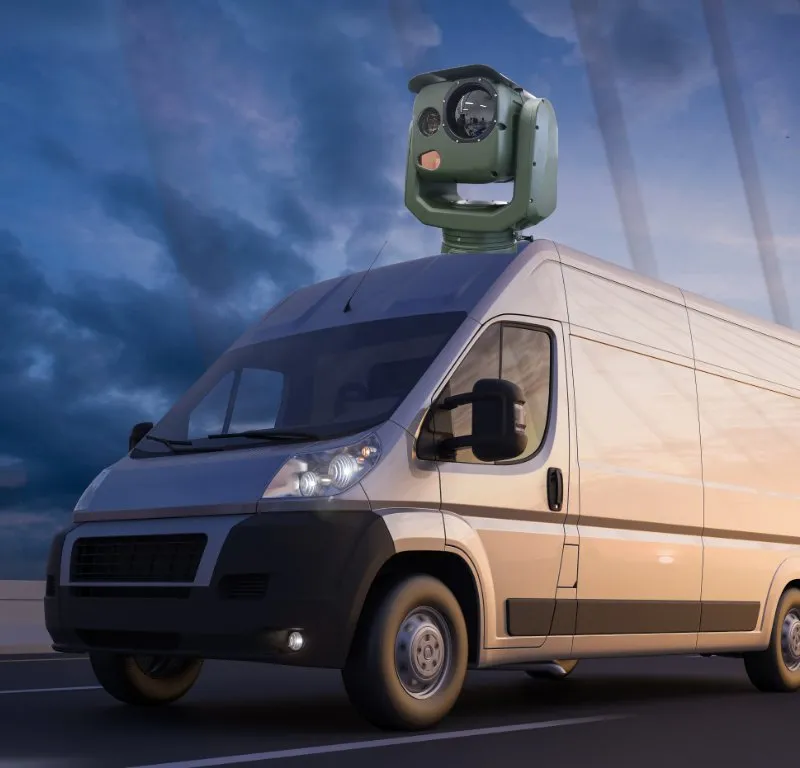

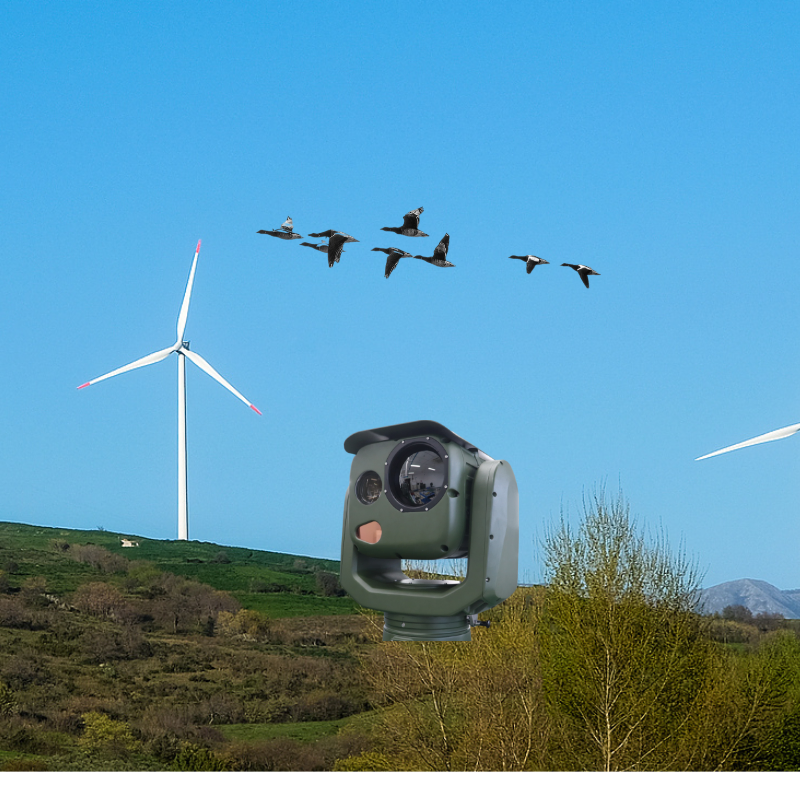

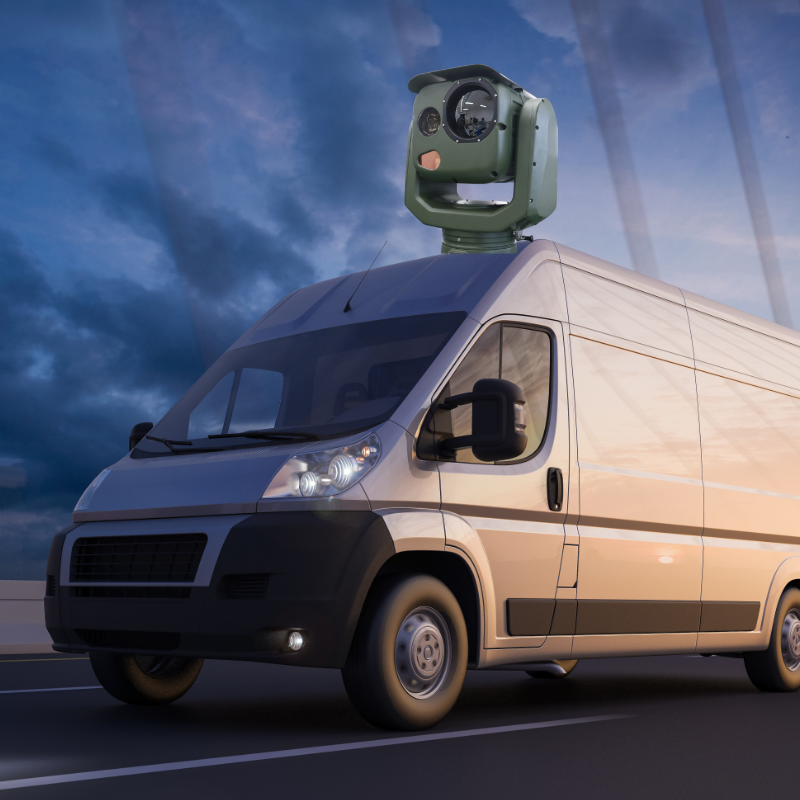

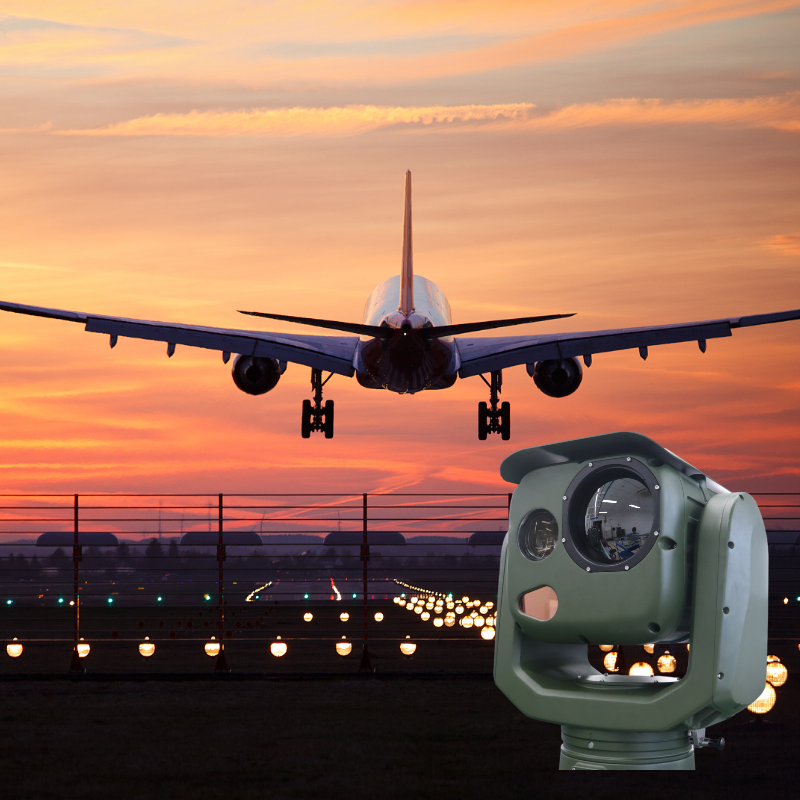

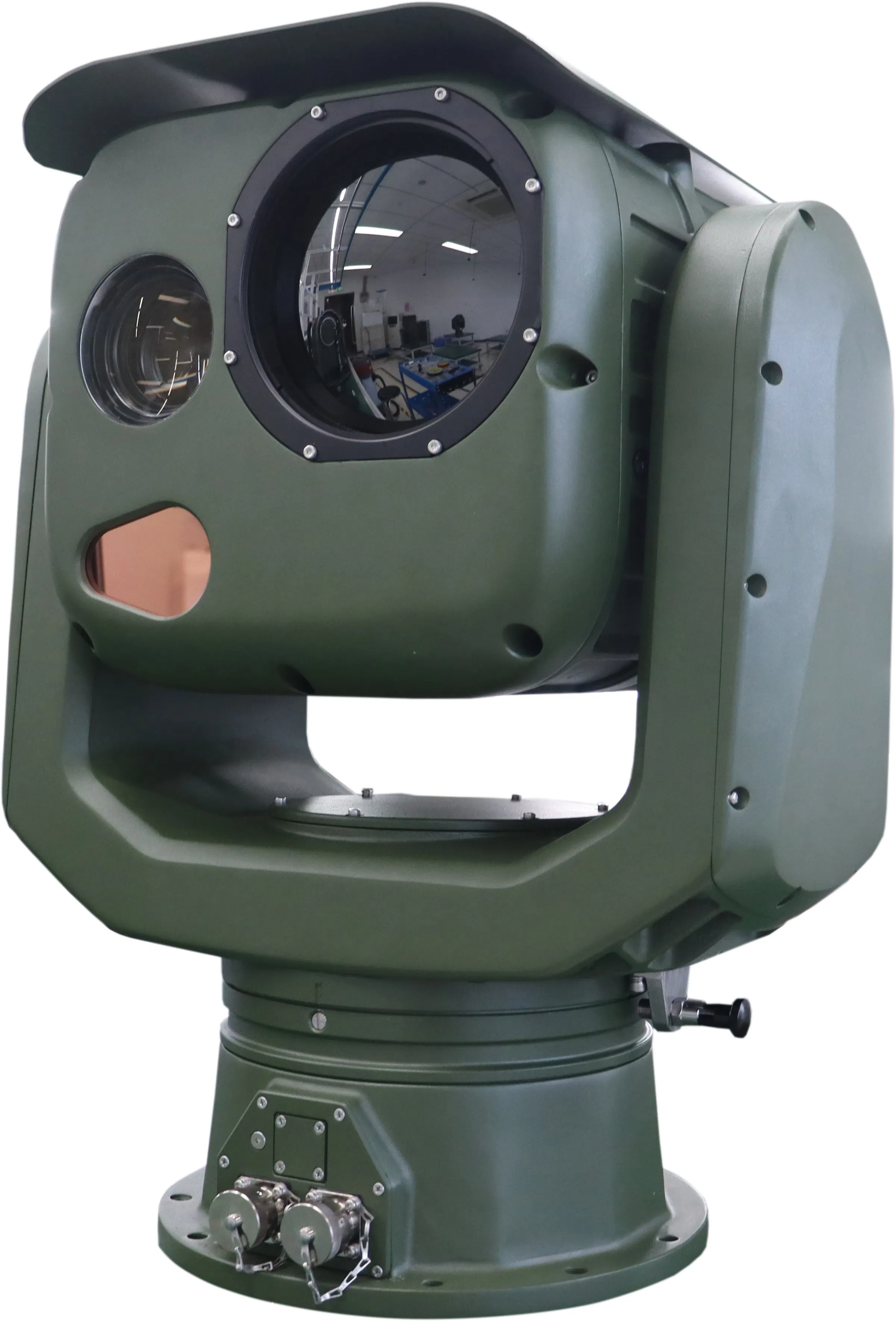

Integrates high-definition visible light, medium-wave/long-wave thermal imaging, and near-infrared laser technologies. Dual sensor advantages ensure no target remains unseen, day or night.
Rotation speed of 80°/s and acceleration of 100°/s², ensuring rapid start-stop and smooth operation for capturing fast-moving targets.
Pan range of 0° - 360° and Tilt range of -90° ~ +90° for full-dimension detection without blind spots.
| Feature | Details |
|---|---|
| Working Distance | Visible camera detection: ≥3000m; Identification: ≥2000m. Thermal camera detection: ≥1500m; Identification: ≥1000m. |
| Thermal Camera | Resolution: 640 x 512; Wavelength: 8μm~14μm; NETD: <30mK; Focal length: 31mm~155mm; SDE digital image enhancement. |
| Visible Camera | 1/1.8" Starlight CMOS; Min Illumination: 0.0002Lux (B/W); Lens: 25~500mm HD electric zoom; Res: 2688x1520. |
| Intelligent Analysis | Front-end AI module (16TOPS, 8-core CPU); Area intrusion detection, boundary crossing, and target recognition. |

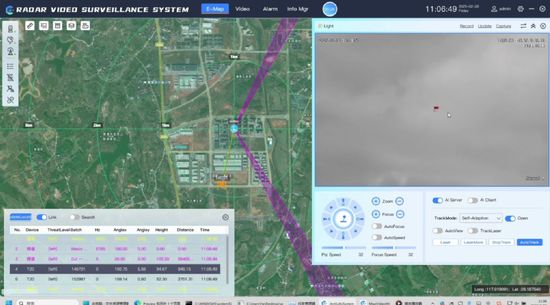

| Tracking Function | Automatic/manual tracking; built-in multi-target algorithms; support for radar linkage and adaptive wave gates. |
| Turntable | Horizontal: 360° continuous; Pitch: -30° ~ +60°; Speed up to 120°/s; Position accuracy: ≤0.01°. |
| Environment | Temp: -40℃~60℃; Protection: IP66; Salt spray resistance: 96 hours continuous. |

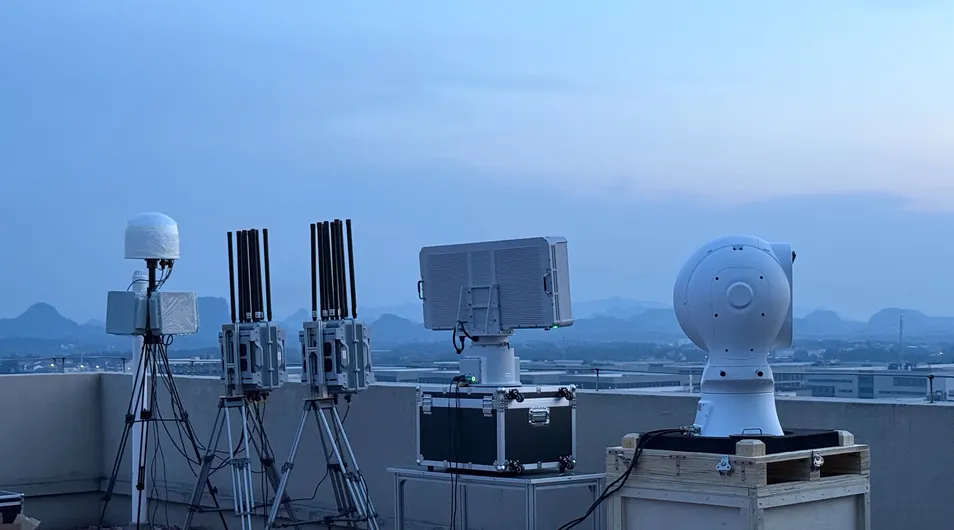

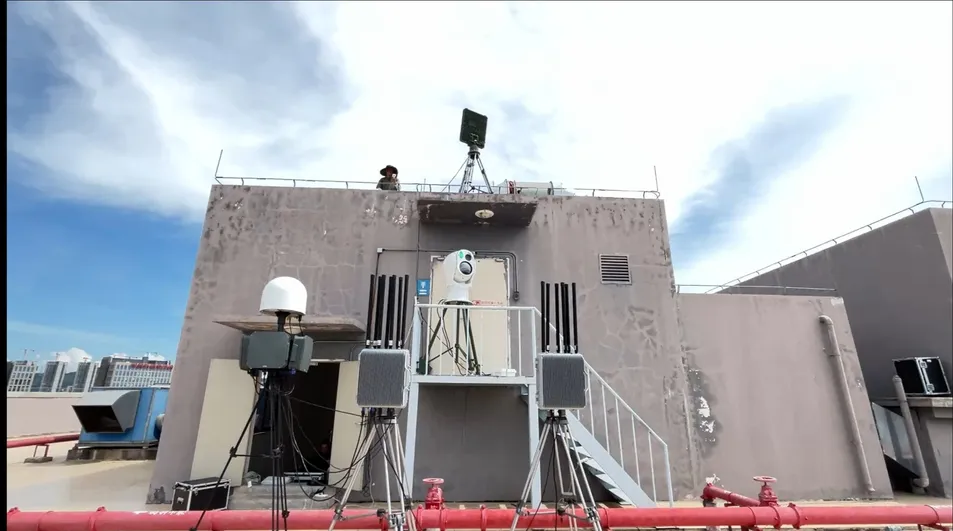

Combines visible camera, cooled/uncooled thermal imaging, and NIR Laser illumination for long-range performance in adverse weather.
Supports optional Laser range-finders, GPS, electronic compass, and AI-analysis modules for precise positioning.
Round-the-clock post-sale service for technical inquiries.
3-month return policy for inspection and refund on quality issues.
Full usage support and technical training services provided.
