| Model NO. | PC664A1 |
| Type | CCTV Camera |
| Certification | CE, FCC, RoHS, EMI/EMC |
| Feature | Waterproof / Weatherproof, High Definition, Auto BLC |
| Resolution | 640×512 |
| Effective Distance | ≧30m |
| Focal Length | 30~150mm/25~225mm |
| Weight | 42kg |

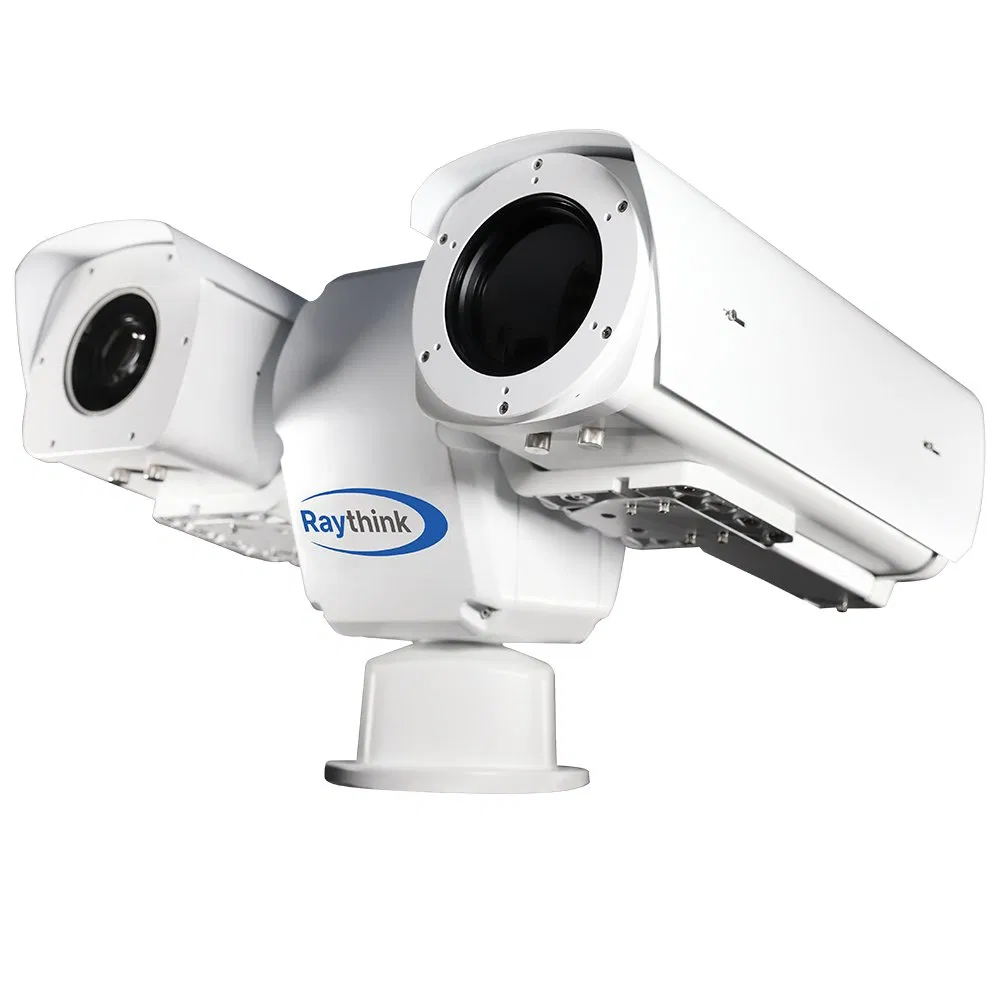

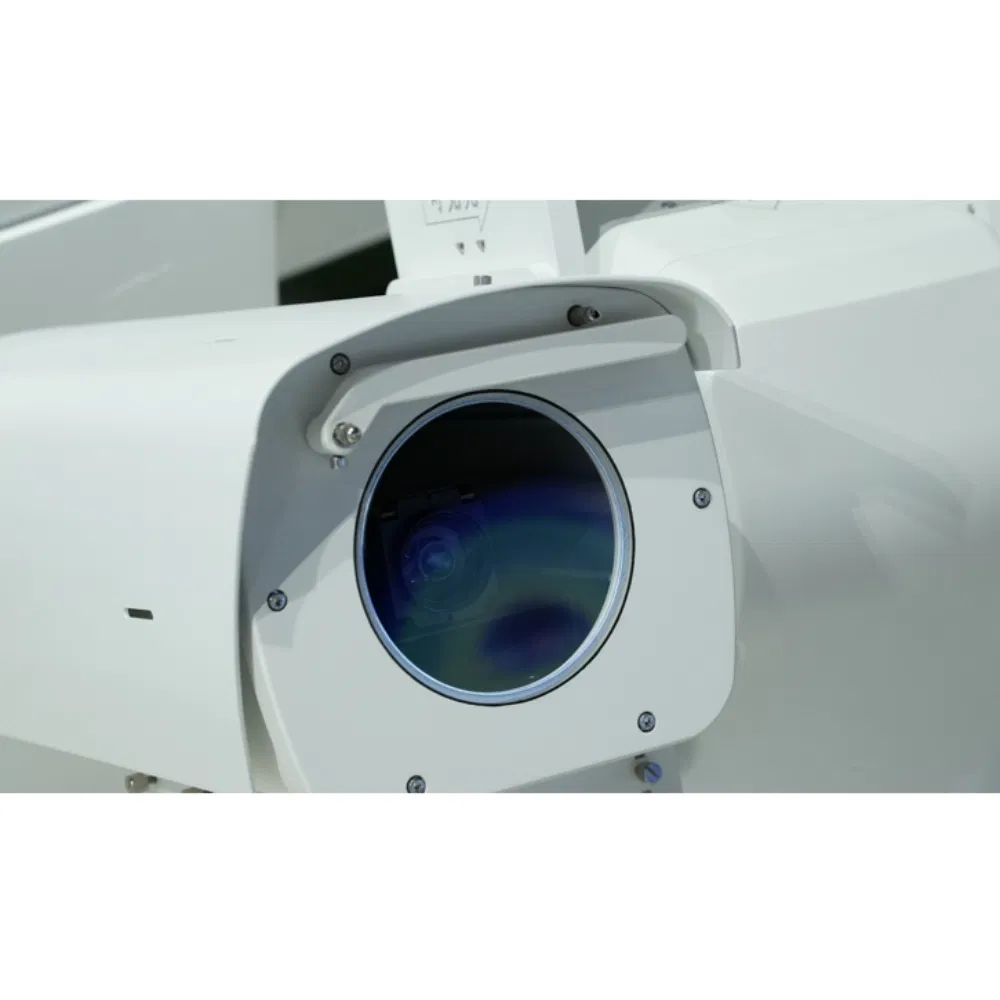

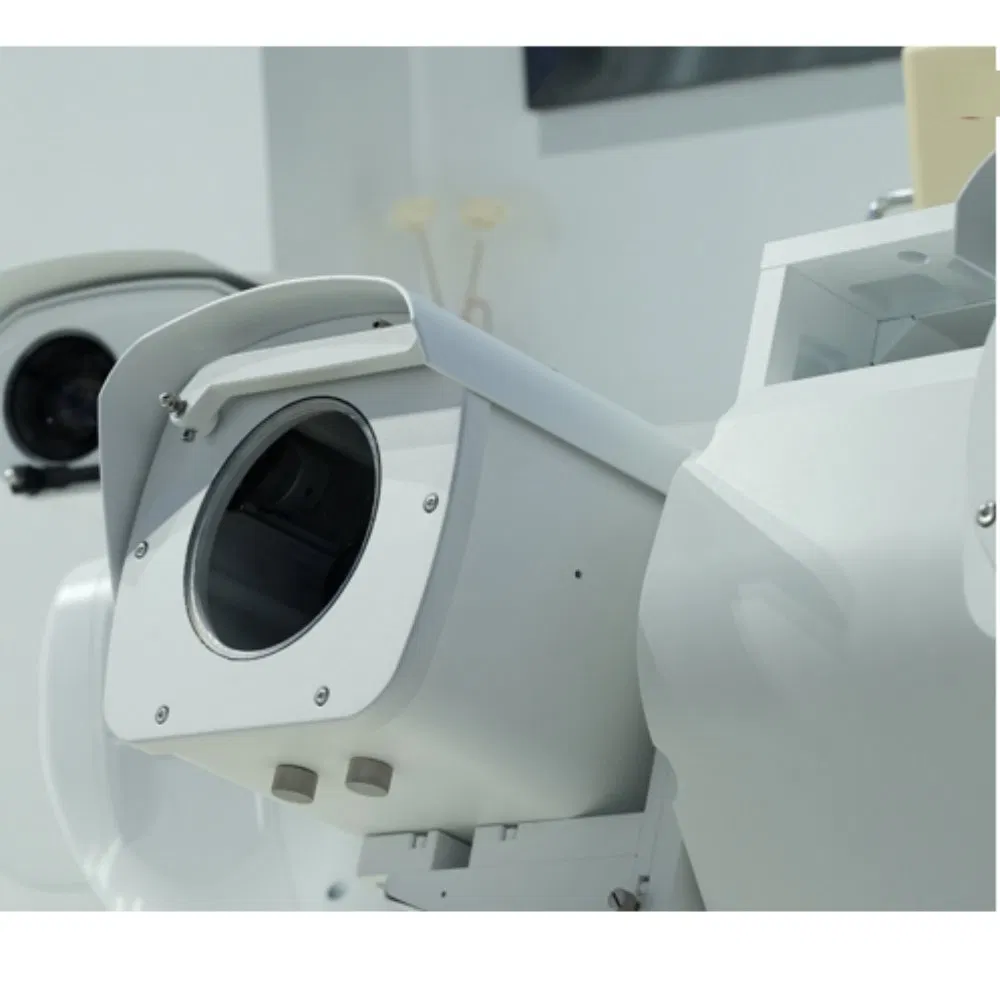

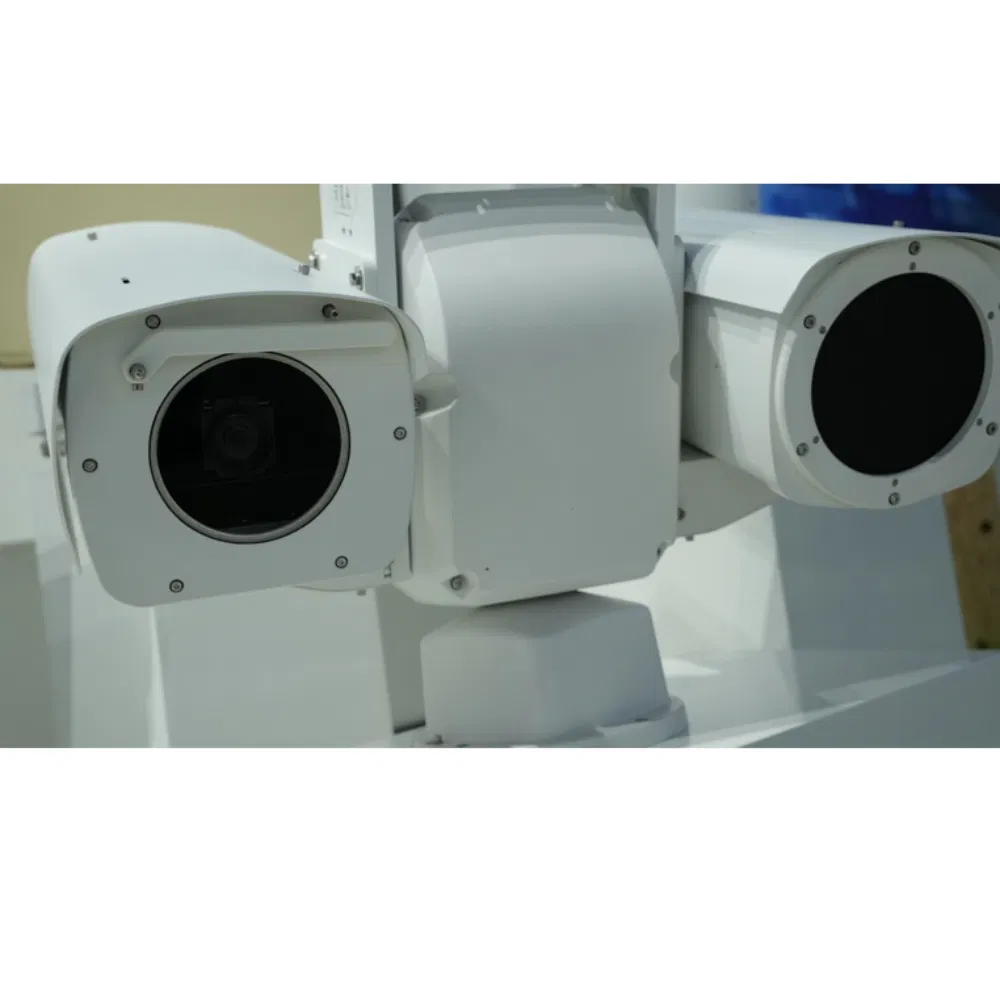

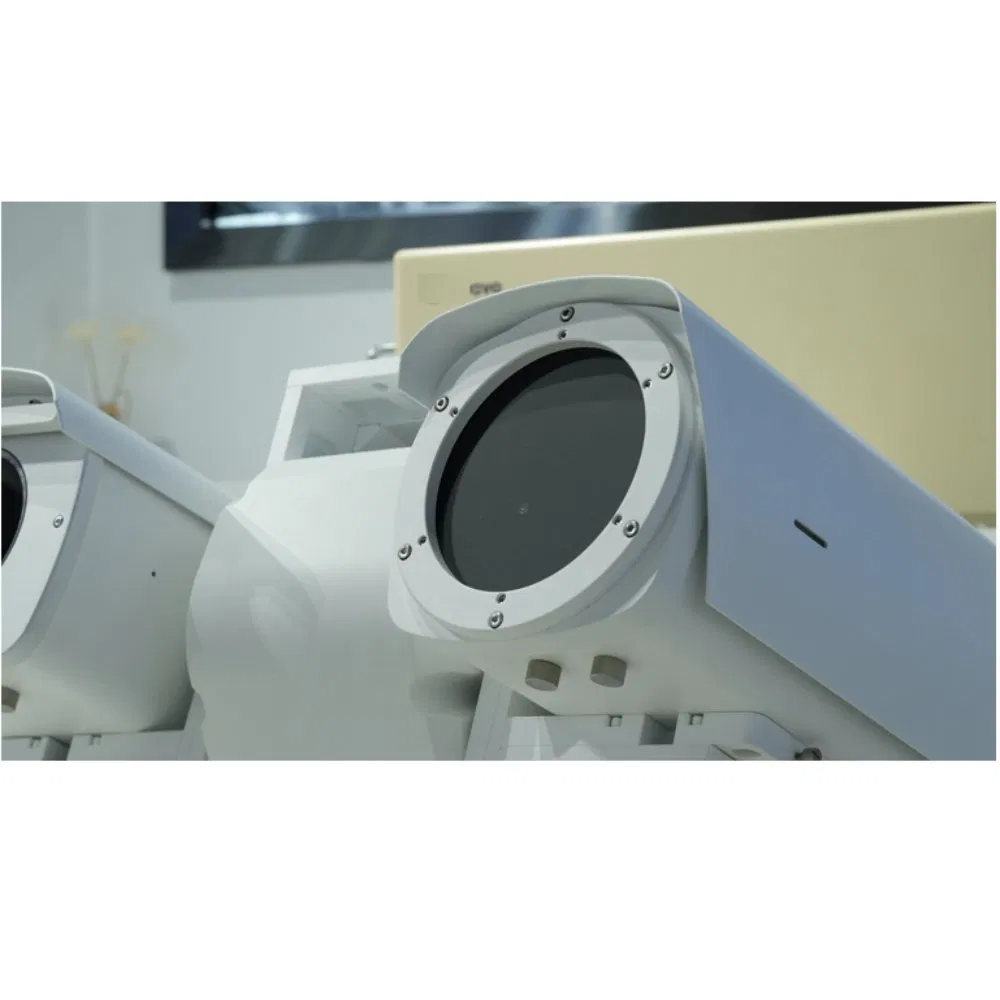

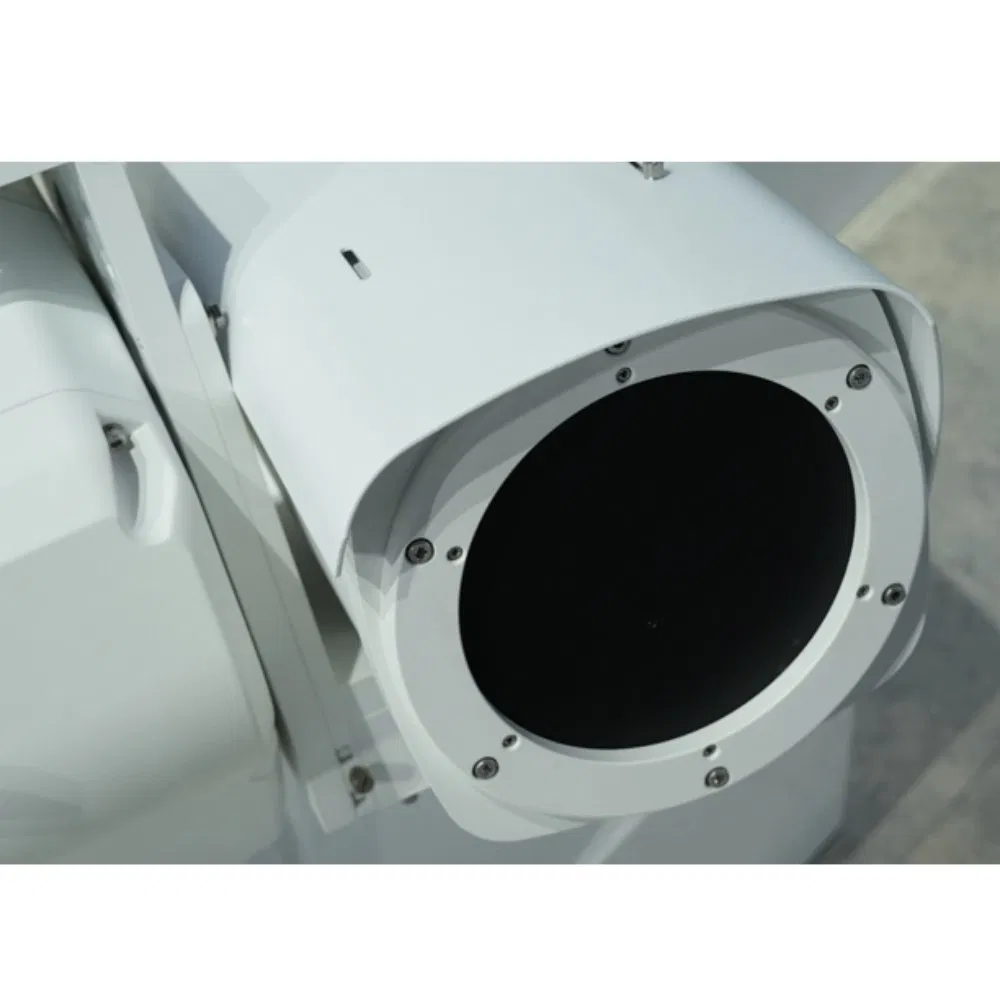

PC6 series is a long-range surveillance solution that integrates HD visible light, cooled/uncooled infrared thermal imaging, large focal-length thermal lens and a high-peformance PTZ system, with intelligent functions such as fire point detection, tripwire intrusion, and regional intrusion detection inside. It provides all-weather, 24/7 surveillance for scenarios such as perimeter surveillance, forest fire prevention and critical area protection.
Adopting the latest 12μm uncooled infrared detectors, integrated with advanced infrared imaging algorithms for better image quality.
Supports a maximum thermal imaging resolution of 1.3 megapixels (1280×1024) and maximum visible light resolution of 4 megapixels (2688×1520).
Supports 75mm and 100mm fixed-focus, as well as 25~75mm continuous zoom infrared lens to meet long-range detection needs.
Features an integrated intelligent fire detection algorithm for efficient and accurate monitoring, as well as reduced false alarms.
Support tripwire/intrusion detection, as well as intelligent detection of fire point.
| Technical Specifications | PC664A1 |
|---|---|
| Thermal Module | |
| Detector Type | VOx, uncooled FPA detector |
| Spectral Range | 8~14μm |
| NETD | ≤40mK(@25°C,F#1.0,25Hz) |
| Resolution | 640×512 |
| Pixel Pitch | 12μm |
| Focal Length | 30~150mm/25~225mm |
| Optical Module | |
| Sensor | 1/1.8" 4-megapixel CMOS image sensor |
| Focal Length | 15-775mm |
| Resolution | 2688×1520 |
| PTZ | |
| Pan | 360° continuous, 0.01°~100°/s |
| Tilt | -90°~+90°, 0.01°~60°/s |
| General | |
| Protection | IP66 Standard; TVS 6000V Lightning Protection |
| Power Consumption | 200W |
| Weight | 42kg |

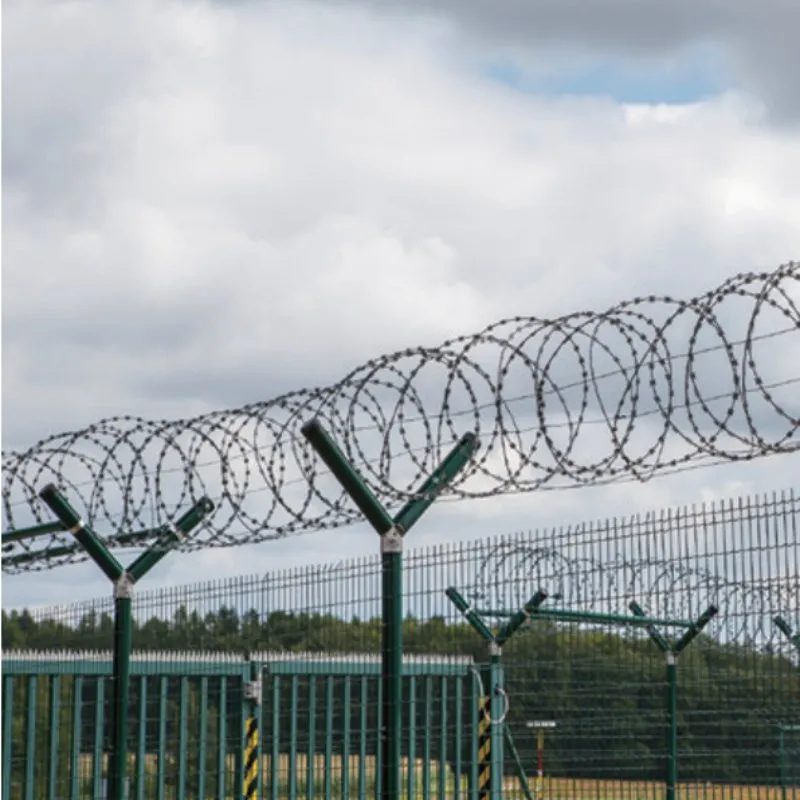

Perimeter Surveillance | Forest Fire Prevention | Urban High-Altitude Observation | Critical Infrastructure Protection
