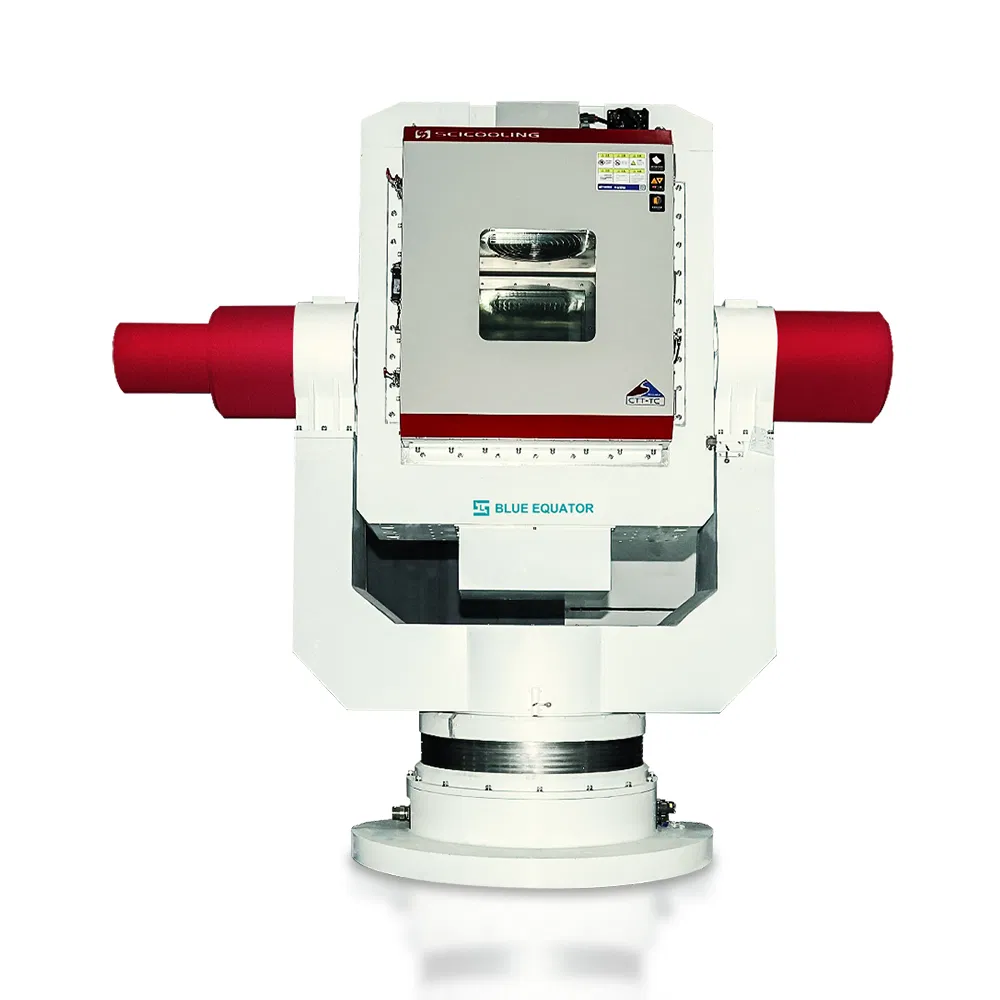

Advanced Multi-Function Three-Axis Testing System with Thermal Control

Customization: Available
After-sales Service: 12month Warranty,Lifelong Technical Service
Function: Inertial Sensors Testing

Product Description

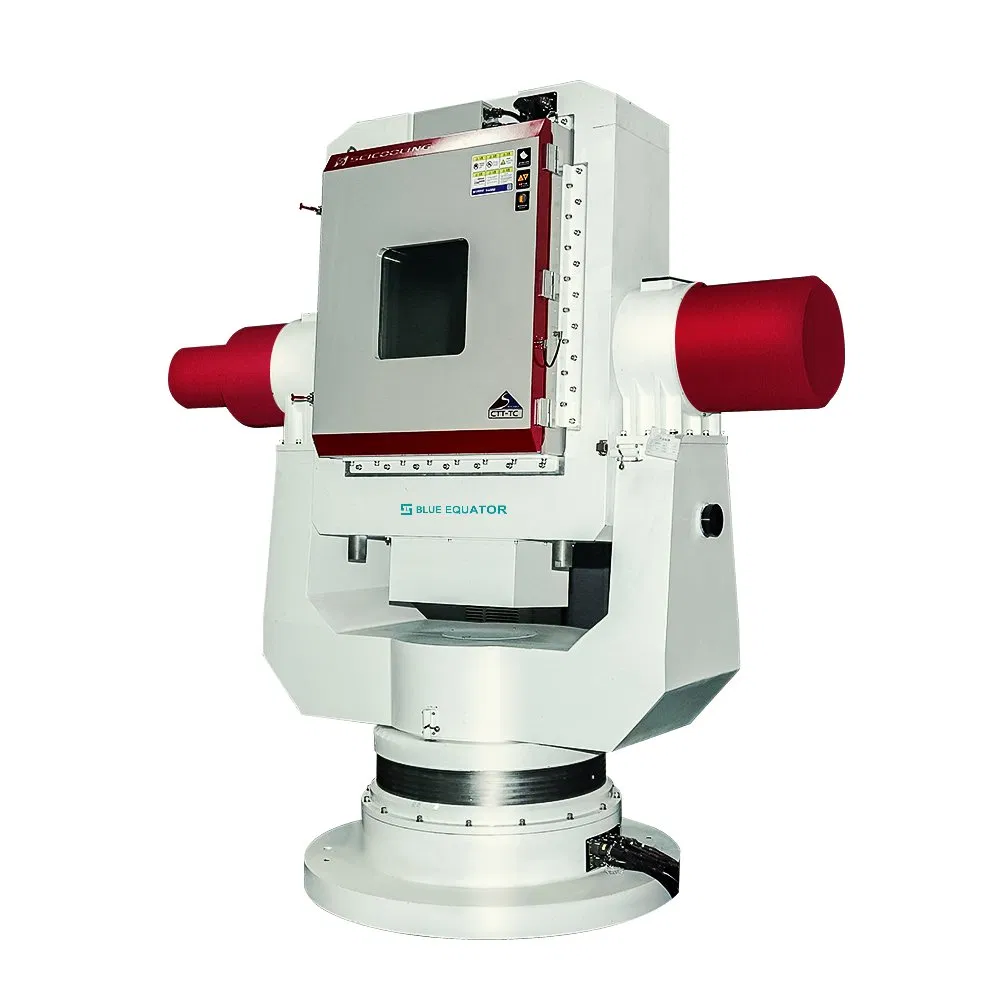

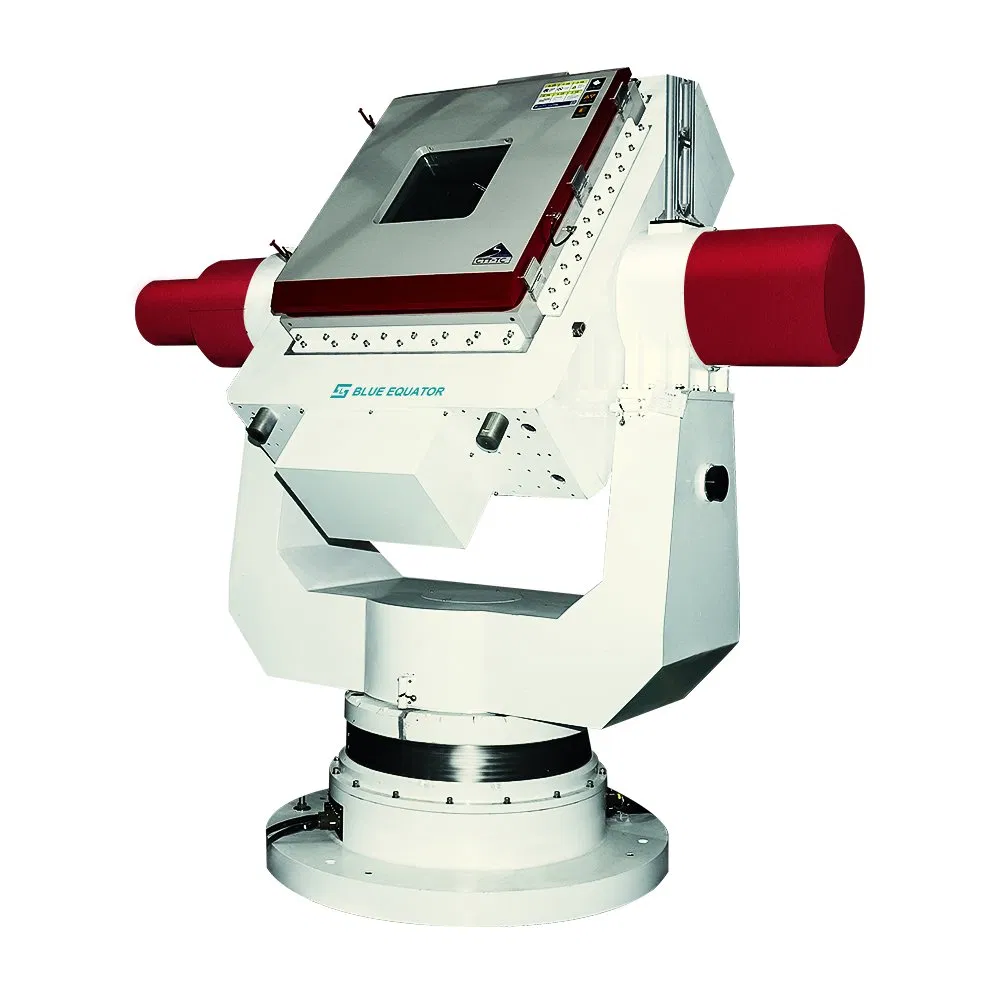

Multi-Function Three-Axis Test System with Thermal Control

This high-performance testing system integrates precision motion control with advanced thermal environmental simulation. Featuring position, rate, and swing modes alongside temperature cycling from -50°C to +70°C, it is engineered to meet diverse testing requirements. With a 60kg load capacity, 0.3mm axis intersection accuracy, and a specialized slip ring system, it serves the aerospace, automotive, marine, and scientific research industries as a comprehensive testing solution.

Technical Specifications

Model NO.
HY-INS3-550CR-C1
Display
Digital
Type
Motion Simulator
Load Mass
60kg
Angular Position Accuracy
< ±3"
Repeatability
< 2"
Rate Resolution
0.0001°/S
Inner Axis Range
±0.001°/S ~ ±500°/S
Middle Axis Range
±0.001°/S ~ ±200°/S
Outer Axis Range
±0.001°/S ~ ±100°/S
Power Source
380VAC/50Hz
Installation
Direct Connected
Three-Axis Test System View 1

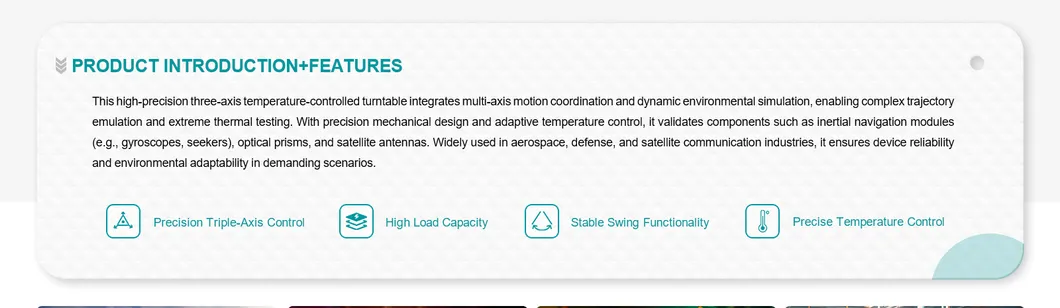

Three-Axis Test System View 2
Three-Axis Test System View 3
Advanced Navigation Solutions

Our high-precision navigation equipment is widely utilized in national defense security, intelligent transportation, marine engineering, and geographic information systems, significantly enhancing operational efficiency and safety.

Packing & Shipping

We provide professional, vibration-resistant packaging tailored for export standards. Flexible transportation options include land, sea, or air through established freight partnerships to ensure safe global delivery.

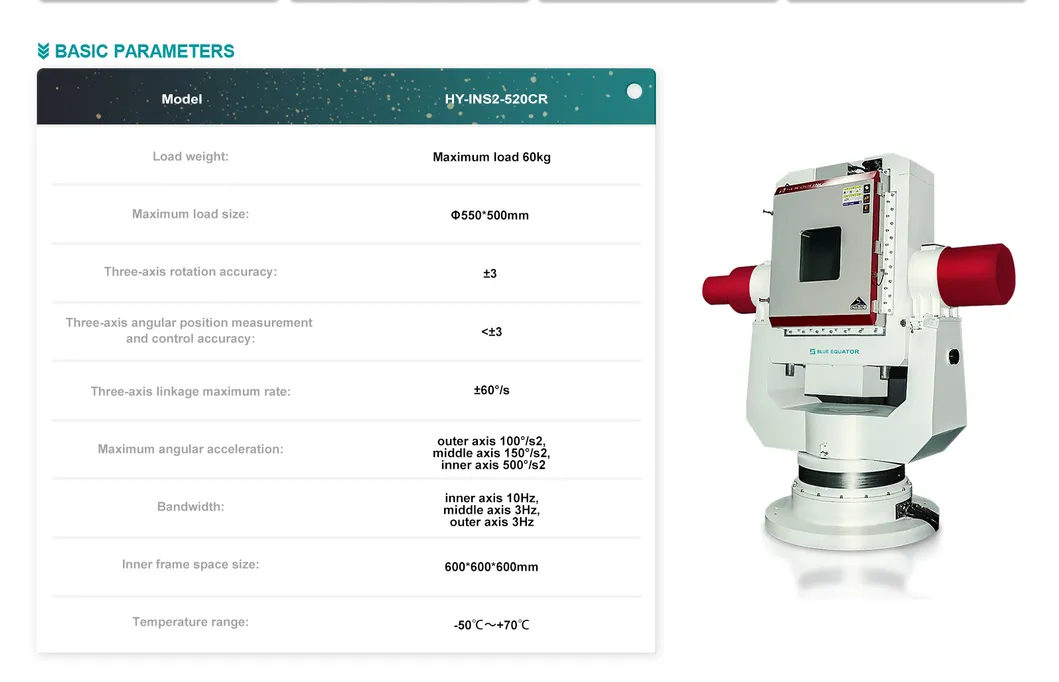

Detailed Component 1

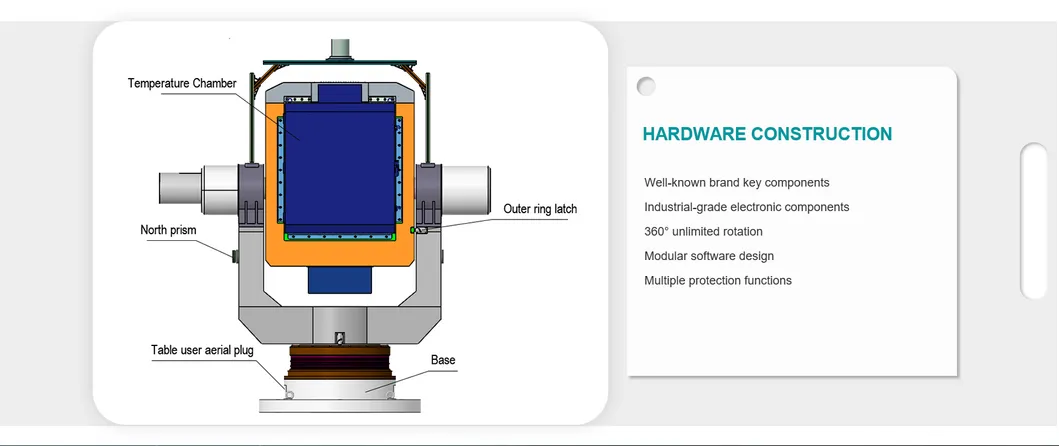

Detailed Component 2

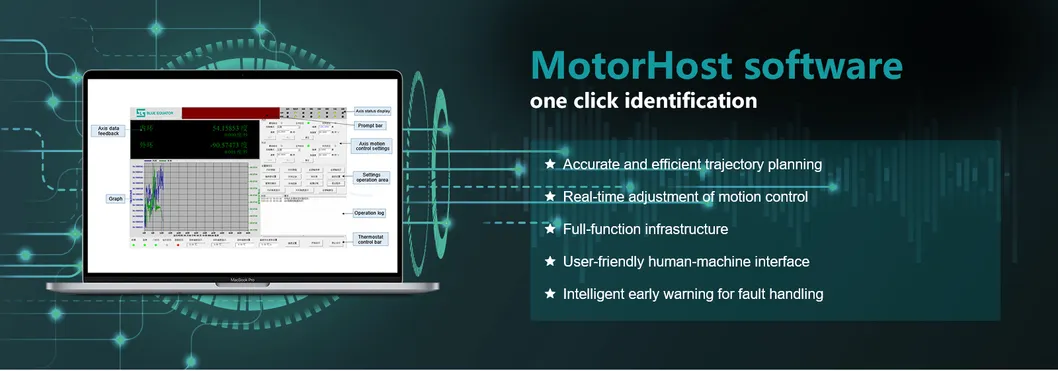

Detailed Component 3

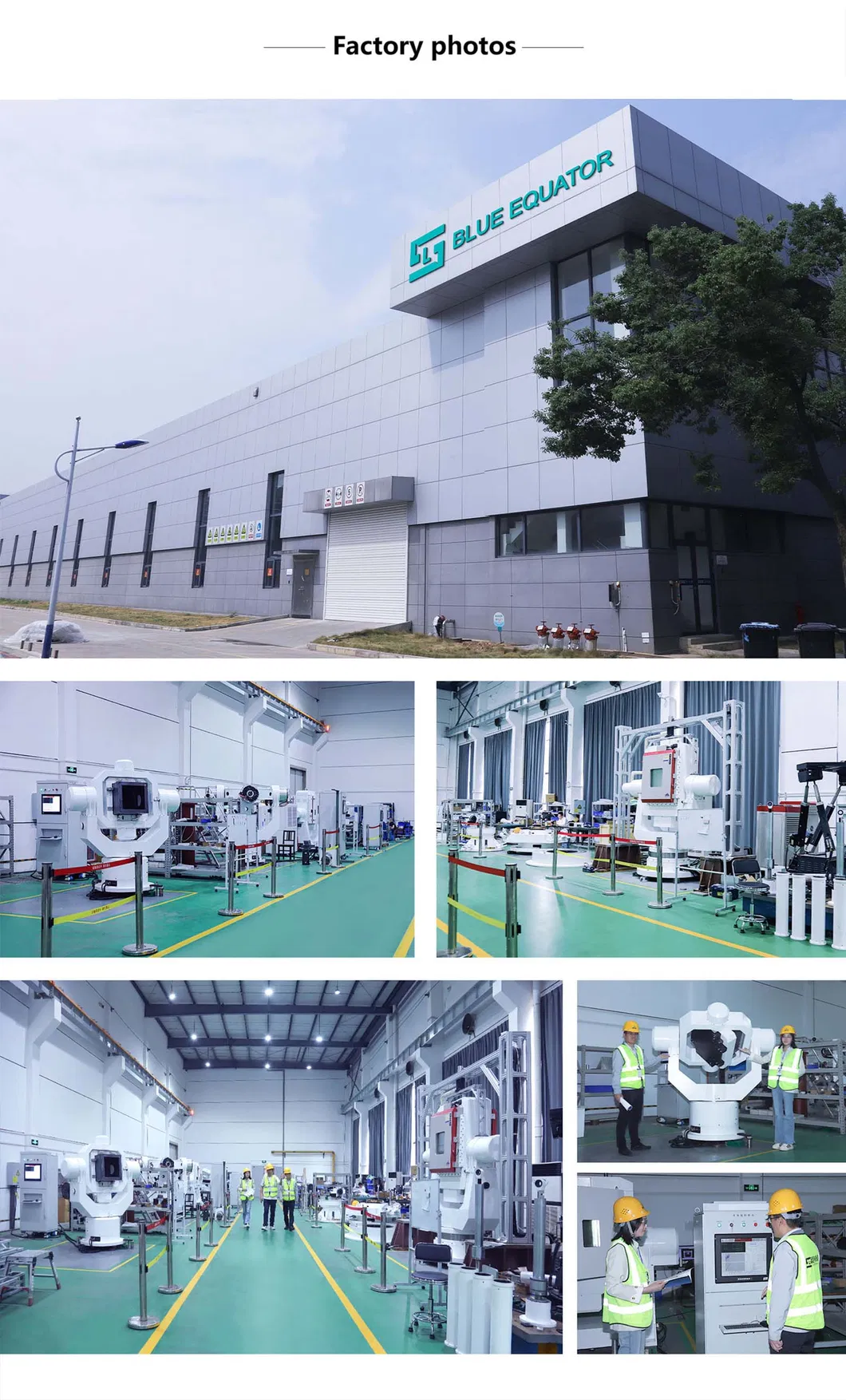

Full Product Specifications

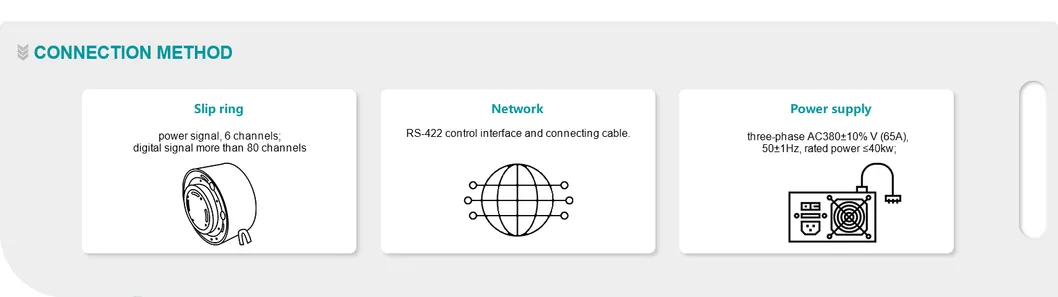

Market Application 1
Market Application 2

Frequently Asked Questions

Q What is the typical lead time for orders?
The delivery time for bulk orders generally ranges from 2 to 6 months depending on customization requirements.
Q Are you a manufacturer or a trading company?
We are a direct manufacturer with our own specialized production facility.
Q Is it possible to test samples before a full purchase?
Yes, we provide samples for technical evaluation and offer full guidance throughout the testing process.
Q What kind of technical support do you offer?
We offer comprehensive online technical services and professional support at no additional cost.
Q What is the warranty period for the equipment?
Standard equipment comes with a 12-month warranty covering manufacturing defects.
Q What payment methods do you accept?
We primarily accept T/T (Telegraphic Transfer), and specific terms are open to negotiation.
