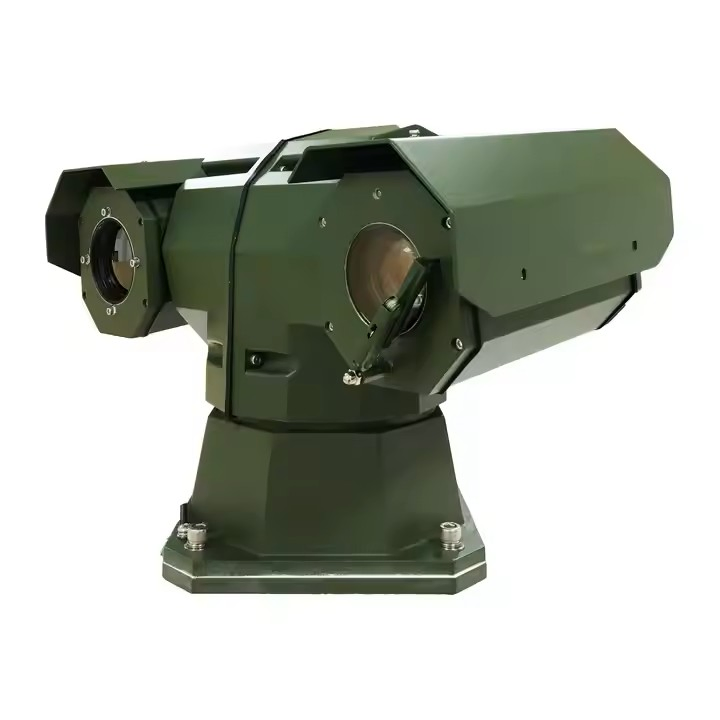

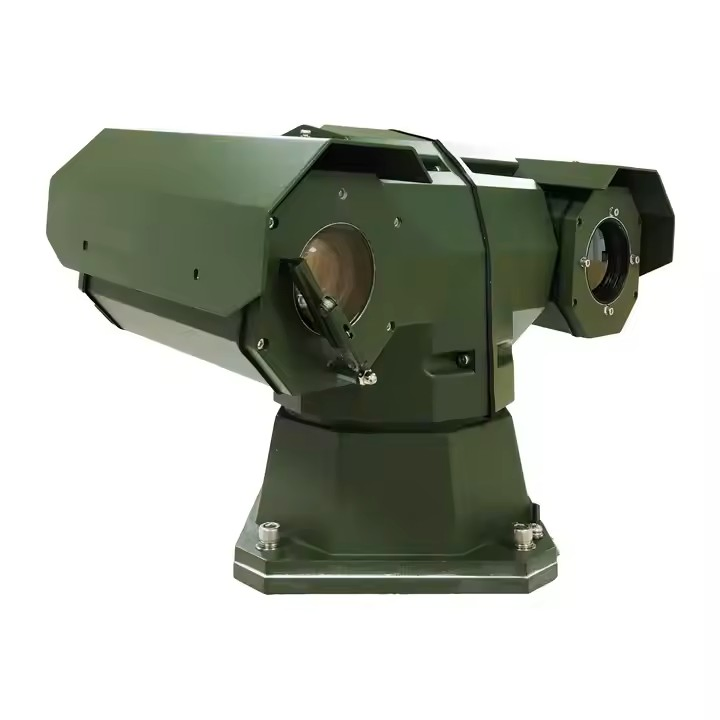

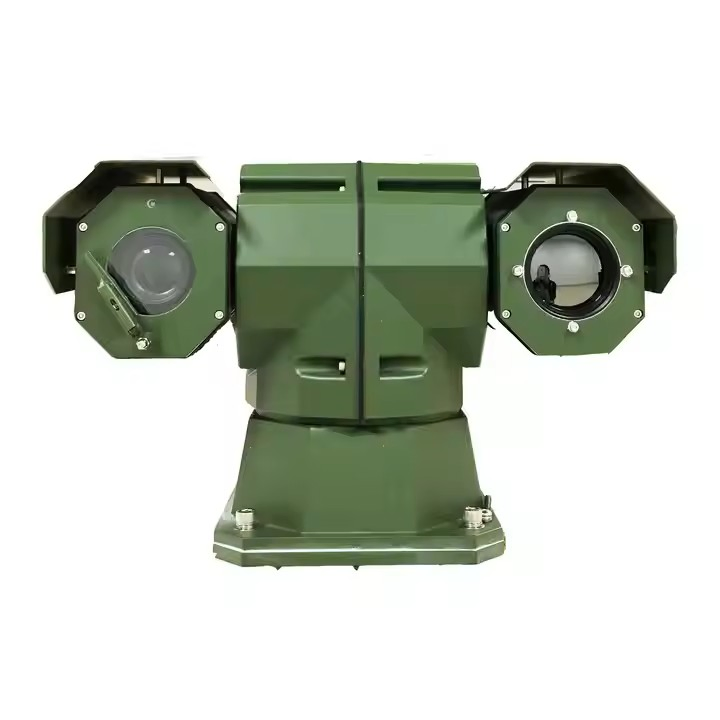

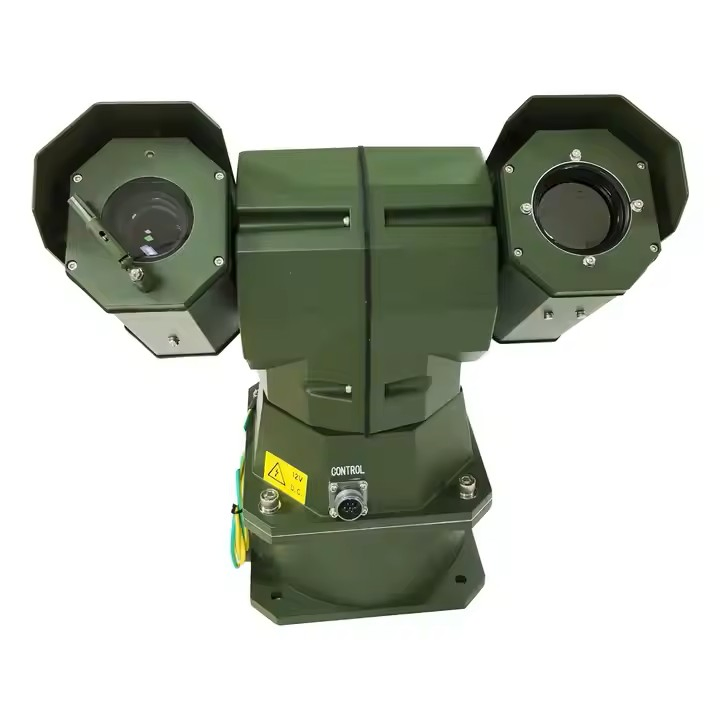

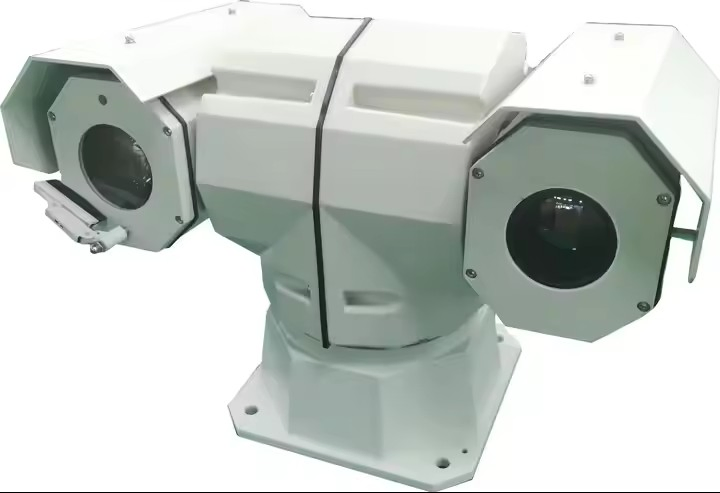

Harbor Vehicle Long Range 10km 15km Day Night IR PTZ Cooled Thermal Zoom Imaging Security Camera with LRF
| Category | Specifications | |||
|---|---|---|---|---|
| Monitoring Distance | Visible Light | 1000m | ||
| Thermal Imaging | Detection: 1400m (Human) / 4000m (Vehicle) | Recognition: 460m (Human) / 1000m (Vehicle) | ||
| Video Coding | Sensor Type | 1/2.8" Progressive Scan CMOS (2.1 MP) | ||
| Focal Length | f=5.9~188mm, 32X optical zoom | |||
| Resolution | 1920*1080 (H.264/H.265) | |||
| Thermal Camera | Detector | Uncooled microbolometer focal plane array | ||
| Effective Pixels | 384×288 | |||
| FOV / Lens | 8.78°×6.59° / 50mm Lens | |||
| Pan-Tilt | Angle | Horizontal 360° continuous, Vertical -90°~+90° | ||
| Speed | Horizontal 0°~80°/s, Pitching 0°~60°/s | |||
| Environment | Protection | IP66, TVS 6000V Anti-lightning, Working Temp: -25ºC~+55ºC | ||

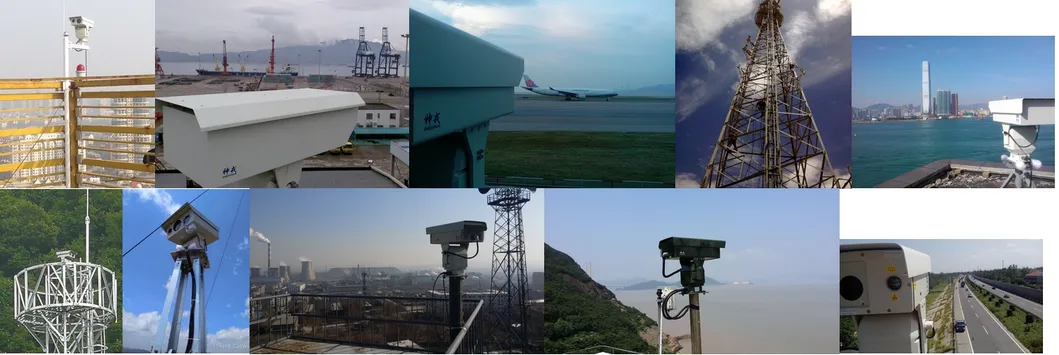

This high-precision system is ideal for UAV detection and tracking, border defense, safe city monitoring, forest fire-proof monitoring, railway monitoring, harbor monitoring, and oilfield surveillance.

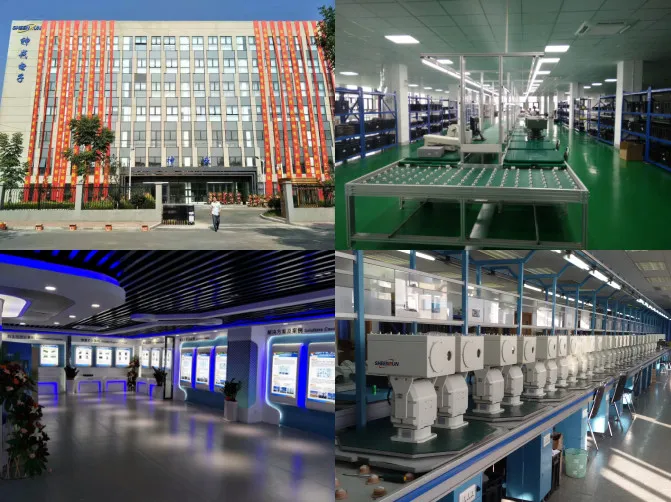

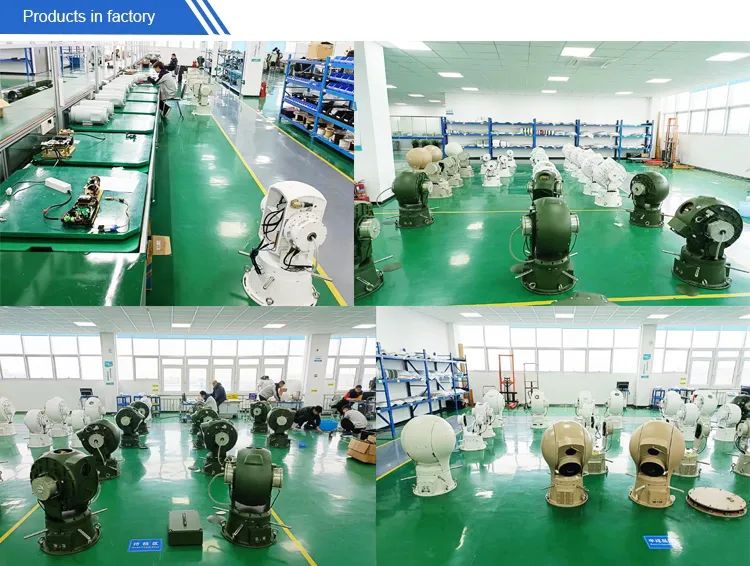

Founded in 2004, the manufacturer is a leading provider of night vision and rugged information equipment. The facility operates as a dedicated research center for night vision surveillance technology. With a focus on independent innovation, the team developed advanced laser night vision cameras and uncooled continuous zoom infrared thermal imaging systems.
The products are widely utilized in national defense, transportation, and public security sectors, providing all-weather surveillance and technical support for safety maintenance. With over a decade of industry experience, the technical team includes specialists and senior engineers holding numerous patents.
