Baggage Scanner Has Artificial Intelligence Is Adopted to Drive Product Values

1 / 1

Baggage Scanner Has Artificial Intelligence Is Adopted to Drive Product Values

Customization:	Available
Portable:	Non Portable
Form:	Flatbed

Send Inquiry

Product Description

Basic Specifications

Model NO.

FDT-SE6040

Application

Security Check, Industrial

Type

Industrial X-ray Detector

Certification

CE, ISO, FCC

Alarm Form

Display Alarm

Product Type

Conveyor

Specification

1845*865*1313 mm

Capacity

10000/Year

Product Description

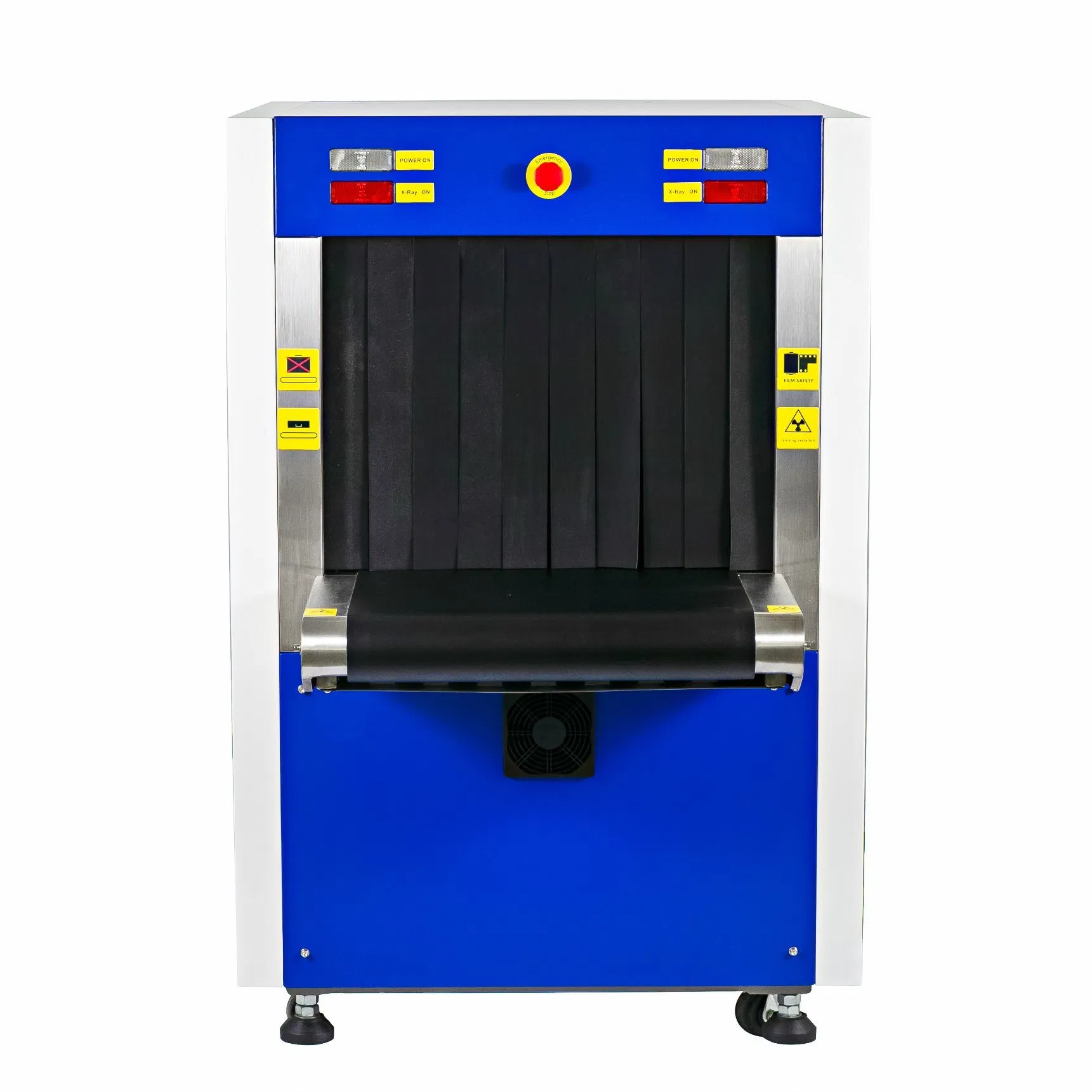

FDT-SE6040 X-ray Baggage Scanner is an advanced security solution widely utilized for public inspection of baggage, goods, and packages. Its applications span across government buildings, office complexes, hotels, courts, prisons, logistics points, public security checkpoints, schools, and international large-scale events. It is equally effective for sports competitions, exhibitions, convention centers, and transportation hubs such as high-speed rail stations, cruise terminals, and customs ports.

Technical Performance

Category	Parameter	Specification Details
Basic Specs	Penetration	43mm Steel Plate
	Wire Resolution	≤40AWG
	Penetration Resolution	≤32AWG
	Spatial Resolution	Horizontal: Ф1.0mm / Vertical: Ф1.0mm
	Dose per Inspection	≤3.0μGy
	Noise	55 dB
X-Ray Generator	Generation Direction	From bottom, from one side
	Tube Voltage	100~160kV Adjustable
	Tube Current	0.4~1.2 mA Adjustable
	Cooling / Duty Cycle	Sealed oil / 100%
	X-ray Leakage	<0.1µGy/h

System Configuration & Processing

Core Configuration

International brand electrical components
Industrial PLC circuit control
Capacitance integral analog conversion
Stable industrial computer system
Ergonomic reading system
Advanced radiation protection system

Image Processing

Color / Black & White imaging
Organic / Inorganic separation
Edge & Partial enhancement
High/Low energy penetration
Image storage (>100,000 pictures)
High density alarm & drug detection

Frequently Asked Questions

Is customization available for these units?

Yes, OEM and ODM services are highly welcome. The systems can be customized to meet specific industrial or security requirements.

What is the MOQ for the X-ray scanner?

We do not have a strict MOQ limit for standard items. Single units are available for sample or evaluation purposes.

What kind of warranty and technical support is provided?

We provide a one-year free warranty for failures caused by non-human factors and lifetime technical support. We also offer free one-on-one online training.

What after-sales services are available?

We offer comprehensive after-sales support including remote installation guidance, online video debugging, 24-hour telephone support, and maintenance services.

What is the typical lead time after payment?

If the units are in stock, lead time is 3-5 days. For custom or non-stock production, it typically takes 10-20 days.

How is the quality controlled during production?

Every production process is strictly controlled in accordance with ISO9001, CE, and FCC certification standards to ensure maximum reliability.
