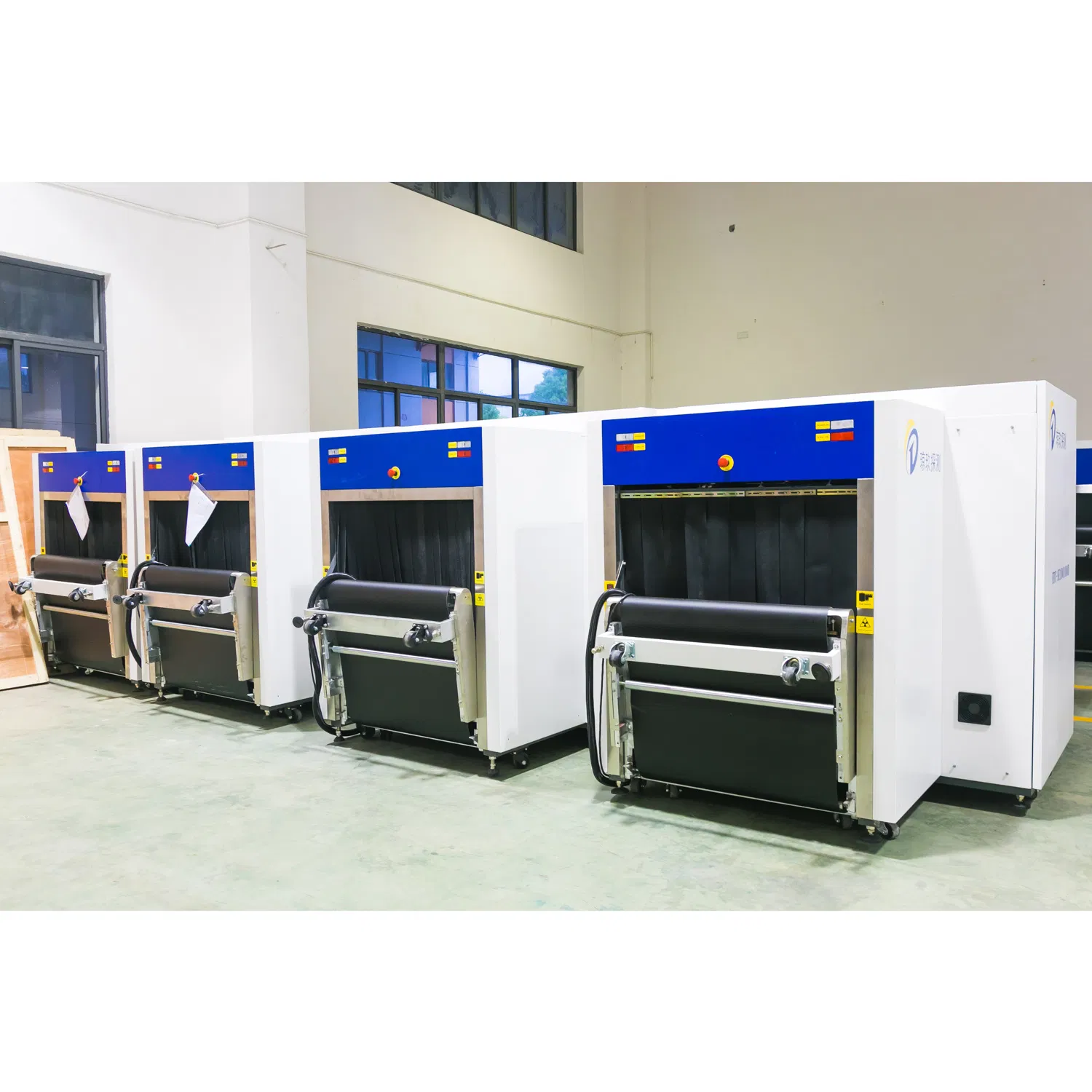

Dual View Dual Energy X-ray Baggage Scanner FDT SE6040D for Enhanced Security in Airports and Entertainment Venues

Customization:	Available
Portable:	Non Portable
Form:	Flatbed

Basic Information

Model NO.

FDT-SE6040D

Application

Security Check, Industrial

Type

Industrial High-definition X-ray Detector

Certification

CE, ISO, FCC

Customized

Available

Alarm Form

Display Alarm

Appearance

Vertical

Product Type

Conveyor

Transport

Wooden Box

Specification

2440*1450*1580

HS Code

9022191010

Capacity

1,000,000 Units

Product Overview

X-ray Baggage Scanner

Dual View & Dual Energy | FDT-SE6040D

X-ray baggage scanners operate based on the x-ray penetration principle. This technology is widely used in national security, covering national research institutions, detection centers, courts, prisons, procuratorates, army installations, airports, subway and railway stations, docks, schools, embassies, tourist attractions, logistics, and major events.

Technical Specifications

General Specifications
Dimensions	1911(L) × 1245mm (W) × 1370mm (H)
Tunnel Size	605mm (W) × 405mm (H)
Conveyor Speed	0.20 m/s ±0.02m/s
Max Load	200 kg
Power Consumption	1 kVA
Performance Parameters
Steel Penetration	43mm Steel Plate
Wire Resolution	≤40AWG
Dose per Inspection	≤3.0μGy
Noise Level	55 dB
X-ray Generator
Direction	From bottom and from one side
Tube Voltage	100~160kV Adjustable
Tube Current	0.4~1.2 mA Adjustable
Cooling / Duty Cycle	Sealed oil / 100%

Advanced Features & Processing

Image Processing

Color / Black & White
Organic / Inorganic
Super Enhancement
Edge/Partial Enhancement
Grayscale Scanning
High/Low Energy Penetration
Image Storage (>100k pics)
50x Playback

System Functions

One-key Shut-down
High Density Alarm
Drug & Explosive Detection
Built-in Self-diagnosis
Ergonomic Reading System
Radiation Protection System

Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a professional manufacturer of security detection systems. We focus on providing strong, durable, high-quality equipment backed by satisfactory and considerate service.

What types of security products do you offer?

We offer 11 security series including X-Ray Baggage Scanners, Body Scanners, Walk-Through and Hand-Held Metal Detectors, Under Vehicle Surveillance, Explosive/Narcotics Detectors, and Liquid Detectors.

What is the standard warranty and after-sales support?

We provide a one-year free warranty for non-human failure and lifetime technical support. We also offer paid warranty extensions, online one-on-one training, and maintenance services.

Can you handle large-scale projects?

Yes, we have completed significant projects for International Conferences, High-speed railway stations, People's Courts, and various government administrative committees.

What is the typical lead time for an order?

For items in stock, the lead time is usually 3-5 days. If production is required, it typically takes 10-20 days depending on the order volume.

How do you ensure product quality?

Every production process is strictly controlled in accordance with ISO9001, ISO14001, OSHA18001, CE, and FCC certifications to ensure the highest reliability.
