X-ray Baggage Scanner About Fdt-Se6040 Has Feature of Processing Display by LCD

1 / 1

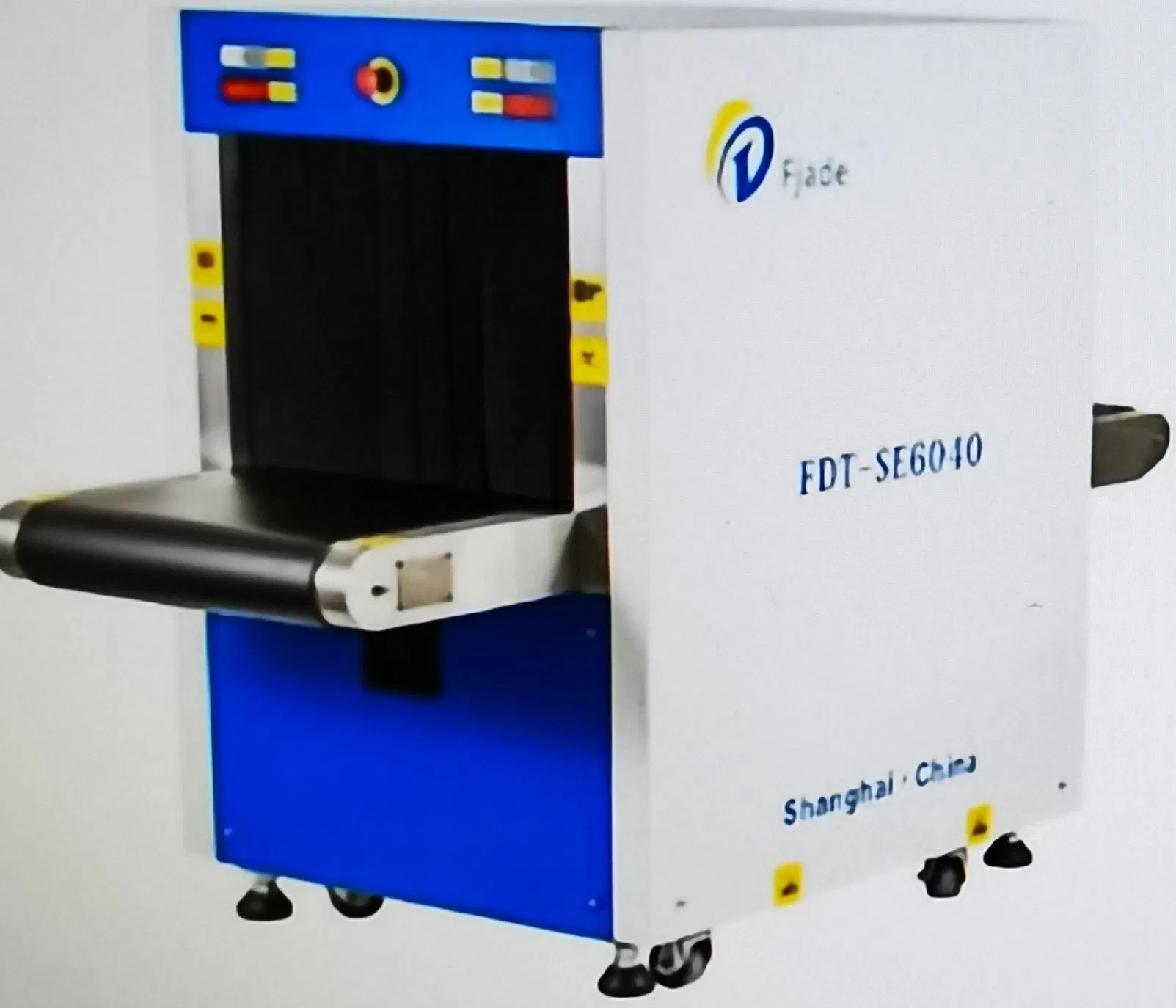

X-ray Baggage Scanner About Fdt-Se6040 Has Feature of Processing Display by LCD

Customization:	Available
Portable:	Non Portable
Form:	Flatbed

Send Inquiry

Product Description

ℹ️

Basic Specifications

Model NO.

FDT-SE6040

Application

Security Check, Industrial

Type

Industrial High-definition X-ray Detector

Certification

CE, ISO, FCC

Customized

Available

Alarm Form

Display Alarm

Appearance

Vertical

Product Type

Conveyor

Specification

1845*865*1313 mm

Production Capacity

10,000 / Year

📋

Product Description

FDT-SE6040 X-ray Baggage Scanner is an advanced security solution widely implemented for the inspection of baggage, goods, and packages in high-traffic public areas. Designed for versatility, it is suitable for government buildings, star-rated hotels, courts, prisons, logistics points, airports, international large-scale events, and exhibition centers.

Technical Performance

Detection Capability:

Penetration: 43mm Steel Plate
Wire resolution: ≤40AWG
Penetration resolution: ≤32AWG
Spatial resolution: Horizontal Ф1.0mm / Vertical Ф1.0mm

X-Ray Generator:

Tube voltage: 100~160kV (Adjustable)
Tube current: 0.4~1.2 mA (Adjustable)
Cooling: Sealed oil / 100% Duty cycle
X-ray leakage: <0.1µGy/h

Advanced Configuration

Equipped with international brand electrical components for reliability.
Industrial PLC circuit control and capacitance integral analog conversion.
High-stability industrial computer system for long-term operations.
Radiation protection system designed to be close to natural background levels.

⚙️

Image Processing & Features

Viewing Modes:

Color / Black & White, Organic / Inorganic imaging, Grayscale scanning, Edge enhancement.

Smart Tools:

Super enhancement, partial zoom in/out, high/low energy penetration, and continuous observation.

Storage & Security:

Image storage capacity >100,000 pictures, Playback (50 images), and high-density alarm.

Safety Functions:

One-key shut-down, drug and explosive powder detection, and built-in automatic self-diagnosis.

🌍

Major Project References

Sector	Project Details
Conference & Events	Internet Conference; Import Expo; World Swimming Championships; UN Conference on Geographic Information.
Transportation	High-speed railway stations; Bus stations; Passenger terminals.
Public & Government	People's Courts; Prison facilities; Development Zone Administrative Committees; Agricultural Divisions.

❓

Frequently Asked Questions

Are you a professional manufacturer?

Yes, we are a professional manufacturer of security detection systems. We focus on providing strong, durable, and high-quality equipment with dedicated support services.

What is the warranty period for your products?

We provide a 1-year free warranty for failures caused by non-human factors and offer lifetime technical support. Paid warranty extensions are also available with no upper limit on years.

What kind of after-sales services do you provide?

Our core services include installation guidance, online technical training for partners and end-users, and debugging/maintenance support via video calls or telephone (24/7 available).

What is the lead time for order delivery?

If the items are in stock, the lead time is 3-5 days. For custom or non-stock production, it typically takes 10-20 days.

Do you support OEM and ODM customization?

Yes, OEM and ODM projects are highly welcome. We can customize the equipment to meet specific client requirements.

How do you ensure product quality?

Every production process is strictly controlled in accordance with ISO, CE, and FCC certification standards to ensure the highest reliability and safety.
