Basic Information
Model NO.FDT-SE100100
ApplicationSecurity Check, Industrial
TypeIndustrial High-definition X-ray Detector
CertificationCE, ISO
CustomizedAvailable
Alarm FormDisplay Alarm
AppearanceVertical
Product TypeConveyor
Product Description

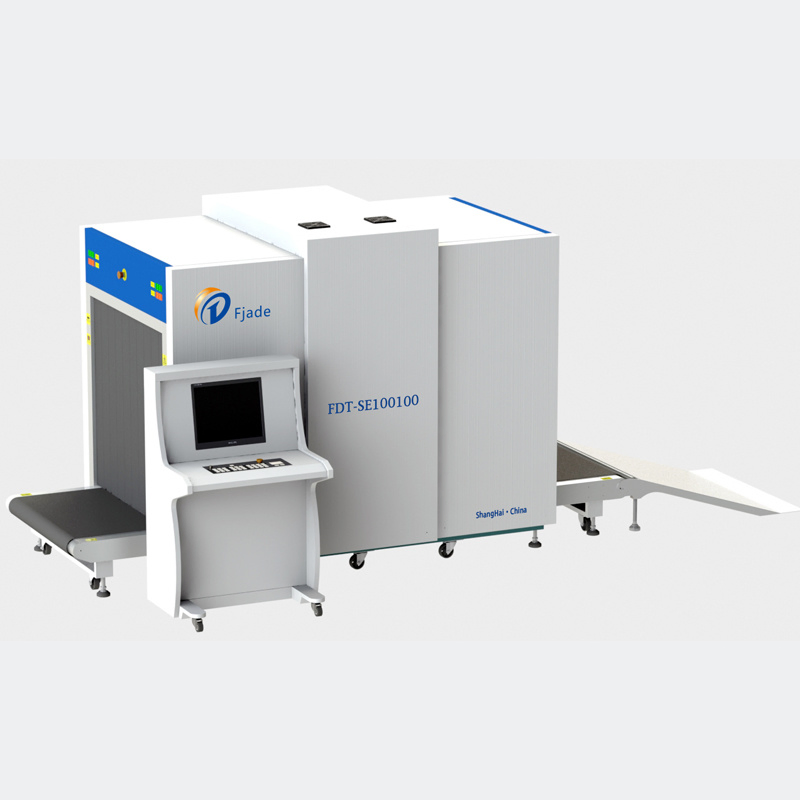

X-ray Baggage Scanner
Model: FDT-SE100100
X-ray baggage scanners operate based on the x-ray penetration principle. Widely used in security contexts including research institutions, detection centers, courts, prisons, airports, subway and railway stations, docks, schools, embassies, tourist attractions, logistics, and major events.
Technical Specifications
General Specifications
Dimensions3328mm(L)×1315mm (W)×1768.5mm(H)
Tunnel size1010mm (W)×1010mm (H)
Conveyor speed0.20-0.22m/s
Weight815Kg
PowerAC220 V, 50Hz ± 3Hz
Basic Performance
Penetration30mm - 34mm Steel Plate
Wire Resolution40AWG
Spatial ResolutionHorizontal/Vertical Ф1.0mm
System Components
X-Ray Generator
• Direction: Up-Bottom
• Tube voltage: 140~160kV Adjustable
• Tube current: 0.4~1.2mA Adjustable
• Cooling/ Duty cycle: Sealed oil / 100%
Key Configuration
• International brand electrical components
• Industrial PLC circuit control
• Industrial computer for stable operation
• Radiation protection system
Image Processing Functions
- Color / Black & White Imaging
- Organic / Inorganic Identification
- Super & Edge Enhancement
- Partial Enhancement & Grayscale Scanning
- Image Restoration & Zooming
- High/Low Energy Penetration
- Image Storage (>100,000 pictures)
- High Density Alarm
- Drug and Explosive Powder Detection
- Automatic Self-diagnosis
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer of security detection systems, focusing on strong, durable, and high-quality equipment.
What is the warranty period for your products?
We provide a one-year free warranty for failures caused by non-human factors and offer lifetime technical support.
Do you provide installation and training services?
Yes, we offer installation services, online training, and one-on-one technical guidance to ensure the system works properly.
What is your production capacity and lead time?
We have a large manufacturing base. Standard items in stock take 3-5 days; custom or out-of-stock items require 10-20 days.
How are the products packaged for transportation?
Products are securely packaged in wooden cases or reinforced boxes suitable for ocean, air, or land freight.
How do you ensure quality control?
Every production process is strictly controlled in accordance with ISO, CE, and FCC certifications.
