🔍 Product Description

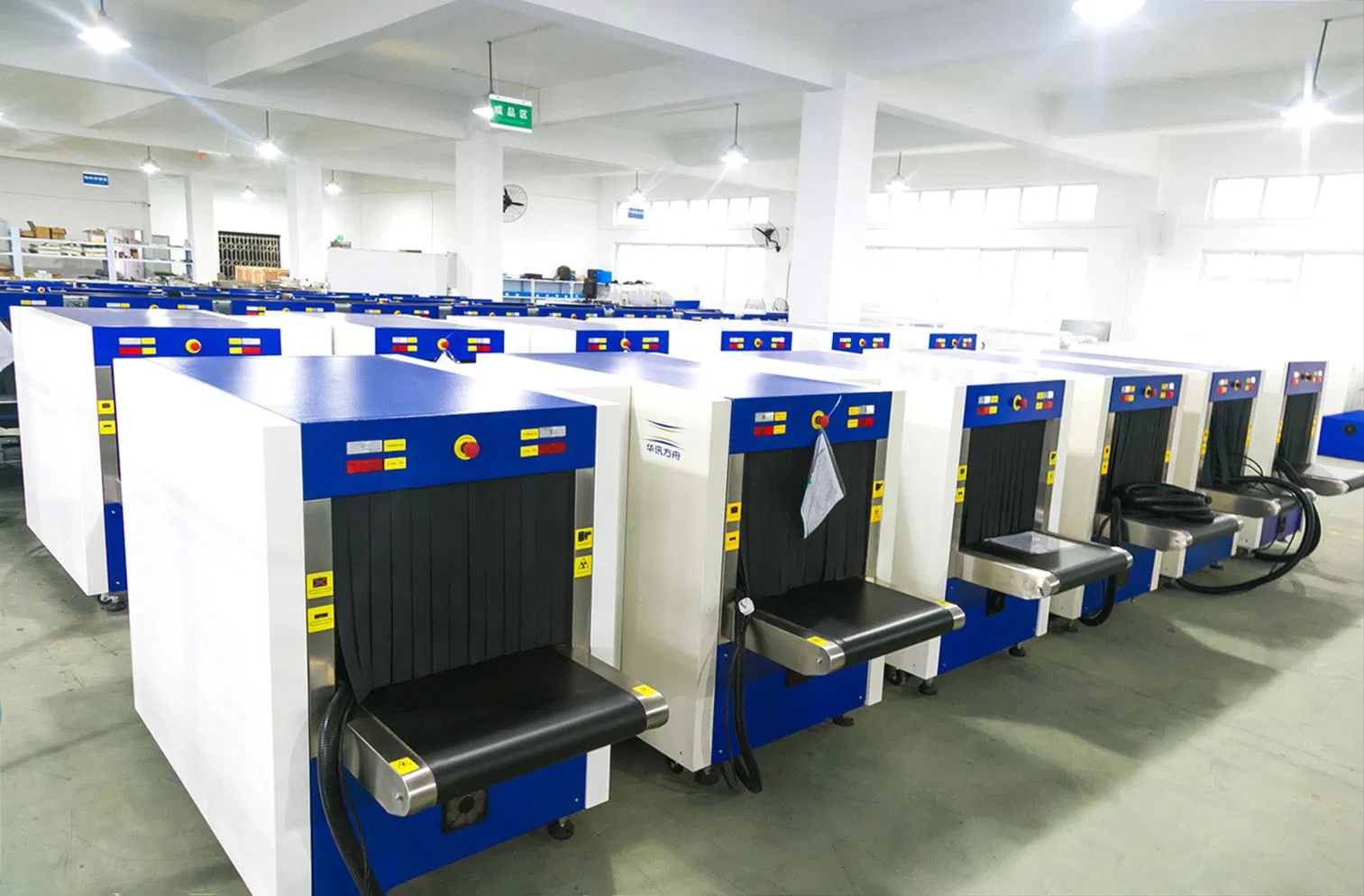

X-ray Baggage Scanner FDT-SE6550
The FDT-SE6550 X-Ray Baggage scanner is an essential security solution designed for rigorous inspection of baggage, goods, and packages. It is ideally suited for high-traffic and high-security environments including government buildings, research institutions, airports, subways, courts, prisons, military units, and large-scale public events.
⚙️ General Specifications
Physical Dimensions
Size: 2125mm(L) × 935mm(W) × 1290mm(H)
Tunnel Size: 655mm(W) × 505mm(H)
Weight: 392Kg
Operation Performance
Conveyor Speed: 0.20 m/s
Conveyor Height: 651mm
Power Consumption: 0.6kVA
Environment
Storage Temp: -40ºC to +60ºC
Operating Temp: 0ºC to +40ºC
Humidity: 5% ~ 95% (non-condensing)
📊 Technical Performance
Detection Capability
Penetration: 34mm - 38mm Steel
Wire Resolution: 40AWG
Spatial Resolution: Horiz Ф1.0mm, Vert Ф1.0mm
X-Ray Generator
Tube Voltage: 140~160kV (Adjustable)
Tube Current: 0.4~0.7mA (Adjustable)
Cooling: Sealed Oil / 100% Duty Cycle
💡 Advanced Configuration
International brand electrical components
Industrial PLC circuit control
Clear image analog conversion
Stable Industrial computer system
Ergonomic reading system
High-standard radiation protection
🖼️ Image Processing Functions
Color / Black & White Imaging
Organic / Inorganic Separation
Super & Edge Enhancement
High/Low Energy Penetration
Image Playback (50 frames)
Storage > 100,000 images
🛡️ Safety Features
One-key Shut-down
High Density Alarm
Drug & Explosive Powder Detection
Automatic Self-diagnosis
❓ Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer of security detection systems, focusing on durable quality and comprehensive service.
What product series do you offer?
We provide 11 security series including X-Ray scanners, Body Scanners, Metal Detectors, Explosive/Narcotics Detectors, and Under Vehicle Surveillance.
What is your MOQ and customization capability?
OEM and ODM are highly welcome. Our MOQ is flexible, and we are available to provide single units for sample testing.
What is the warranty and after-sales policy?
We provide a 1-year free warranty and lifetime technical support. After-sales include installation guidance, online training, and maintenance services.
How long is the delivery lead time?
For items in stock, it takes 3-5 days. For production orders, the typical lead time is 10-20 days depending on the quantity.
How do you ensure product quality?
Every production process is strictly controlled in accordance with ISO, CE, and FCC certification standards.
