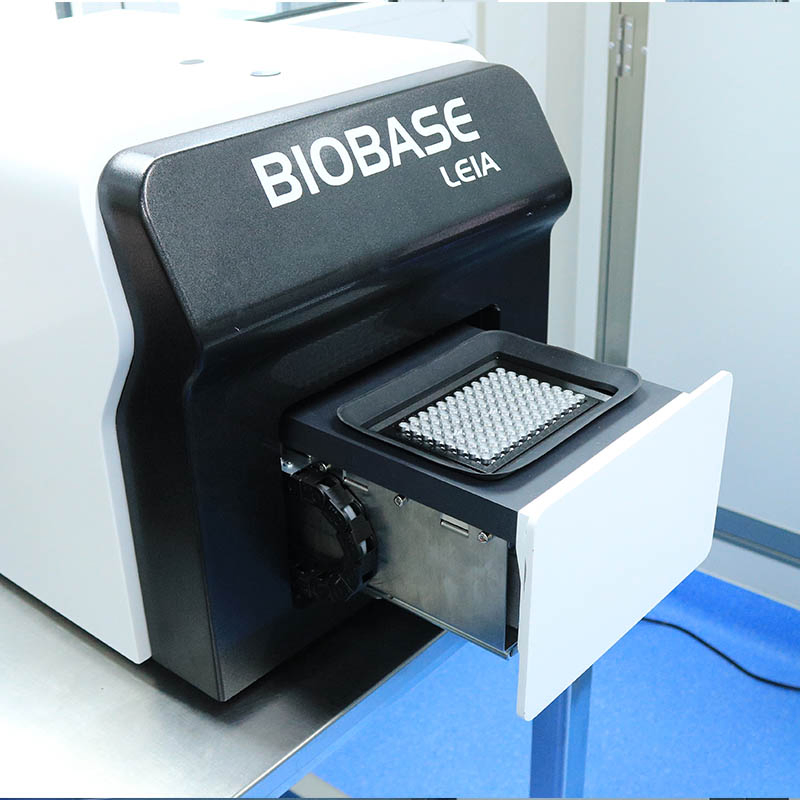

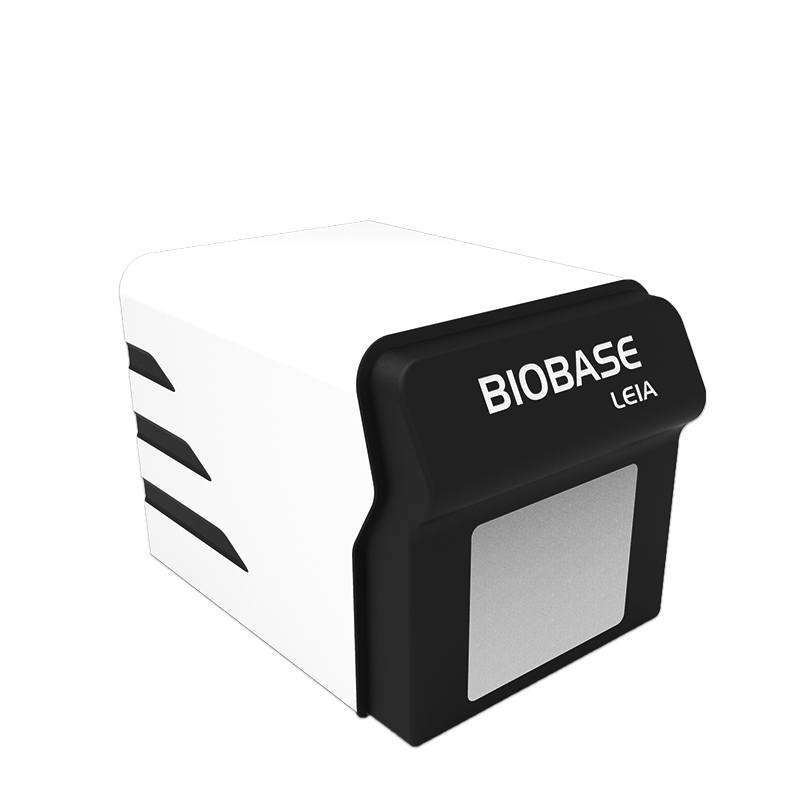

Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab
Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab
Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab
Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab
Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab
1 / 5
Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab
Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab
Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab
Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab
Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab

Biobase Lab Qpcr Thermal Cycler Rt PCR Detection System Real Time PCR for Lab

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Overview & Basic Information
Model NO.
LEIA-X4
Certification
CE, ISO13485
Sample Capacity
96X0.1ml PCR Plate
Reaction System
10~50μL
Dynamics Range
1-1010 Copies
Channel
4
Emission Light
LED
Detector
MPPC
Ramp Rate
5.0℃/S (Max)
Temp. Range
4-99℃
Product Description

Real-Time PCR Quantitative Detection System

Real-time PCR is used for sensitive, specific detection and quantification of nucleic acid targets. This system features powerful assay design algorithms, optimized qPCR reagents, and intuitive data analysis software to harness the power of qPCR across a rich and diverse set of applications.

Real Time PCR Detection System

Application Fields:

  • Infectious disease research
  • Food pathogen detection
  • Waterborne pathogen detection
  • Pharmaceutical analytics
  • Oncology and genetic disease research

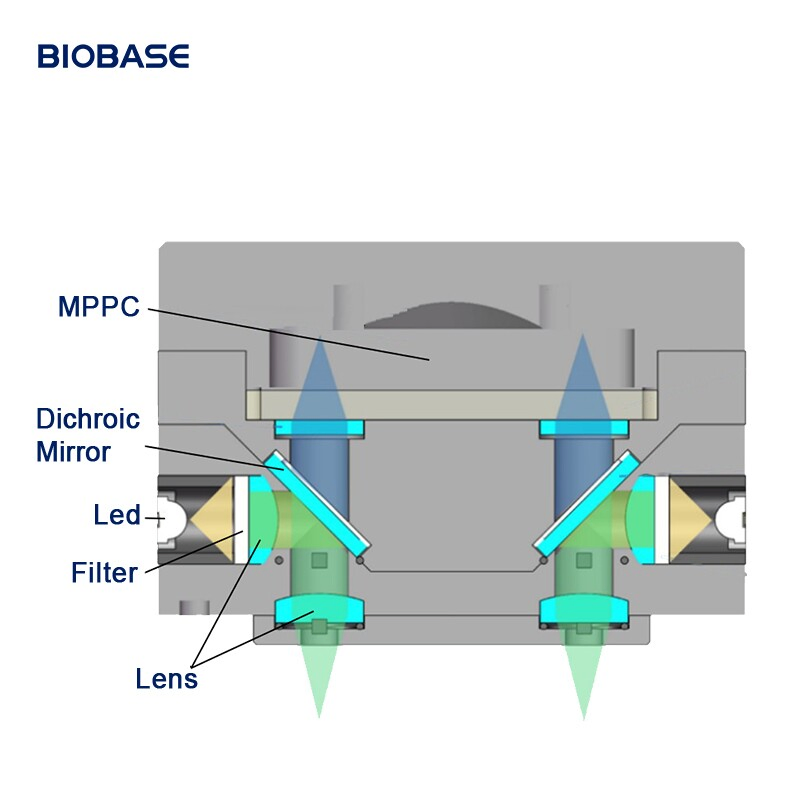

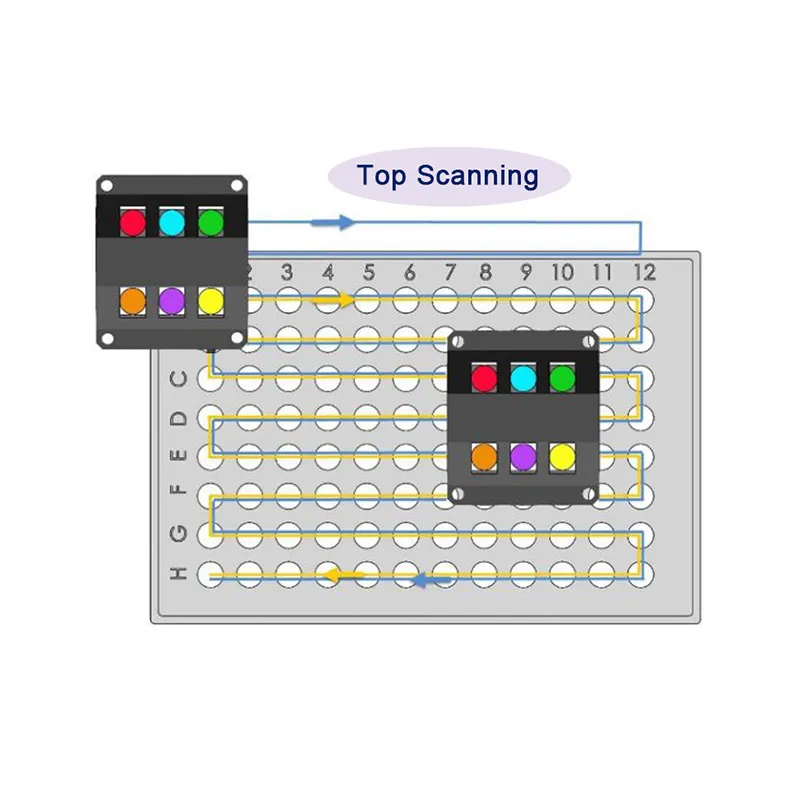

Working Principle: The temperature step change is controlled by the semiconductor Peltier to realize PCR amplification. High-sensitivity MPPC units detect fluorescence. Program control channel switching, non-contact top excitation/detection, and coordinated X and Y axis movement achieve precise 96-well scanning.

PCR Detection Analysis

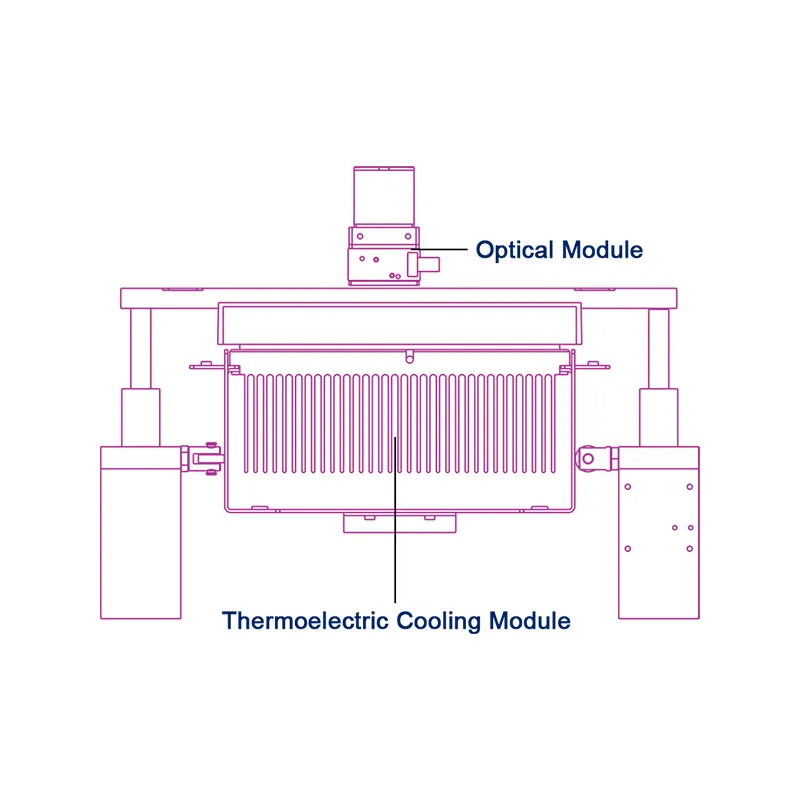

PCR Detection Unit

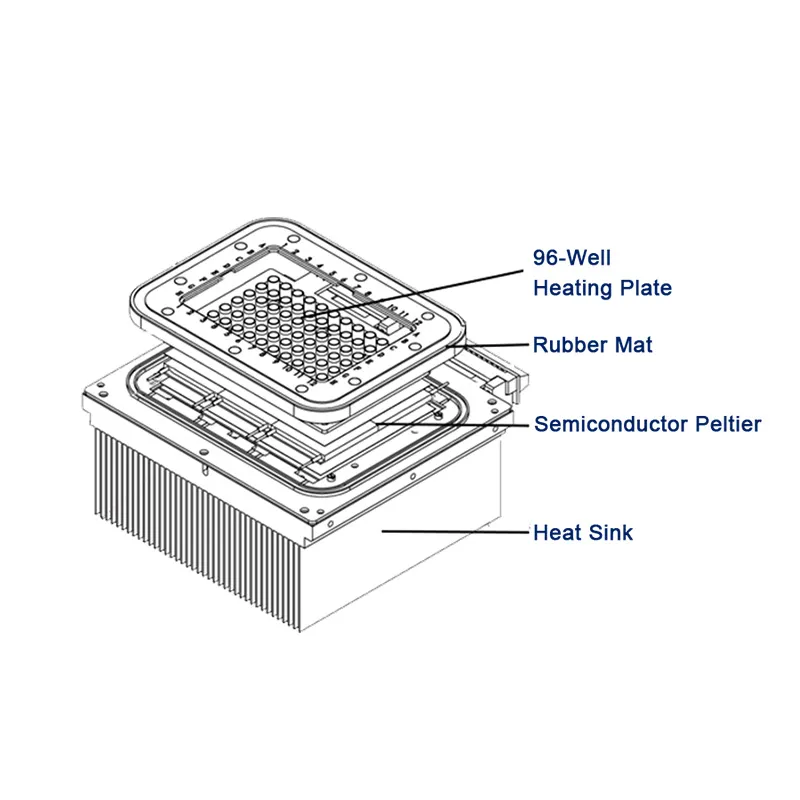

PCR Hardware Detail
PCR Internal Structure

Key Features:

  • Excellent temperature control with max ramp rate of 5.0ºC/s.
  • No edge effect and no optical path correction required.
  • High sensitivity MPPC sensor for fluorescence detection.
  • Long-life maintenance-free LED light source.
  • 4-channel detection with no cross interference.
  • User-friendly software with comprehensive analysis and reporting.

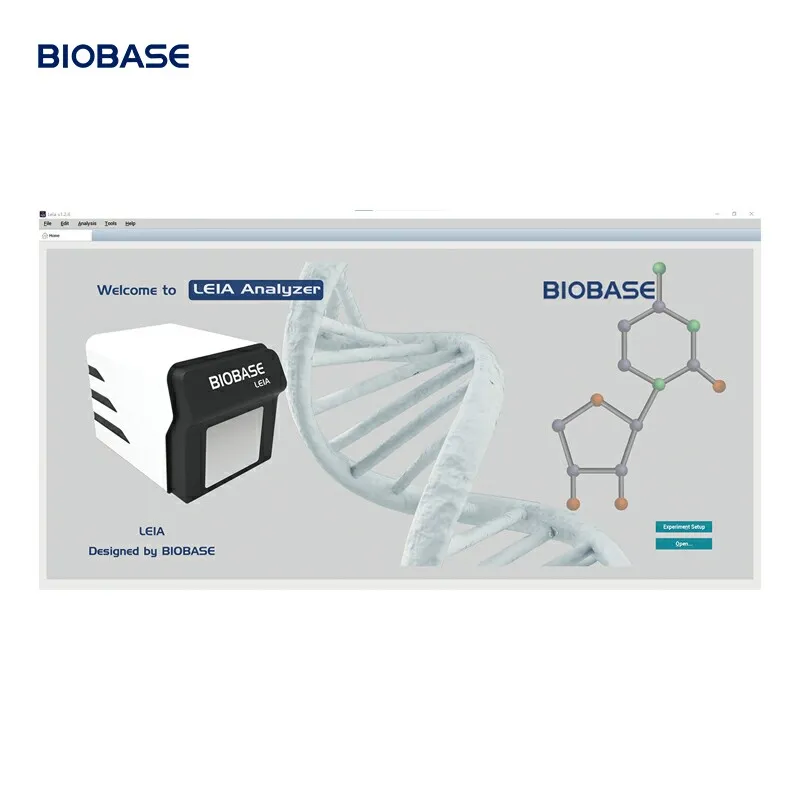

Software Interface

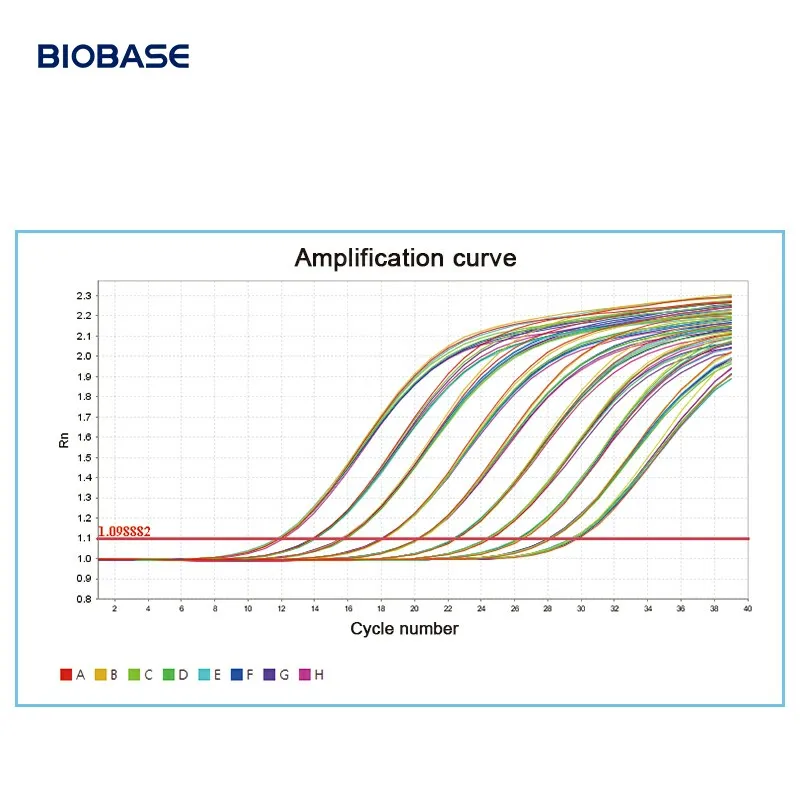

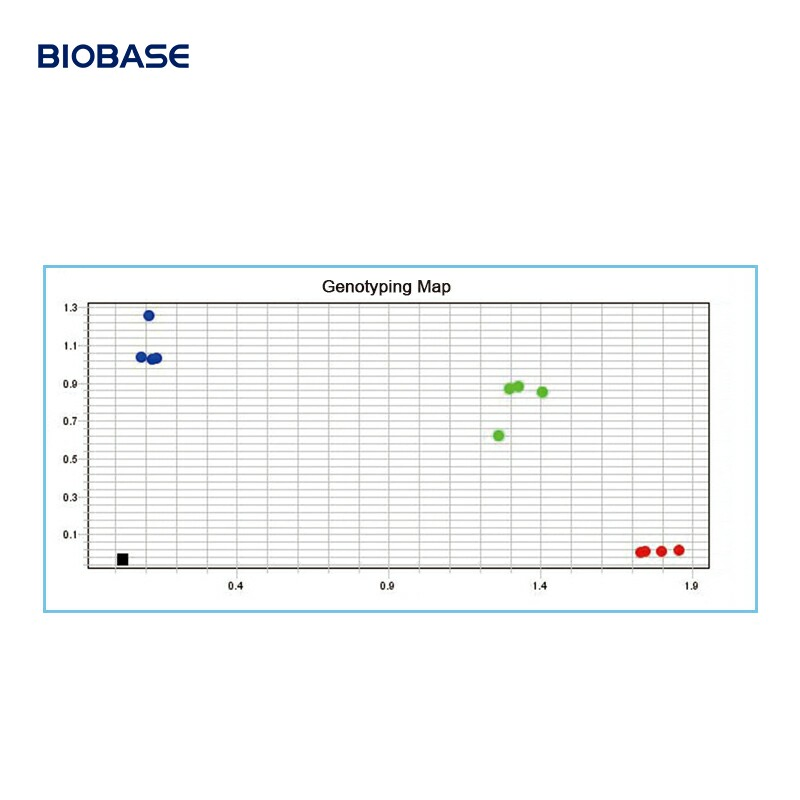

Analysis Curves

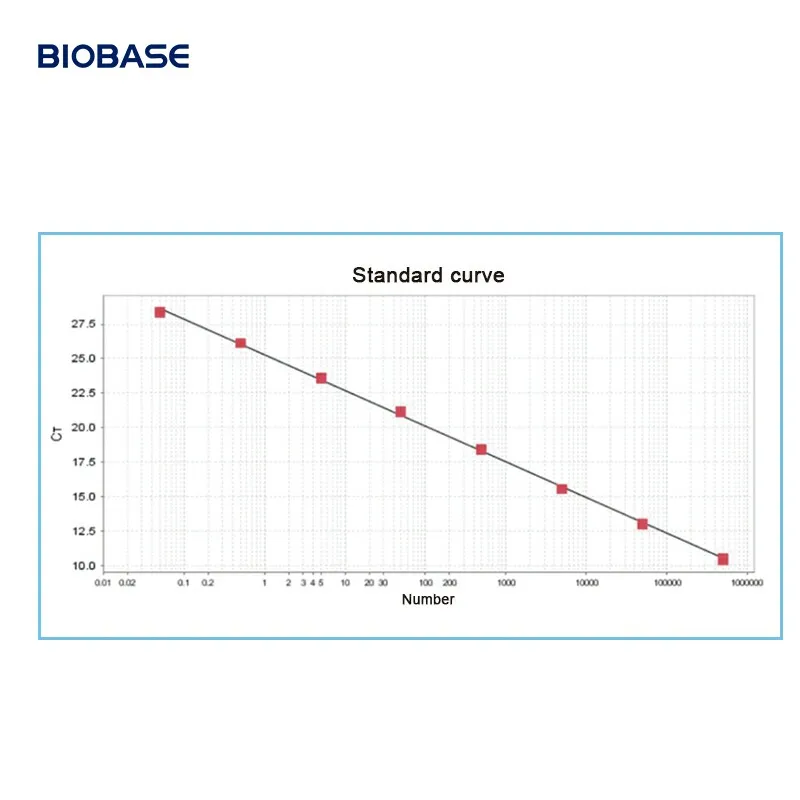

Data Report
Technical Parameters
Specification Details
ModelLEIA-X4Sample Capacity96x0.1ml PCR plate / Strip tubes
Reaction System10~50μlDynamics Range1-1010 copies
Channels4 ChannelsDetectorMPPC
Detection PathF1, F2, F3, F4Suitable DyeFAM, SYBR Green, VIC, JOE, HEX, ROX, Cy5
Excitation Wavelength455~680nmDetection Wavelength510~730nm
Temp. Accuracy±0.3ºCTemp. Uniformity≤ ±0.3ºC
Scanning Time8.5sOperation SystemWindows 10
Dimensions375*490*365 mmGross Weight45 kg
Certifications
Product Certifications
Manufacturing Capability
Production Facility
Product Line & Categories

Specializing in:

  • Air protection and cold chain products
  • Analytical and laboratory instruments
  • Medical and clean room equipment
  • One-stop purchase solutions for lab construction
Product Line Overview
Frequently Asked Questions
What is the primary application of the LEIA-X4 PCR system?
The system is widely used for infectious disease research, food and waterborne pathogen detection, pharmaceutical analytics, oncology, and agricultural biotechnology.
How many fluorescence channels does the device support?
The LEIA-X4 features 4-channel fluorescence detection, allowing for multiplexing with dyes like FAM, SYBR Green, VIC, HEX, ROX, and Cy5 without cross-interference.
What is the temperature control performance?
The instrument offers excellent temperature control with a maximum ramp rate of 5.0ºC/s and a temperature accuracy of ±0.3ºC.
Which software functions are included?
The software supports absolute quantification, melting curve experiments, relative quantification (AACT), SNP analysis, and genotyping experiments.
Is the system compatible with standard PCR consumables?
Yes, it is compatible with 96x0.1ml PCR plates, 12x8-strip tubes, and 96*0.1ml single tubes with transparent covers.
What kind of maintenance does the light source require?
The system uses a long-life LED light source which is maintenance-free and provides stable emission wavelengths.
