Cheep Hunting Used Thermal Monocular
Cheep Hunting Used Thermal Monocular
Cheep Hunting Used Thermal Monocular
Cheep Hunting Used Thermal Monocular
Cheep Hunting Used Thermal Monocular
1 / 5
Cheep Hunting Used Thermal Monocular
Cheep Hunting Used Thermal Monocular
Cheep Hunting Used Thermal Monocular
Cheep Hunting Used Thermal Monocular
Cheep Hunting Used Thermal Monocular

Cheep Hunting Used Thermal Monocular

Customization: Available
Application: Hunting
Style: Handheld
Send Inquiry

Product Description

Basic Information

Model NO.
SHR-MR25
Structure
Monocular
Kind
Thermal Imaging Night Vision
Operation Principle
Infrared Night Vision
Shell Material
Plastic
Sensor
Uncooled Fpa
Resolution
384×288
Focal Length
25mm
Digital Zoom
2X, 3X, 4X
Screen
Color LCD 640*480
Operating Time
5 Hours Continuous
Protection Grade
IP66
Drop Resistance
1m
Weight
<0.5kg
Size
190*70*70mm
Production Capacity
200 Units / Month

Product Display

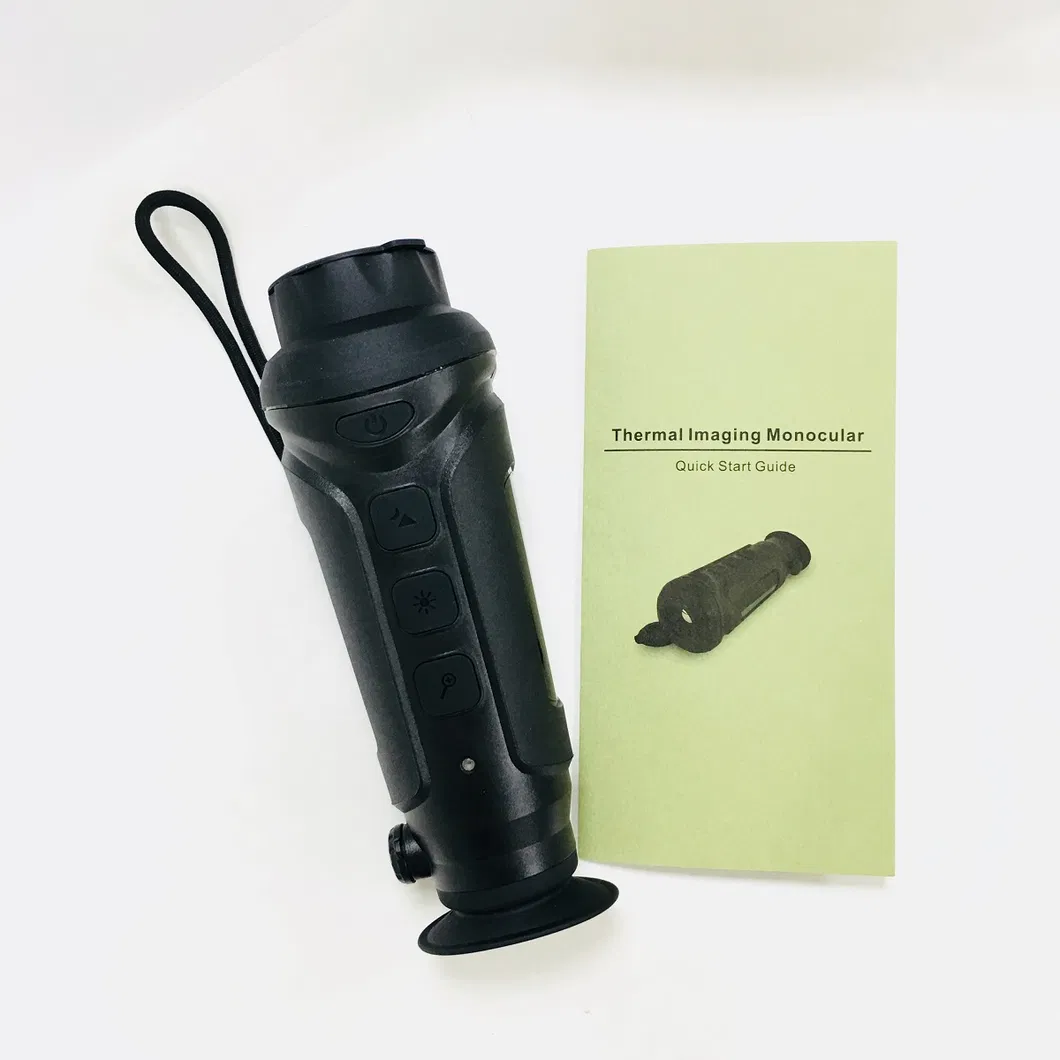

Used Thermal Monocular

Key Features

📏

Small size, easy one-hand operation for field use.

📶

Live transmission via WIFI & APP for real-time browsing and recording.

🛡️

IP66 protection rating with one meter drop resistance.

🎯

Hot-spot tracking and built-in multiple color palettes.

Technical Specifications

Category Parameters
Detector Type Uncooled FPA
Resolution 384×288
Imaging FOV 21.7°x16.4°
Focal Length 25mm
NETD 80mk@30ºC
Frame Rate 50HZ
Digital Zoom 2X, 3X, 4X
Spectral Range 8-14μm
Display Screen Color LCD 640*480
Color Palettes Black-hot, white-hot, red-hot
Power Operating Time 5 hours continuous
Charging USB charging and power bank support
Environment Working Temp -20ºC to +50ºC
Protection Class IP66
Detection Distance Human 550m
Car 750m

* Technical specifications are for reference only.

Frequently Asked Questions

What is the detection range for humans and vehicles?
The device can detect a human at up to 550 meters and a car at up to 750 meters. Recognition distances are 270m for humans and 380m for cars.
How long does the battery last on a full charge?
The built-in rechargeable Li-ion battery supports up to 5 hours of continuous operation and supports USB/power bank charging.
Is the device waterproof and durable?
Yes, it features an IP66 protection grade, making it resistant to dust and heavy rain, and it can withstand a drop of up to 1 meter.
Can I connect this monocular to my smartphone?
Yes, it supports WIFI live transmission. You can use a dedicated APP for real-time browsing, photographing, and recording on your smartphone.
Does it have different viewing modes?
Yes, the device includes multiple color palettes such as black-hot, white-hot, and red-hot to suit different environmental conditions.
What is the resolution of the thermal sensor?
The device uses an uncooled FPA detector with a resolution of 384×288 pixels.
