Current Airport Luggage Scanning System X-ray Baggage Scanner

1 / 1

Current Airport Luggage Scanning System X-ray Baggage Scanner

Customization:	Available
Portable:	Non Portable
Form:	Flatbed

Send Inquiry

Product Description

Basic Information

Model NO.

FDT-SE6550

Application

Security Check, Industrial

Type

Industrial High-definition X-ray Detector

Certification

CE, ISO, FCC

Customized

Available

Alarm Form

Display Alarm

Appearance

Vertical

Product Type

Conveyor

HS Code

9022191010

Production Capacity

1,000,000

Product Description

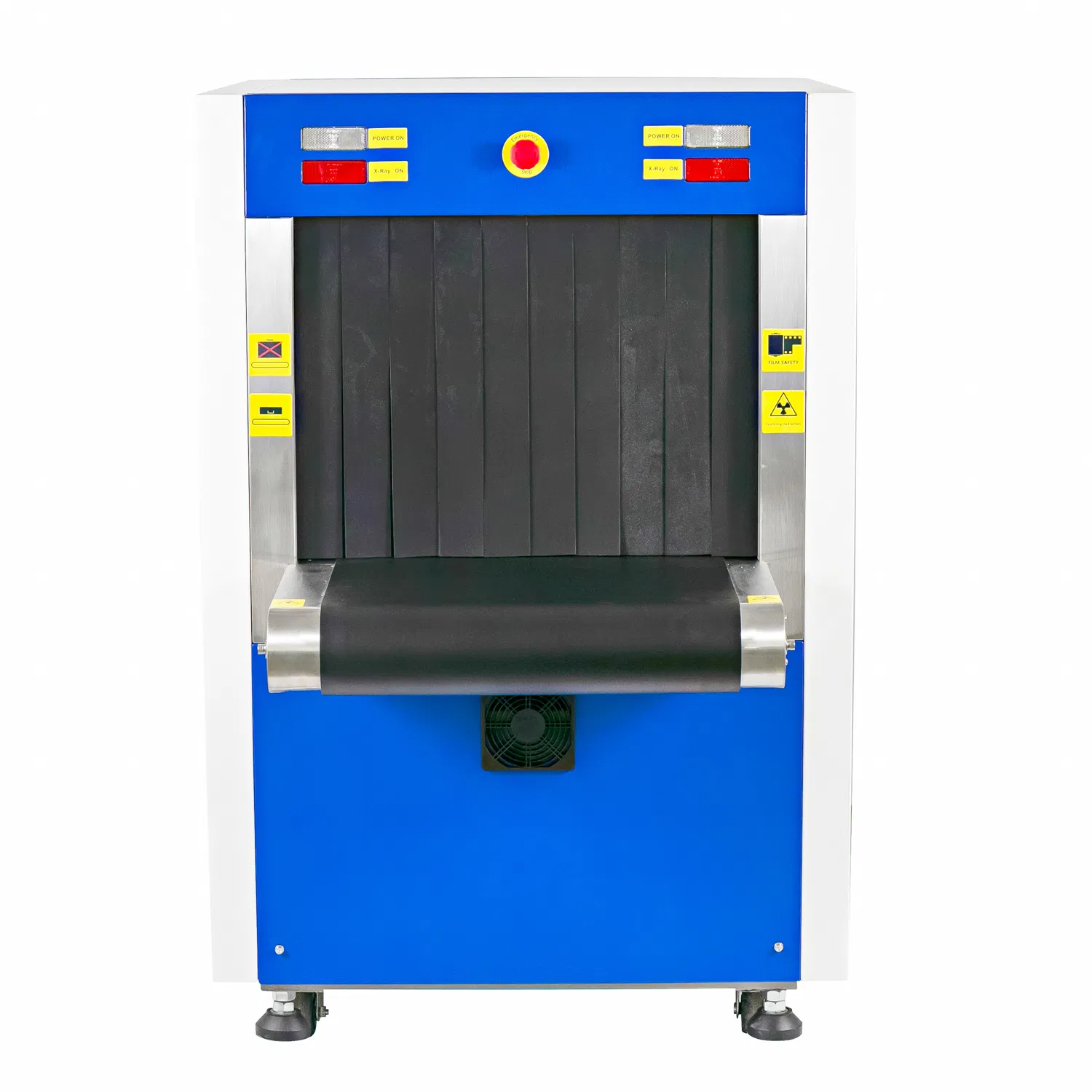

X-ray Baggage Scanner FDT-SE6550

Application: The FDT-SE6550 X-Ray Baggage scanner is extensively utilized for security inspections in public venues, including government buildings, airports, subways, courts, prisons, school examination rooms, large-scale events, station terminals, customs ports, and tourist attractions.

General Specifications

Dimensions: 2125mm(L)×935mm(W)×1290mm(H)
Tunnel size: 655mm (W) × 505mm (H)
Conveyor speed: 0.20 m/s
Conveyor height: 651mm
Weight: 392Kg
Storage temp/humidity: -40 ºC ± 3 ºC ~ +60 ºC ± 2 ºC / 5% ~ 95% (no condensation)
Operating temp/humidity: 0 ºC ± 3 ºC ~ + 40 ºC ± 2 ºC / 5% ~ 95% (no condensation)
Power: AC220 V (-10% to + 10%), 50Hz ± 3Hz
Power consumption: 0.6kVA

Technical Performance

Penetration: 34mm Steel(140KV) - 38mm Steel(160KV)
Wire resolution: 40AWG
Penetration resolution: 34AWG
Spatial resolution: Horizontal Ф1.0mm, Vertical Ф1.0mm
Noise: < 55db

X-Ray Generator

Generation direction: Bottom-Up
Tube voltage: 140~160kV Adjustable
Tube current: 0.4~0.7mA Adjustable
Cooling mode/duty cycle: Sealed oil / 100%
Generation angle: 80 °

System Configuration

International brand electrical components
Industrial PLC circuit control
Capacitance integral analog conversion for clear imaging
Industrial computer for long-term stable and reliable operation
Ergonomic reading system
Advanced radiation protection system

Image Processing Functions

Color / Black & White imaging
Organic / Inorganic material differentiation
Super enhancement and Edge enhancement
Partial enhancement and Grayscale scanning
Image restoration and Zoom functions
High/Low energy penetration
Image storage (>100,000 pictures) and Playback

Advanced Features

One-key shut-down
High density alarm
Drug and explosive powder detection
Built-in automatic self-diagnosis

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer of security detection systems, focusing on strong, durable, and high-quality equipment paired with considerate service.

What is your product range?

We provide a comprehensive range of security solutions including X-Ray Baggage Scanners, Body Scanners, Walk-Through Metal Detectors, Hand-Held Detectors, Under Vehicle Surveillance, and Explosive/Narcotics Detectors.

What is your MOQ and sample policy?

We offer flexibility with no strict MOQ for most items; single-piece samples are available for machine evaluation.

How long is the warranty and technical support?

We provide a 1-year free warranty for non-human caused failures and offer lifetime technical support and paid warranty extensions.

What kind of after-sales training do you provide?

We offer free online one-on-one training, installation guidance, and technical analysis through video calls or messaging platforms to ensure proper system operation.

How do you ensure product quality?

Every production process is strictly controlled in accordance with ISO, CE, and FCC certifications to maintain the highest industry standards.
