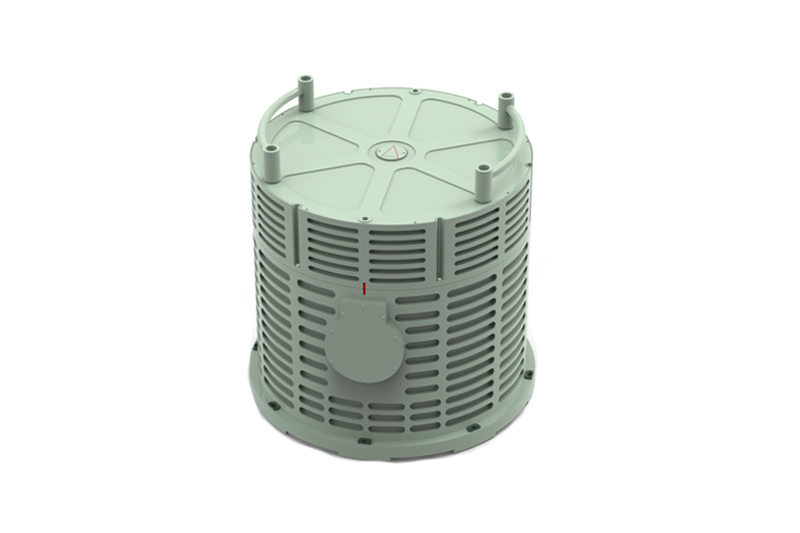

Dins-100 Dual-Axis Rotary Laser Gyro Inertial Navigation System with Proven Reliability

Customization: Available
Type: Servo
Output Signal Type: Digital Output

Product Description

📍 Basic Info.
Model NO.
DINS-100
Measuring Shafts
Double
Accuracy Grade
0.5G
IP Rating
IP30
Certification
ISO
Customized
Available
Product Category
Inertial Sensor
Transport Package
Carton
Origin
China
📘 Product Description
Dual-Axis Rotary Laser Gyro Inertial Navigation System

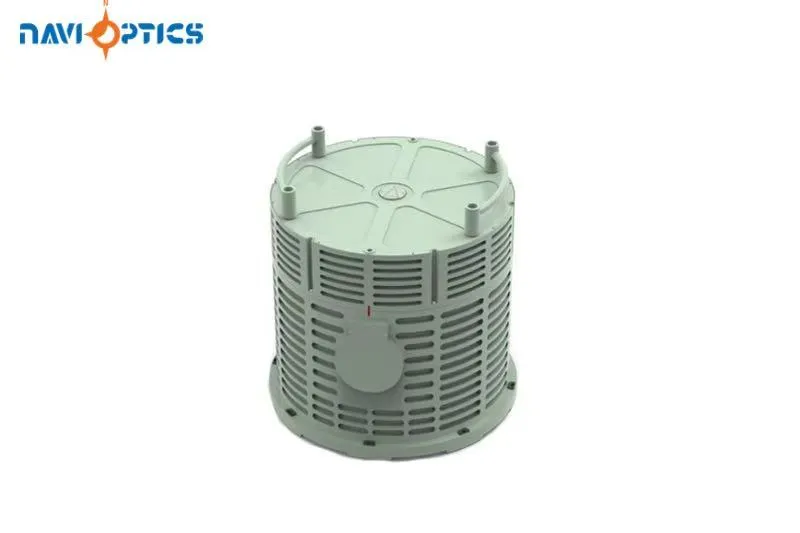

DINS-100 View 1

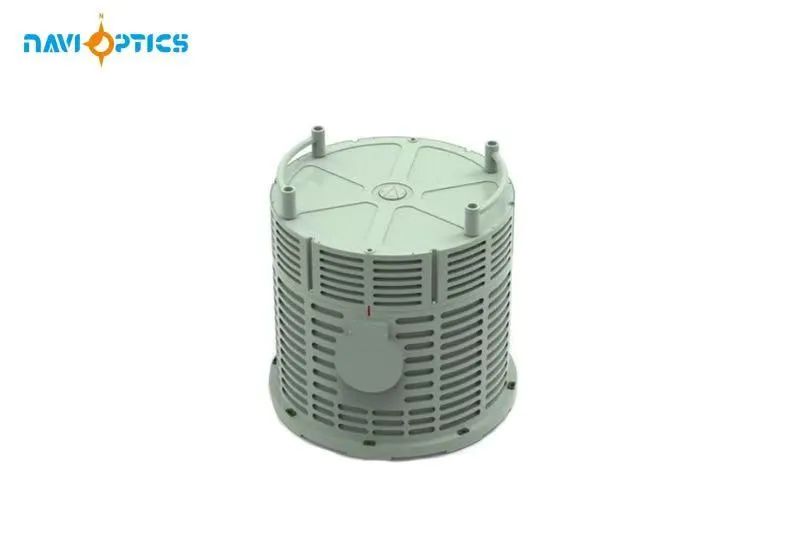

DINS-100 View 2
Category Parameters Performance Details
Performance Start-up time 6h
Pure inertial position 2nm/10d, peak
Pure Inertial Velocity 0.5m/s, 1σ
Pure Inertial Attitude 0.005deg, 1σ
Pure Inertial Heading 0.008×sec(Lat) deg, 1σ
Heave 5cm or 5%
Measuring Range Angular Velocity ±400deg/s
Acceleration ±20g
Working Environment Working Temperature -40℃~+55℃
Storage Temperature -55℃~+70℃
Vibration 0.04g2/hz @ 20~2000hz
Shock Resistance 30g @ 6ms / 50g @ 11ms
Electrical Operating Voltage 28VDC
Power Consumption ≤200W
Communication RS422 / RS232 / CAN / Ethernet
Physical Dimensions φ550x500 mm
Weight ≤60kg
🚀 Product Application

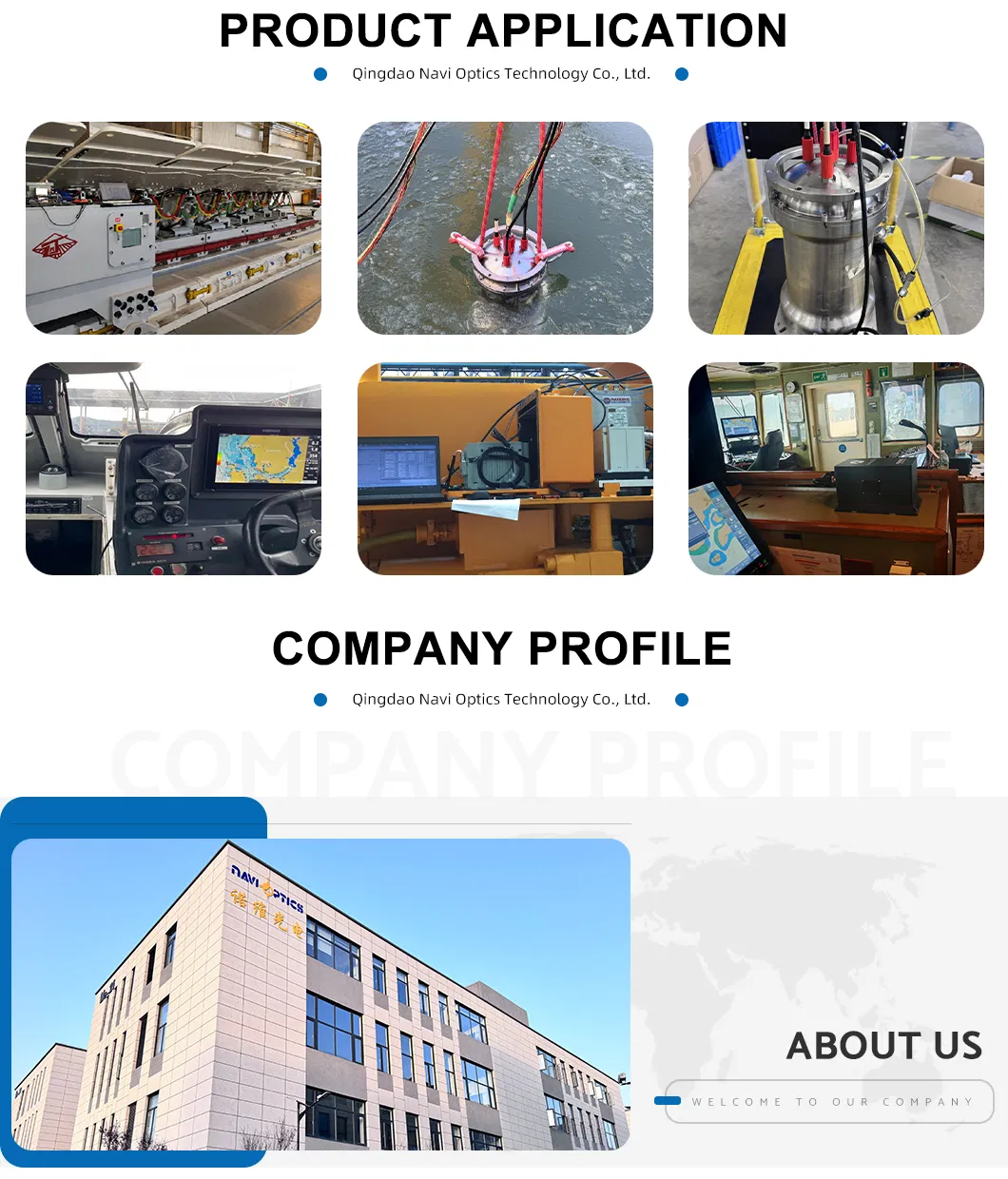

Inertial Navigation Application

Professional Solutions & Integration

We are a leading provider of cooled and uncooled infrared thermal imaging systems, fiber optic gyrocompasses, and high-precision inertial navigation systems. Our commitment is to enhance human perception through best-in-class intelligent imaging and sensing solutions.

With strong technical support from elite defense technology units and research universities, we maintain advanced production lines for low-cost, high-reliability fiber optic gyrocompasses optimized for marine vessels and industrial applications. Our systems have been successfully integrated into major international projects, earning a reputation for technical strength and market excellence.
🏭 OUR Factory

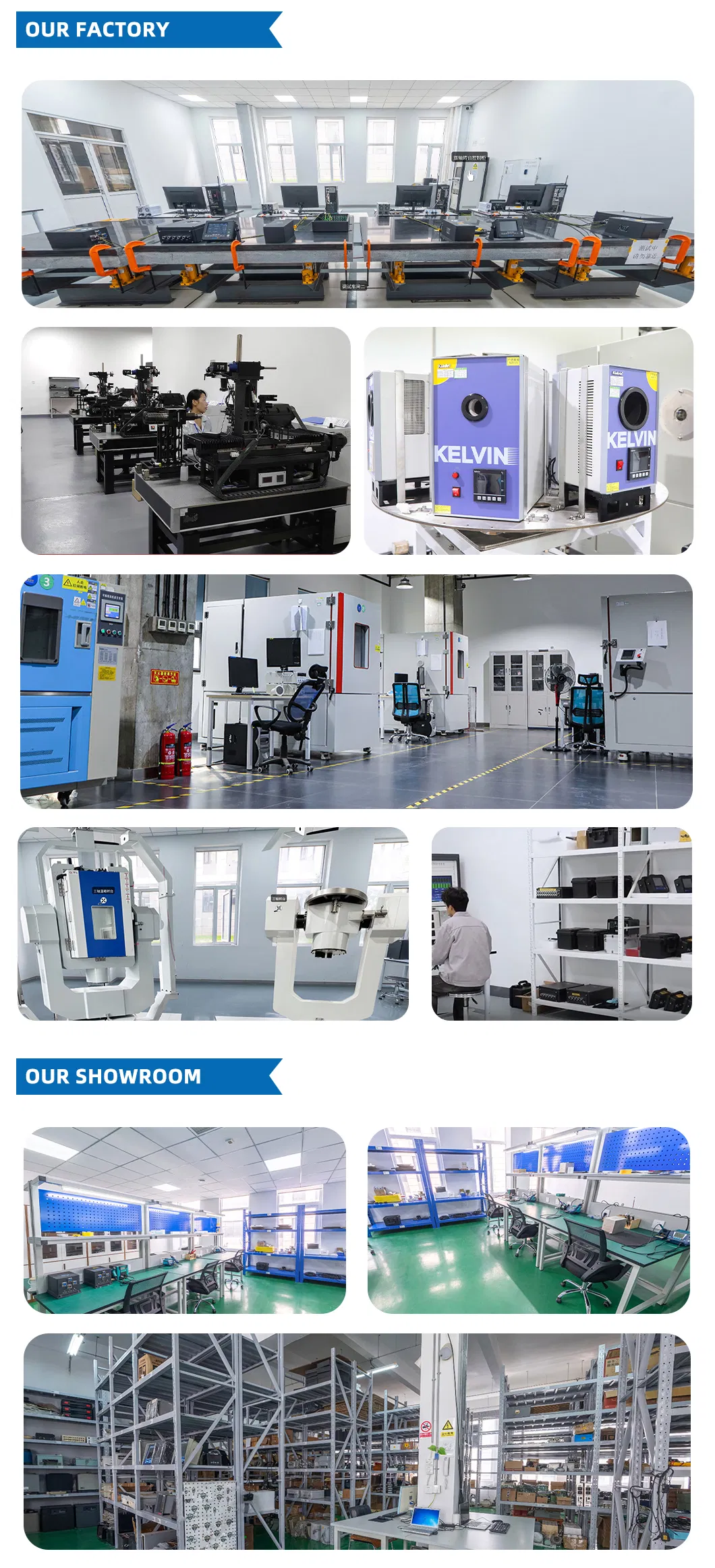

Factory Facility 1
Factory Facility 2
❓ FAQ
What kind of certificates do you have for this product?
Currently, we hold ISO, SGS, CCS, and MED certifications, ensuring our products meet rigorous international standards for quality and safety.
Can we perform a remote inspection via video call?
Yes, we provide live video inspection services for your convenience, allowing you to check the product's features and performance in real-time.
Do you support third-party factory inspections?
We welcome all customers to arrange for third-party inspections at our factory to verify product compliance and manufacturing quality.
What are your typical shipping methods?
We usually ship via international air-express services. Once the product is dispatched, we provide a tracking number immediately for real-time monitoring.
Is technical support available for system integration?
Absolutely. We offer efficient technical support and can assist with system integration, design, and after-sales service to ensure optimal performance.
Can the product be customized for specific requirements?
Yes, we support customization requests to tailor our inertial sensors and navigation systems to your specific operational needs.
