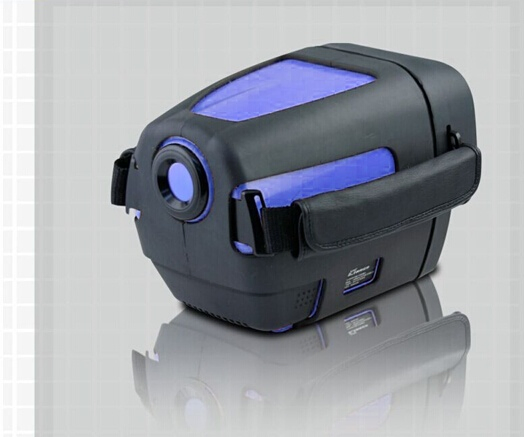

Excellent Performance Fire Infrared Thermal Imager
1 / 1
Excellent Performance Fire Infrared Thermal Imager

Excellent Performance Fire Infrared Thermal Imager

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
HRYXJ-A
Thermal Sensitivity
0.08
Sensor Type
Ufpa
Resolution
160X120
Working Band
8-14um
Image Model
Infrared Light Image Display
Screen
TFT LCD Screen
Video Output
NTSC (60Hz) or PAL (50Hz) Composite Video
HS Code
9031499090
Production Capacity
1000
Fire Infrared Thermal Imager HRYXJ-A View 1
Fire Infrared Thermal Imager HRYXJ-A View 2

Product Overview

HRYXJ-A Fire Infrared Thermal Imager is a professional fire rescue imager designed to display the infrared spectrum of objects with high resolution and sensitivity. It is engineered to detect both static and dynamic objects in challenging environments.

🛡️
Enhanced Storage: Supports storing images, video, and audio to a Micro SD card for further analysis and statistics.
⚡
High Performance: Quick set-up and easy operation, ideal for anti-terrorism search and fire-fighting rescue operations.
🔥
Explosion Proof: Certified as Exib I, making it suitable for use in hazardous environments.

Detailed Specifications

Field of View / Min Imaging Distance38° x 28.5° / 0.5m
Spatial Resolution4.1 mrad
Thermal Sensitivity≤0.08ºC @ 30ºC
Sensor Type / ResolutionUFPA / 160x120
Working Band8-14um
Temperature Range-20 ºC ~ + 250 ºC; + 200 ºC ~ + 600 ºC
Temperature ModeAutomatic capture of highest temperature point / center temperature
Parameters CorrectionAutomatic
Battery Working HoursNickel-metal hydride rechargeable battery / approx. 2.5 hours
Explosion LevelExib I

Frequently Asked Questions

What are the primary applications for the HRYXJ-A?
It is widely used in anti-terrorism search, fire-fighting rescue, and operations within hazardous environments due to its explosion-proof design.
Does this device support media recording?
Yes, the HRYXJ-A can store infrared images, video, and audio directly to a Micro SD card for reporting and analysis.
What is the thermal sensitivity of this imager?
The thermal sensitivity is ≤0.08ºC @ 30ºC, allowing for precise detection of temperature variations.
Is the device suitable for extreme temperature detection?
Yes, it features a dual-range temperature detection capability covering -20 ºC to +250 ºC and +200 ºC up to +600 ºC.
How long can the battery last during a mission?
The included nickel-metal hydride rechargeable battery pack provides approximately 2.5 hours of continuous working time.
What type of display and video output does it use?
It features a built-in TFT LCD screen and supports composite video output in both NTSC (60Hz) and PAL (50Hz) formats.
