Product Description

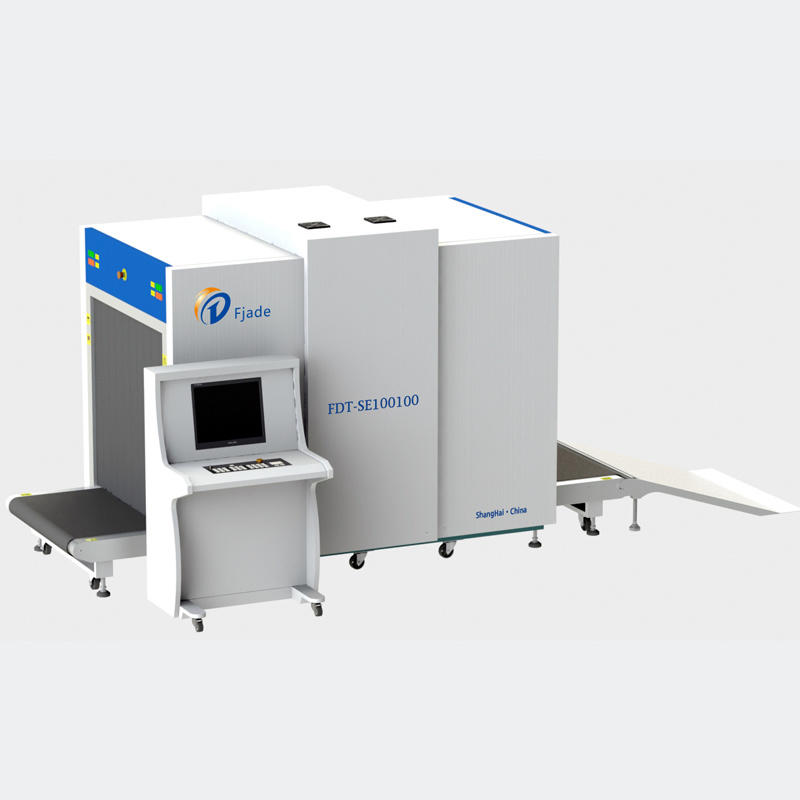

X-ray Baggage Scanner
FDT-SE100100
These X-ray baggage scanners operate based on the x-ray penetration principle. They are widely used in security sectors, covering national research institutions, detection centers, courts, prisons, army facilities, airports, subway and railway stations, docks, schools, embassies, tourist attractions, logistics centers, and large-scale events.
1General Specifications
- Dimensions: 3328mm(L)×1315mm (W)×1768.5mm(H)
- Tunnel size: 1010mm (W)×1010mm (H)
- Conveyor speed: 0.20-0.22m/s
- Conveyor height: 305mm
- Weight: 815Kg
- Operating Temp/Humidity: 0ºC±3ºC ~ +40ºC±2ºC / 5%~95%
- Power: AC220 V, 50Hz ± 3Hz (1.2KVA)
2Technical Performance
- Penetration: 30mm - 34mm Steel Plate
- Wire Resolution: 40AWG
- Spatial Resolution: Horizontal/Vertical Ф1.0mm
- Tube Voltage: 140~160kV Adjustable
- Tube Current: 0.4~1.2mA Adjustable
- Cooling: Sealed oil / 100% duty cycle
3System Configuration
- International brand electrical components
- Industrial PLC circuit control
- Capacitance integral analog conversion
- Industrial computer for stable operation
- Radiation protection system
4Image Processing Functions
- Organic / Inorganic separation
- Super & Edge enhancement
- Grayscale scanning & Image restoration
- High / Low energy penetration
- Drug and explosive powder detection
- Image storage (>100,000 pictures)
Frequently Asked Questions
1. Are you a professional manufacturer of security systems?
Yes, we are a professional manufacturer specializing in security detection systems, focusing on durable quality and satisfactory technical service.
2. What is the standard warranty for the equipment?
We provide a one-year free warranty for failures caused by non-human factors and offer lifetime technical support.
3. How long is the lead time after payment?
Normally, items in stock require 3-5 days. If production is needed, the lead time is approximately 10-20 days depending on the order volume.
4. Do you provide installation and training services?
Yes, we provide online training services and technical guidance. We can also offer on-site installation and debugging services upon request.
5. What packaging is used for international transport?
We typically use robust wooden cases or specialized boxes suitable for ocean, air, or land transportation to ensure equipment safety.
6. How is quality control managed during production?
Every production process is strictly controlled in accordance with ISO, CE, and FCC certification standards to ensure high-performance reliability.
