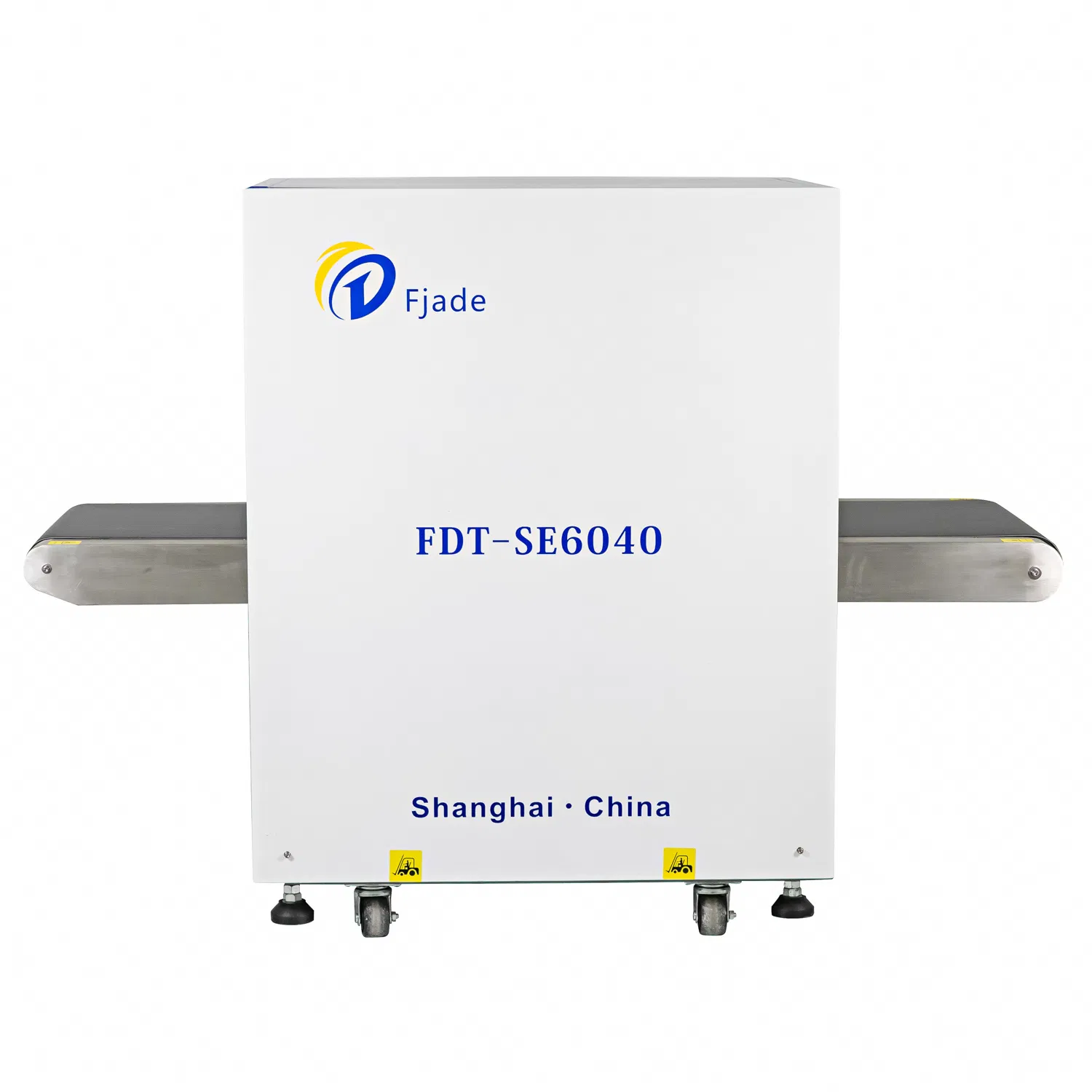

Baggage Scanner of Fdt-Se6040 Can Detect Articles by X-ray
1 / 1
Baggage Scanner of Fdt-Se6040 Can Detect Articles by X-ray

Baggage Scanner of Fdt-Se6040 Can Detect Articles by X-ray

Customization: Available
Portable: Non Portable
Form: Flatbed
Send Inquiry

Product Description

Basic Info.
Model NO.
FDT-SE6040
Application
Security Check, Industrial
Type
Industrial High-definition X-ray Detector
Certification
CE, ISO, FCC
Customized
Available
Alarm Form
Display Alarm
Appearance
Vertical
Product Type
Conveyor
Specification
1845*865*1313 mm
HS Code
9022191010
Capacity
10000 Units/Year
Product Description

FDT-SE6040 X-ray Baggage Scanner is an advanced security inspection solution widely utilized for screening baggage, goods, and packages. This system is ideal for high-security environments including government buildings, hotels, courts, prisons, logistics points, public security checkpoints, and international large-scale events.

Technical Specifications
Parameter Performance
Penetration43mm Steel Plate
Wire Resolution≤40AWG
Spatial ResolutionHorizontal: Ф1.0mm / Vertical: Ф1.0mm
Dose per Inspection≤3.0μGy
X-ray Leakage<0.1µGy/h
Tube Voltage100~160kV (Adjustable)
Tube Current0.4~1.2 mA (Adjustable)
Cooling / Duty CycleSealed Oil / 100%
System Features
  • Color / Black & White Imaging
  • Organic / Inorganic Separation
  • Super & Edge Enhancement
  • Grayscale Scanning & Restoration
  • High/Low Energy Penetration
  • Image Storage (>100,000 pictures)
  • One-key Shut-down
  • High Density Alarm
  • Drug & Explosive Powder Detection
  • Automatic Self-diagnosis
Reference Projects
ConferenceInternational Internet Conferences, Import Expos, World Swimming Championships.
TransportationHigh-speed railway stations, Bus terminals, Passenger stations.
Public SectorPeople's Courts, Prisons, Administrative Committees, Development Zones.
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer of security detection systems, focusing on durable quality and comprehensive technical support.
What is the warranty period for the X-ray scanner?
We provide a 1-year free warranty for non-human caused failures and offer lifetime technical support. Extended paid warranties are also available.
What image processing functions are included?
The system includes organic/inorganic imaging, super enhancement, edge enhancement, zoom in/out, high/low energy penetration, and capacity to store over 100,000 images.
How long is the delivery time after payment?
For items in stock, leading time is 3-5 days. For custom production or non-stock items, it typically takes 10-20 days depending on the requirements.
Do you provide installation and training?
Yes, we offer online training services and can provide on-site installation and commissioning services upon request to ensure systems work properly.
Which certifications do your products hold?
Every production process is controlled in accordance with ISO 9001, ISO 14001, CE, and FCC certifications.
